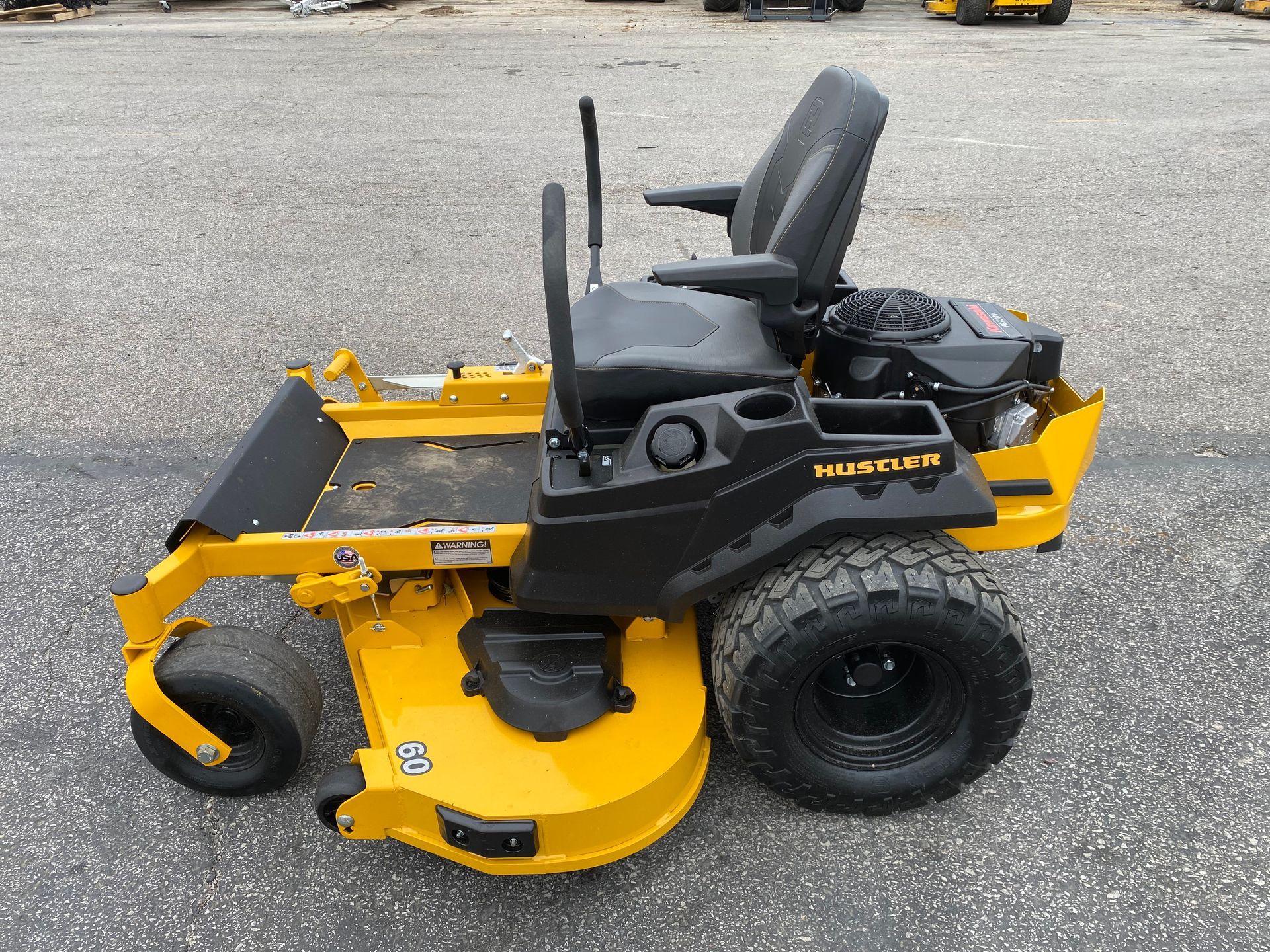

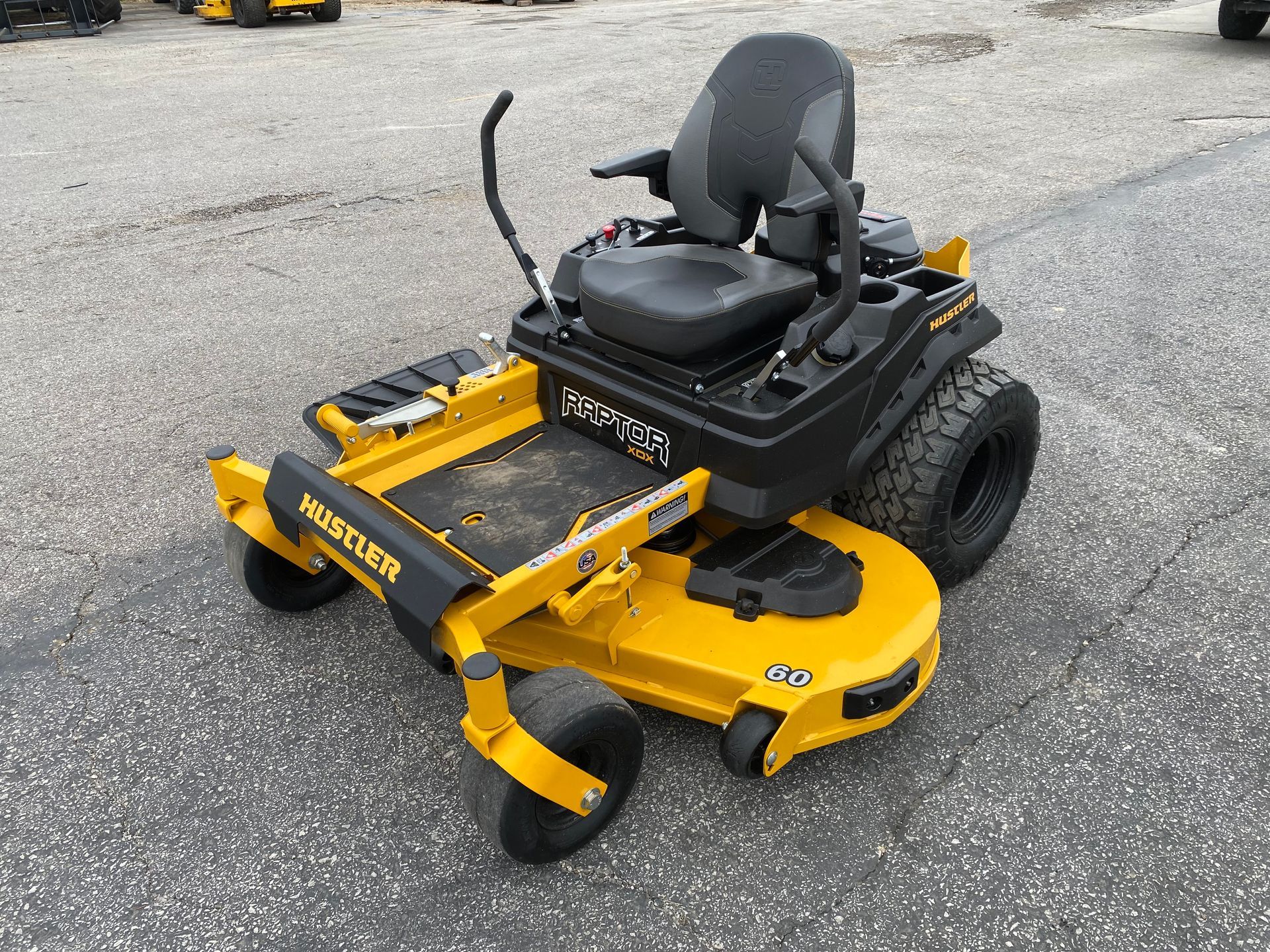

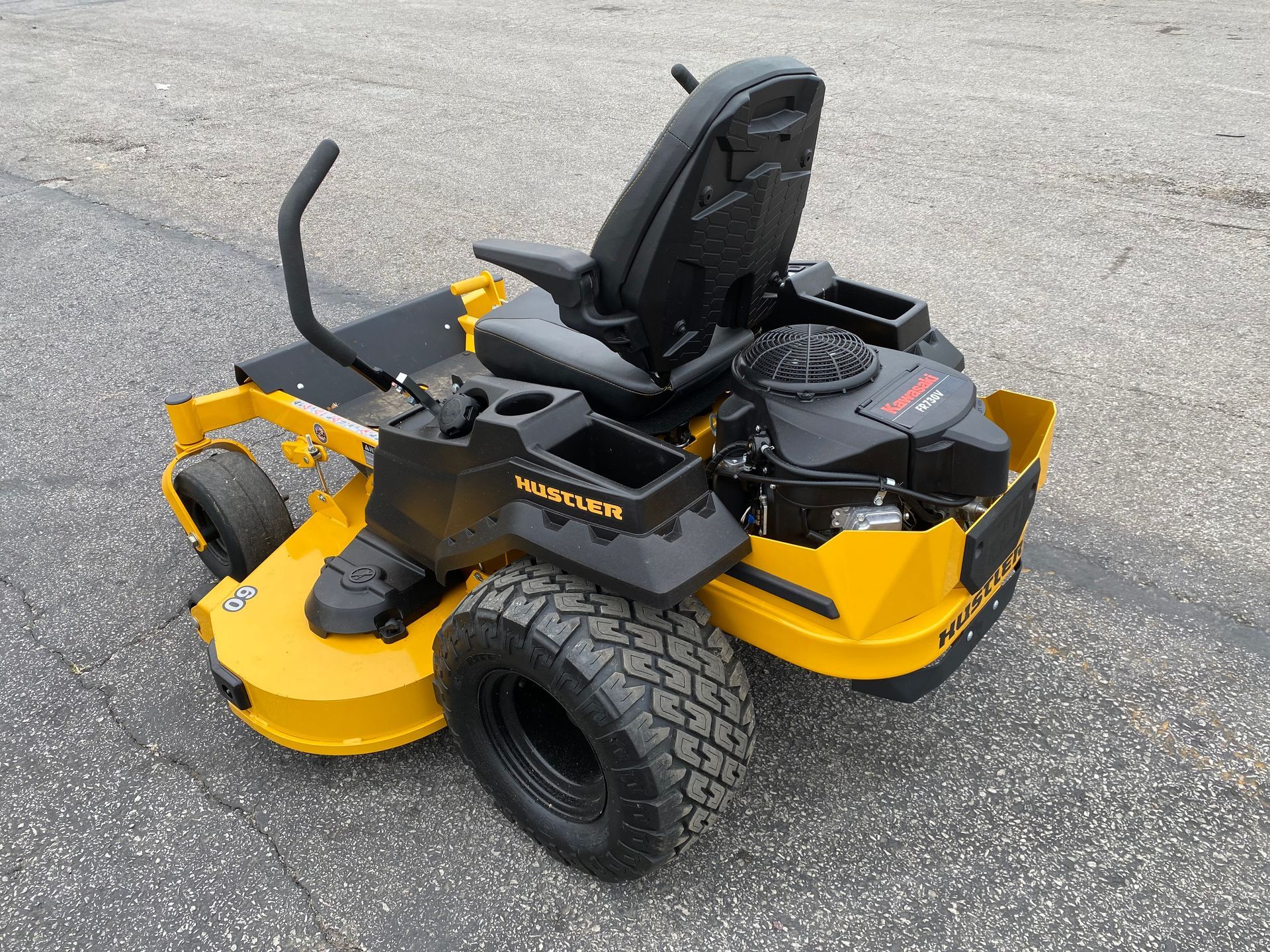

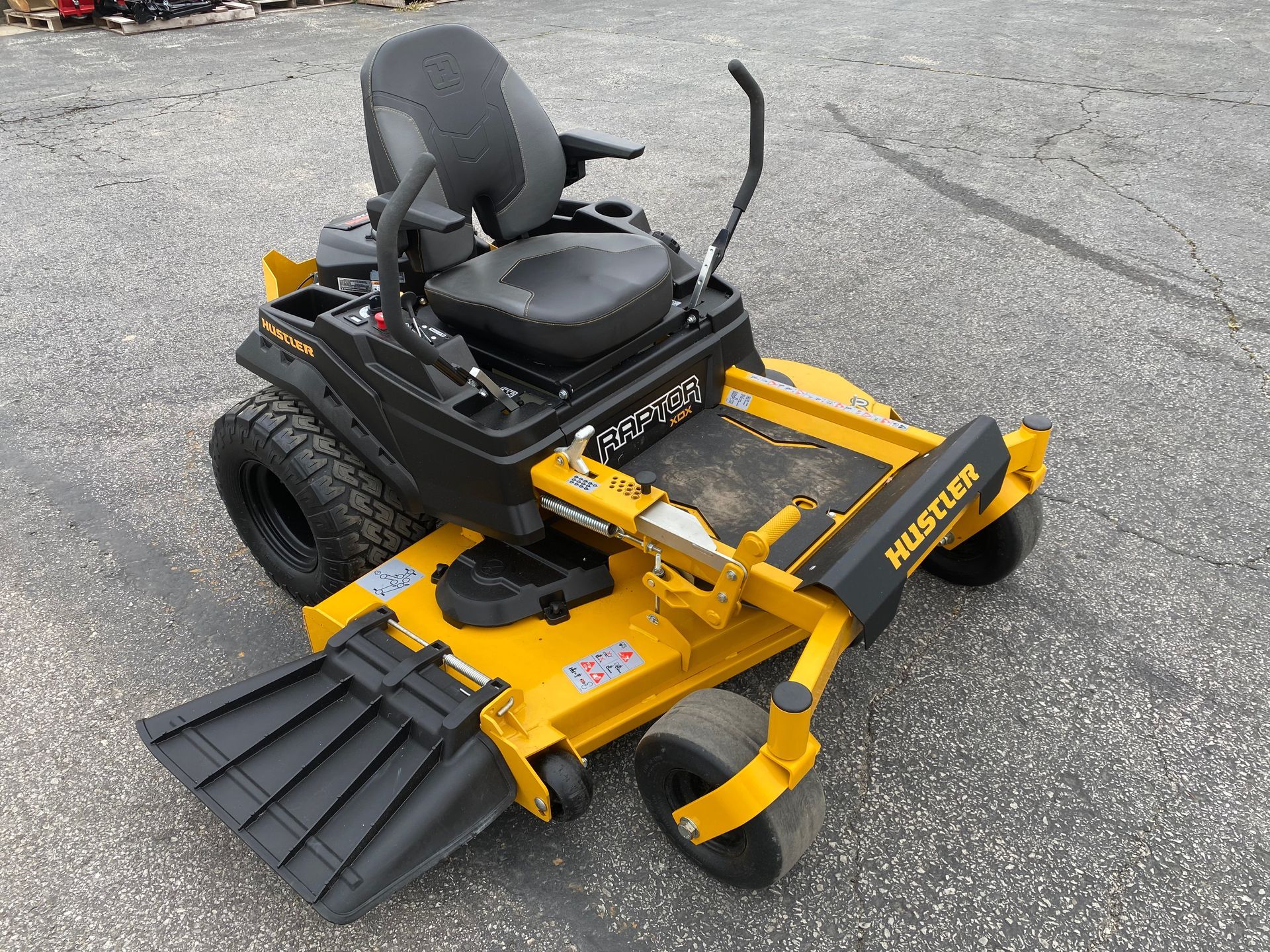

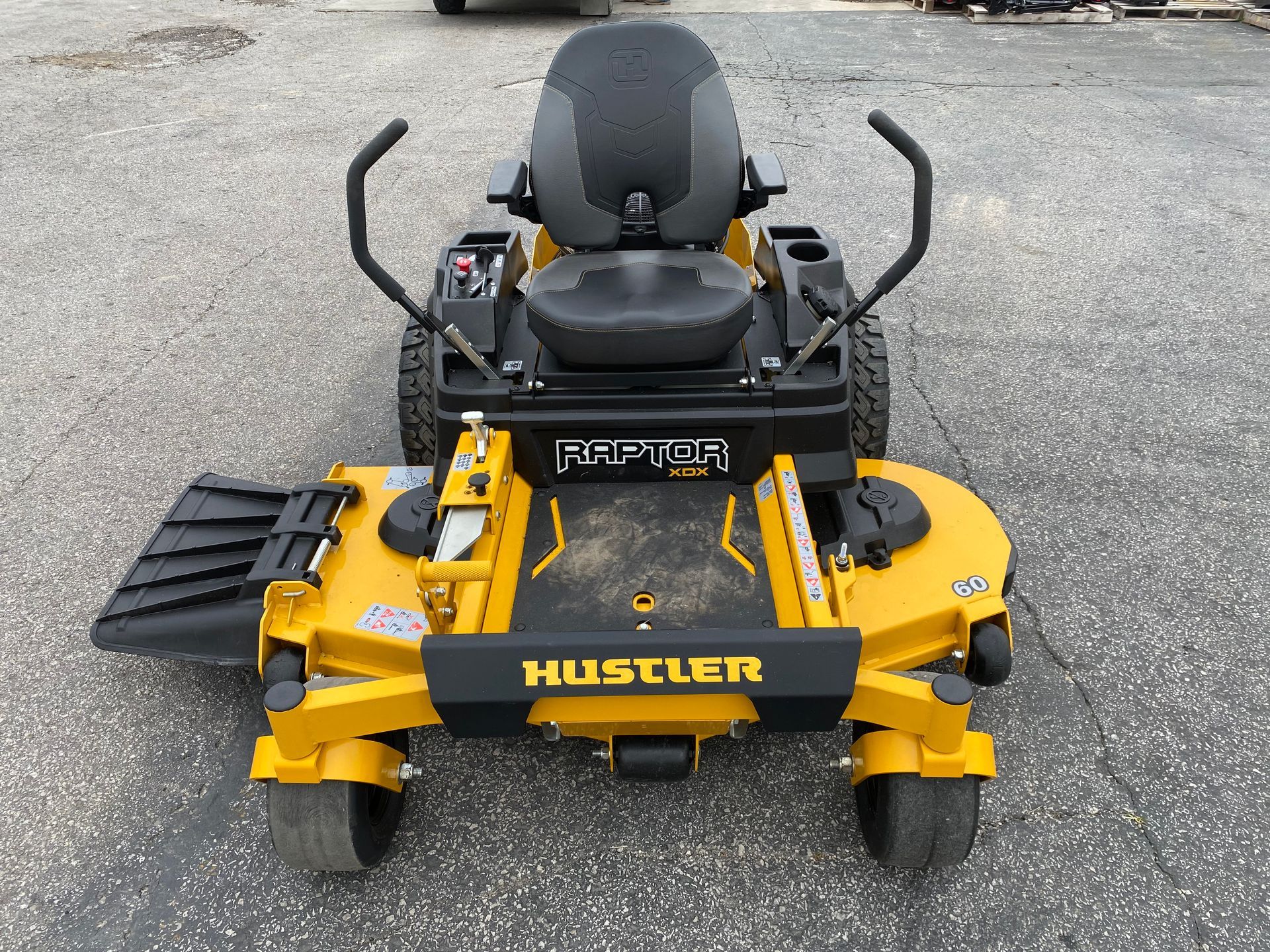

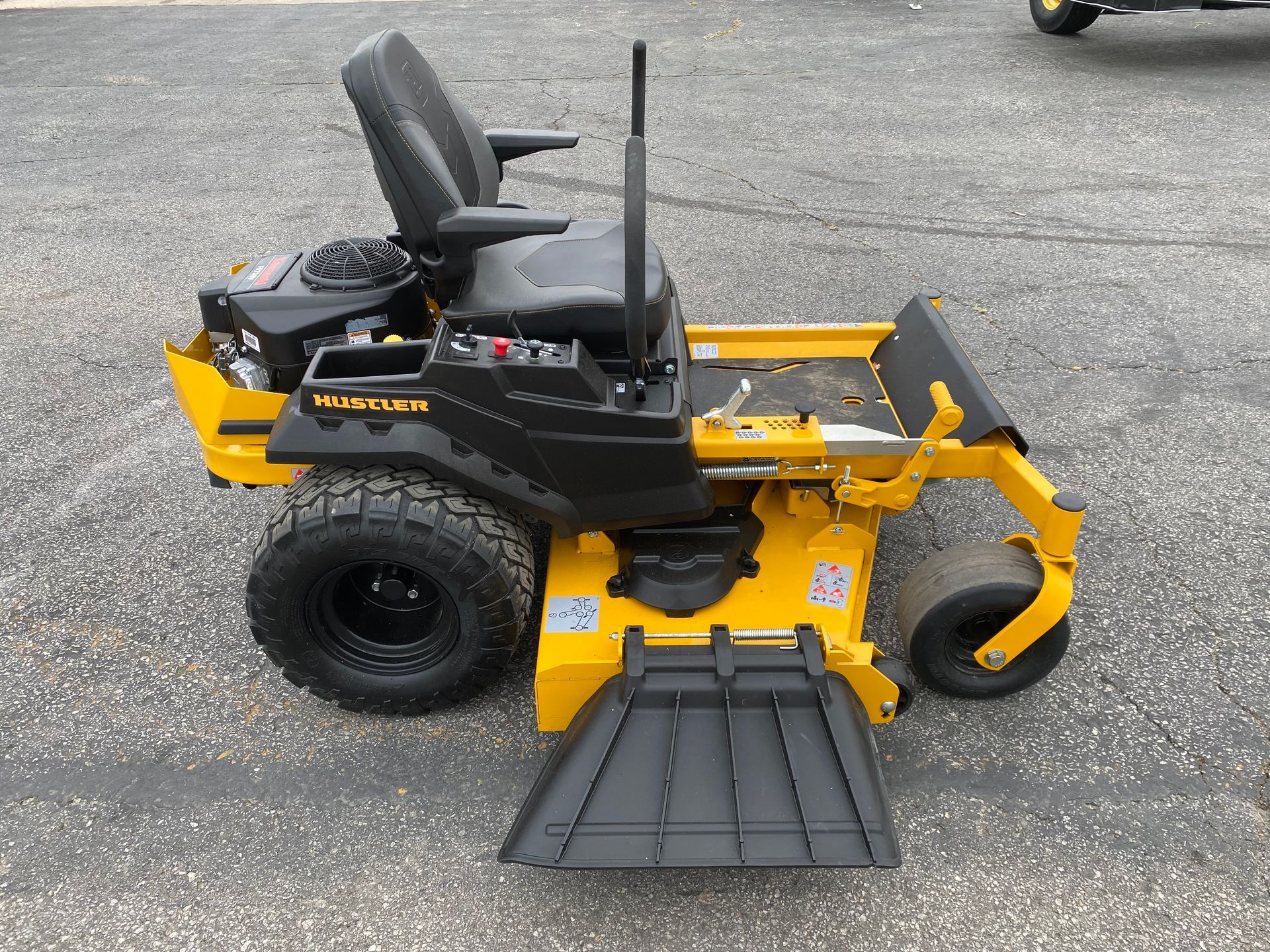

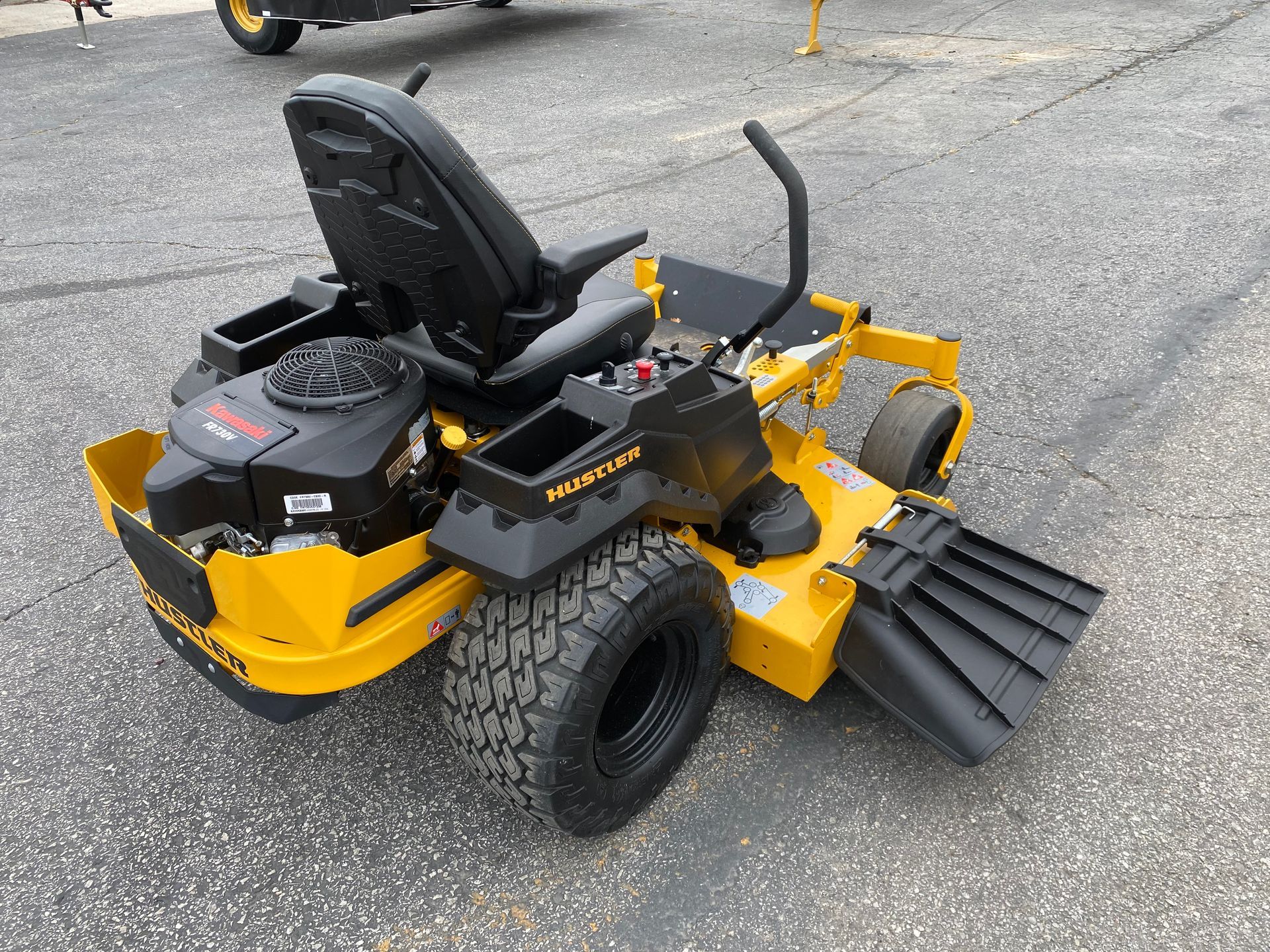

* 2021 Hustler Raptor XDX
* 97 Hours
* 60" Side Discharge Mower Deck

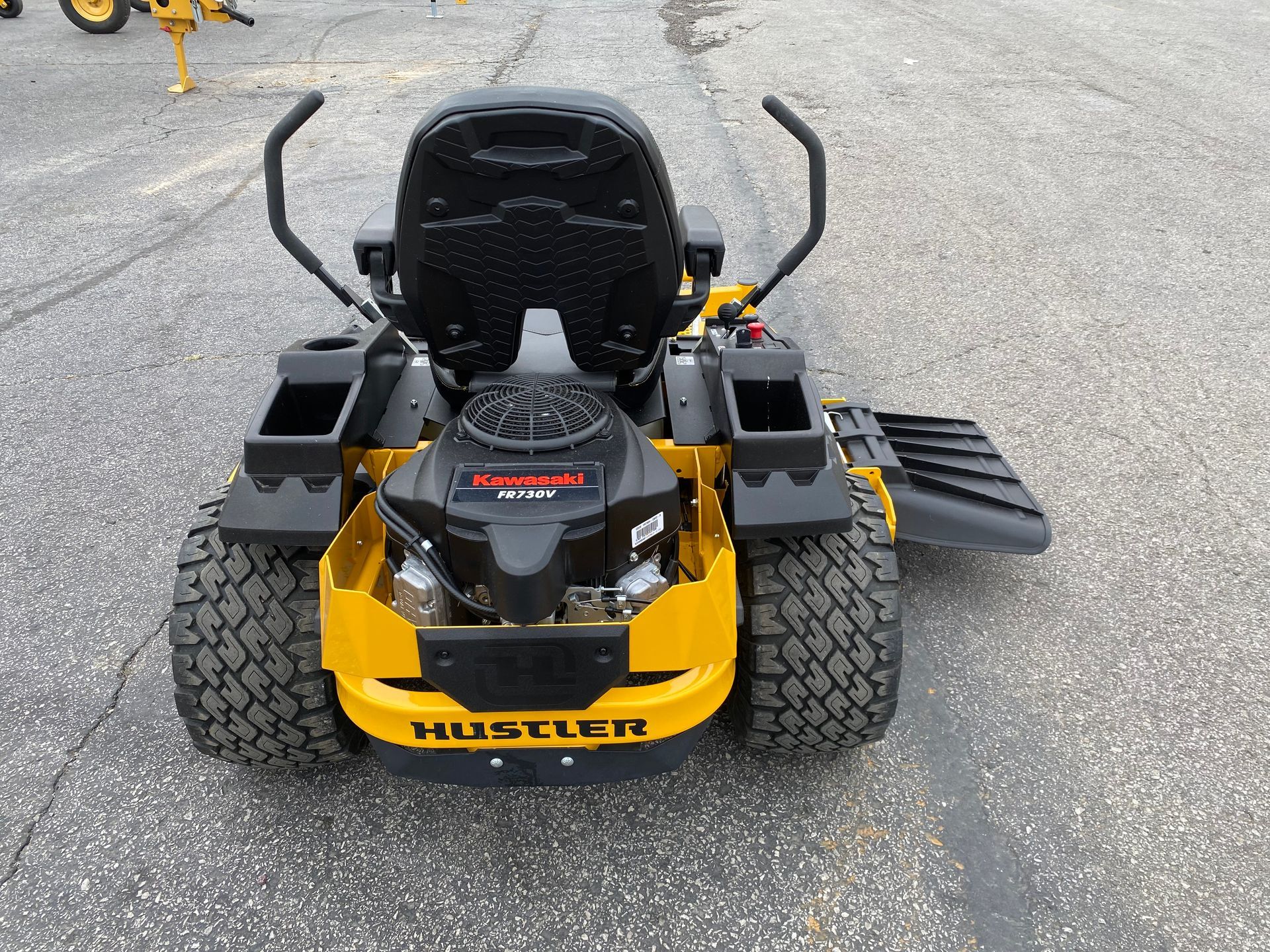

* Kawasaki FR730V 24HP Engine
* Warranty until 6-2-25
Features
* Premium Power - The V-Twin Kawasaki engine is the highest rated residential engine available
* Exclusive BigBite Rear Tires - We worked directly with the tire manufacturer on this design. You will not find them anywhere else
* Easy to Service - Flip-up seat pan, removeable floor pan, vented pulley covers
* Foot Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5" with less effort than hand-operated levers found on other brands
* Premium Residential Frame - Continuous one-piece 1-1/2"x 3" welded tubular frame not seen on any other residential mower. #1 in class
* Welded Steel Deck - 11 ga. welded fabricated steel deck adds durability & extends mower's life 9compared to other brand's cheap stamped decks)
* Wider Stance - Additional operator platform width provides more room & comfort for the operator
SmoothTrak Steering - Precision control to help trim & maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs

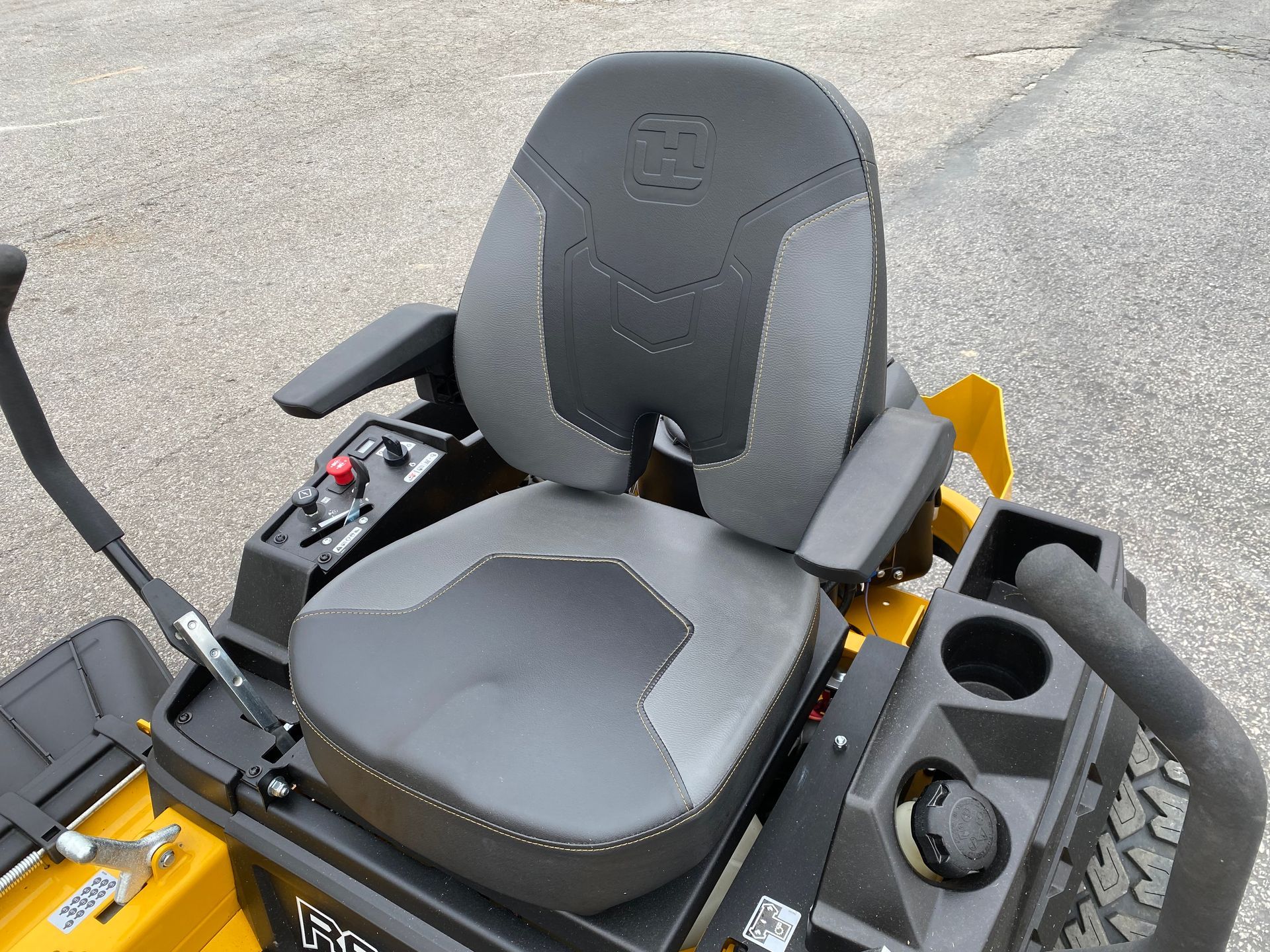

* Premium Seat - Provides a comfortable ride with higher-back seat, added padding, armrests & added airflow to the back
* Commercial Grade Deck - 10 Ga., front bull nose bumper, replaceable trim guard
* Ideal for up to 3 Acre
* Engine Manufacture - Kawasaki FR Series
* Engine HP - 24 - FR730
* Engine Displacement - 726cc
* Engine Cooling - Air cooled
* Engine Warranty - 3 year
* Drive System Type - Dual hydrostatic
* Drive System Transmission - Hydro-Gear ZT3100
* Drive System Speed - Up to 8 MPH
* Drive System Parking Brakes - Patented automatic

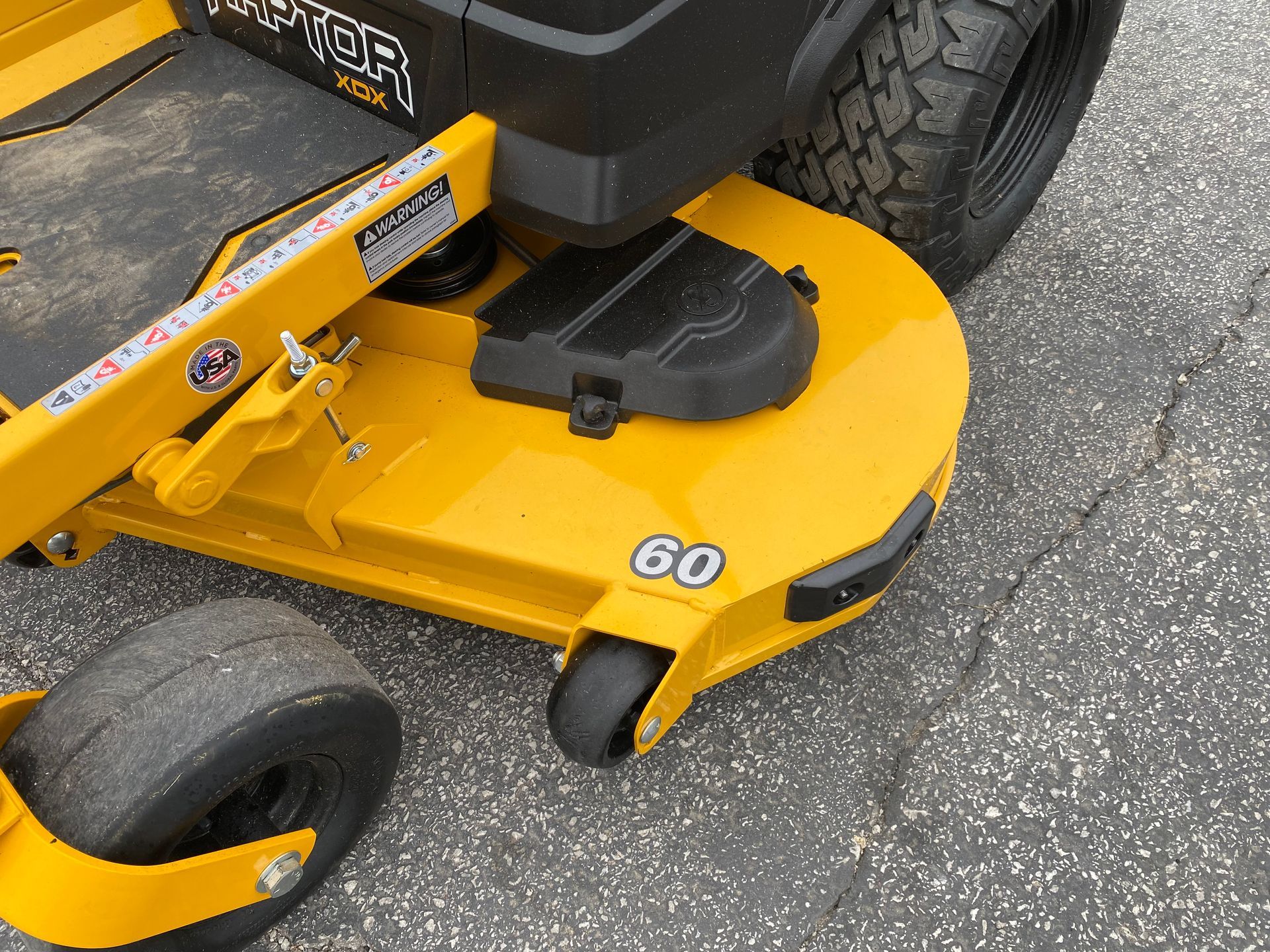

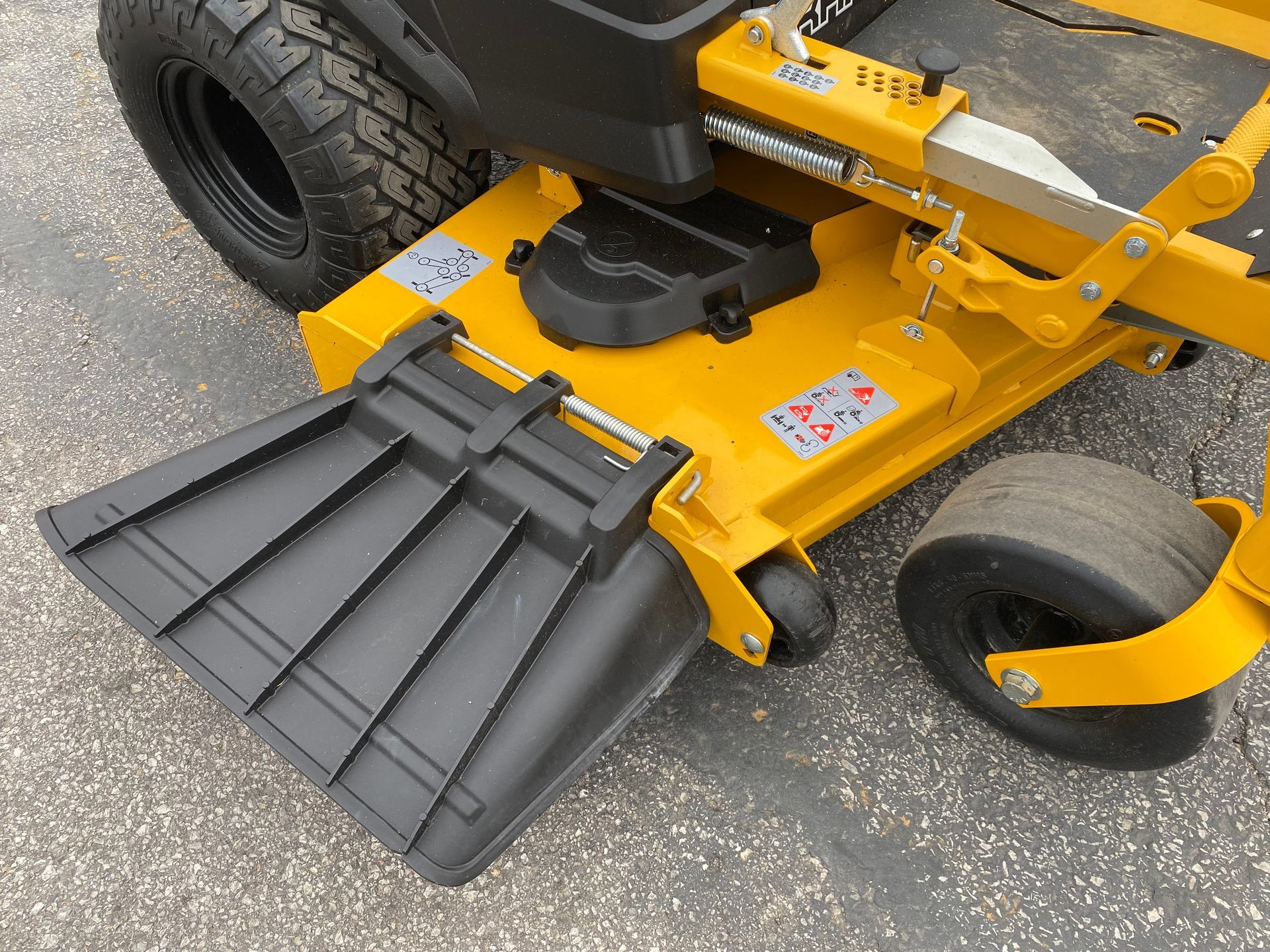

* Deck Cutting Width - 60" Side Discharge
* Deck Cutting Heights - 1.5"-4.5"
* Deck Lift - Foot Operated
* Deck Depth - 5"
* Deck Blades - 3
* Deck Blade Length - 20.5"
* Deck Blade Tip Speed - 18,400
* Deck Spindles - Aluminum with 1" shafts & sealed ball bearings
* Deck Drive - Ogura GT1.5
* Deck Construction - Fabricated 10 ga. steel
* Deck Spindle Mounts - Reinforced 11 ga. steel
* Deck Impact/Trim Areas - 11 ga. formed channel w/rolled edge
* Construction-Frame - 1.5" x 3" steel tubing
* Construction-Front Axle - Fabricated with sealed ball bearings
* Construction-Front Caster Wheels - Sealed ball bearings
* Construction-Front Caster Forks-Fabricated 3/8" steel
* Seat - Premium bolstered high-back seat with armrests & built-in lumbar support
* Fuel Capacity - 3 gallons
* Cupholder - Yes
* Front Tire - 13x6.5
* Drive Tire - 22x12-12 BigBite
* Weight - 710 lbs
* Height - 43.7"
* Length - 71.1"
* Width w/Chute Up - 62.2"
* Tire Width - 48.6"
* Trim Side - 7.4"
* Acres per Hour - 3.88 (based on 80% efficiency)
