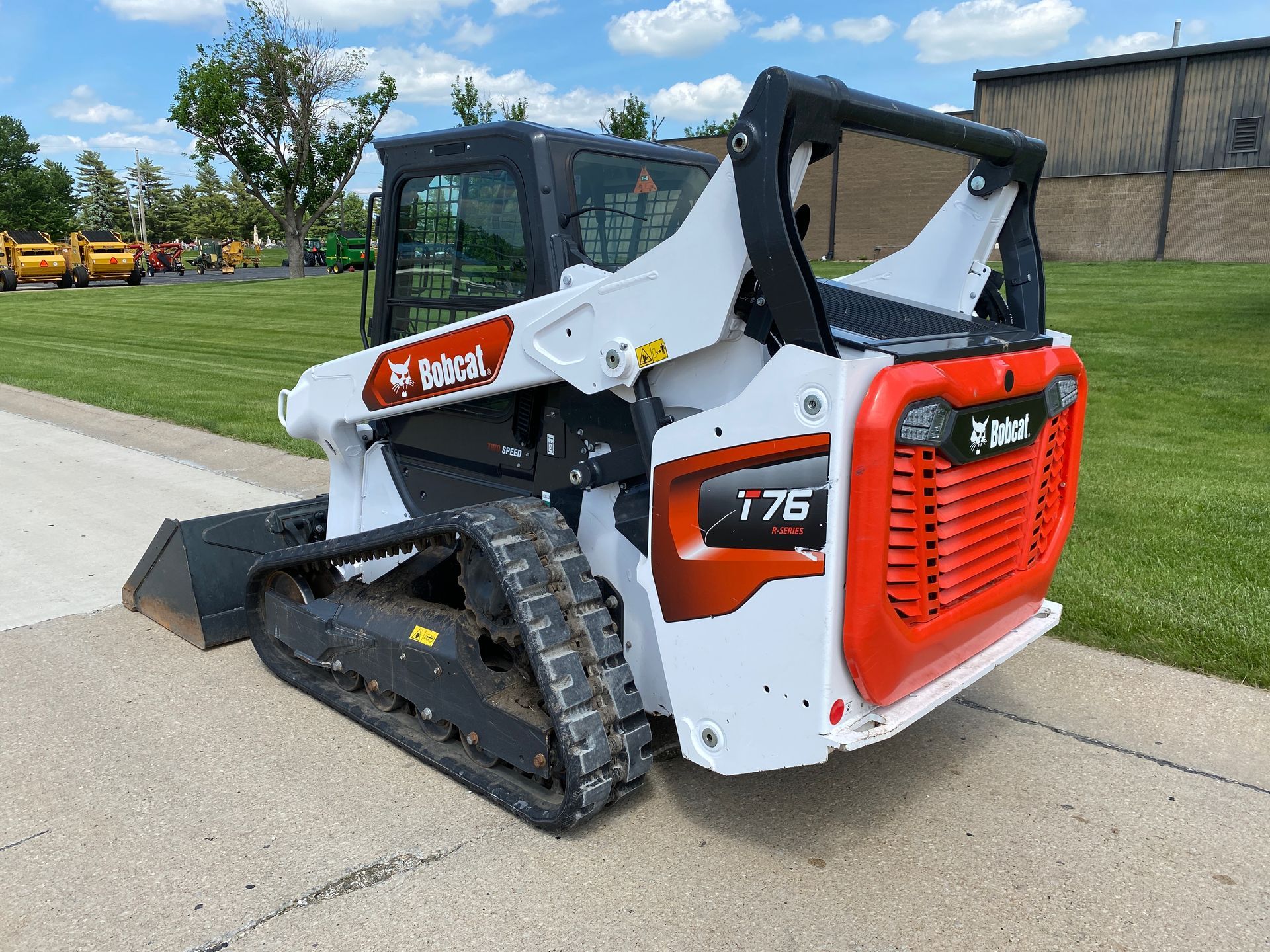

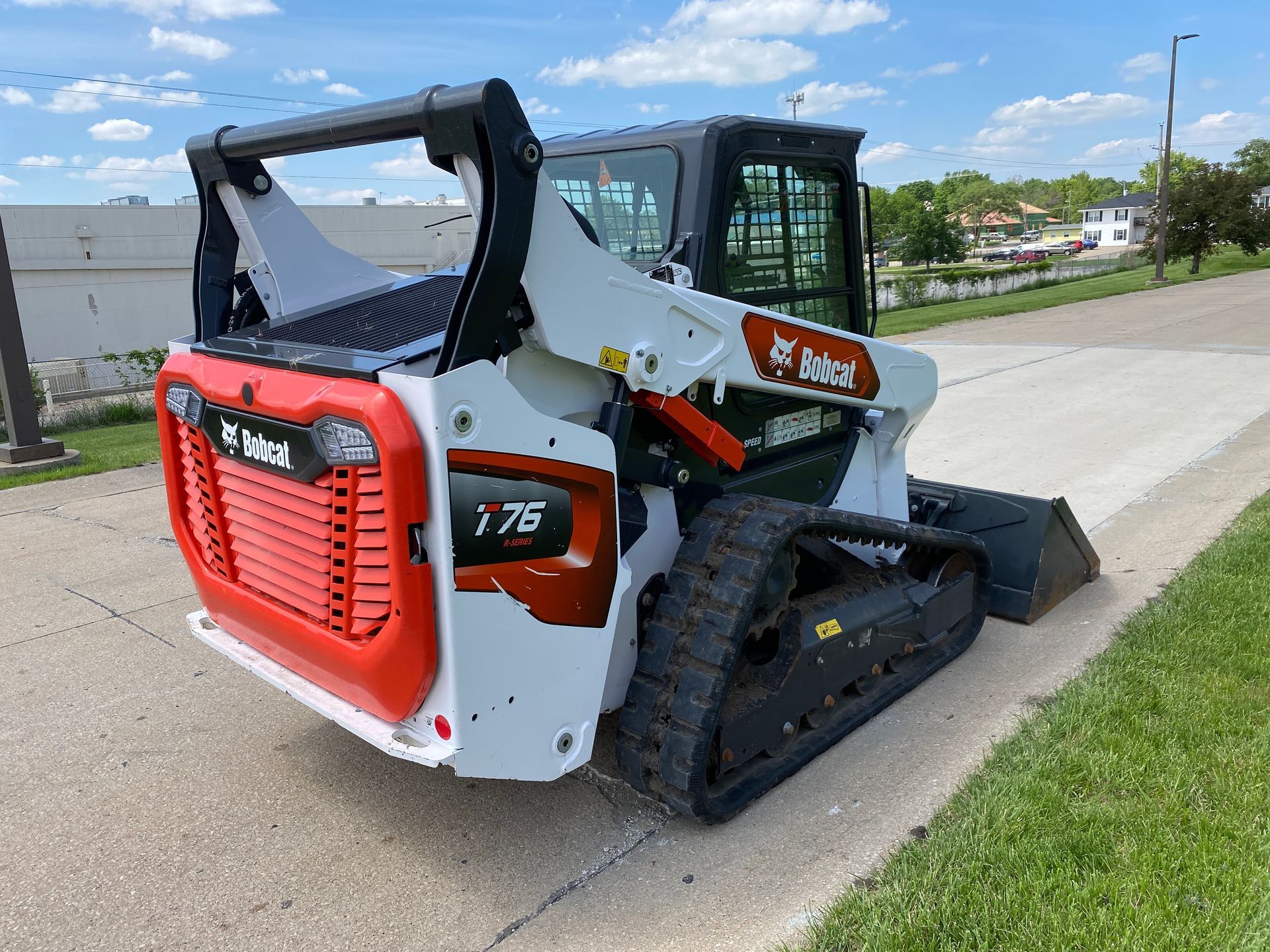

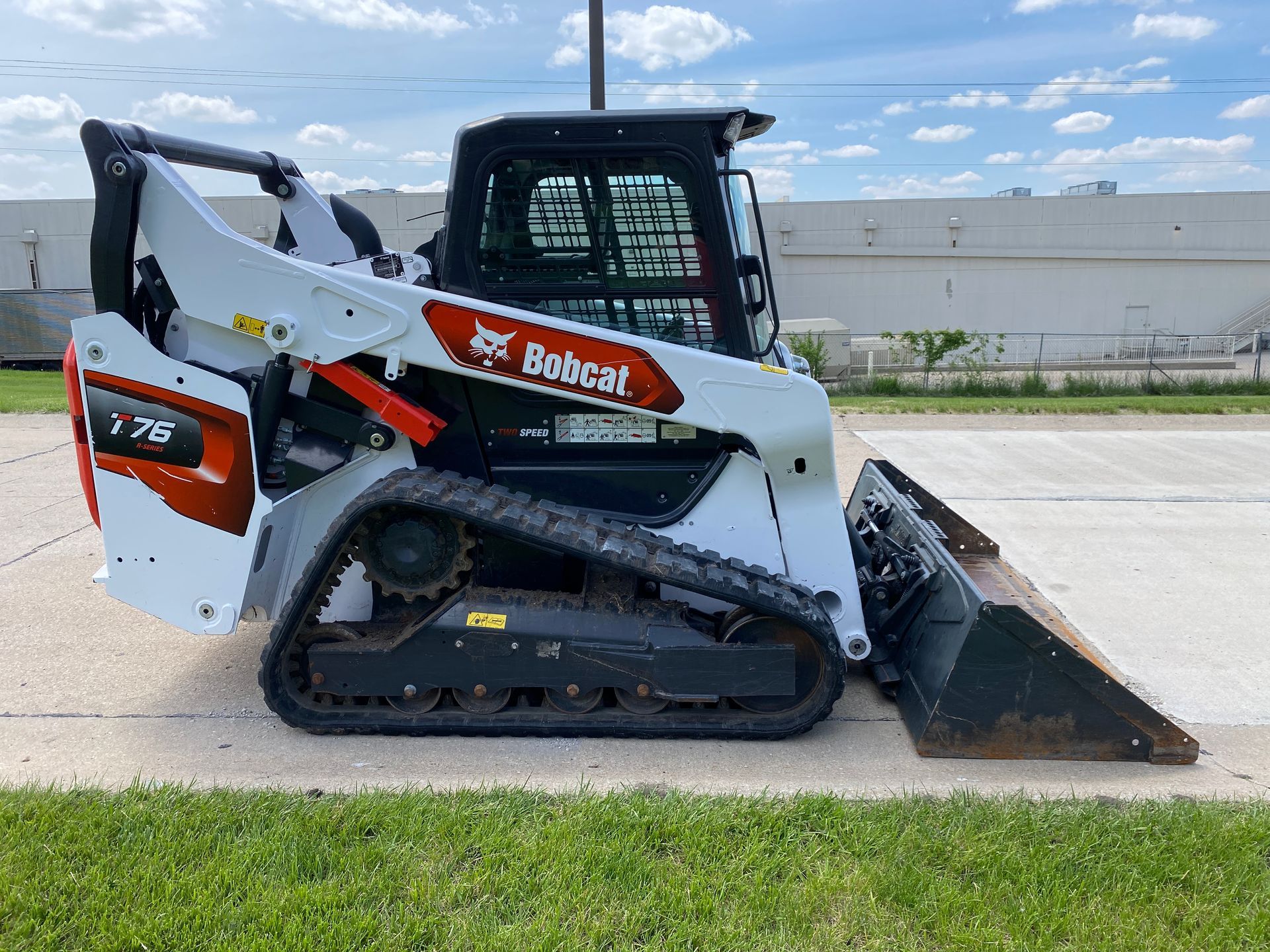

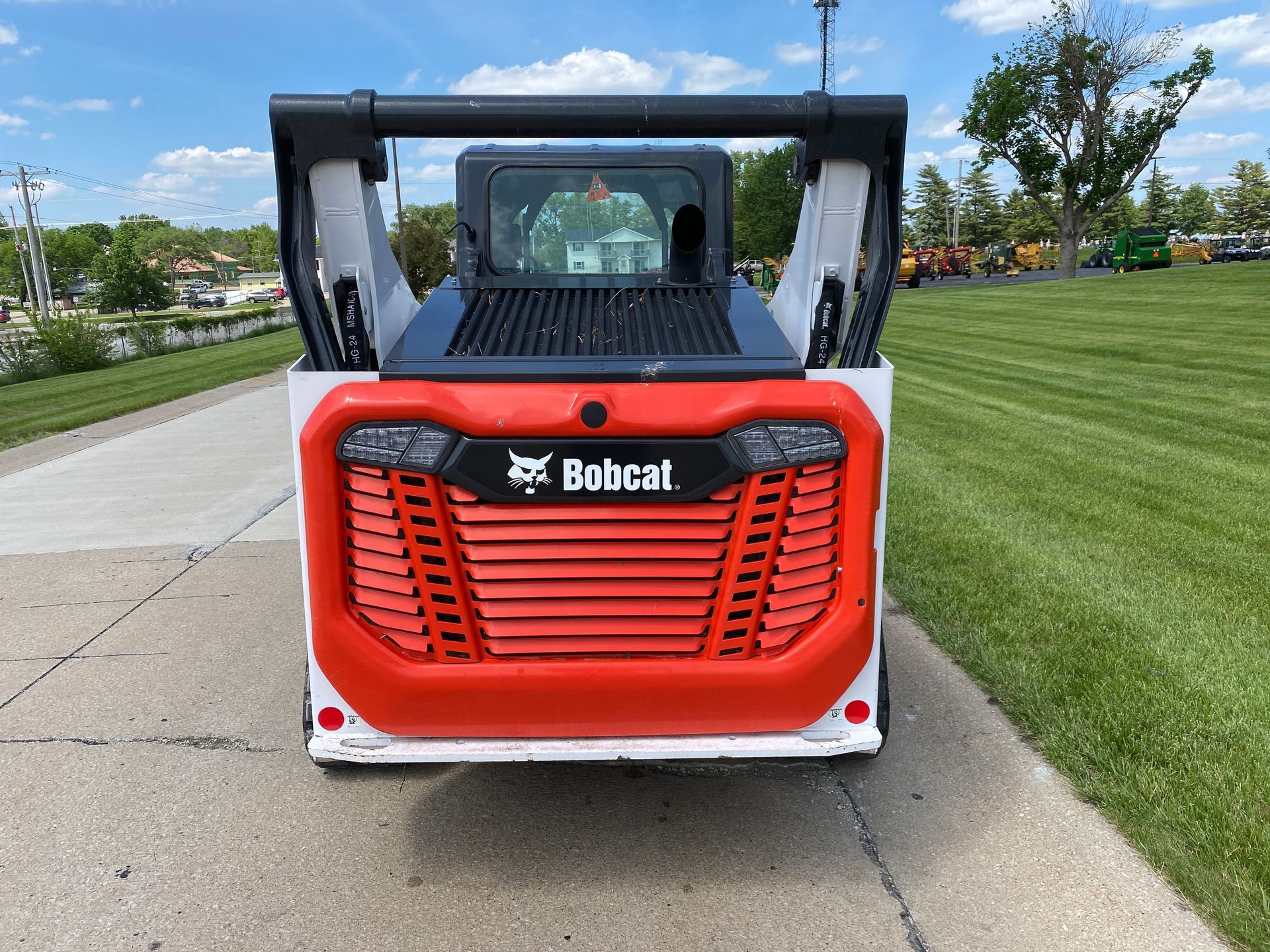

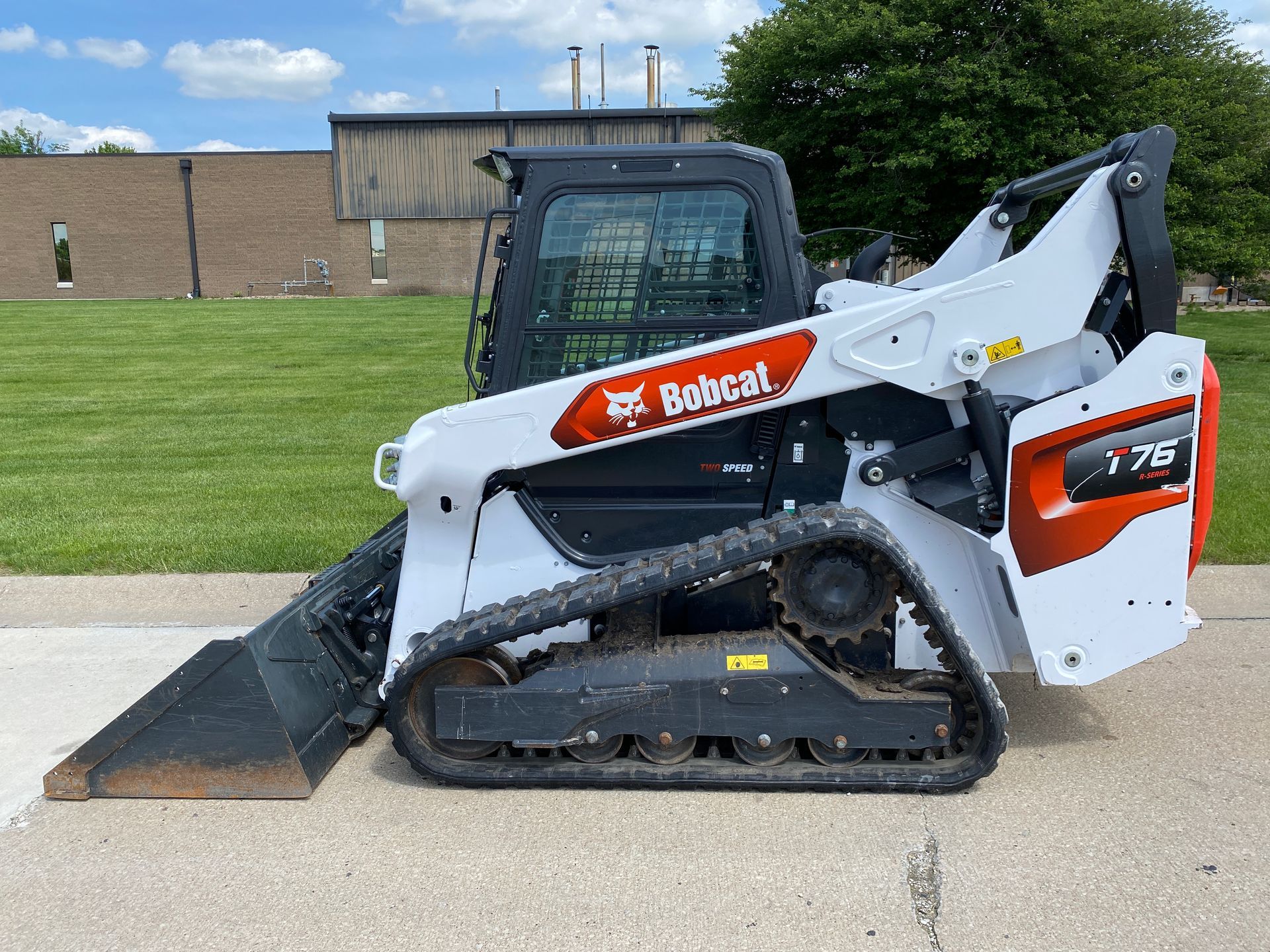

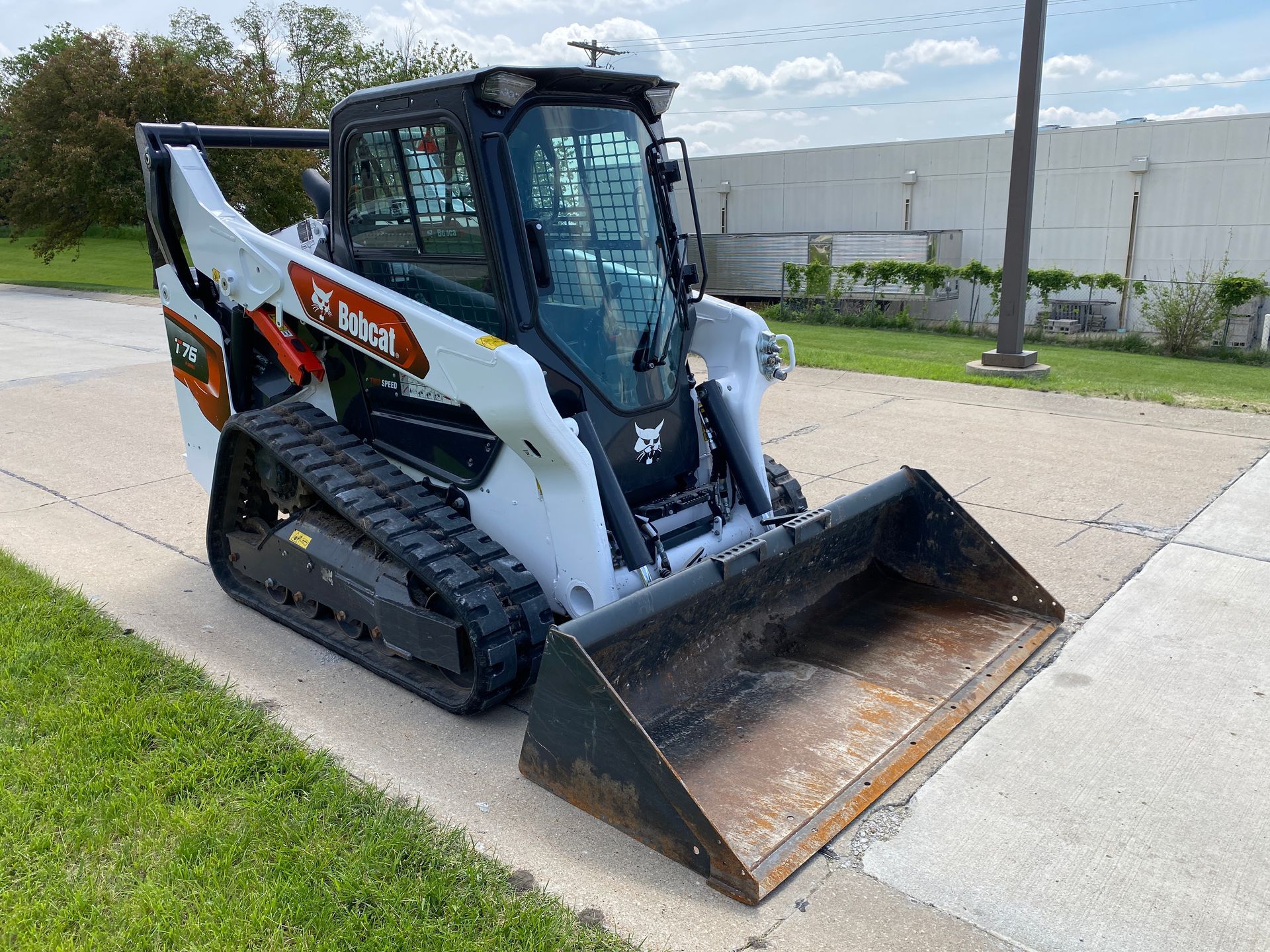

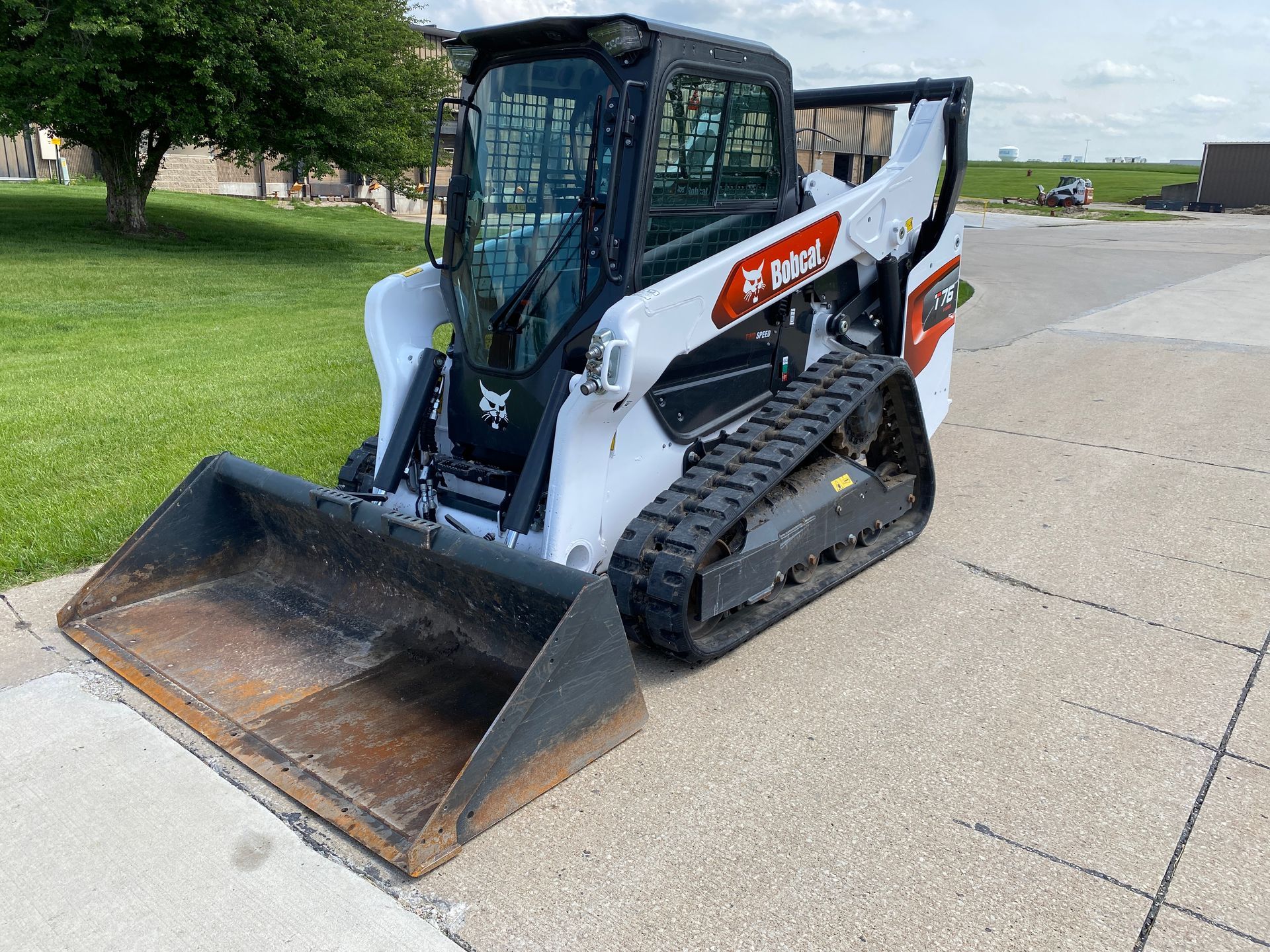

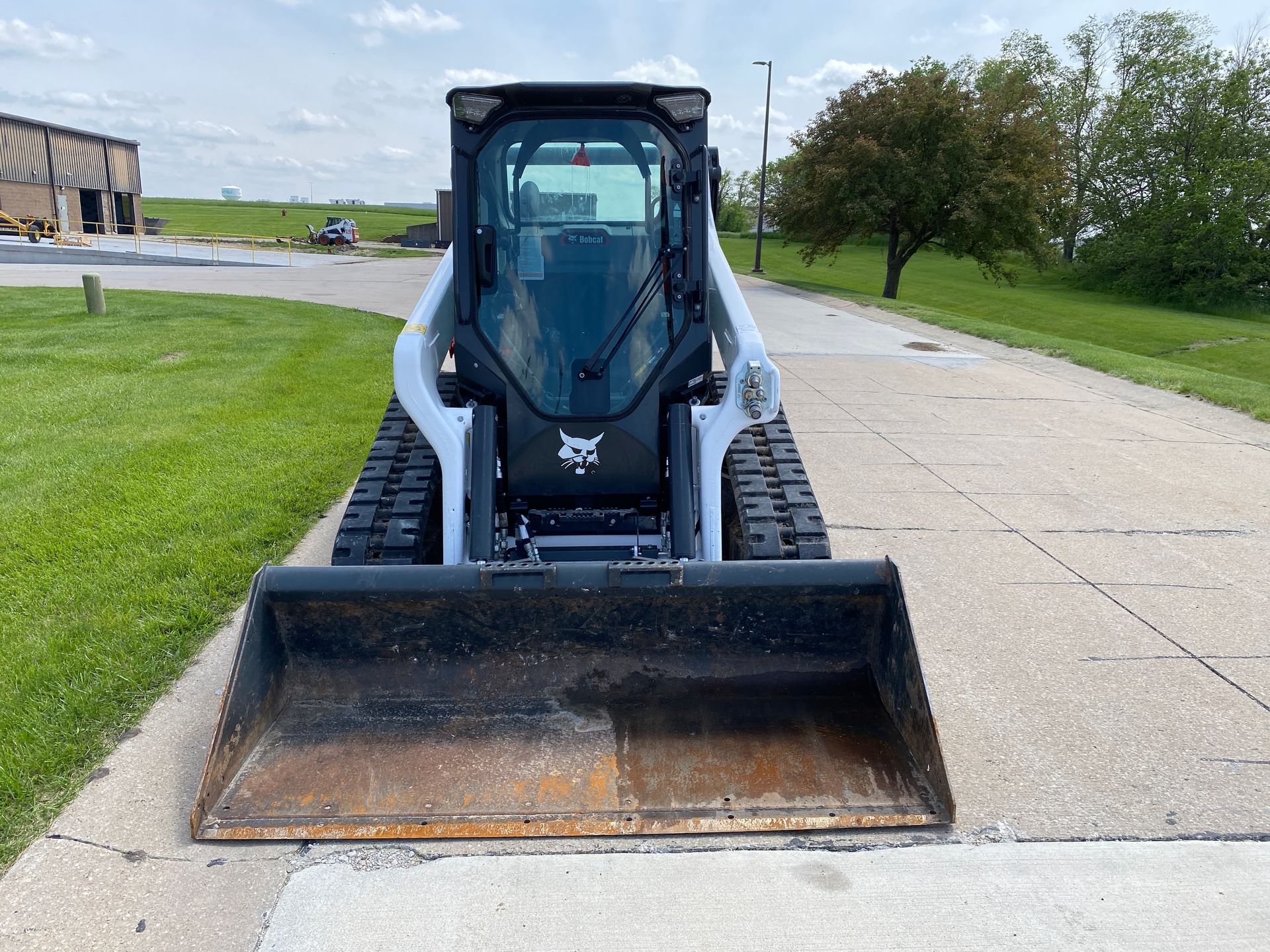

2022 Bobcat T76 Compact Track Loader $72,500
Features
* 2022 Bobcat T76 T4 R-Series Compact Track Loader
* 350 Hours
* C67 Comfort Package
- Enclosed Cab with HVAC
- Sound Reduction

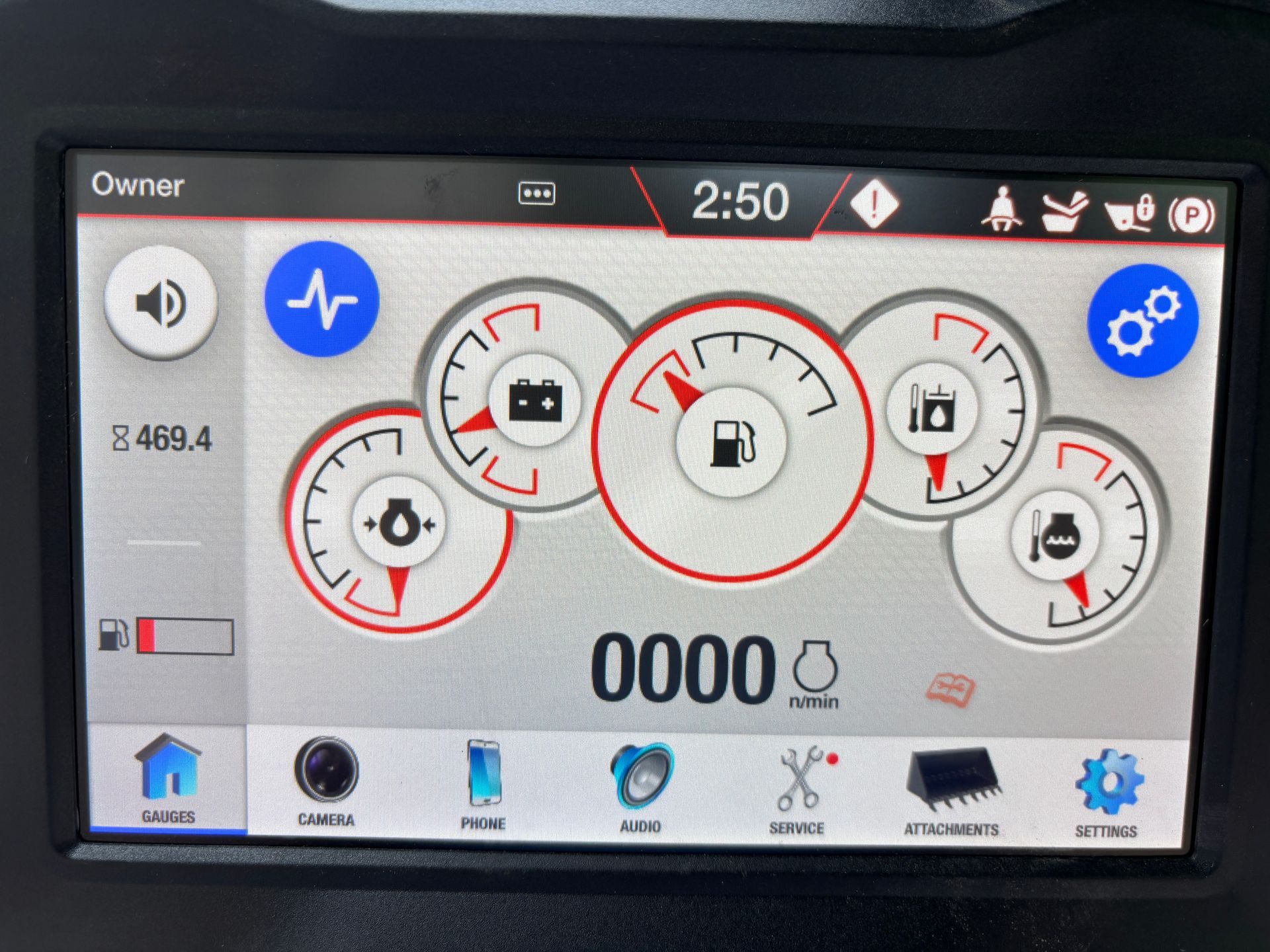

- Touch Display with Radio & amp; Bluetooth

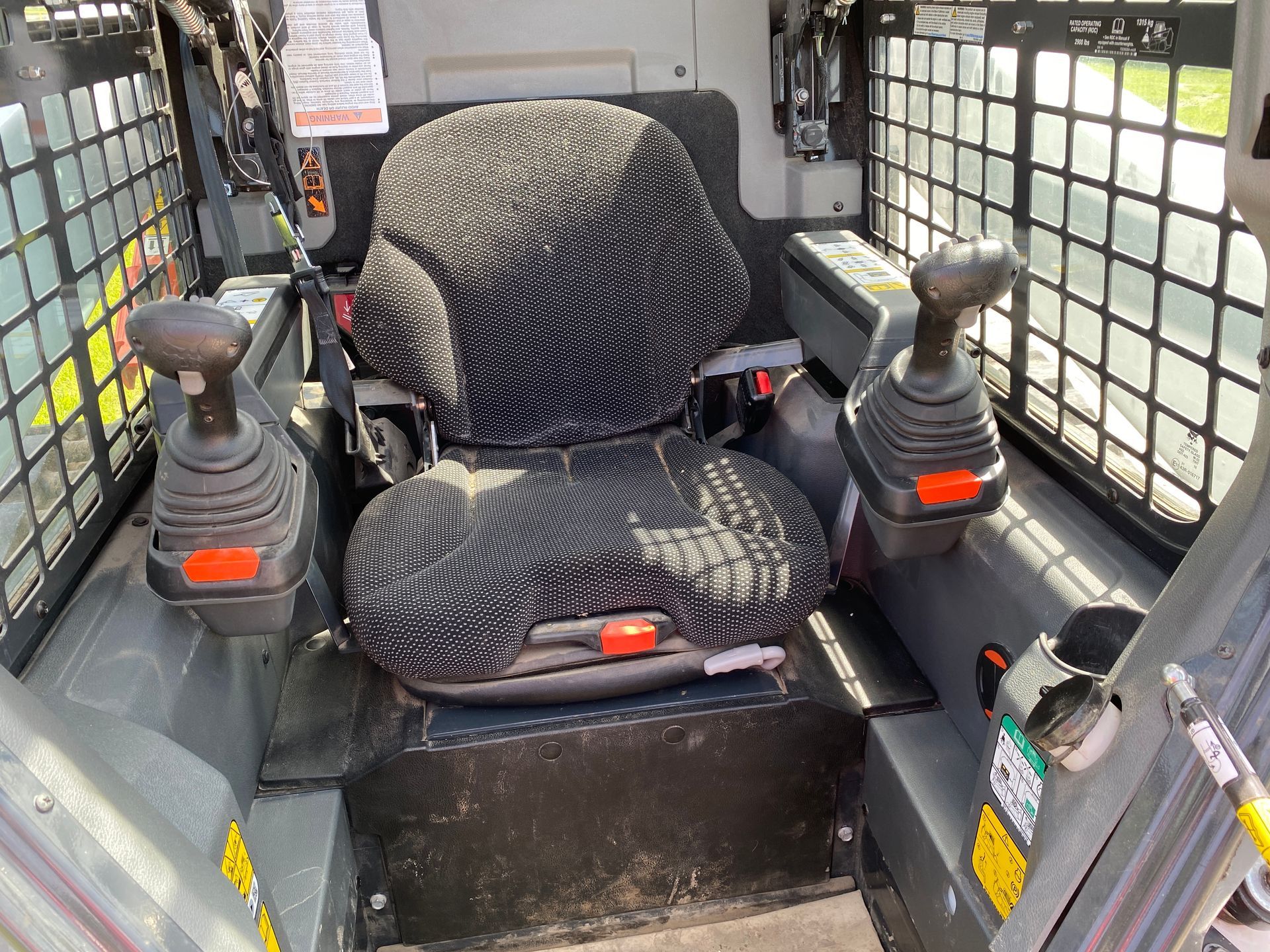

- Heated Cloth Air Ride Suspension Seat
- Premium LED Lights
* P27 Performance Package

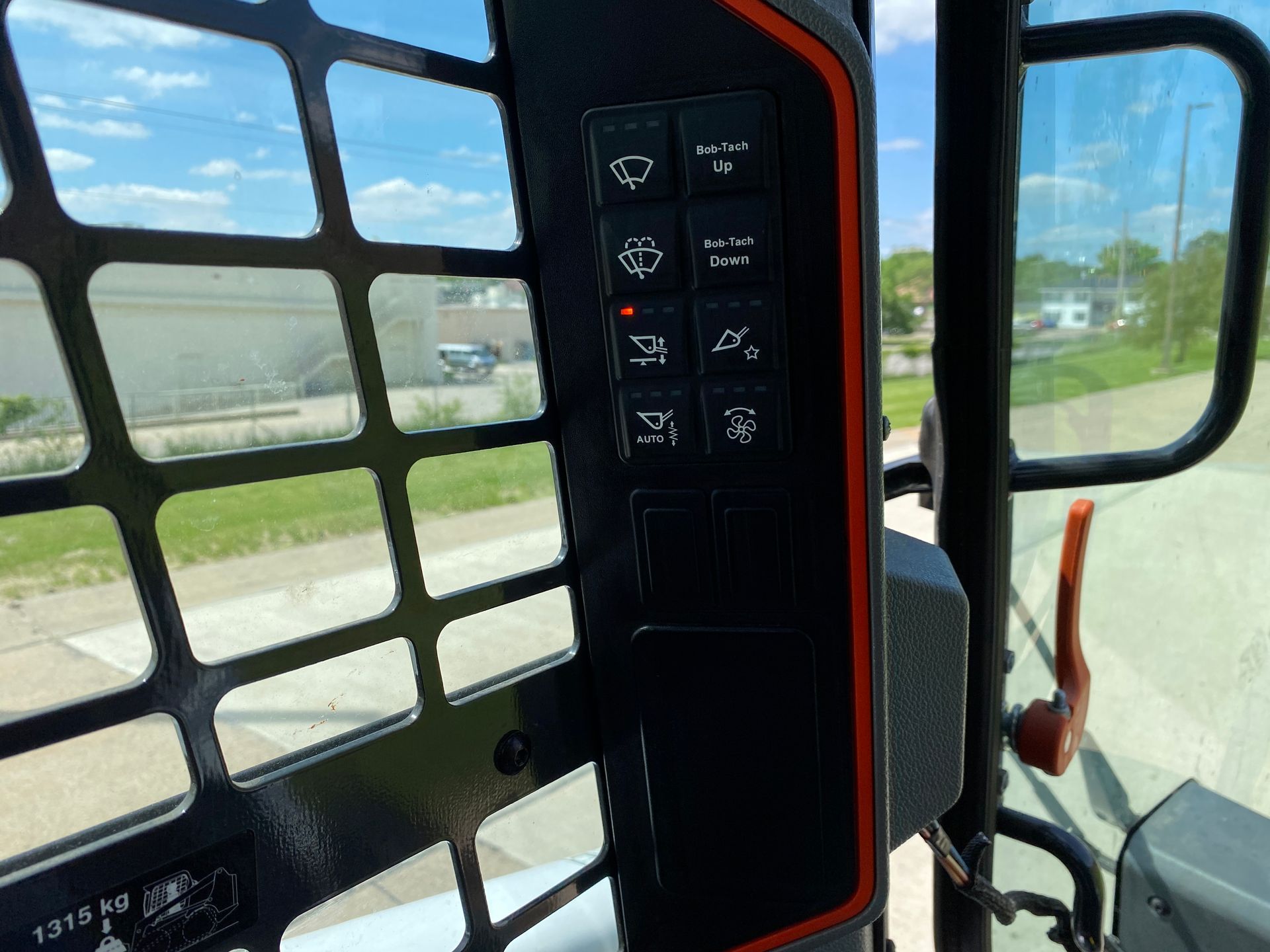

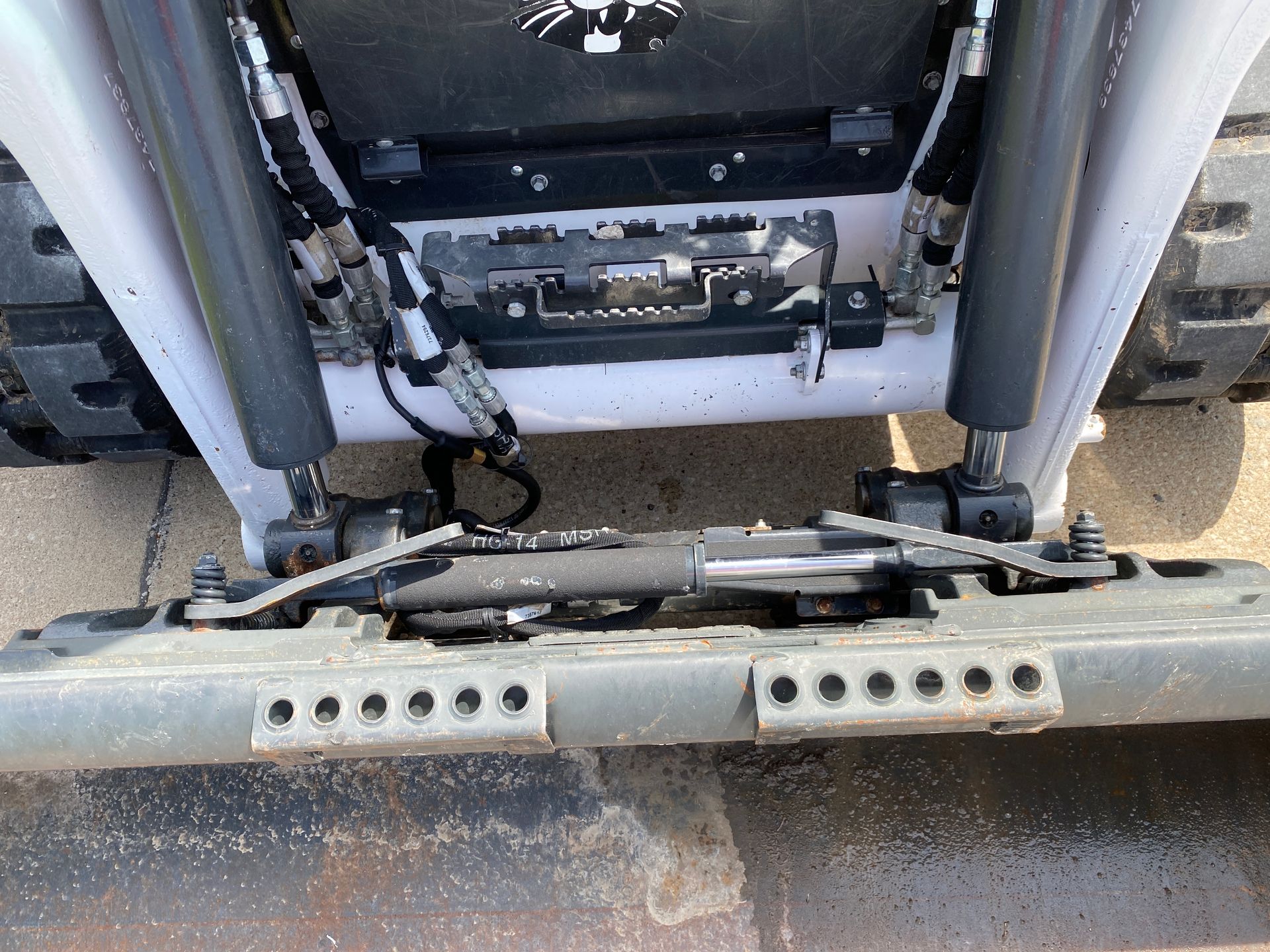

- Power Bob-Tach
- 7-Pin Attachment Control
- Two-Speed
- Dual Direction Bucket Positioning

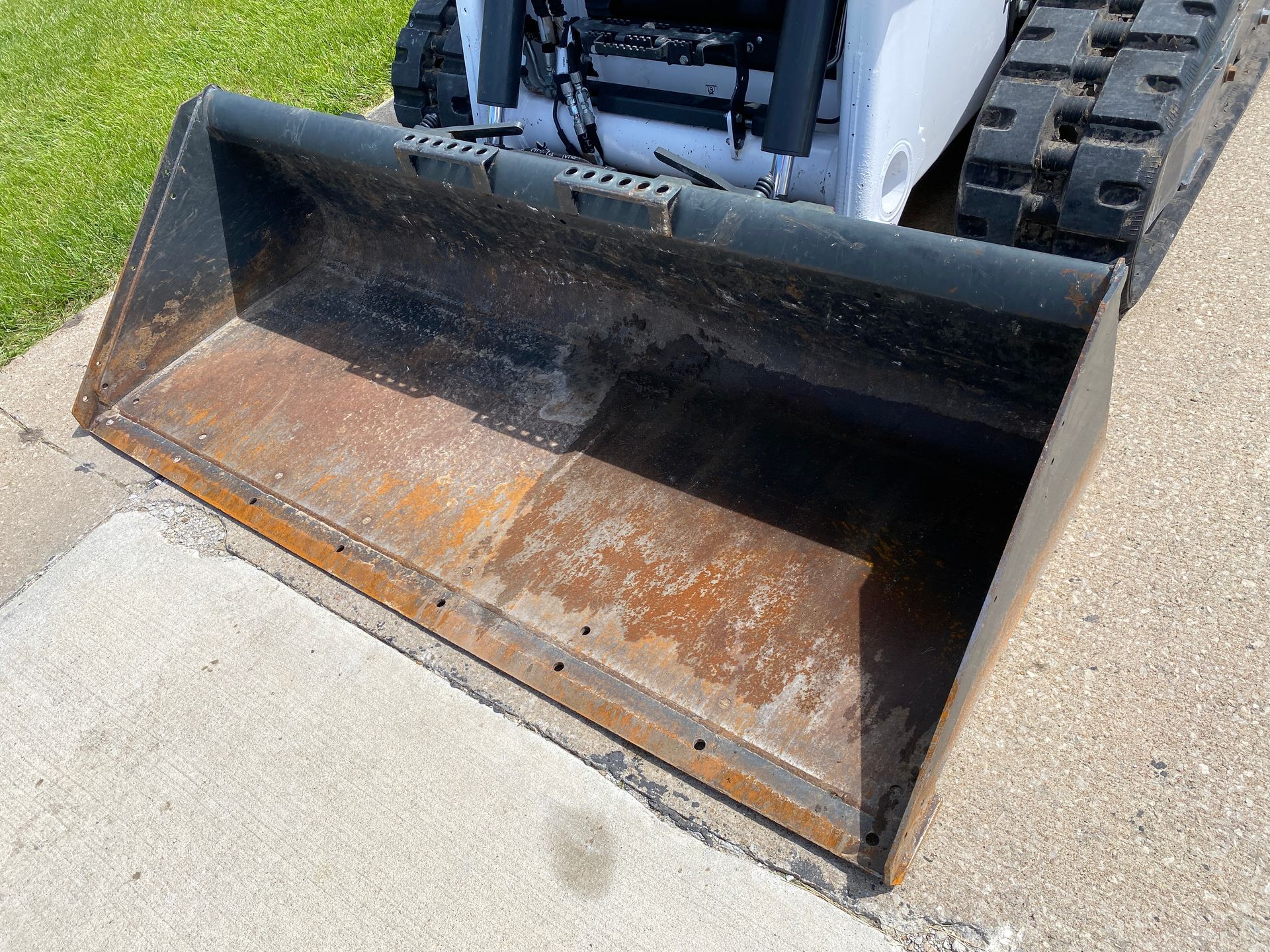

* 80" Heavy Duty Bucket
Standard Features
* 74 HP Tier 4 V2 Bobcat Engine

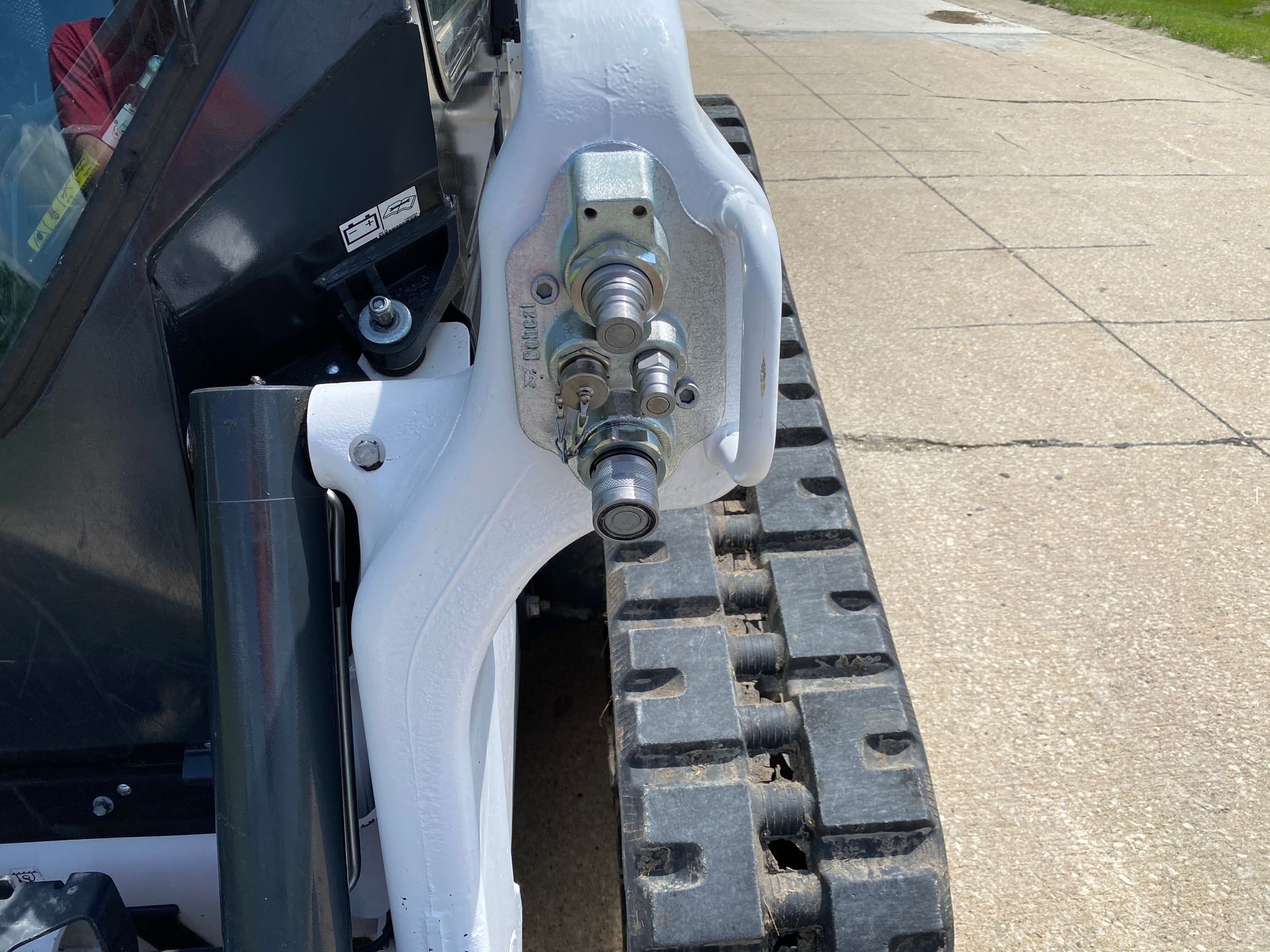

* Auxiliary Hydraulics: Variable Flow
* Backup Alarm
* Bob-Tach
* Bobcat Interlock Control System (BICS)

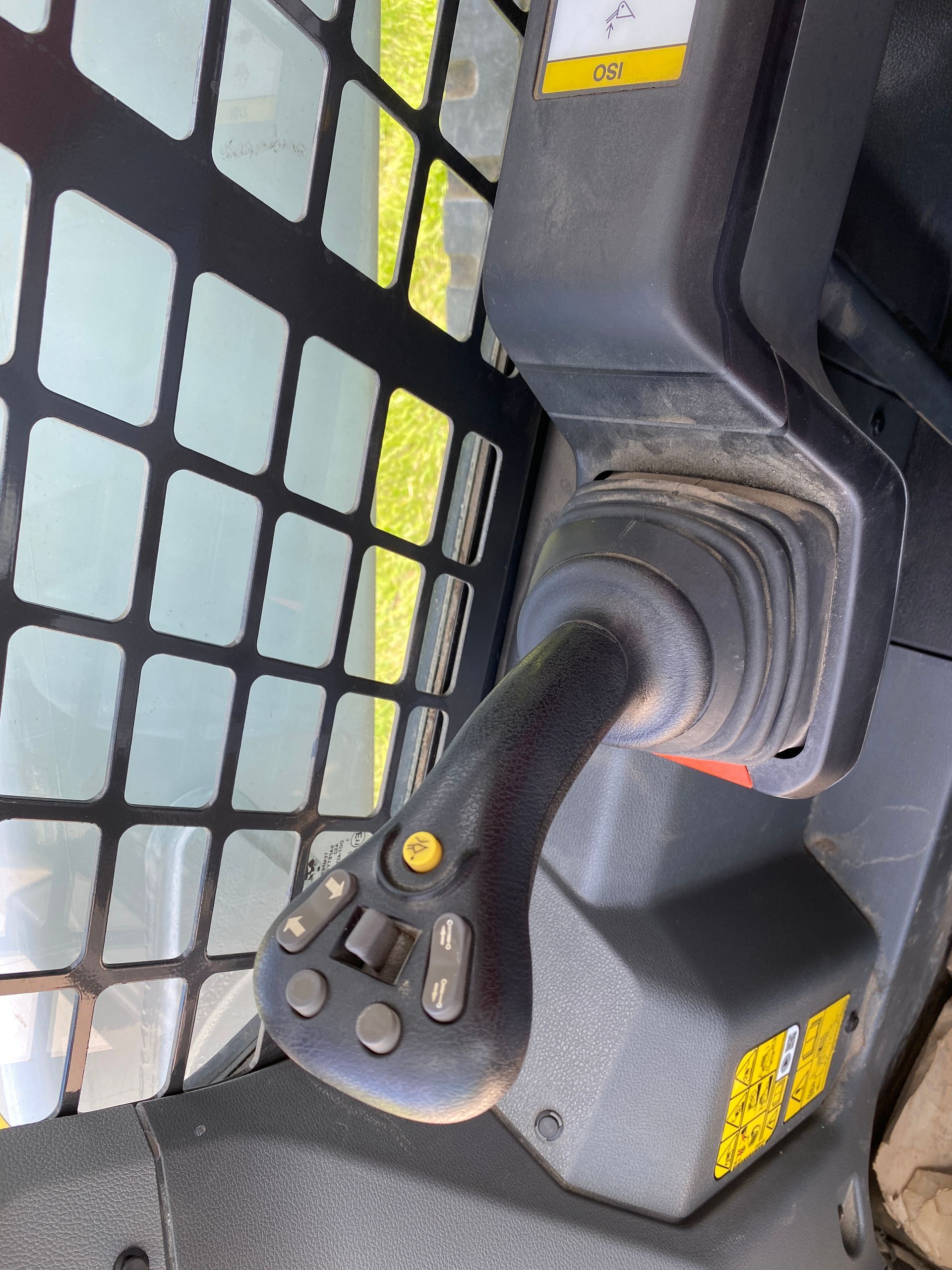

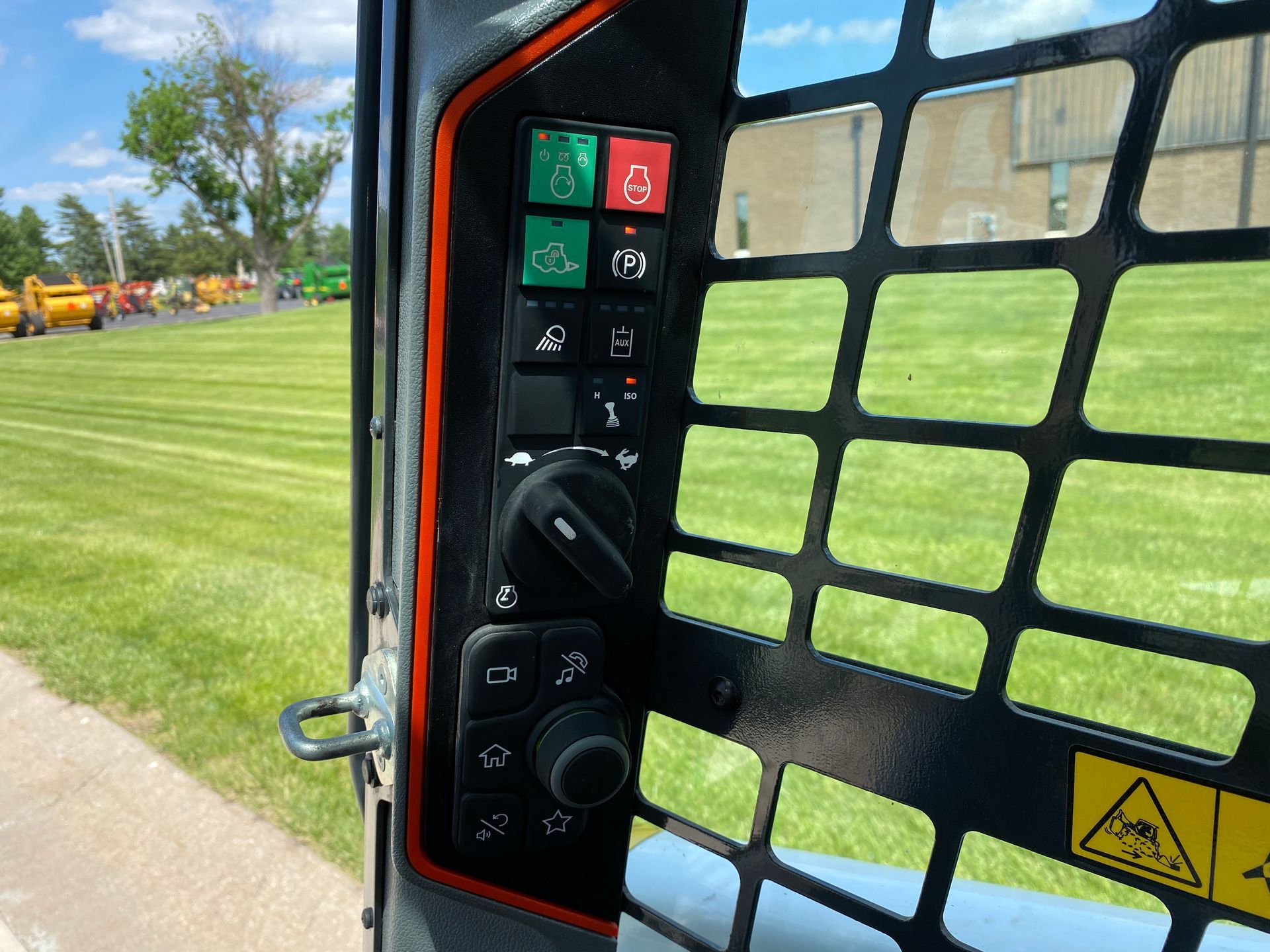

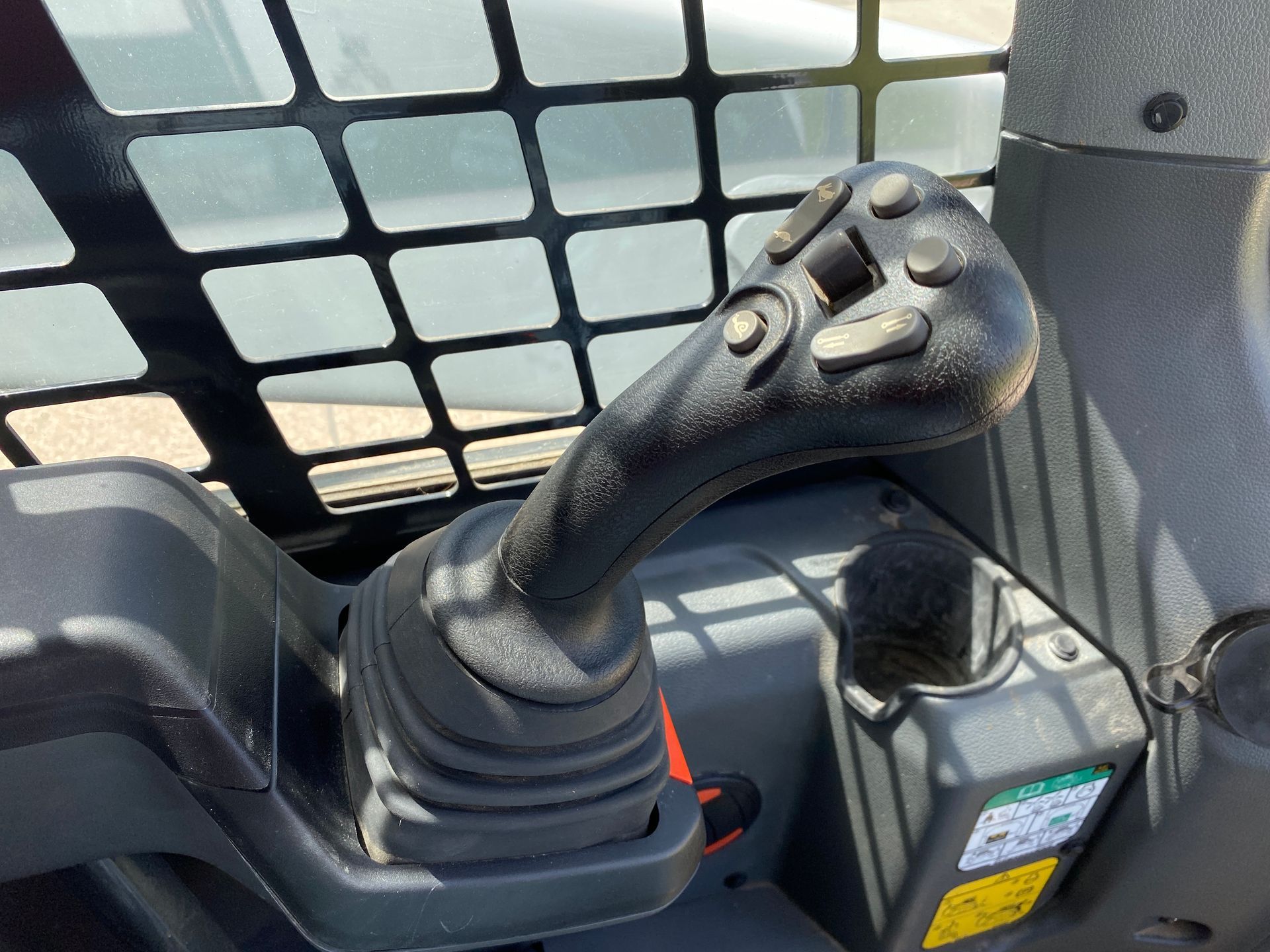

* Controls: Selectable Joystick Controls
* Cylinder Cushioning - Lift, Tilt
* Engine/Hydraulic Performance De-rate Protection
* Glow Plugs (Automatically Activated)
* Horn
* Instrumentation:
- Standard 5" Display (Rear Camera Ready) with Keyless Start
- Engine Temperature & Fuel Gauges
- Hour Meter
- RPM & Warning Indicators. Includes:
* Maintenance Interval Notifications
* Fault Display
* Job Codes
* Quick Start
* Auto Idle
* Security Lockouts
* Lift Arm Support
* Lift Path: Vertical
* Lights, Front & Rear LED
* Operator Cab Includes:
- Adjustable Vinyl Suspension Seat
- Top & Rear Windows
- Parking Brake
- Seat Bar & Seat Belt
* Roll Over Protective Structure (ROPS) meets SAE-J1040 & ISO 3471
* Falling Object Protective Structure (FOPS) meets SAE-J1043 & ISO 3449, Level I; (Level II is available through Bobcat Parts)
* Parking Brake: Spring Applied, Pressure Released (SAPR)
* Solid Mounted Carriage with 4 Rollers

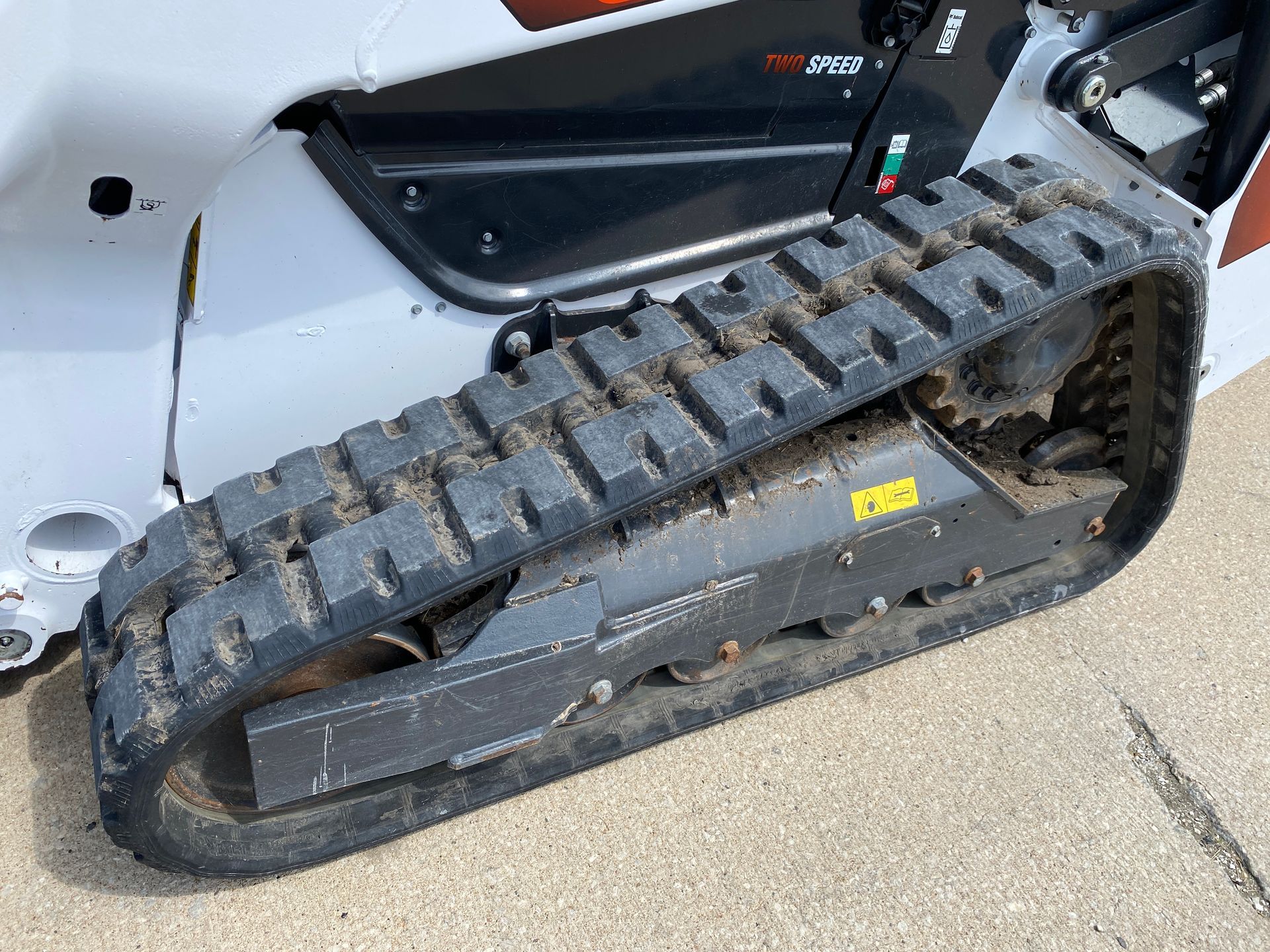

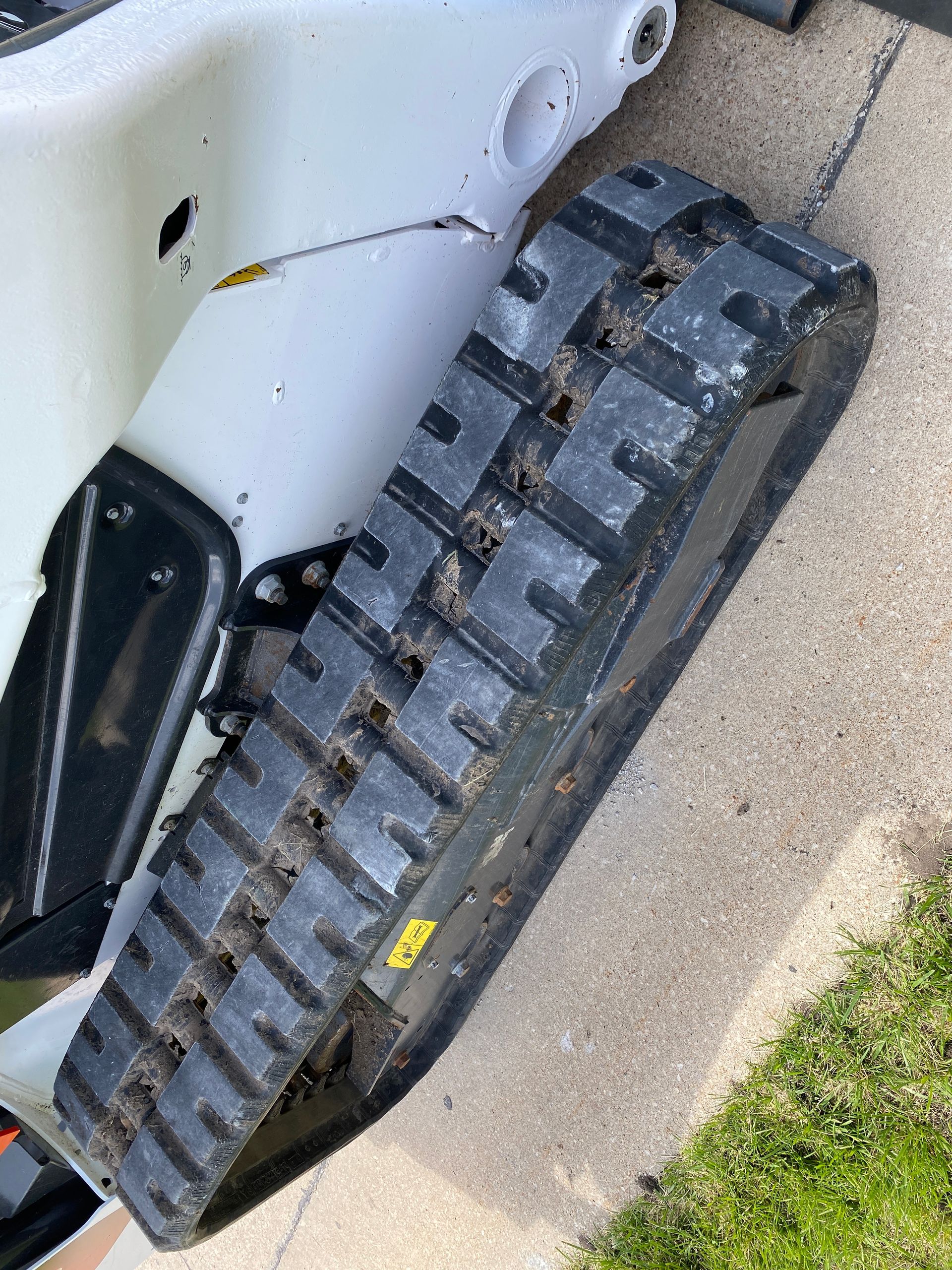

* Tracks: Rubber, 12.6" Wide
* Warranty: 2 years, or 2,000 hours whichever occurs first
Specs
ENGINE
* Emissions Tier (EPA) - Tier 4
* Engine Cooling - Liquid
* Engine Fuel - Diesel
* Horsepower - 74 hp
* Turbocharged Engine - Standard
* Engine Model - D24 BSH T4 74 HP DM02-LEL00 Bobcat V2
* Engine Make - Bobcat
* Displacement - 146" cubic
* Torque RPM - 1,800 rpm
* Number of Cylinders - 4
PERFORMANCE
* Rated Operating Capacity (ISO) - 2,900 lb
* Operated Capacity (50$ of Tip) - 4,143 lb
* Rated Operating Capacity (35% of Tip) - 2,900 lb
Tipping Load - 8,285 lb
* Operating Weight - 10,250 lb
* Travel Speed - 6.8 mph
* Travel Speed (2-speed option) - 9.2 mph
* Ground Pressure - 6.2 psi
CAPACITIES
* Fuel Tank - 31.7 gal
HYDRAULIC SYSTEM
* System Relief @ Quick Couplers - 3,500 psi
* Auxiliary Std Flow - 23.3 gal/min
* Auxiliary High Flow - 30.3 gal/min
GENERAL
* Contract Codes - Compact Track Loader
* First Year of Production - 2019
CONTROLS
* Hydraulic (Lift & Tilt) - Joy Stick
* Control Option - SJC Standard
* Auxiliary Hydraulics - Thumb Proportional Control with Continuous Settings
DIMENSIONS
* Length - 147.1"
* Length without Attachment - 113.9"
* Length with Standard Bucket - 147.1"
* Width - 72.9"
* Width (with bucket) - 74"
* Height - 81.8"
* Height with Operator Cab - 81.8"
* Height to Bucket Hinge Pin - 128.3"
* Reach @ Maximum Height - 39.9"
* Turning Radius - 89.3"
* Length of Track on Ground - 59.2"
* Track Width - 12.6"
* Track Width - Optional - 17.7"
* Ground Clearance - 8.8"
* Dump Angle @ Maximum Height - 37 degree
