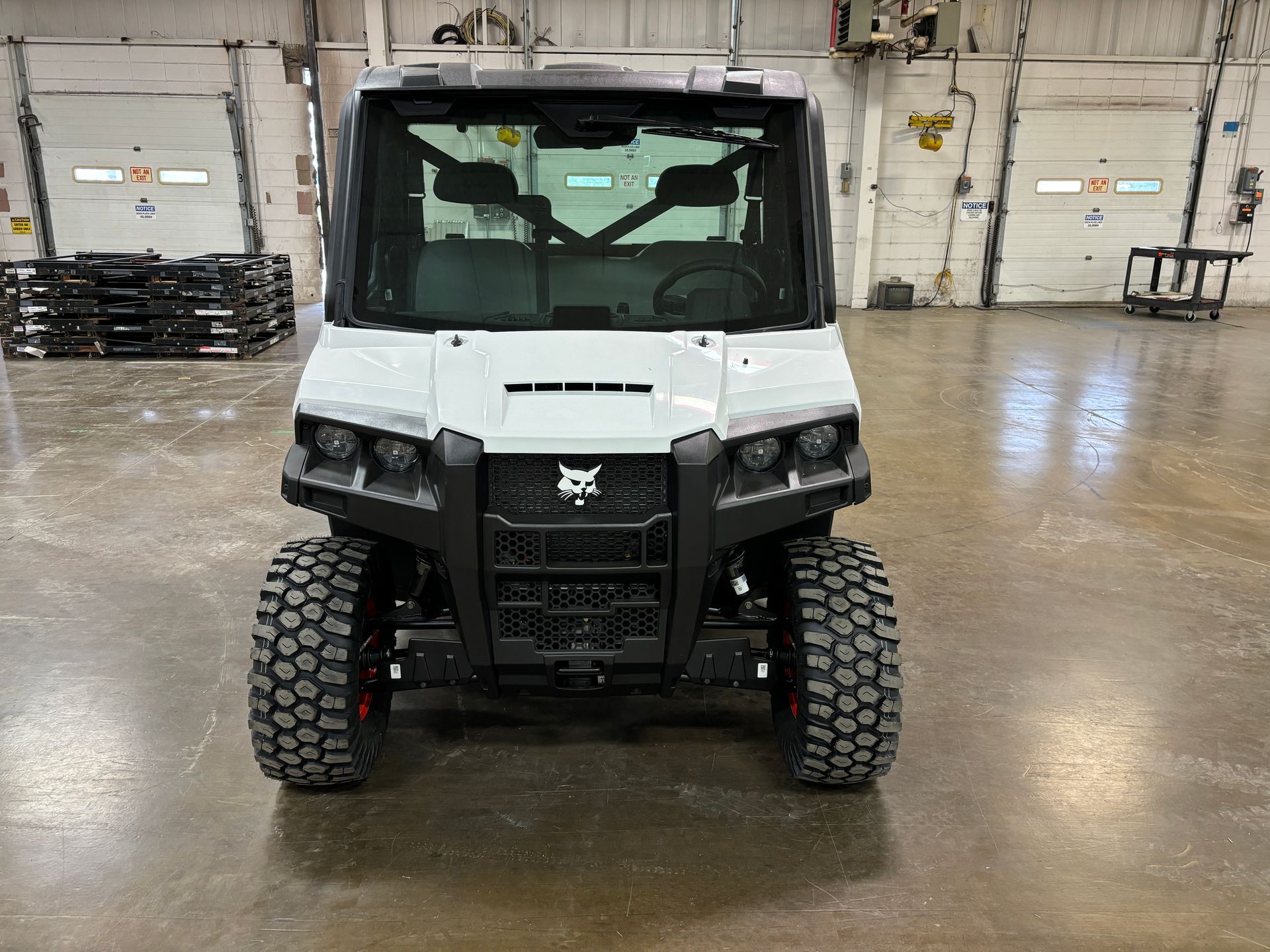

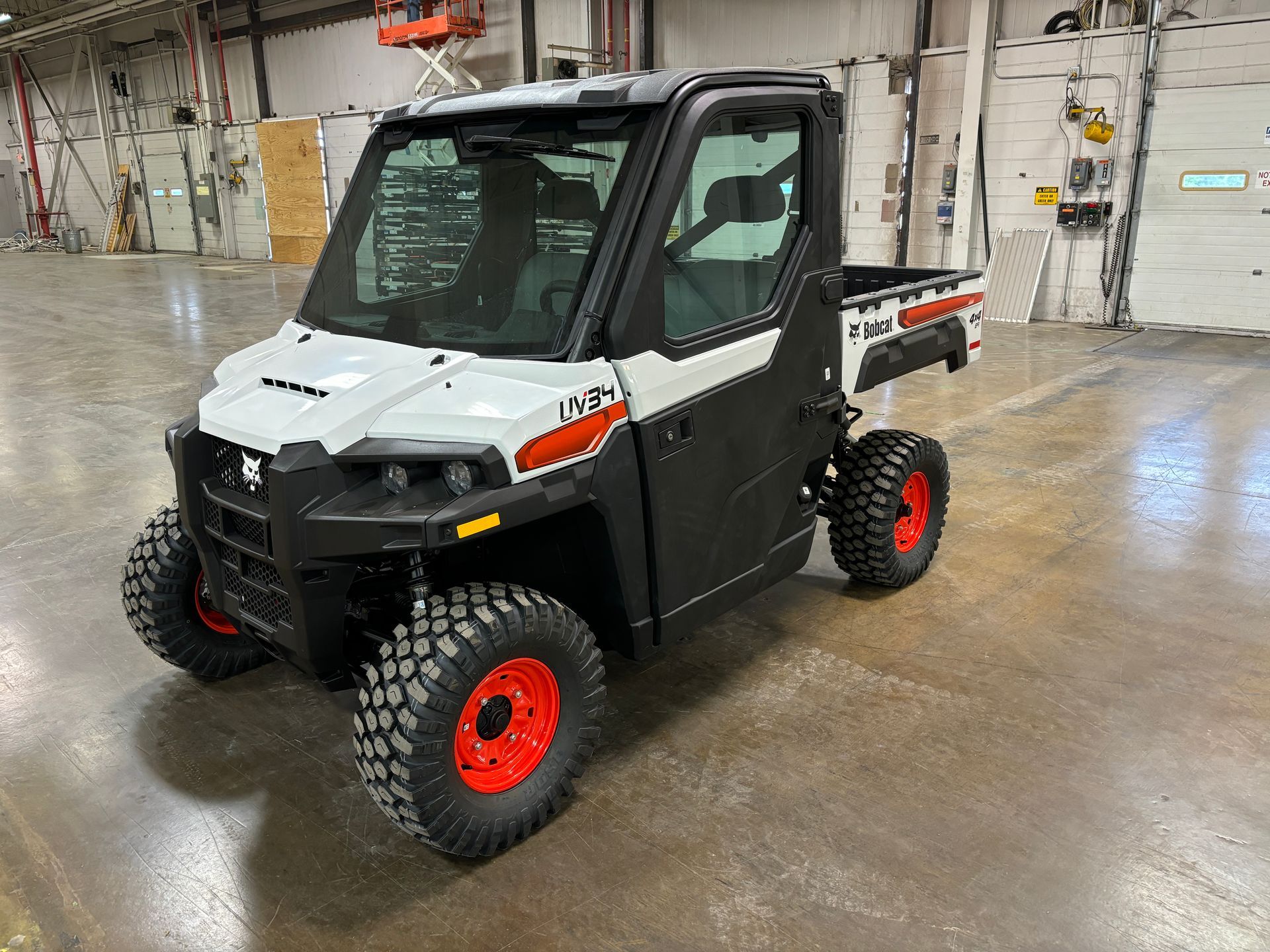

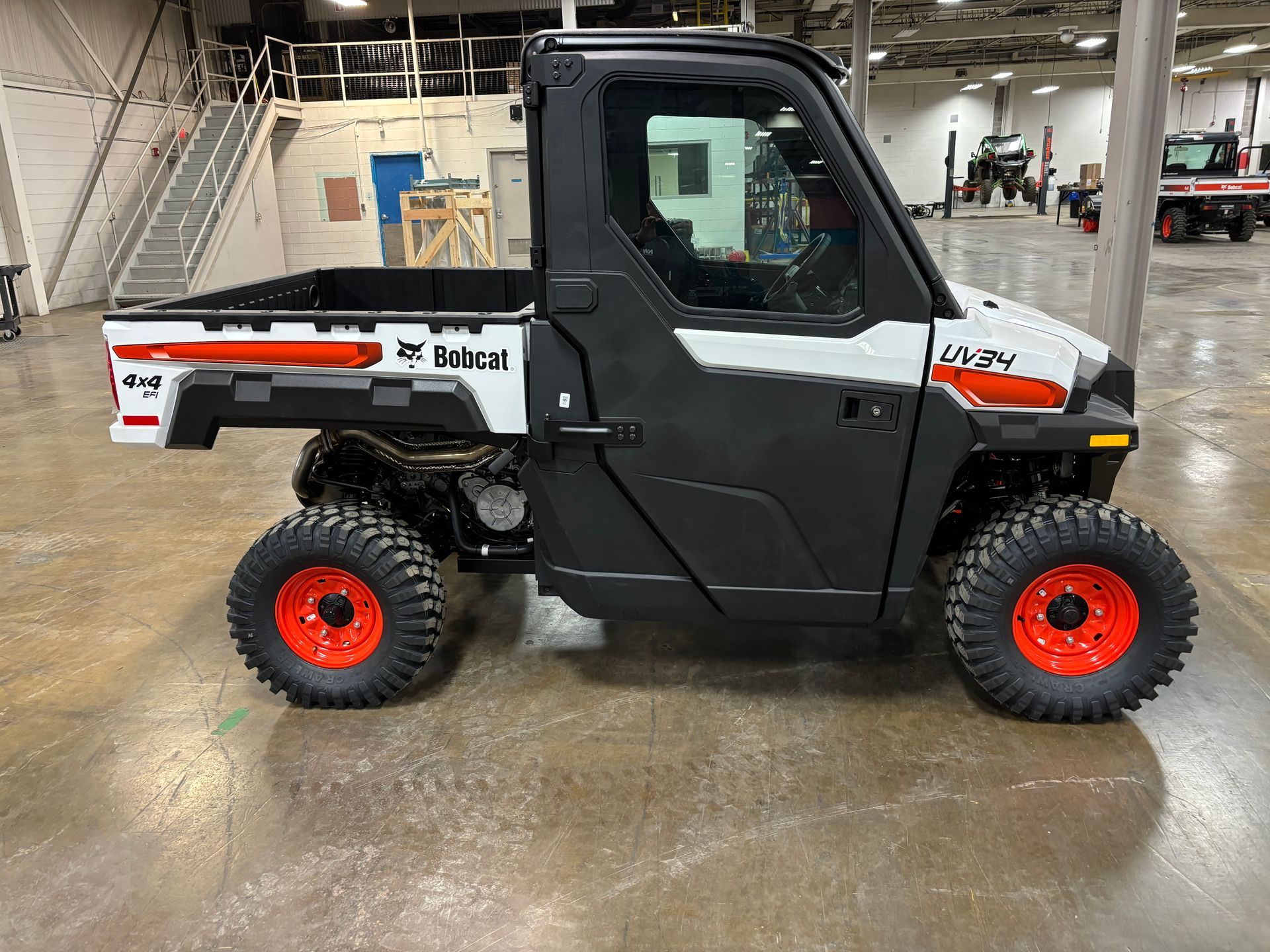

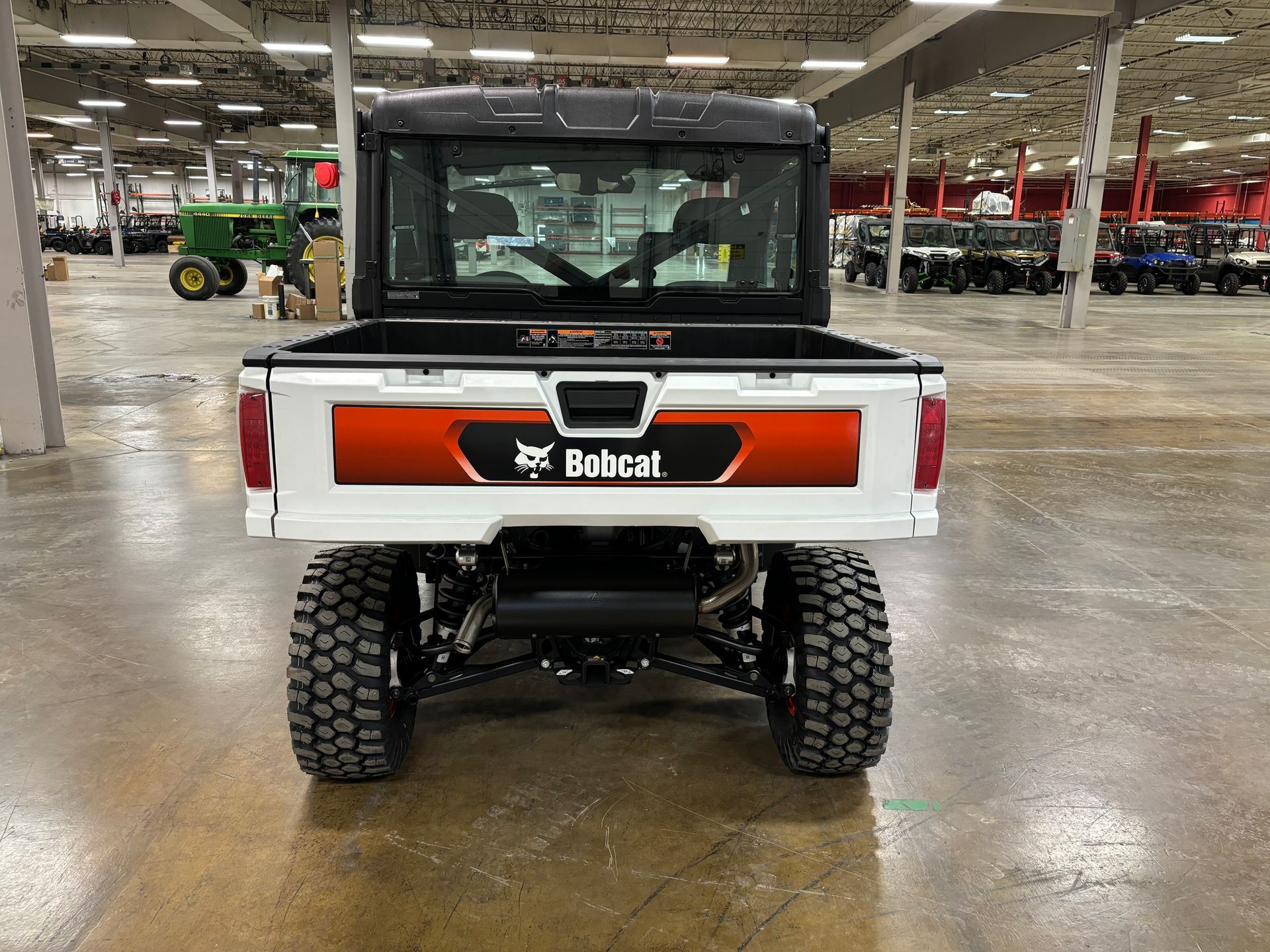

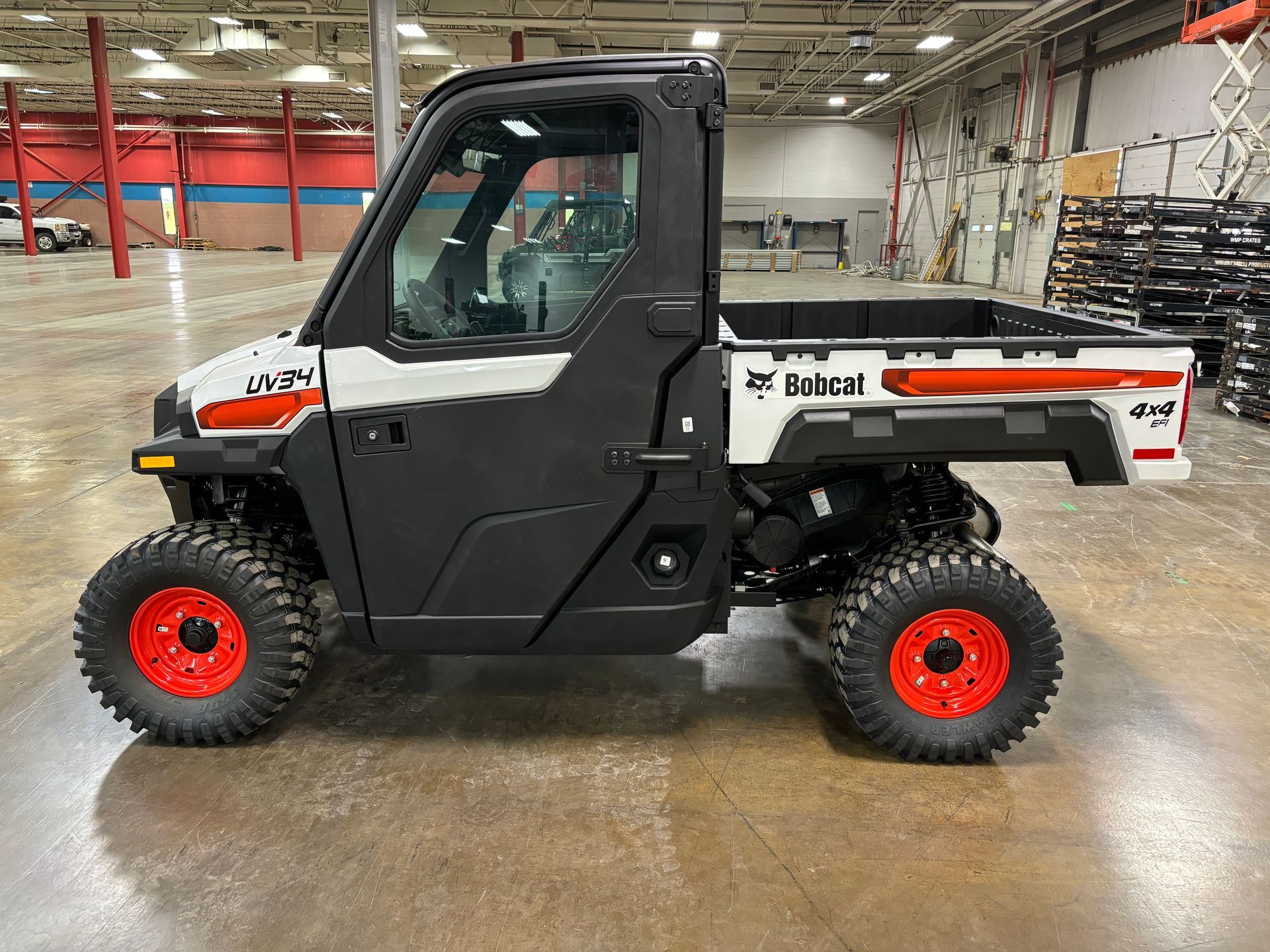

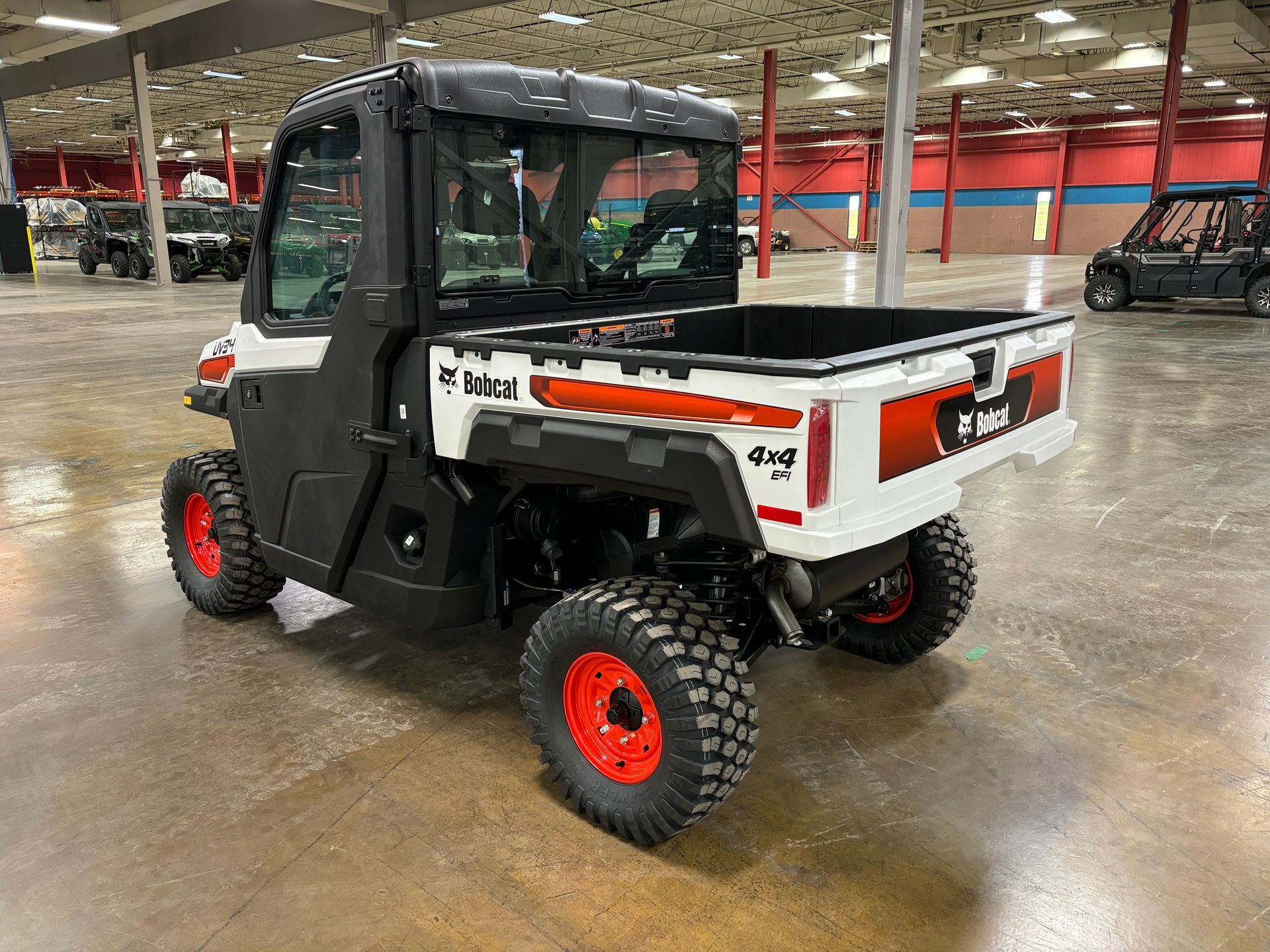

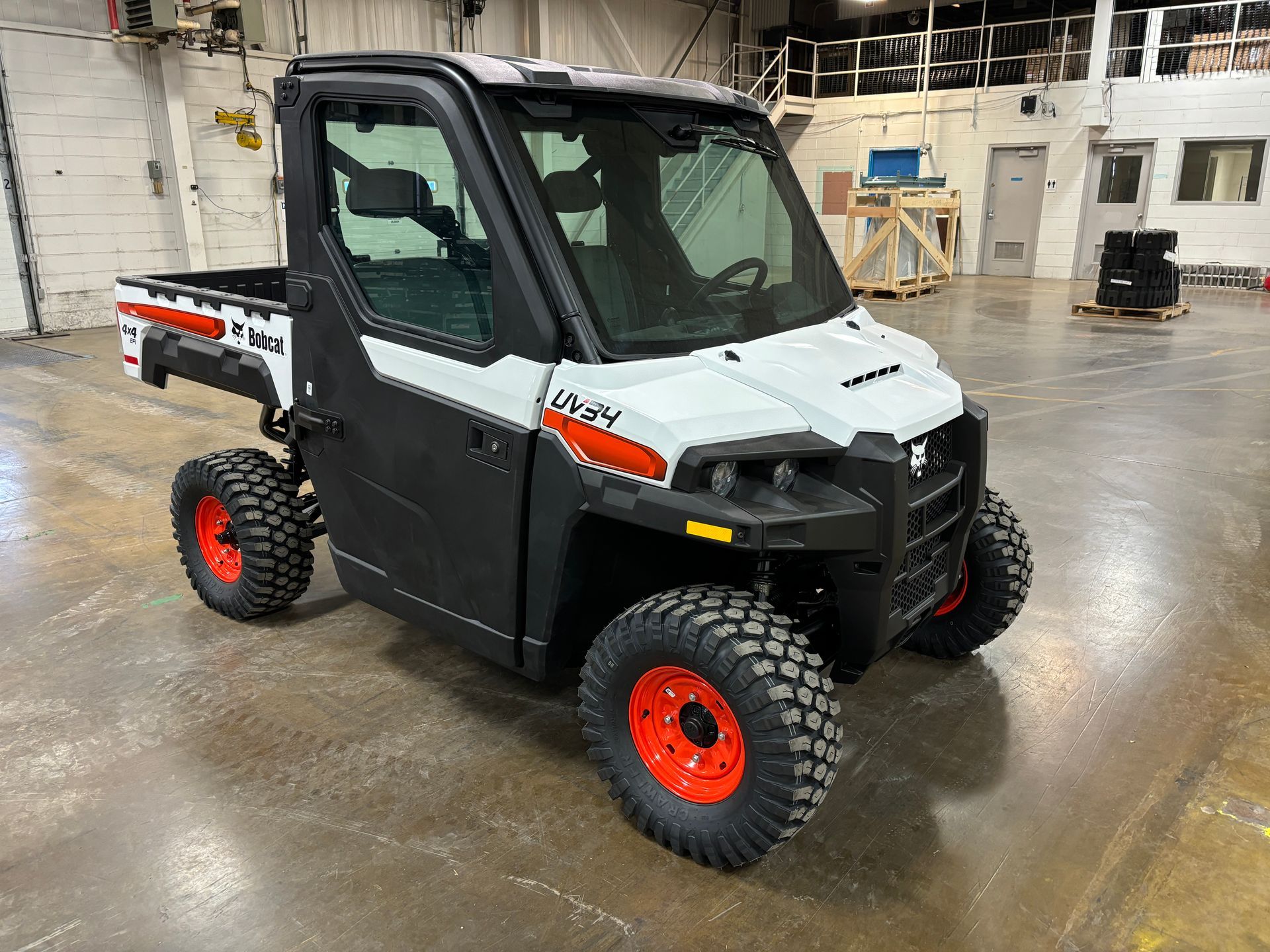

* 2024 Bobcat UV34 Utility Vehicle
* 1 Hours
* 1 Mile
* UV34 Gas EPS Bac & Heat Package
- Electronic Power Steering (EPS)
- Adjustable Speed Limits from 15-35 MPH
- RWD/AWD/Turf Drive Modes
- 8-ply HD Tires
- 1,250 lb Capacity HD Poly Bed
- Factory Installed:
* Sport Roof
* Rear Panel

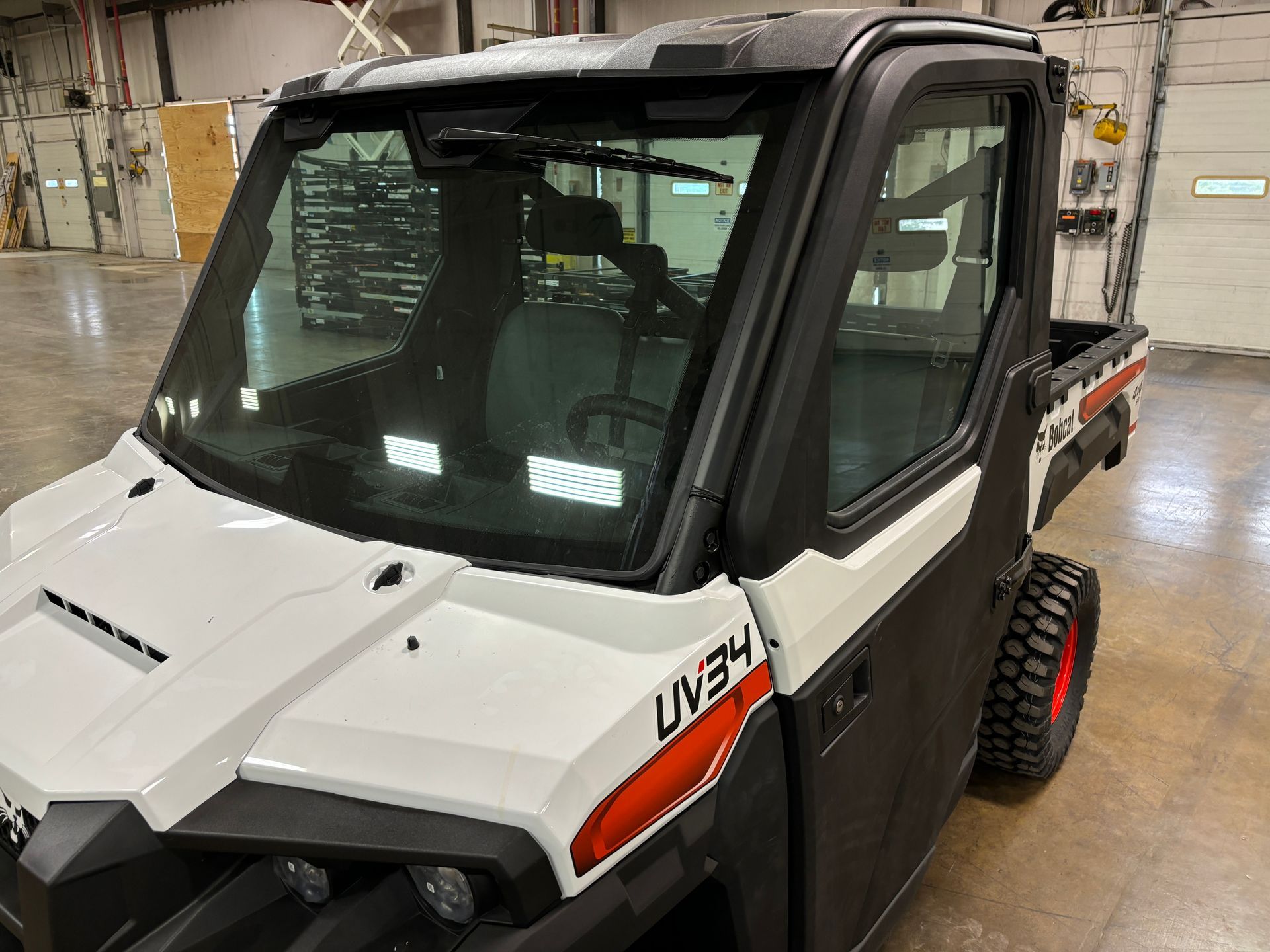

* Fixed Front Window
* Window Wiper & Washer
* Manual Crank Front Doors
* Deluxe Heater w/ Defrost
ENGINE
* Liquid Cooled Engine
* 40 HP Gas EFI Engine
* Pressurized Oiling System with Spin On Filter
* Engine Protection Oil Pressure & Water Temp
* High Capacity Air Filter
* 49 State Emission Compliant
DRIVE SYSTEM
* CVT (Continuous Variable Transmission)
* Sealed CVT Cover w/ Remote Intake & Exhaust
* Four Wheel Drive - 3 Modes
* Forward Travel, Two Range (H/L)
* Integrated In-Transmission Park (P)
* Brakes - 4 Wheel, Hydraulic Disc with Dual-Bore
FRONT CALIPERS
* CV Guard, Front
* Shaft Drive with CV Joints
SUSPENSION & STEERING
* Front - Independent, Dual A Arm
* Rear - Independent, Dual A Arm
* Adjustable Front & Rear Coil Over Shocks
* Rack & Pinion
* Electric Power Steering Assist
* Tilt Steering Column

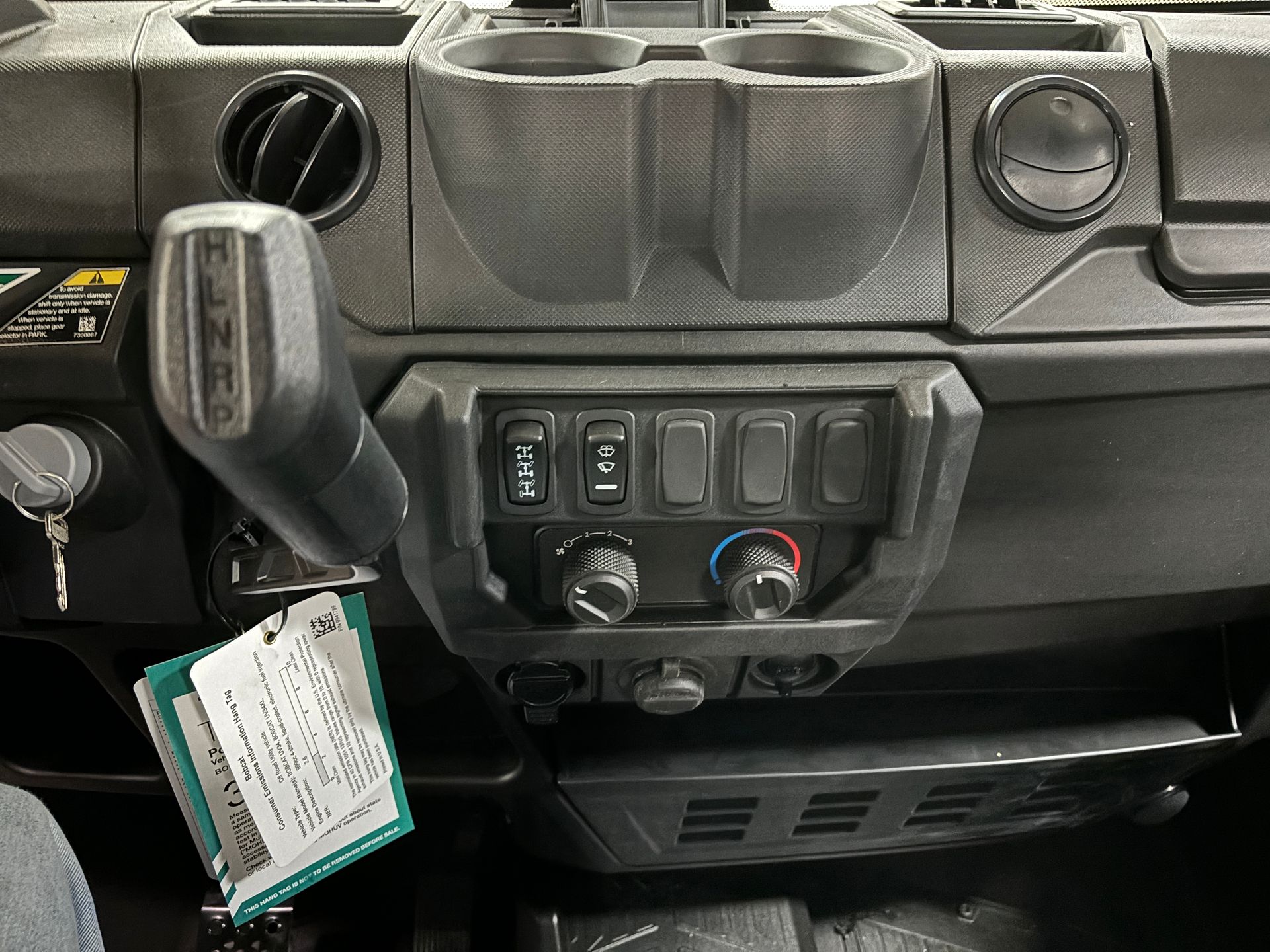

OPERATOR COMPARTMENT
* Beverage Holder (4)

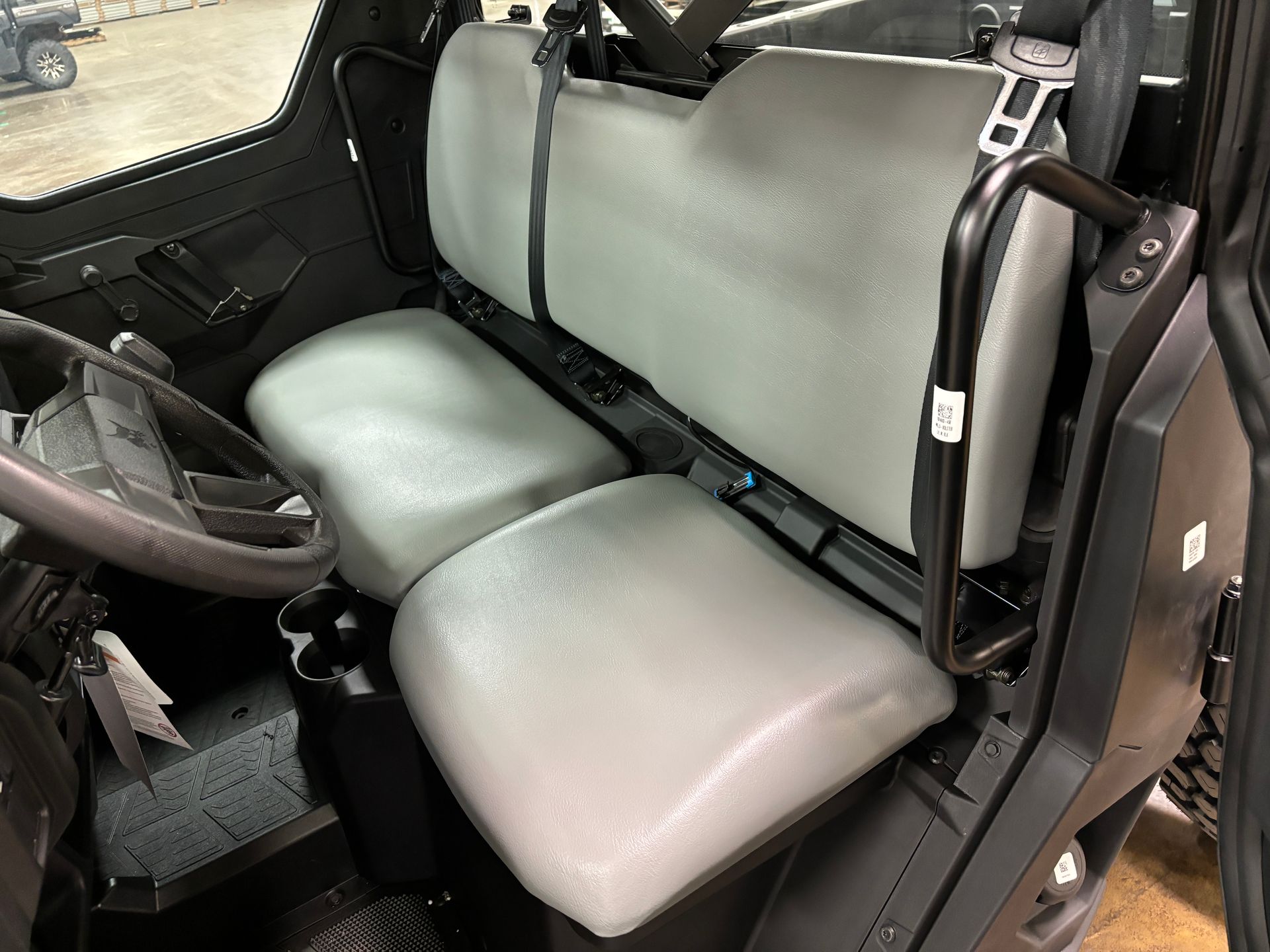

* 60/40 Split Bench Seats (3 Occupants)
* Under Seat, Upper & Lower Dash Storage
* 3 Seat Belts with 3 Point Restraint

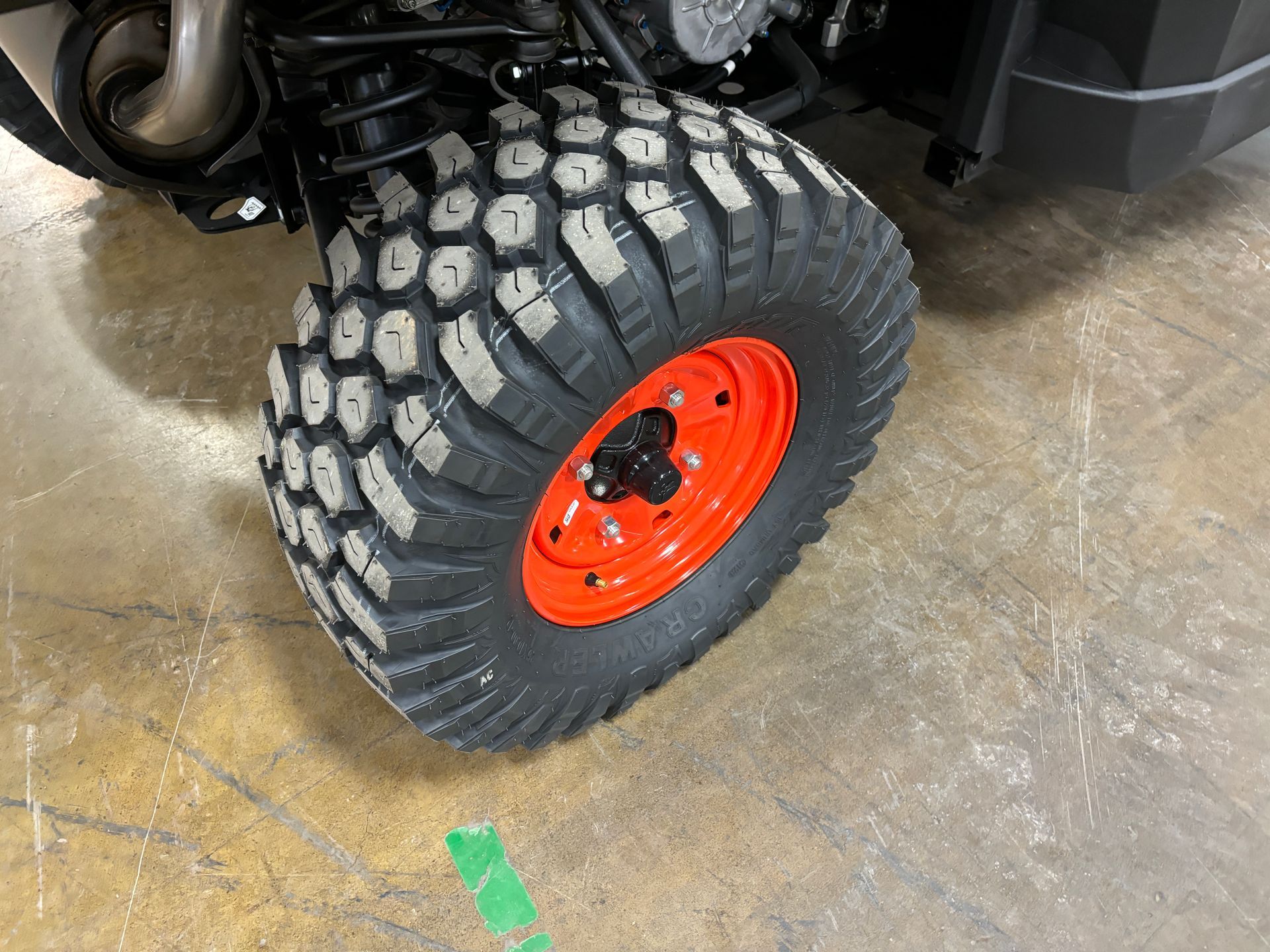

TIRES

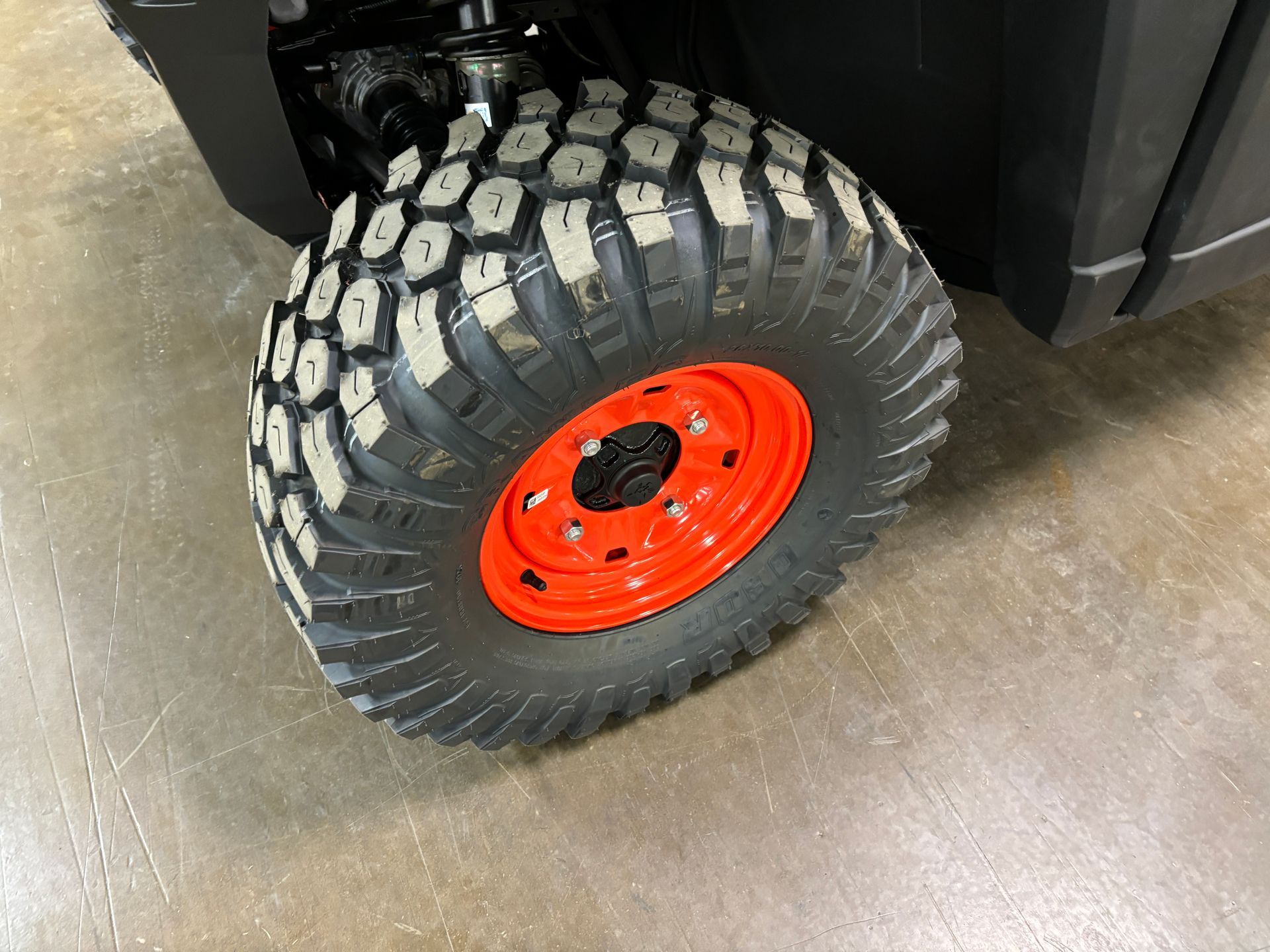

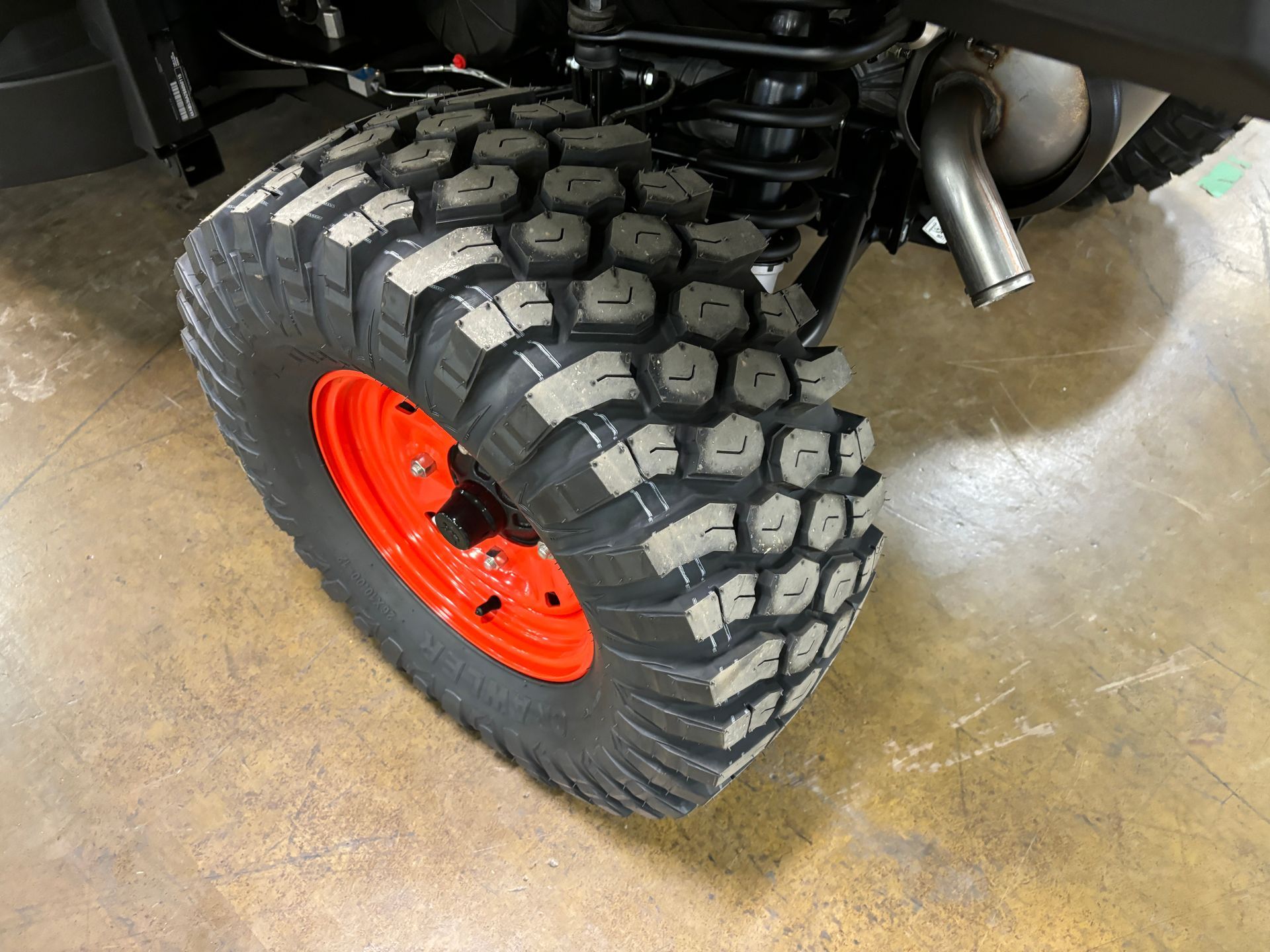

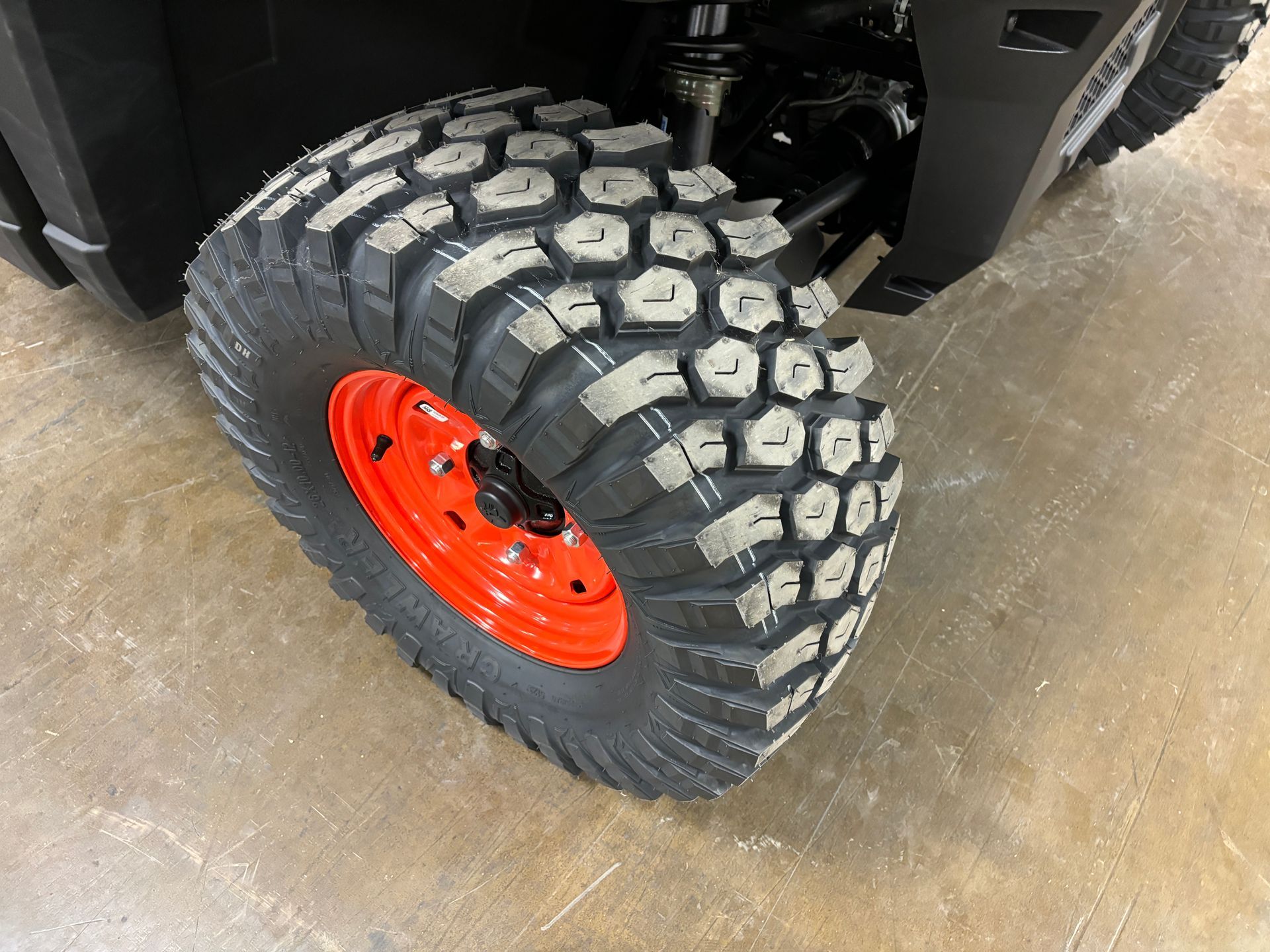

* All Terrain Industrial (8 Ply)
* Front/Rear, 26x10-12
WHEELS
* Front/Rear, 12/6 Orange Steel Rim
ELECTRICAL
* Headlights, High & Low Beams 4-35 Watts
* LED Tail & Brake Lights
* 6 Outlet Accessory Power Bar
* 75 Amp/900W Stator
* 575 CCA Battery
INSTRUMENTATION PANEL
* Indicator Lights
- Seat Belt Reminder
- High Beam On
- Engine Oil Pressure

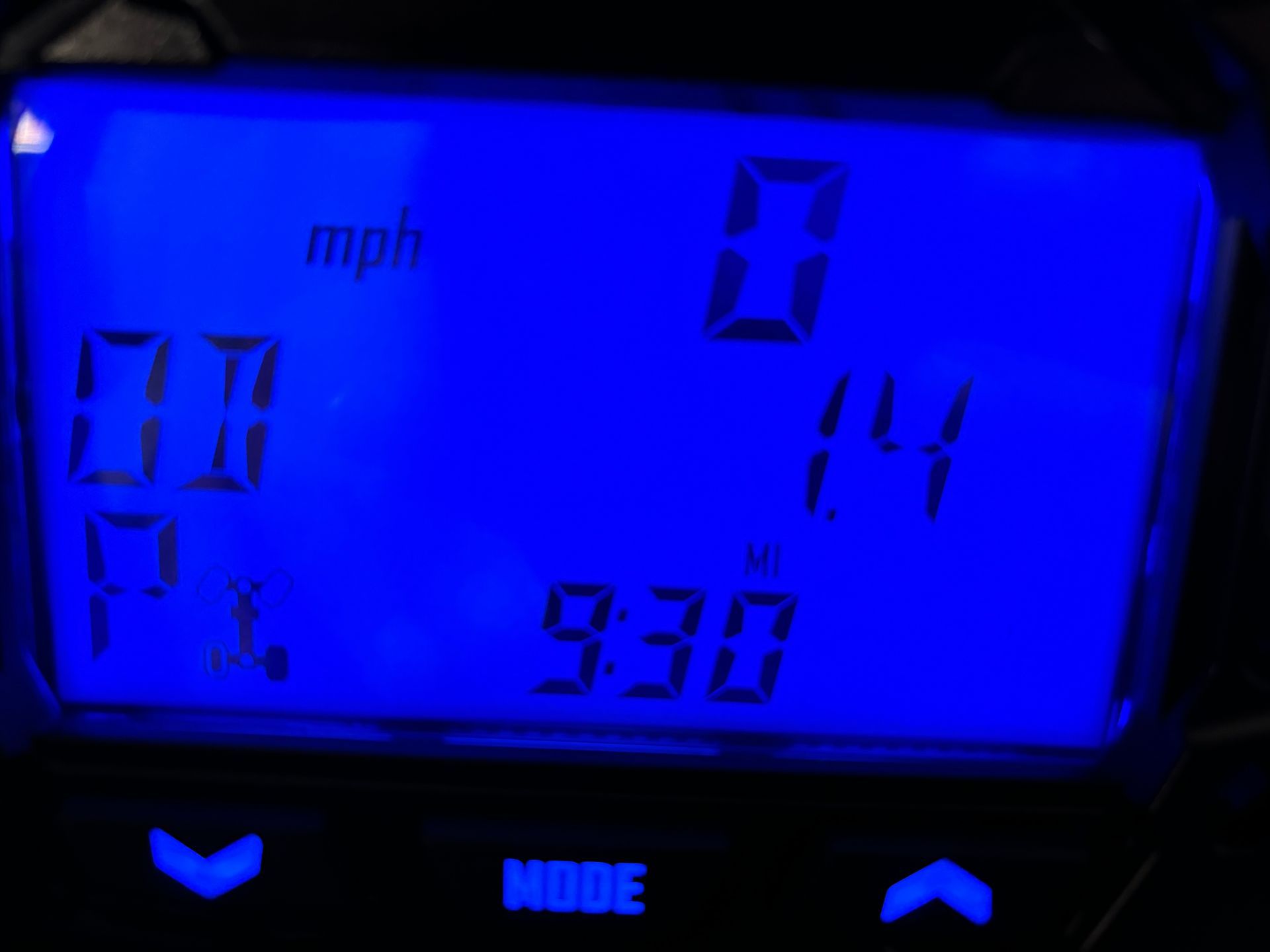

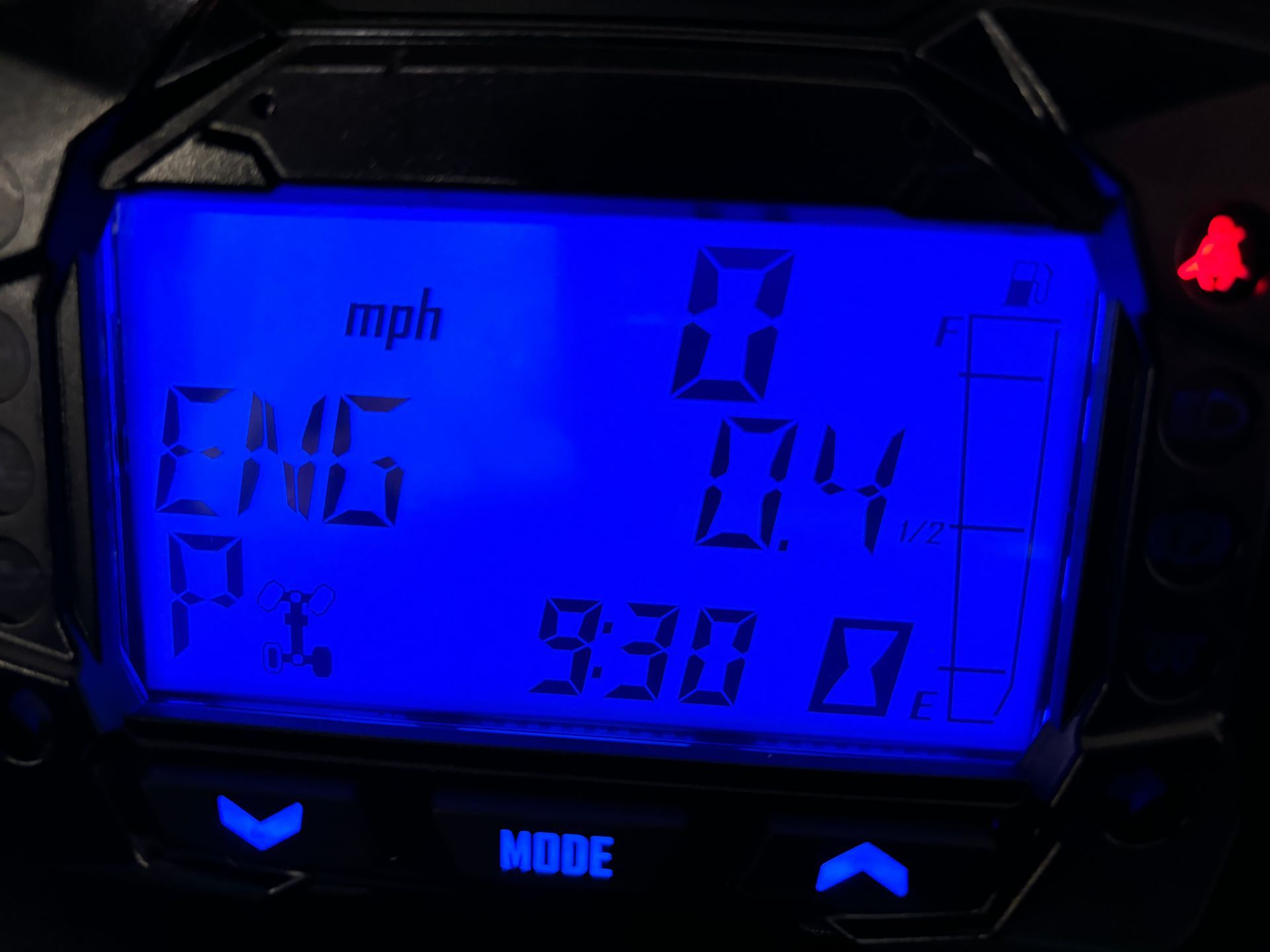

* LCD Display
- Speedometer
- Engine Temp
- Engine RPM
- Volt
* Trip & Hours Meter
* Tachometer
* Fuel Level
* Clock
* Drive Mode
* Odometer
* Service Reminder
* Gear Position

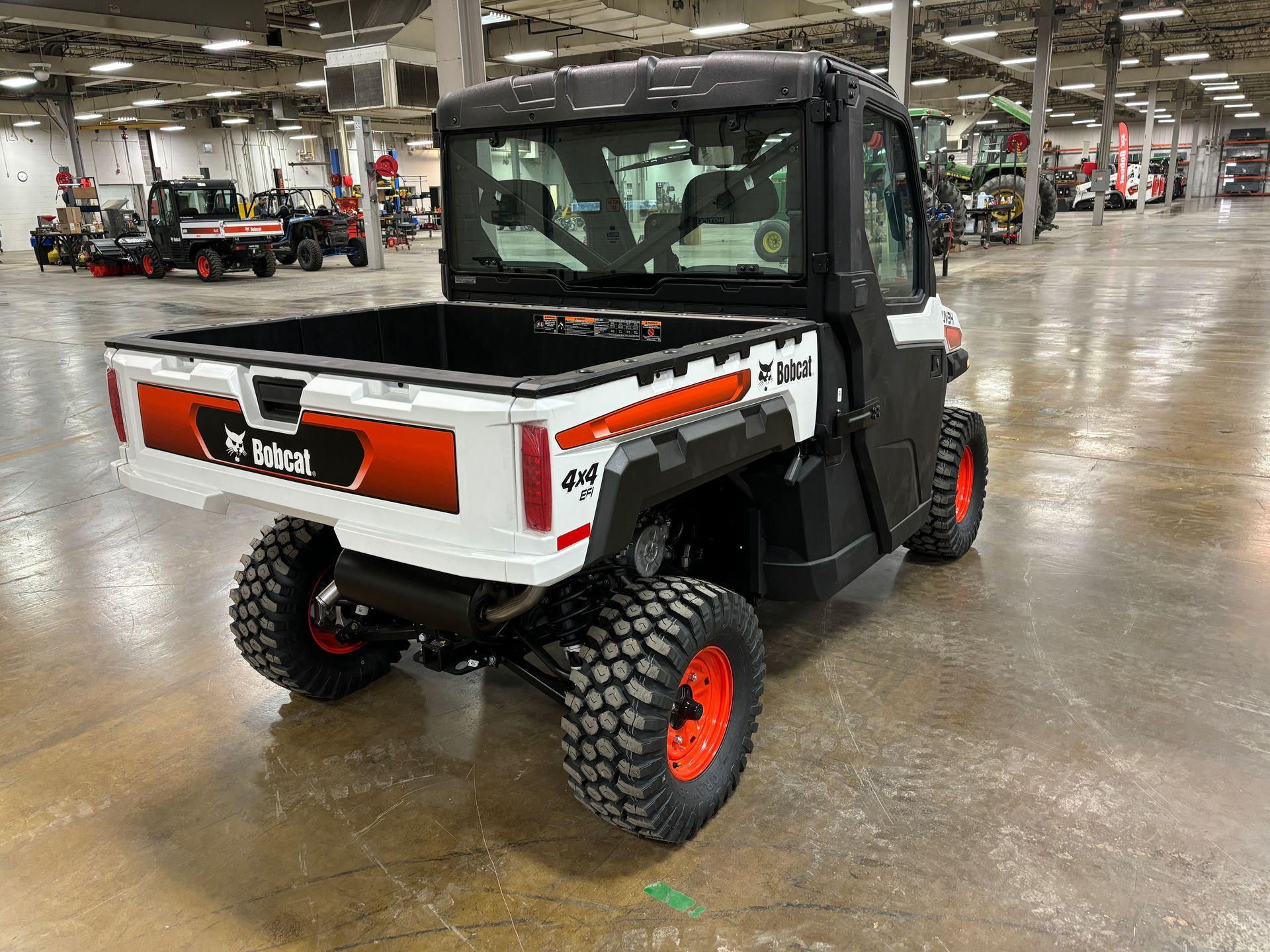

CARGO BOX & FRAME

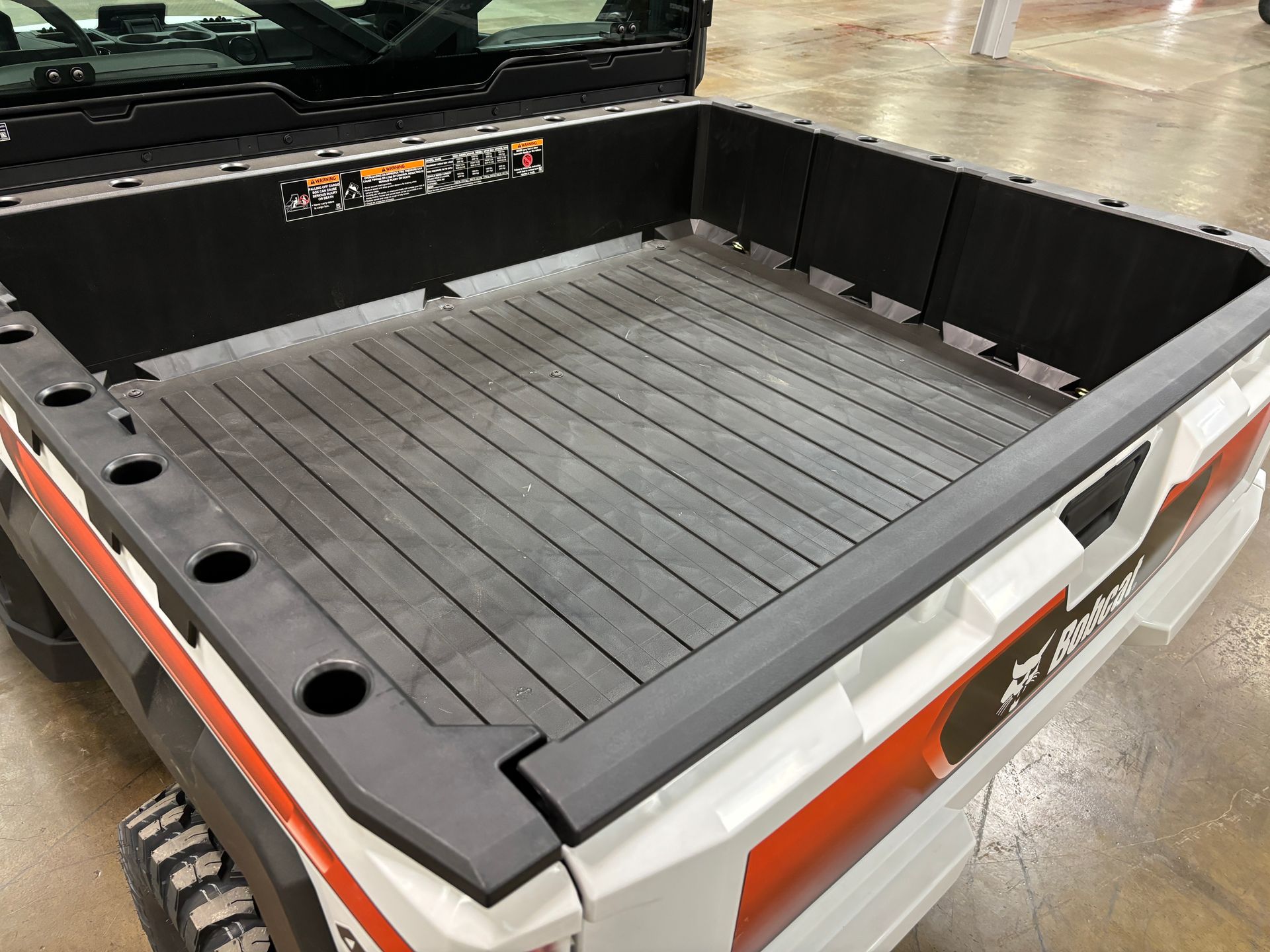

* Composite Cargo Box w/ Cylinder Lift Assist
* Quick Latch Tailgate w Single Latch
* Integrated Box Accessory System
* Rear Receiver Hitch - 2"
* Full Chassis Skid Plates
* ROPS (Roll Over Protective Structure)
WARRANTY
* 1 Year/1000 Hours
ENGINE
* Engine Cooling: Liquid
* Engine Fuel: Gasoline
* Horsepower: 39.9 HP
* Displacement: 61 cubic in
PERFORMANCE
* Operating Weight: 1,855 lb
* Travel Speed: 35 MPH
* Travel Speed - Max: 35 MPH
* Travel Speed - Low: 25 MPH
* Travel Speed - Reverse: 25 MPH
CAPACITIES
* Fuel Tank: 11.5 gal
* Cargo Box Bed Load Capacity: 1,250 lb
* Cargo Box Length: 43.5"
* Cargo Box Width: 54"
* Carbo Box Height: 11.5"
* Cargo Box Load Height: 38"
* Total Vehicle Rated Capacity: 1,900 lb
DIMENSION
*Length: 123"
* Width: 62"
* Height: 76"
* Ground Clearance: 11.7"
* Turning Radius: 110"
* Wheelbase: 85"
FEATURES
* Front & Rear Work Lights: Optional
* Operating Lights: Standard
* Cab Enclosure: Optional
* Wash/Wiper (Front, Rear & Roo): Optional
* Bed Lift: Manual
* Cab Heater: Optional
* Hydrostatic Transmission: N/A
* Sound Option: N/A
* Tilt Steering Wheel: Standard
* Spark Arrestor Muffler: Standard
* Heater Air Conditioning: N/A
