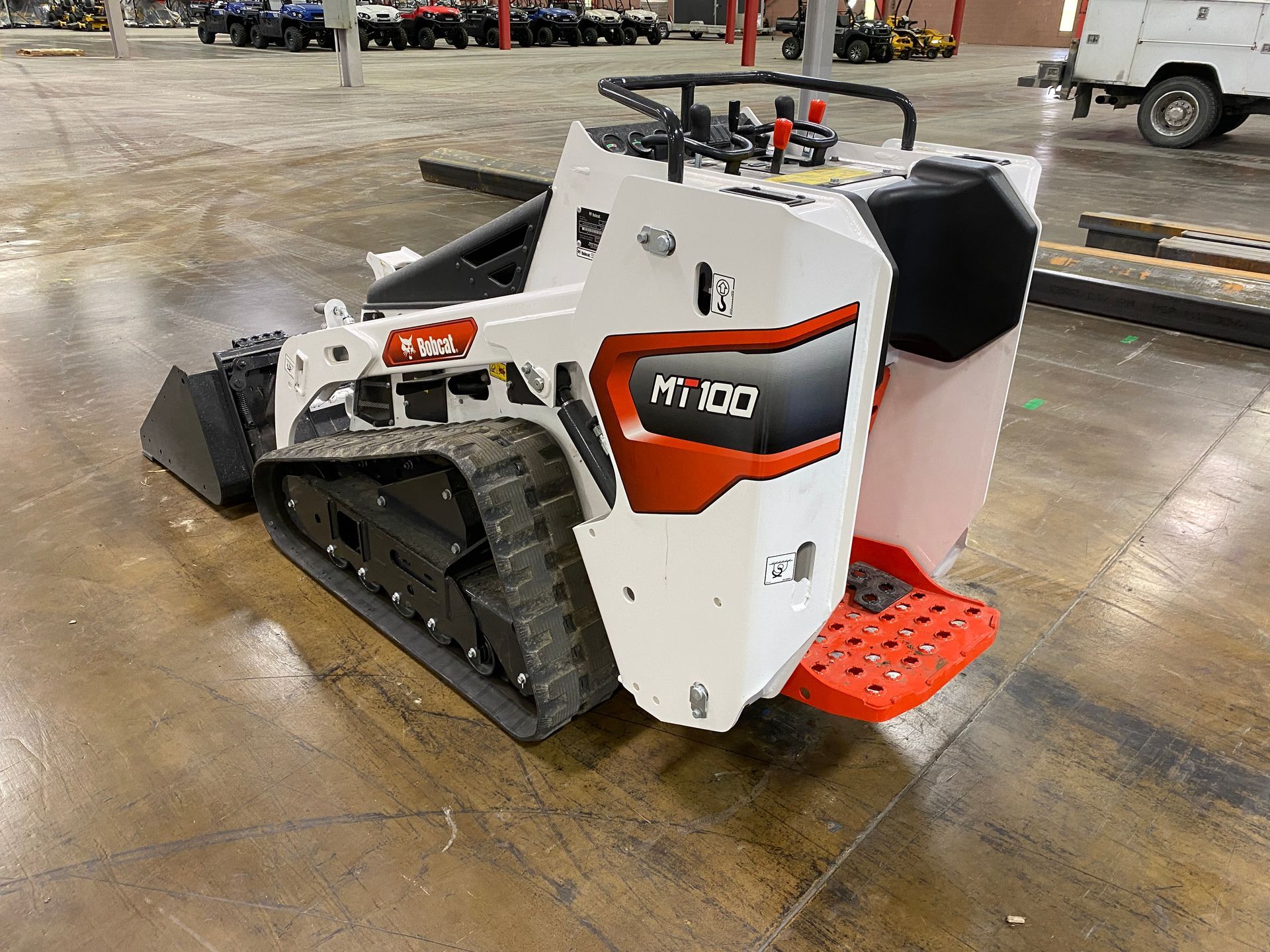

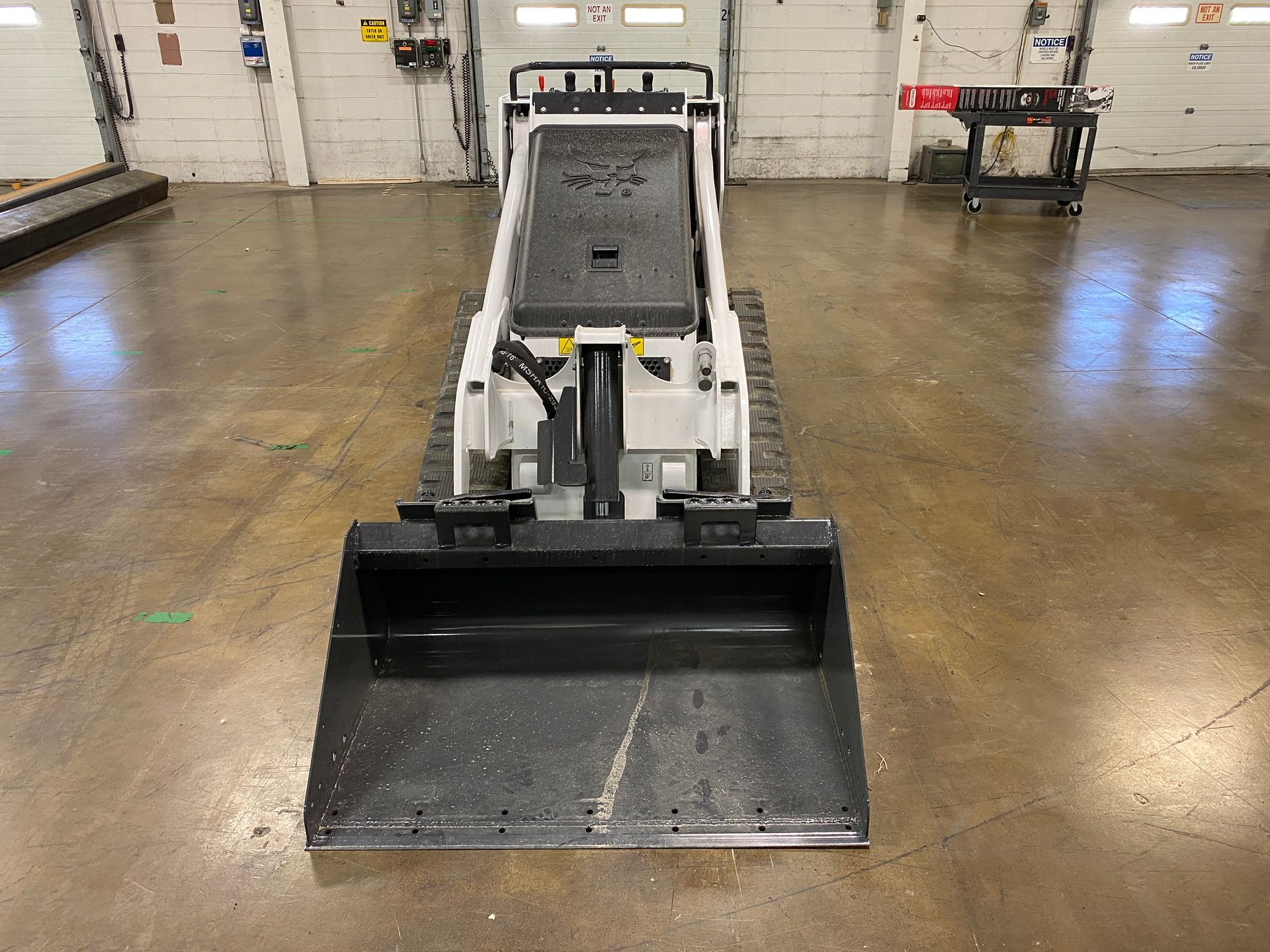

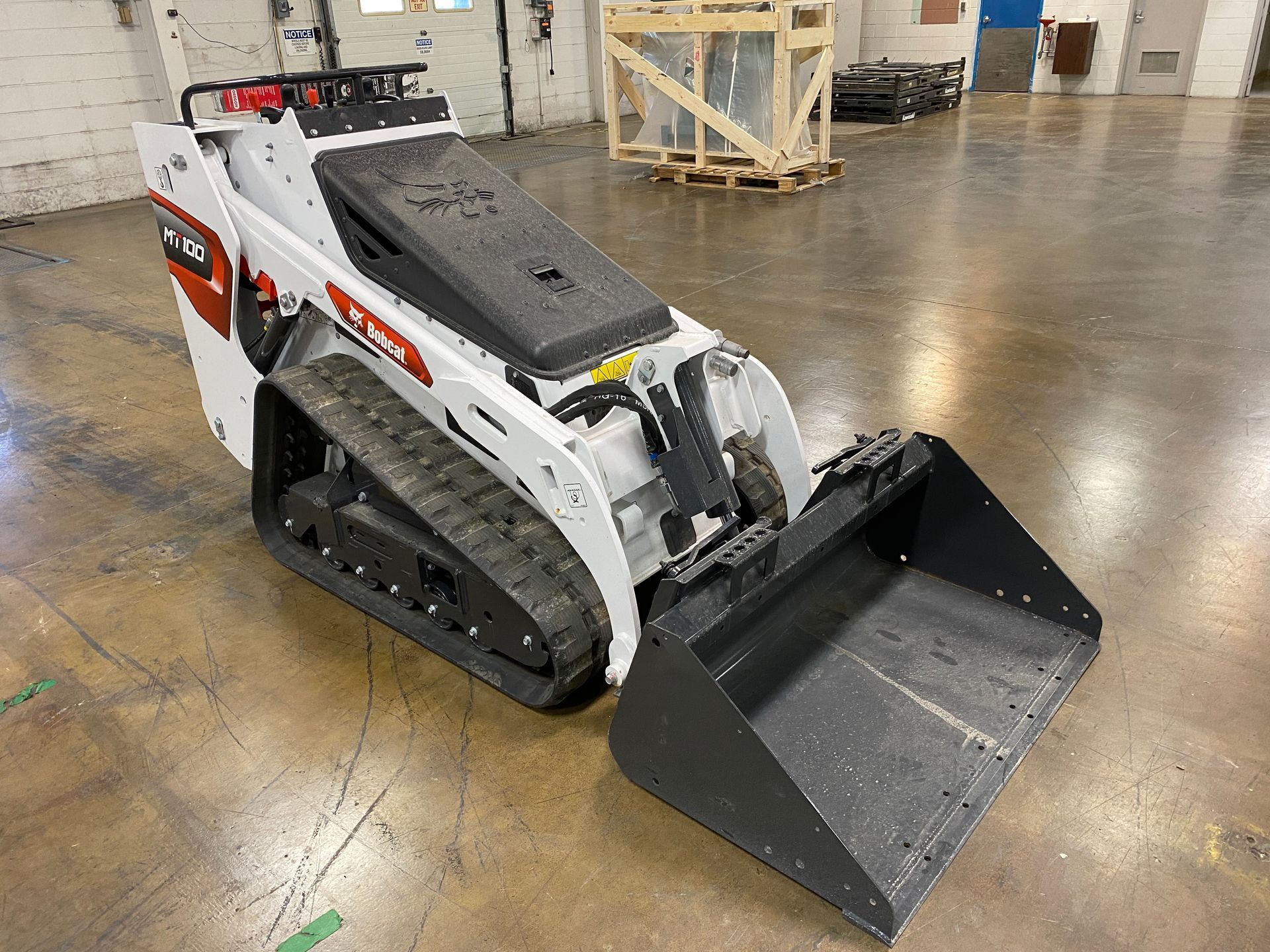

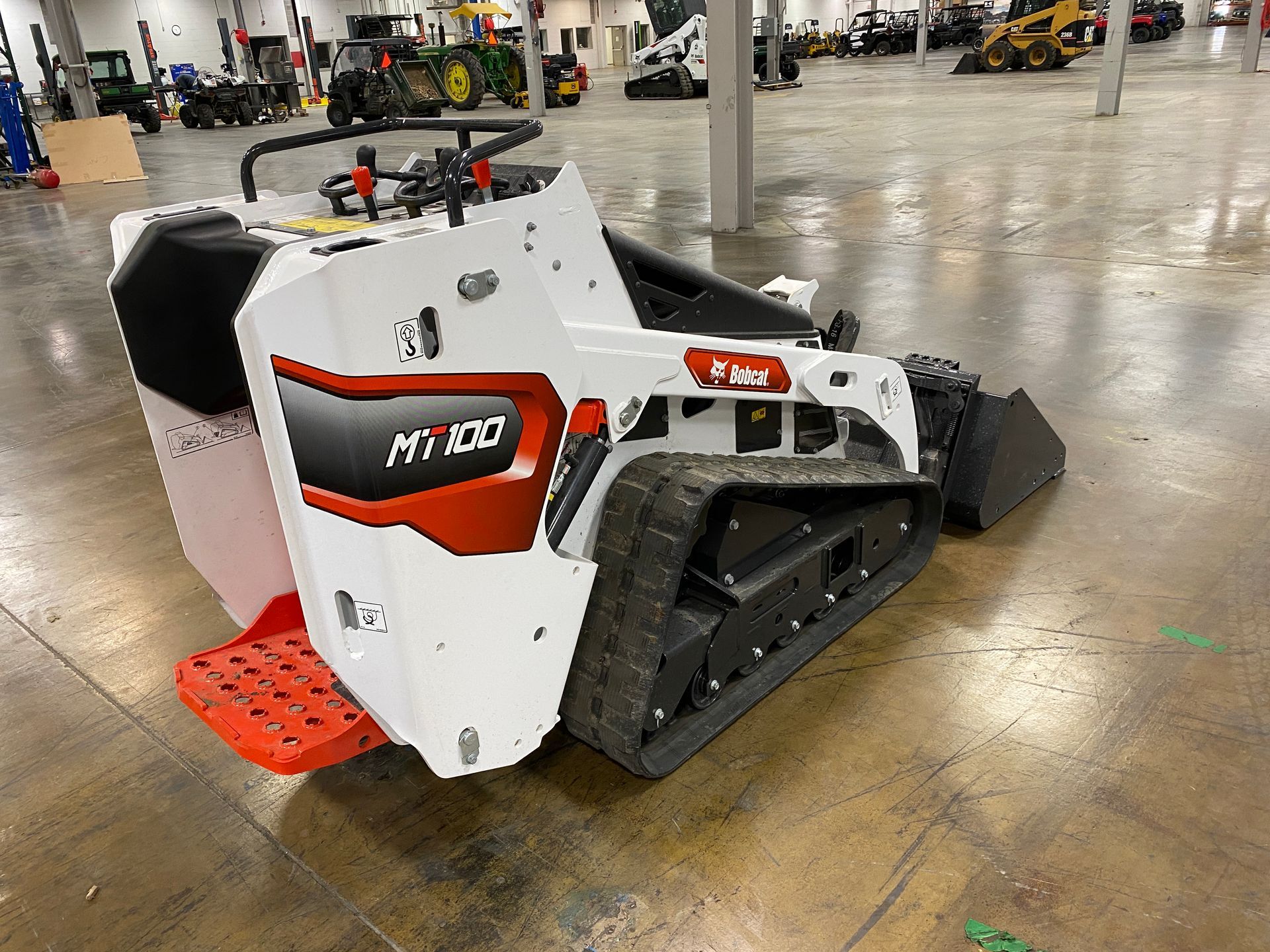

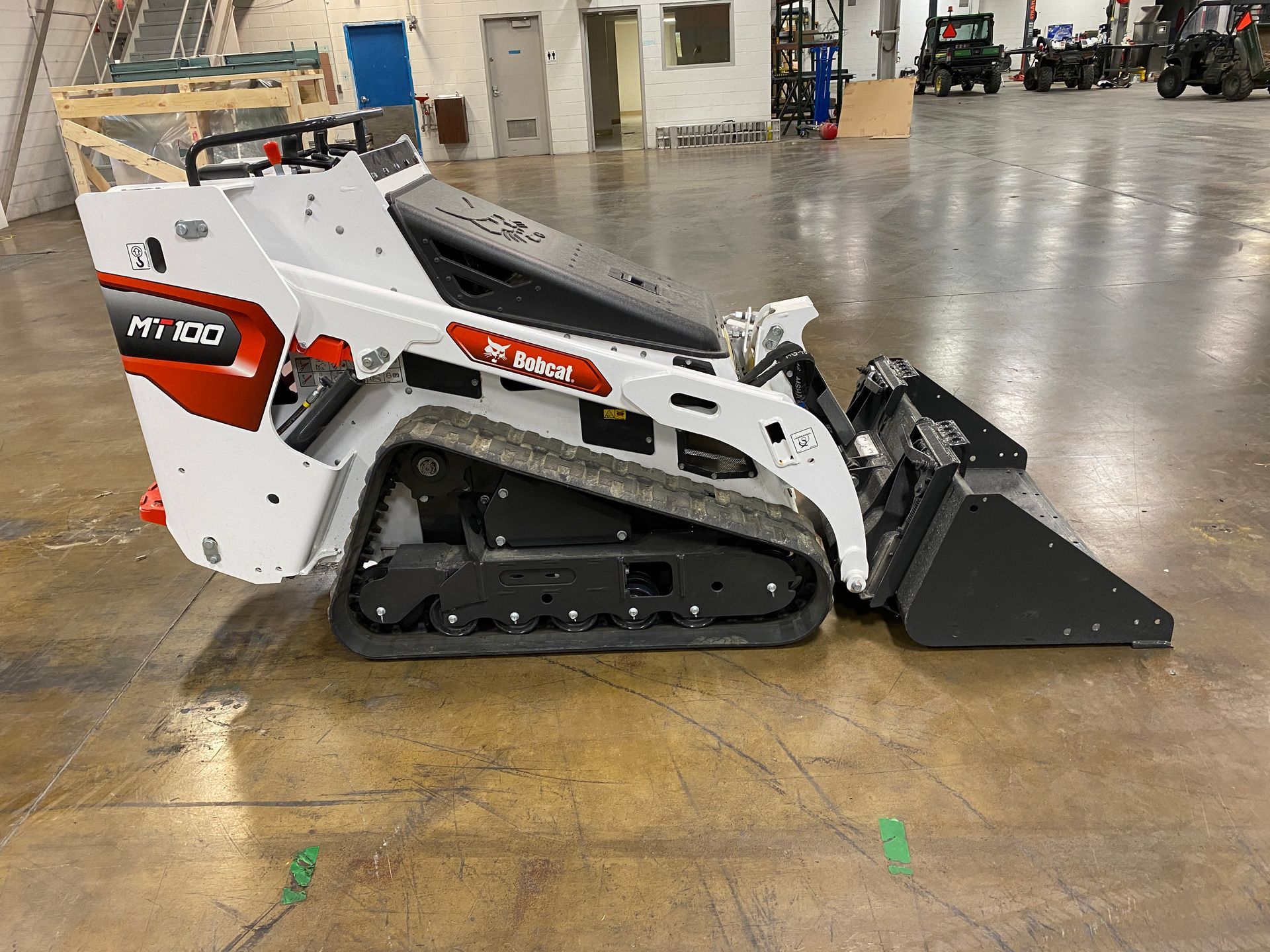

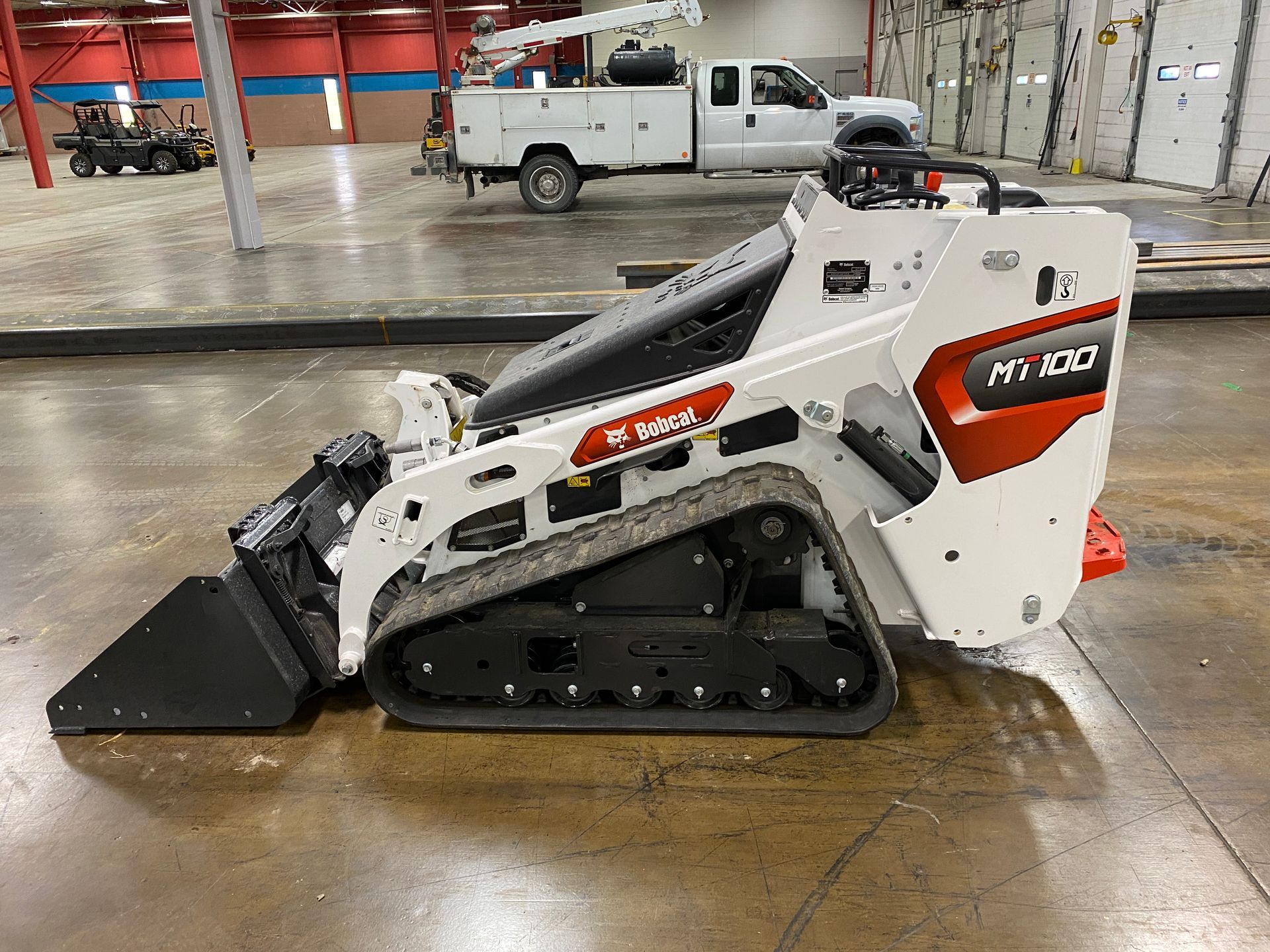

2024 Bobcat MT100 Mini Track Loader   $39,862

Features

* 2024 Bobcat MT100 Mini Track Loader

* 1 Hour

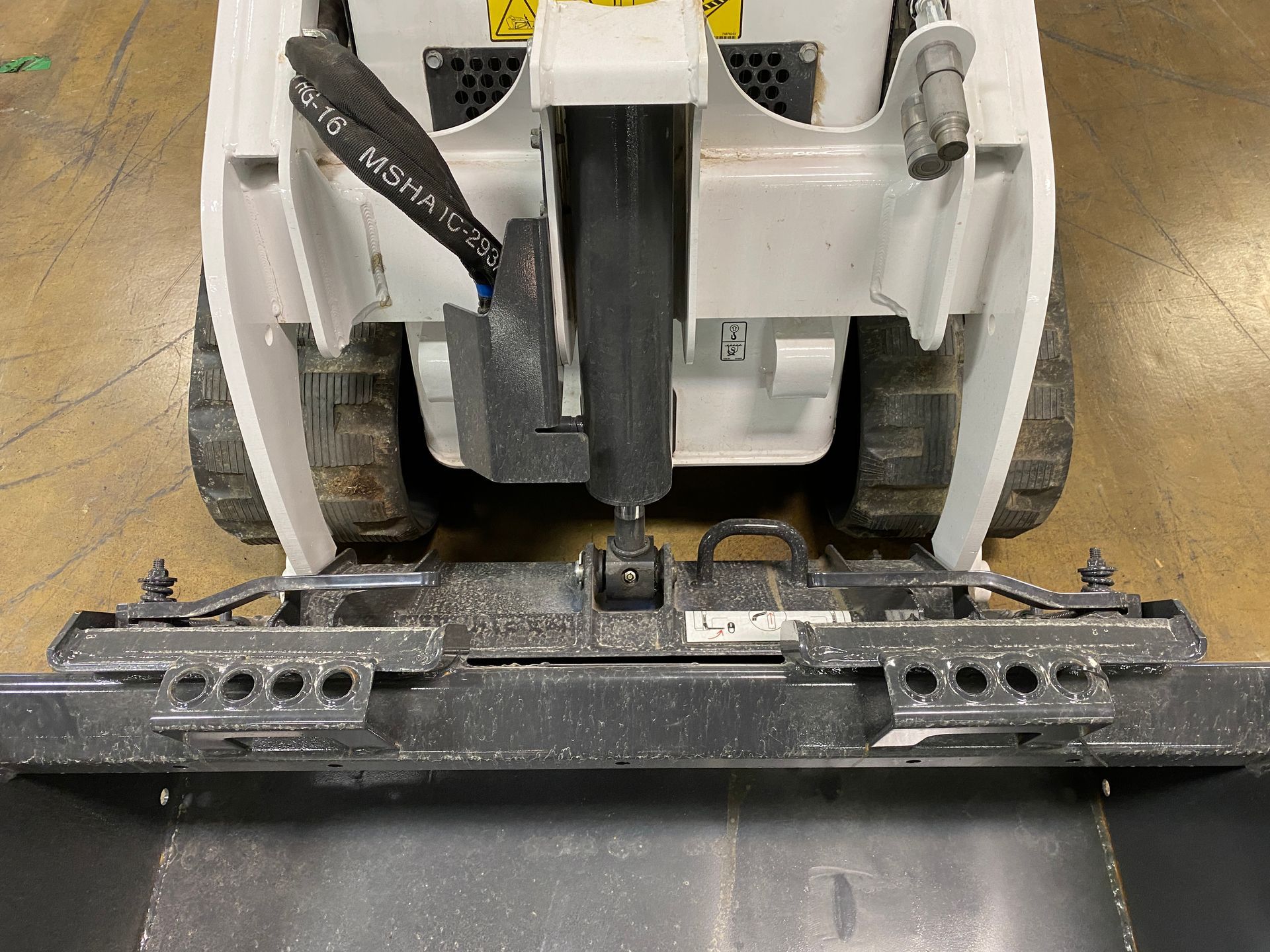

* Bob-Tach Interface

   - Uses an over-center latch mechanism and wear-compensating pins to make proper attachment to carrier fitment.

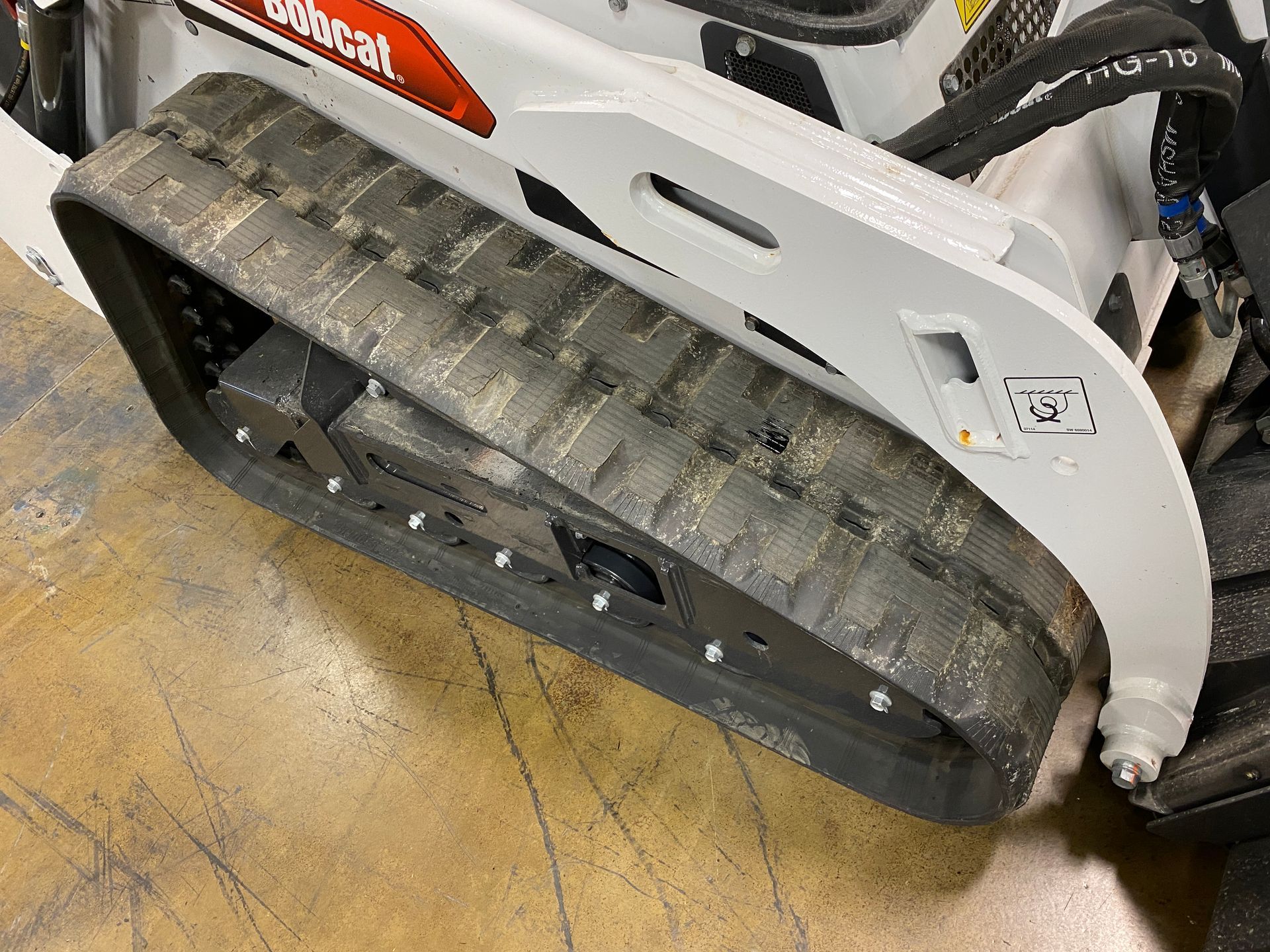

* Wide Tracks

   - Wide Track Option added 10" wide track, wide undercarriage, and changes loader width to 44"

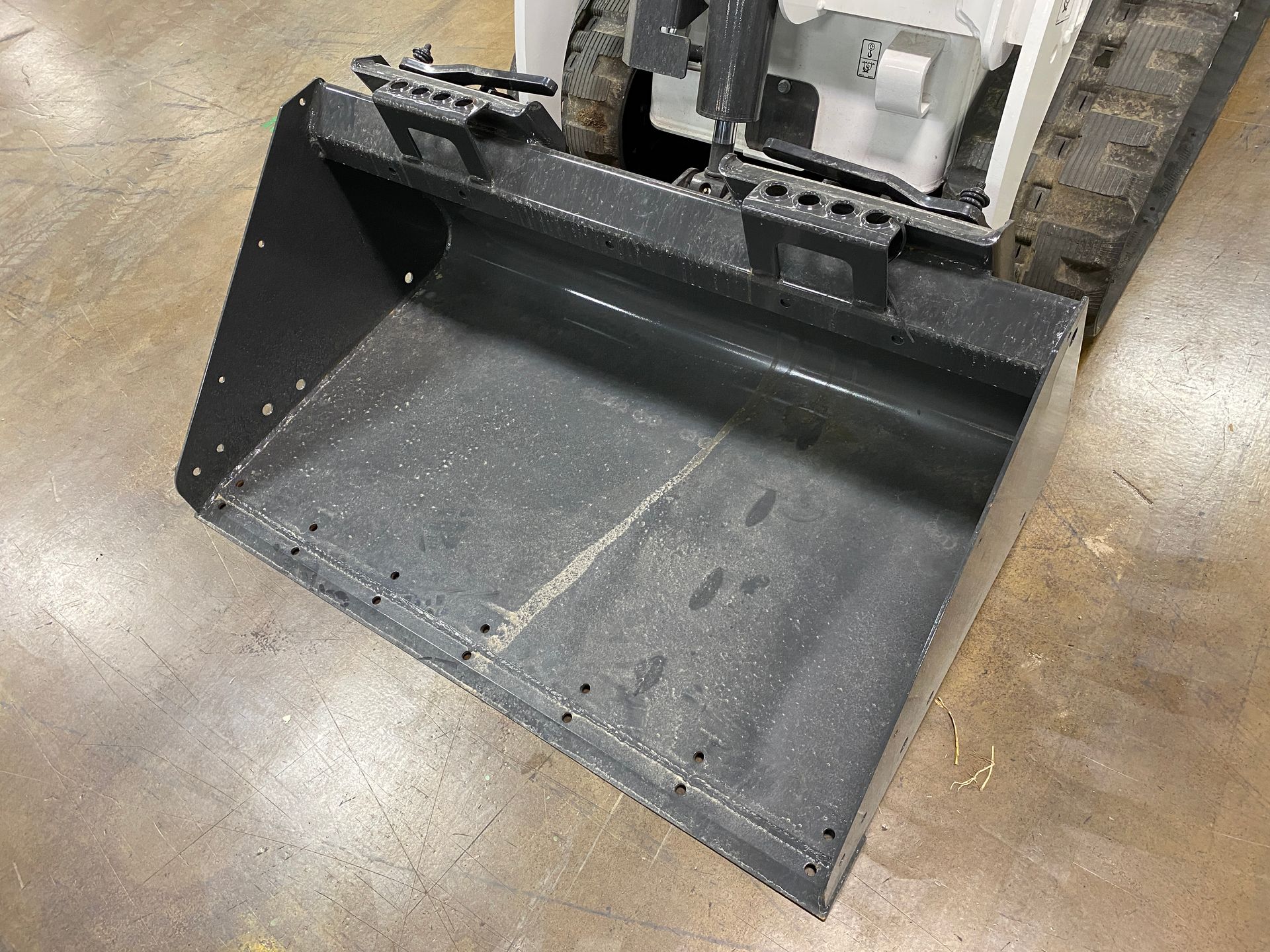

* 44" General Purpose Bucket

Standard Features

* 25 HP Tier IV Diesel Engine

* Auxiliary Hydraulics

* Attachment Interface Bob-tach or CII (to accept approved attachments)

* Built-In Tie Down & Crane/Lift Locations

* Continuous Flow Shutoff Lever

* Hydrostatic Drive Train

* Counterweights - Includes (4) 30 pound weights

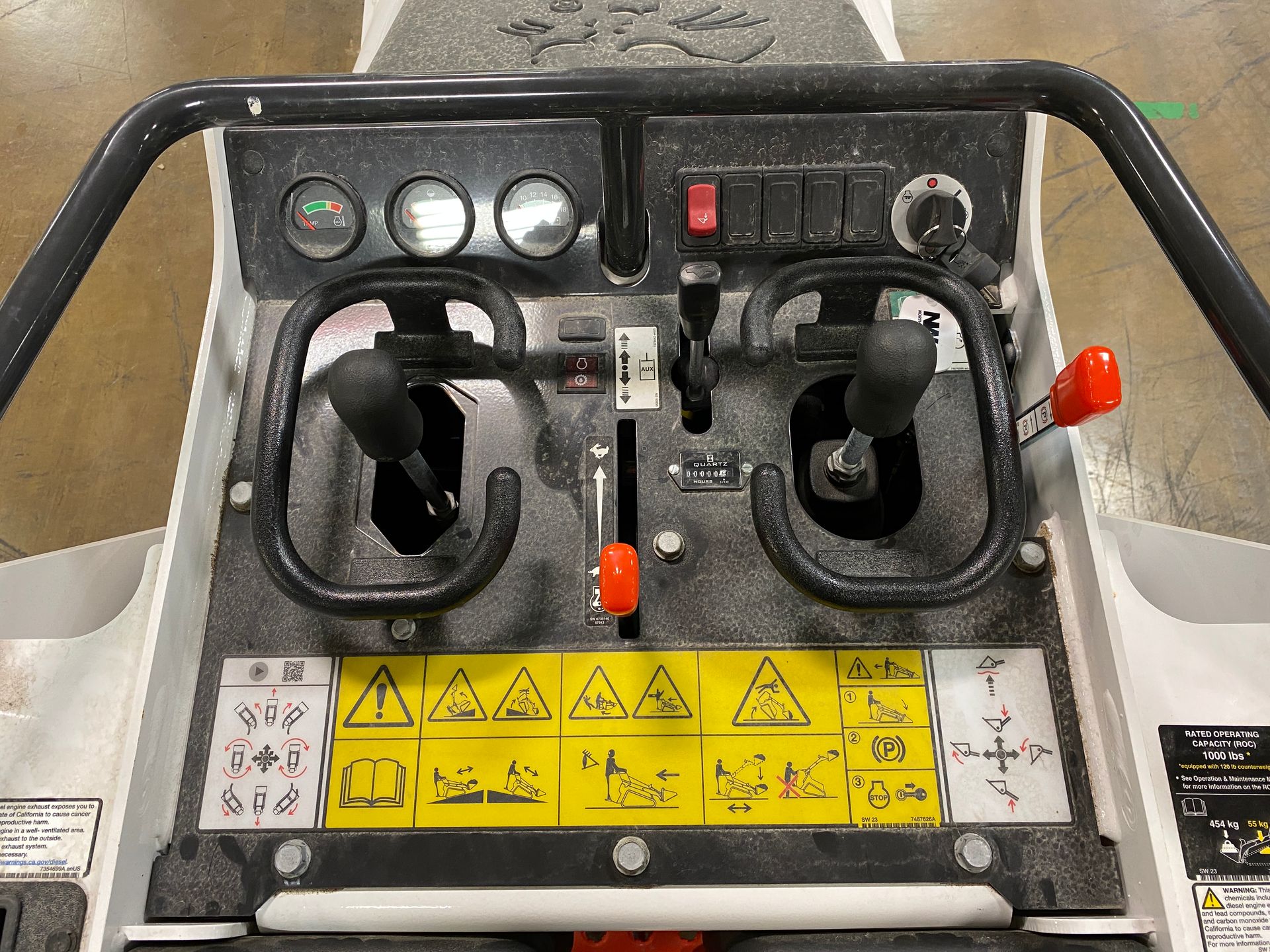

* Instrumentation

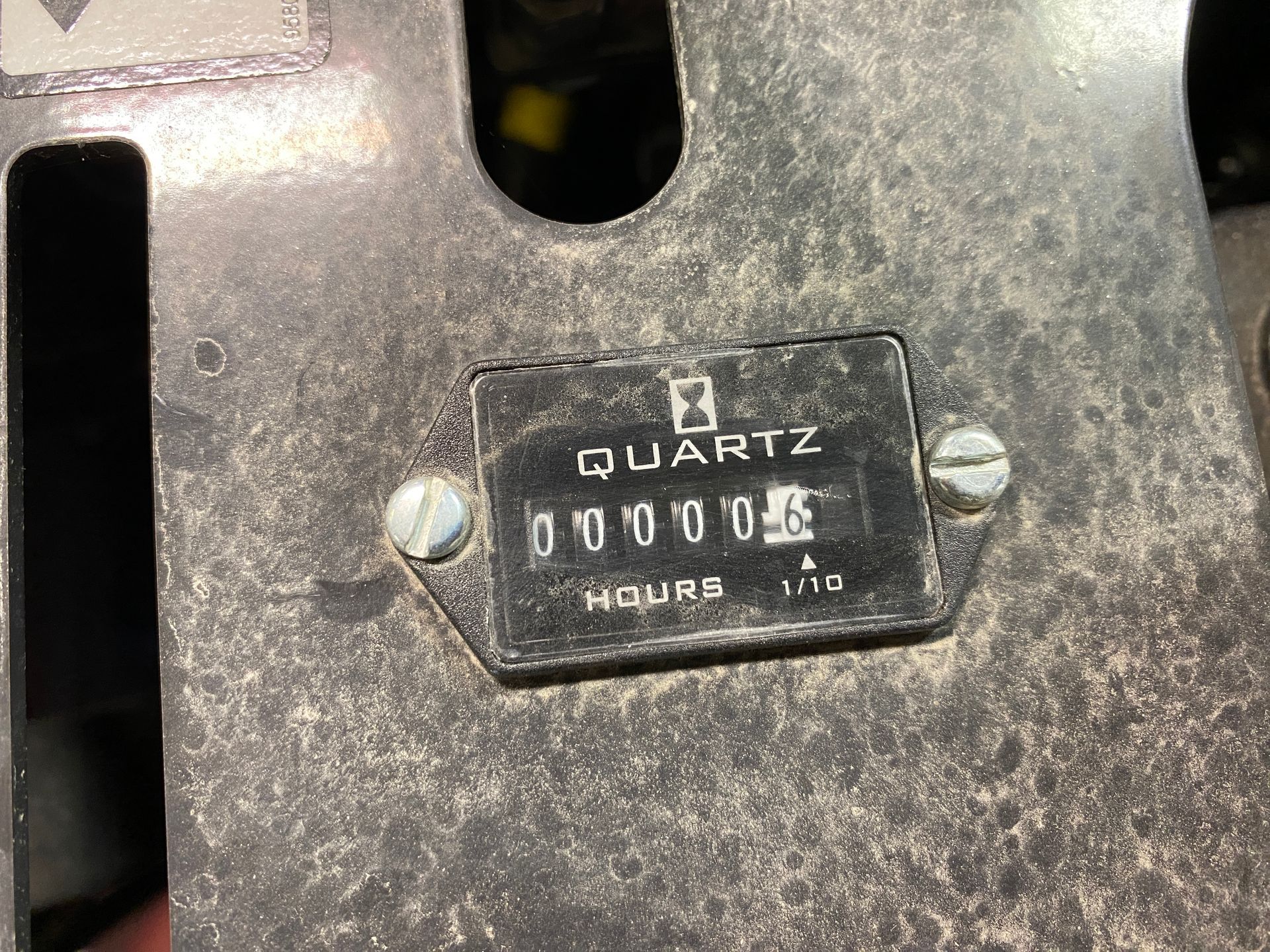

   - Hourmeter

   - Engine Temperature & Fuel Gauges

   - Voltmeter & Warning Lights

* Lift Arm Lockout with Manual Bypass

* Lift Arm Support

* Neutral Start Interlocks

* Parking Brake

* ISO Pattern Joystick Travel Control

* Spark Arrestor Muffler

* Tilt Lockout

* Tilt Steering

* Storage Cubby

* Cup Holder

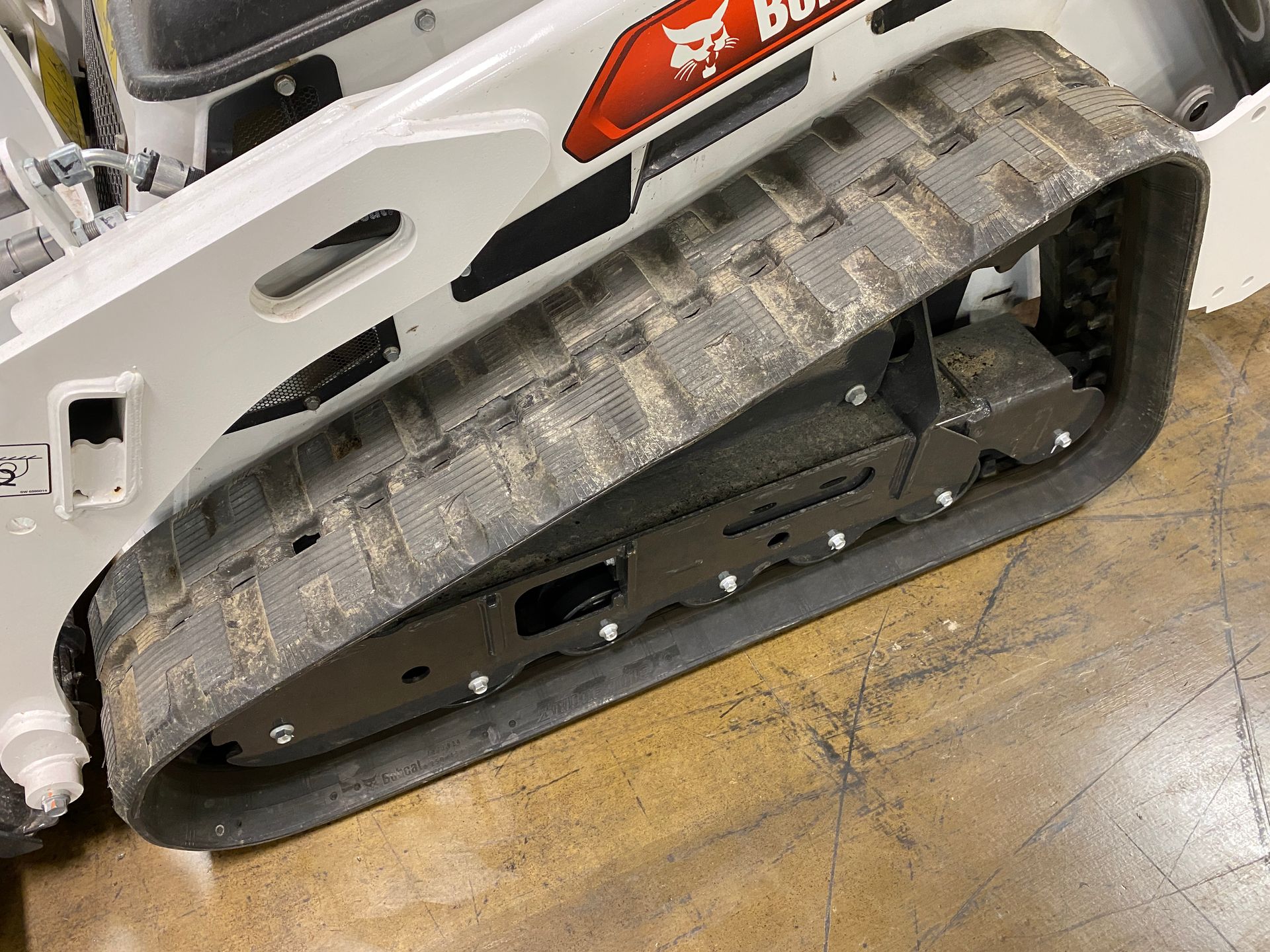

* Tracks: Rubber, 7.1" Wide

   - Machine Width: 35.6"

Specifications

ENGINE

* Emissions Tier (EPA): Tier 4

* Engine Model: D902-E4B-BC-1

* Engine Make: Kubota

* Engine Cooling: Liquid

* Engine Fuel: Diesel

* Displacement: 55" cubic

* Number of Cylinders: 3

* Horsepower: 24.8hp

PERFORMANCE

* Rated Operating Capacity: 1,000 lb

* Carry Position ROC with Standard Counterweight-UnderCarriage Position: 1,300 lb

* Tipping Load: 2,898 lb

* Operating Weight: 3,390 lb

* Ground Pressure: 5.25 psi

* Travel Speed: 4.1 mph

* Travel Speed - Reverse: 2.9 mph

CAPACITIES

Fuel Tank: 7 gal

HYDRAULIC SYSTEM

** Pump Capacity: 12 gal/min

* System Relief @ Quick Couplers: 2,900 psi

* Auxiliary Standard Flow: 12 gal/min

GENERAL

* Contract Codes: Mini-Track Loader

* First Year of Production: 2020

CONTROLS

* Vehicle Steering: Other

* Lift & Tilt: Controlled by joystick

* Auxiliary Hydraulics Type: Controlled by fore & aft movement of hand lever

STANDARD DIMENSIONS

* Length: 106.2"

* Width: 35.6"

* Height: 54.6"

* Height to Bucket Hinge Pin: 80.9"

* Length of Track on Ground: 41.4"

* Length without Attachment: 84.5"

* Length with Standard Bucket: 106.2"

* Width (with bucket): 3'

* Reach @ Maximum Height: 18.6"

* Dump Angle @ Maximum Height: 48.7 degree

* Ground Clearance: 8"

* Angle of Departure: 23.8 degree
