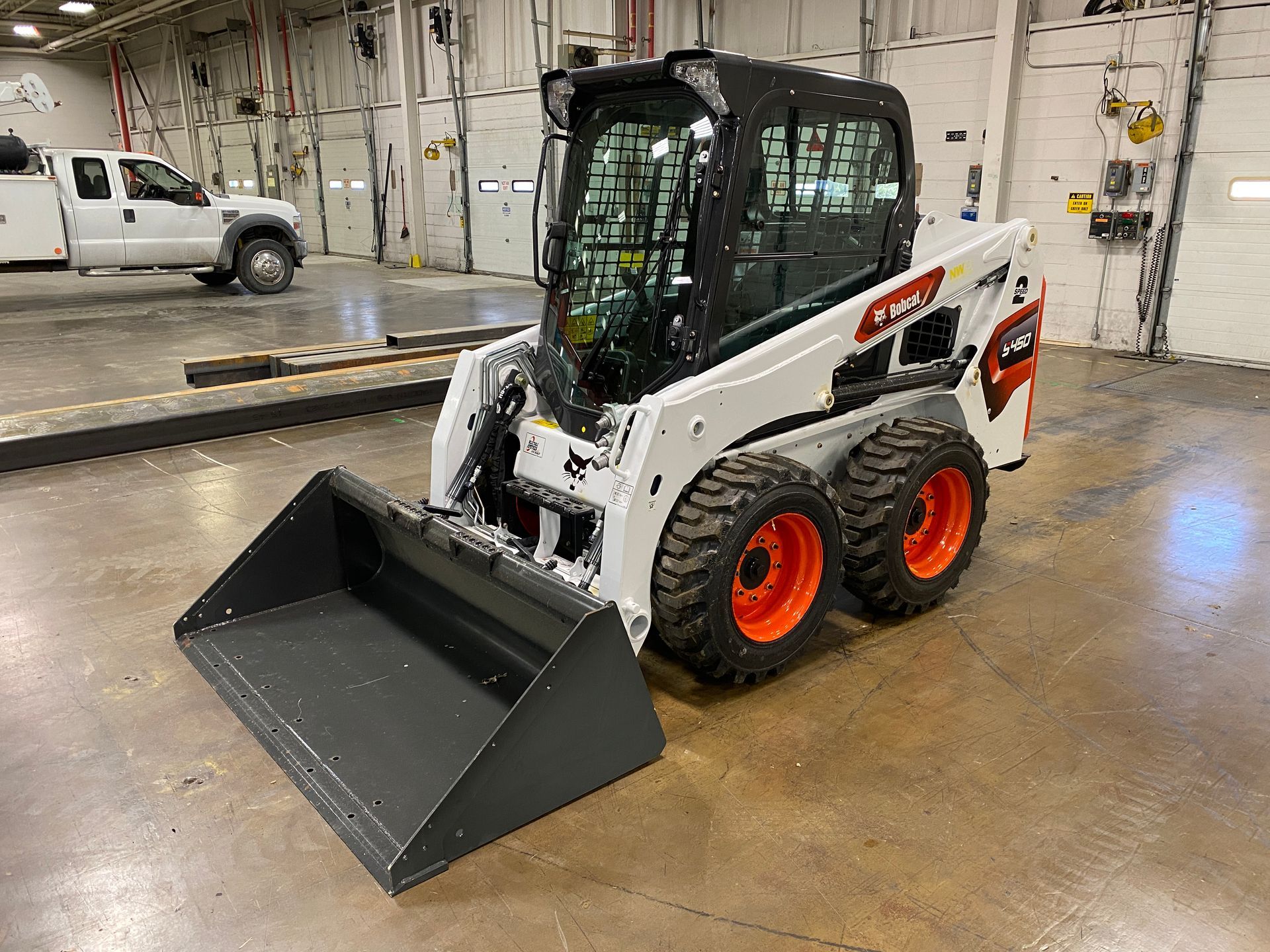

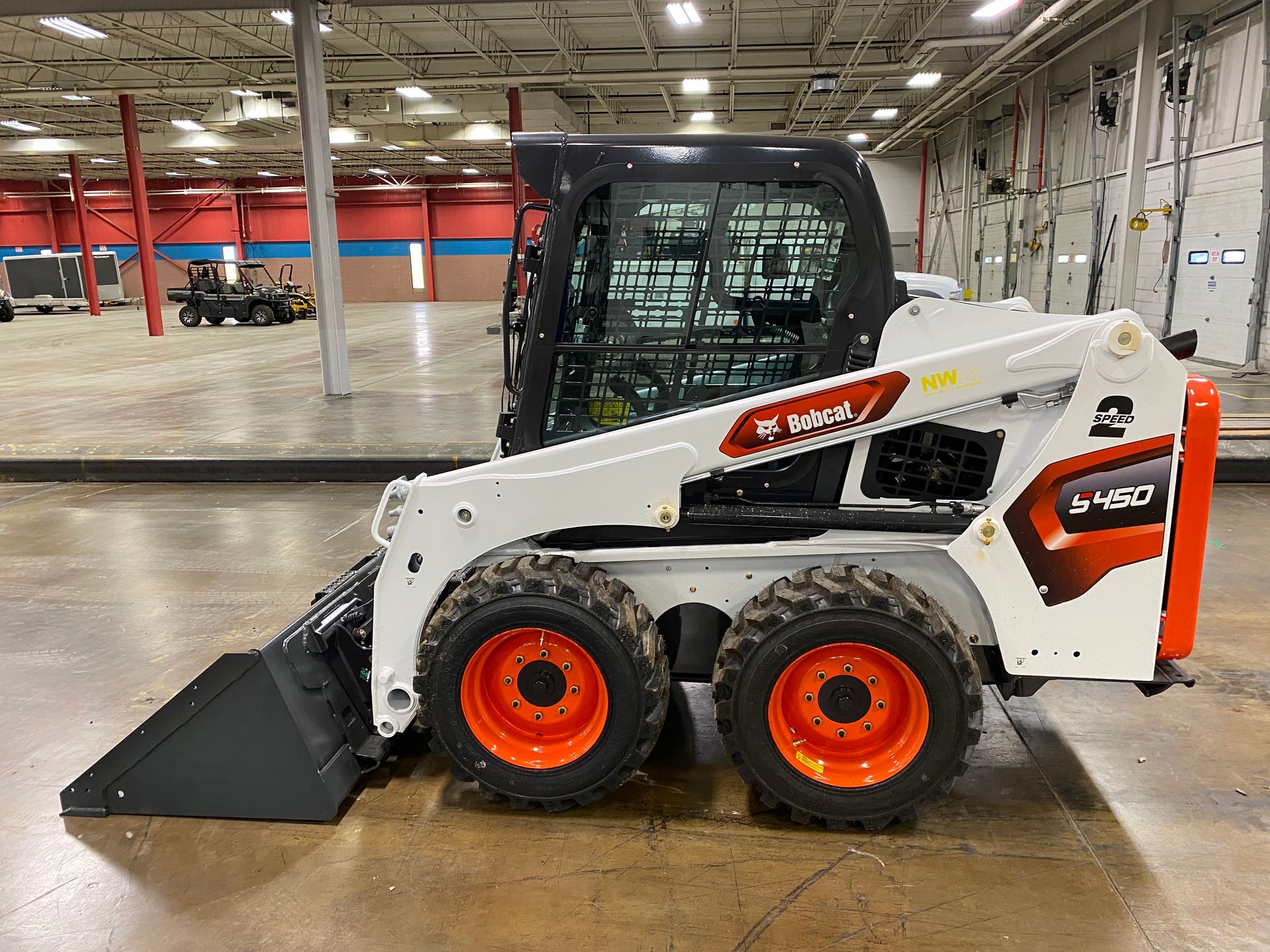

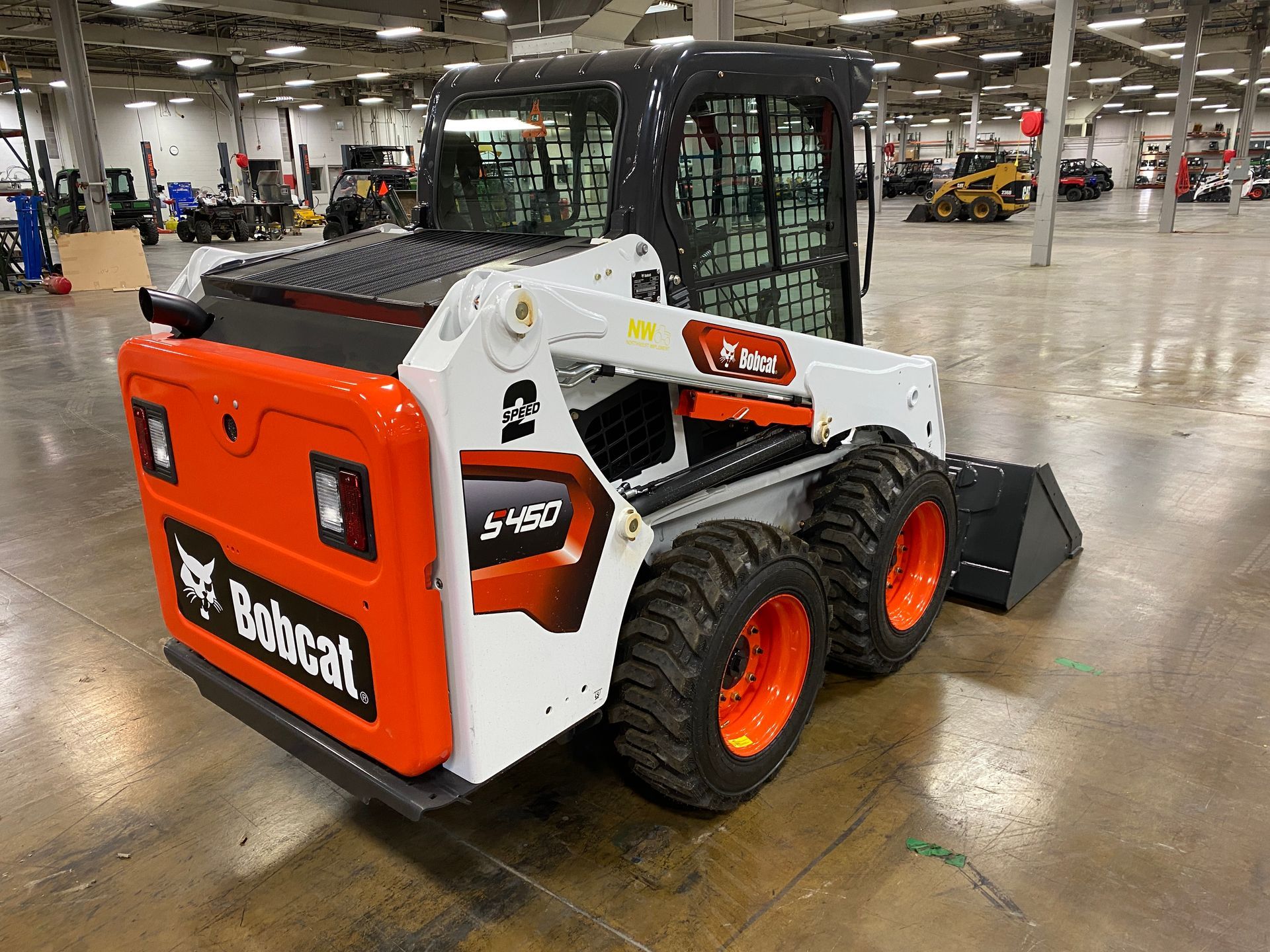

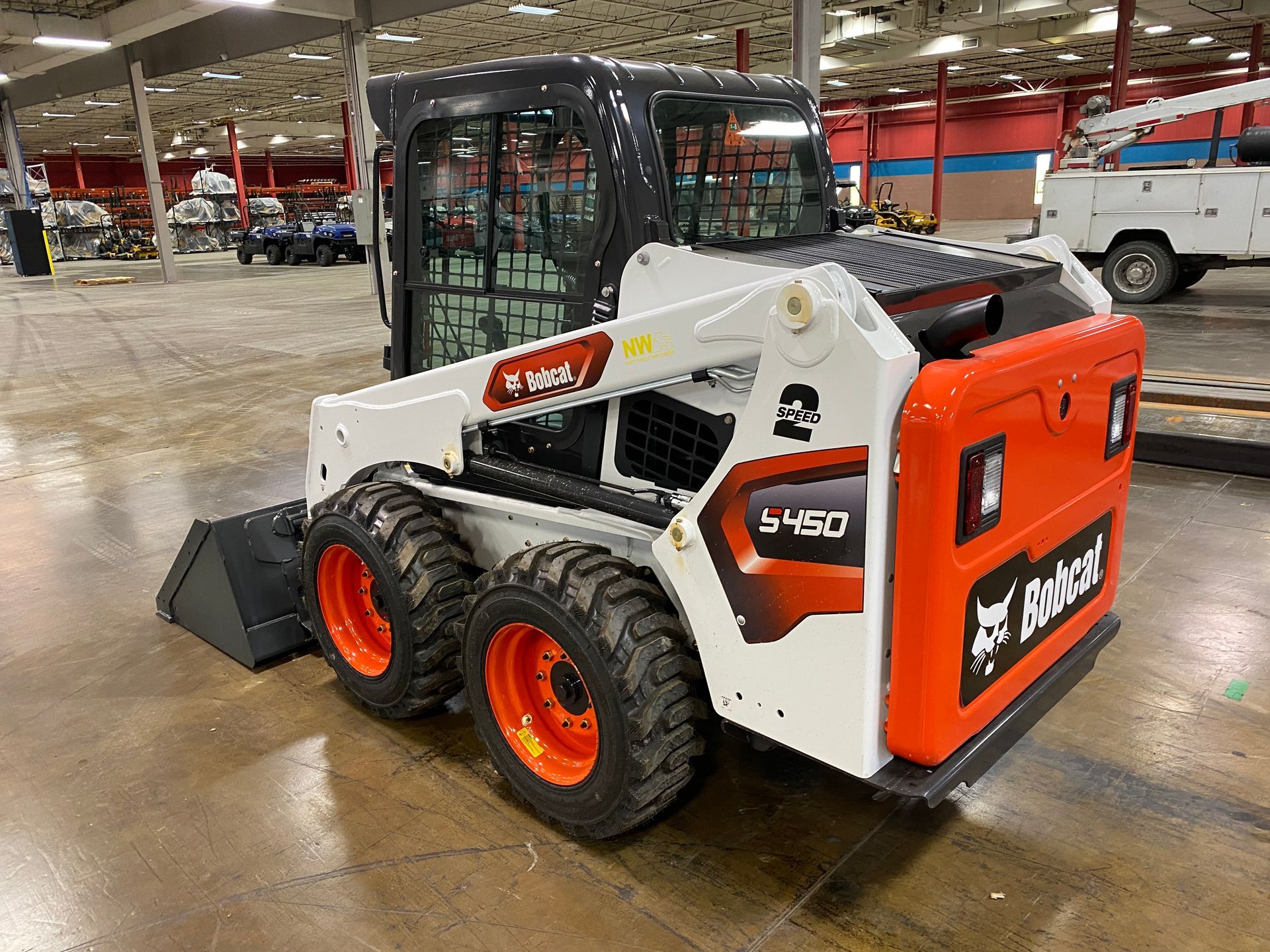

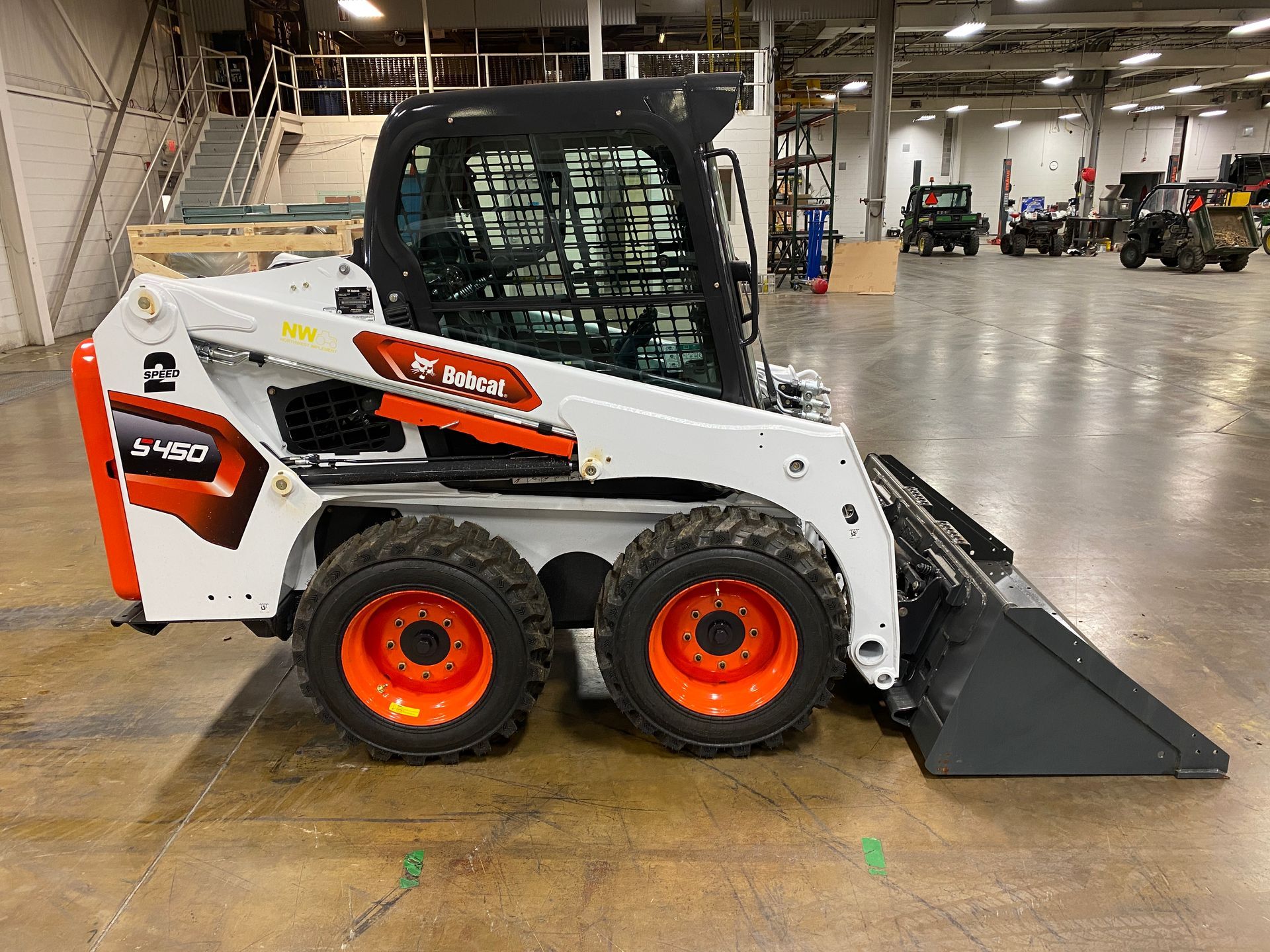

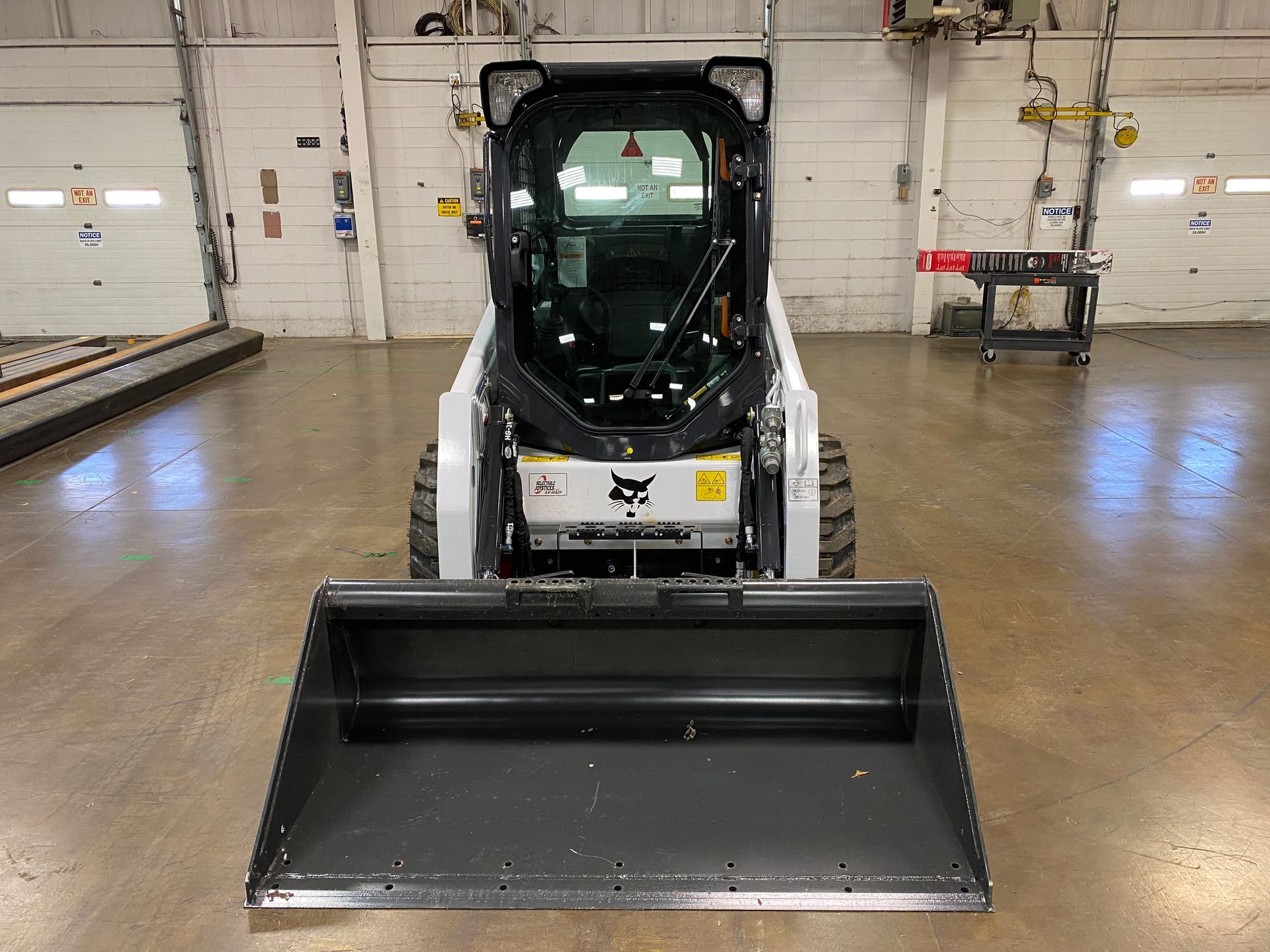

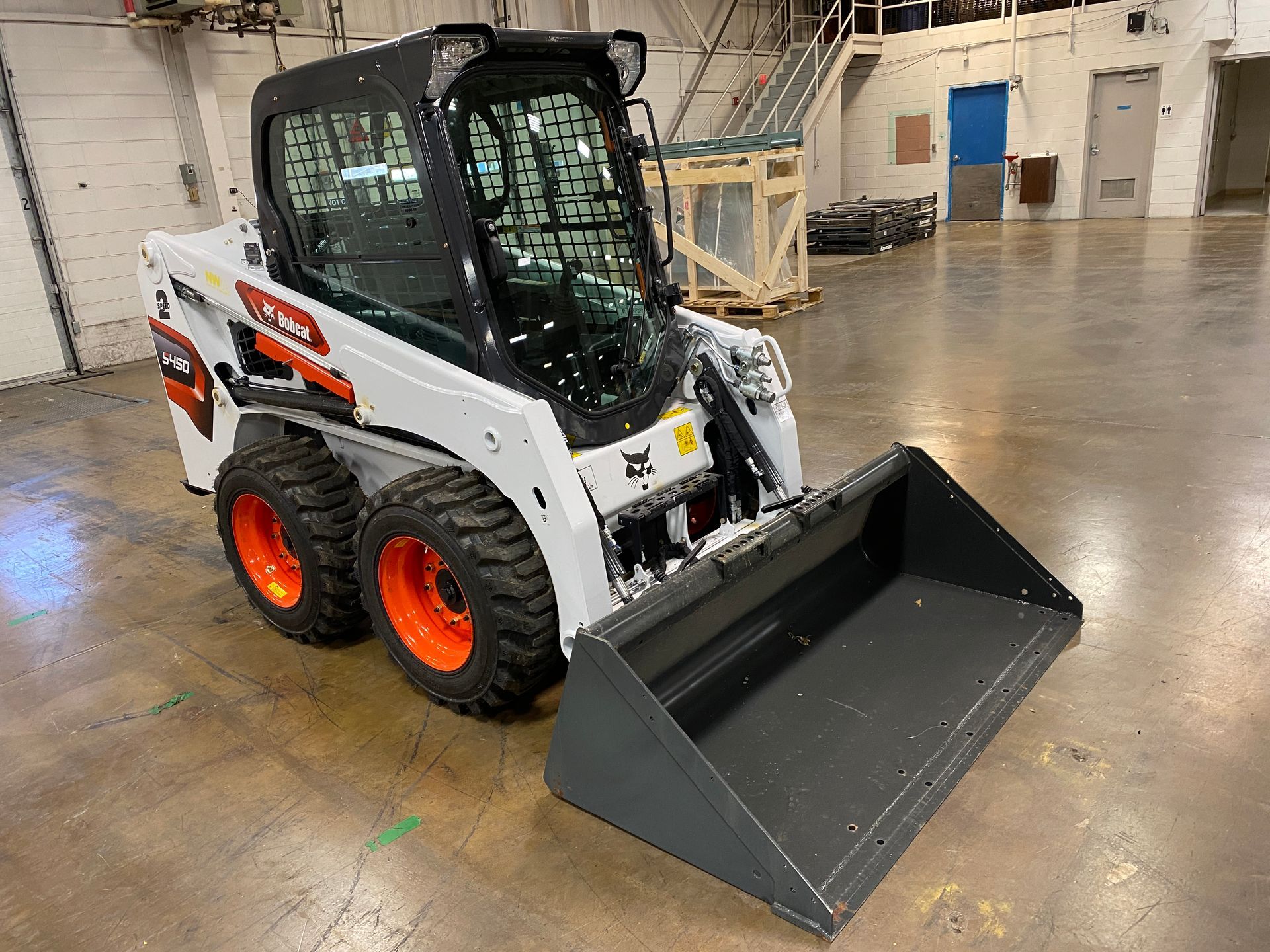

* 2024 Bobcat S450 M-3 Series Skid Steer Loader
* 1 Hours
* C20 Comfort Package
- Enclosed Cab with HVAC
- Deluxe Headliner
- Adjustable Suspension Seat
* P22 Performance Package
- Power Bob-Tach
- Two-Speed

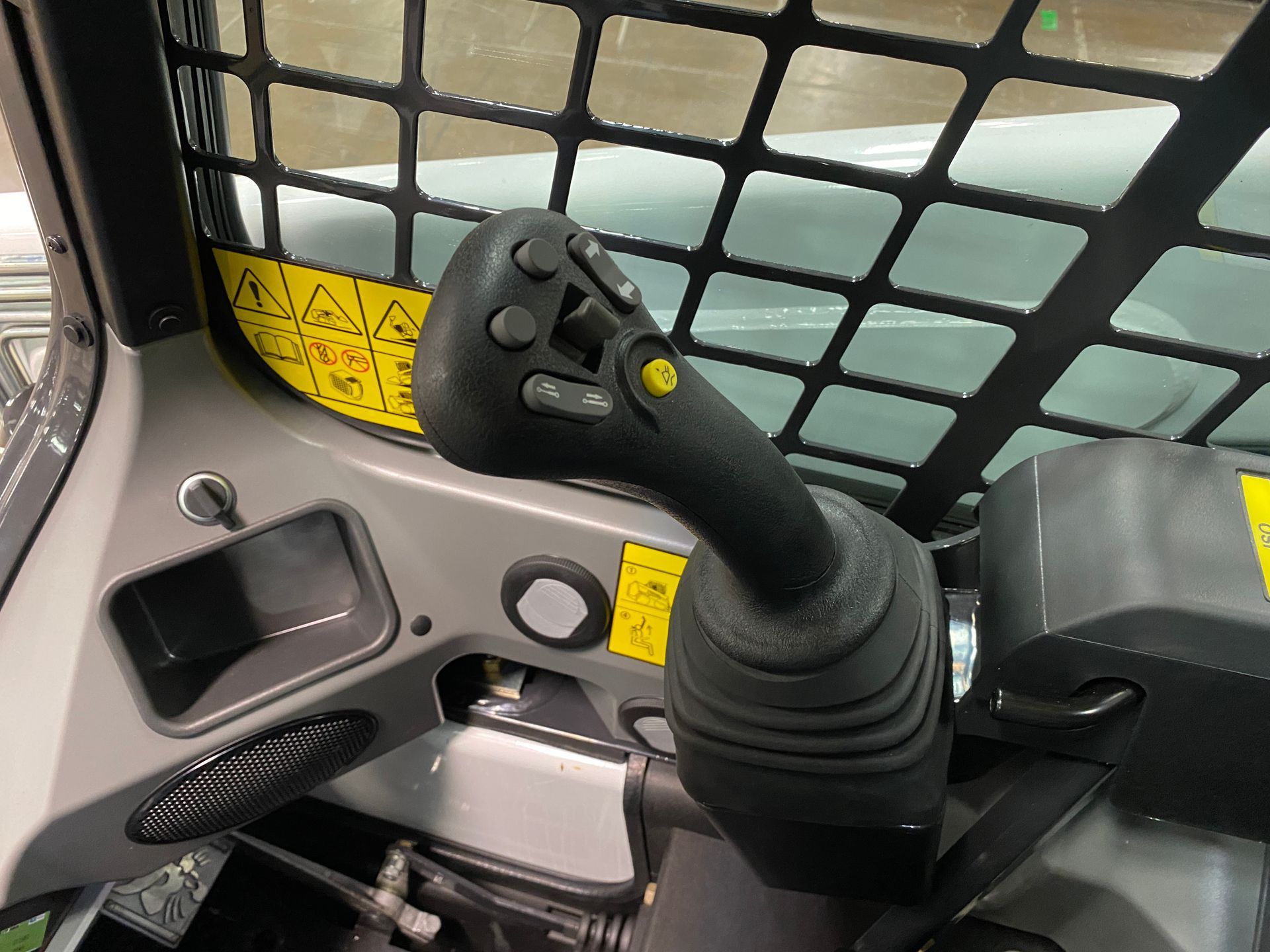

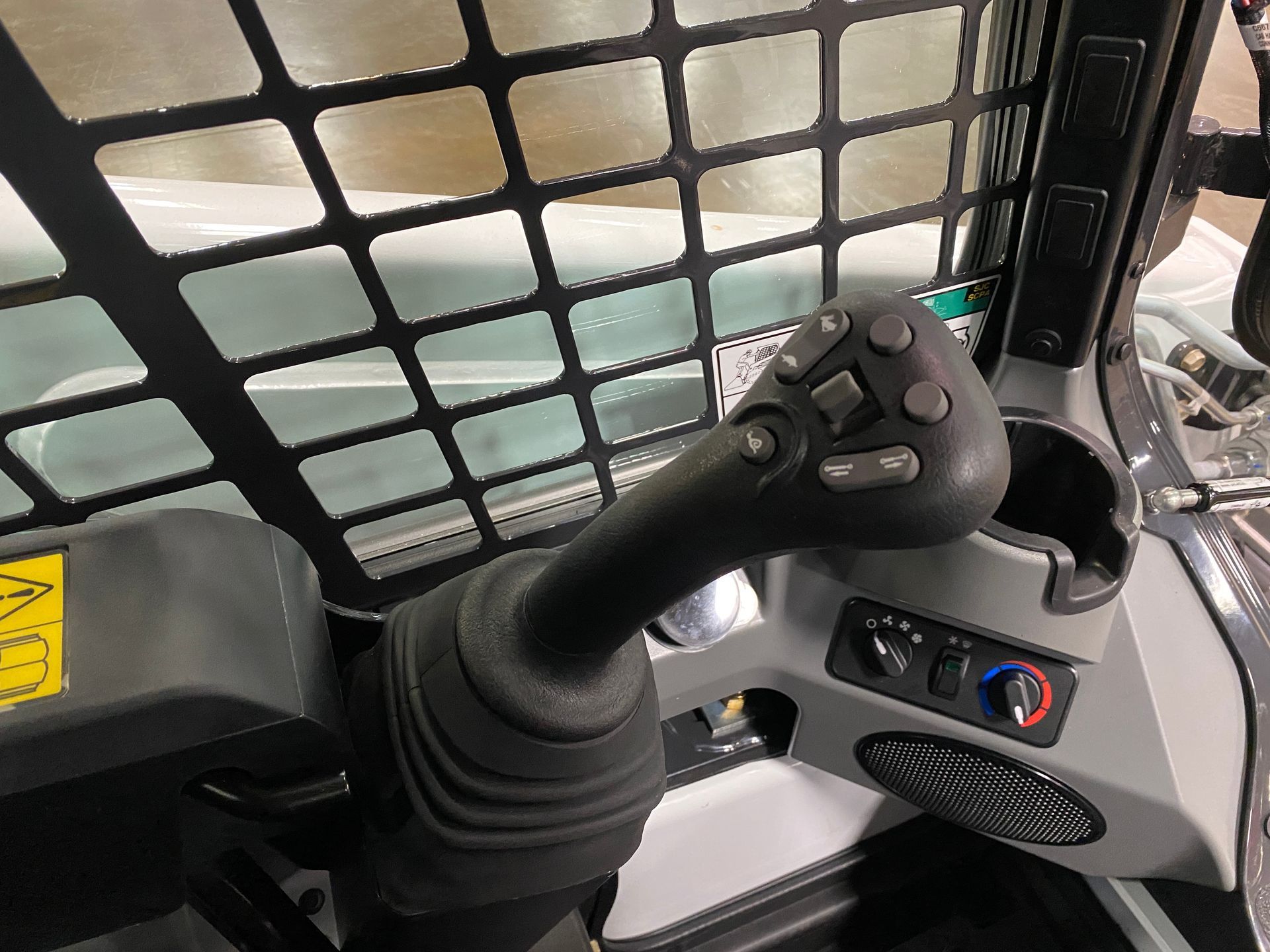

* Selectable Joystick Controls
- Selectable patterns (ISO or H-pattern)
- Auto Idle
- Horsepower Management
- Speed Management
- Drive Response
- Drift Compensation
- Foot Pedal for Engine Speed Control

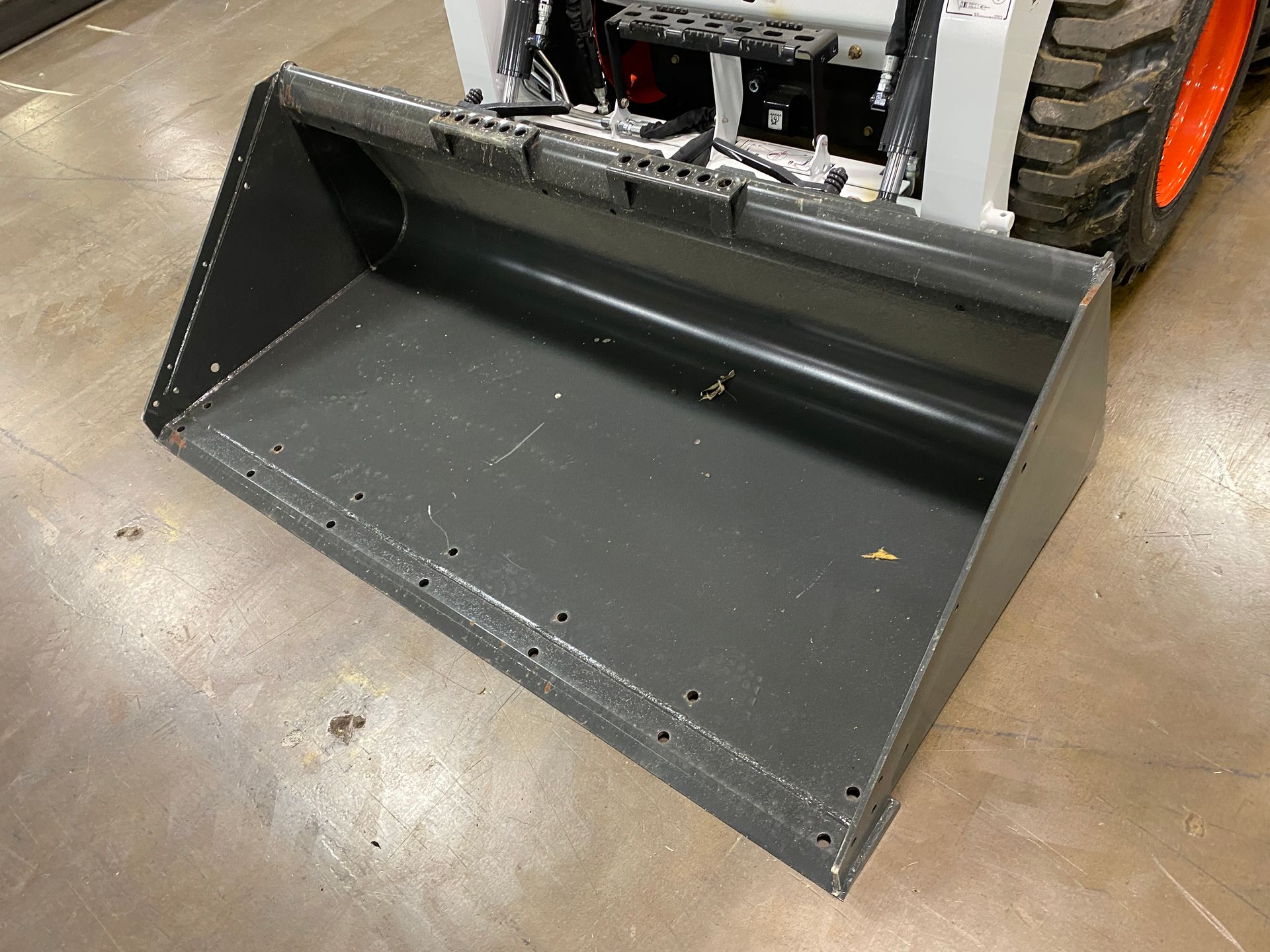

* Many bucket options to choose from
Standard Features
* 49 HP Tier 4 Turbo Diesel V2 Engine

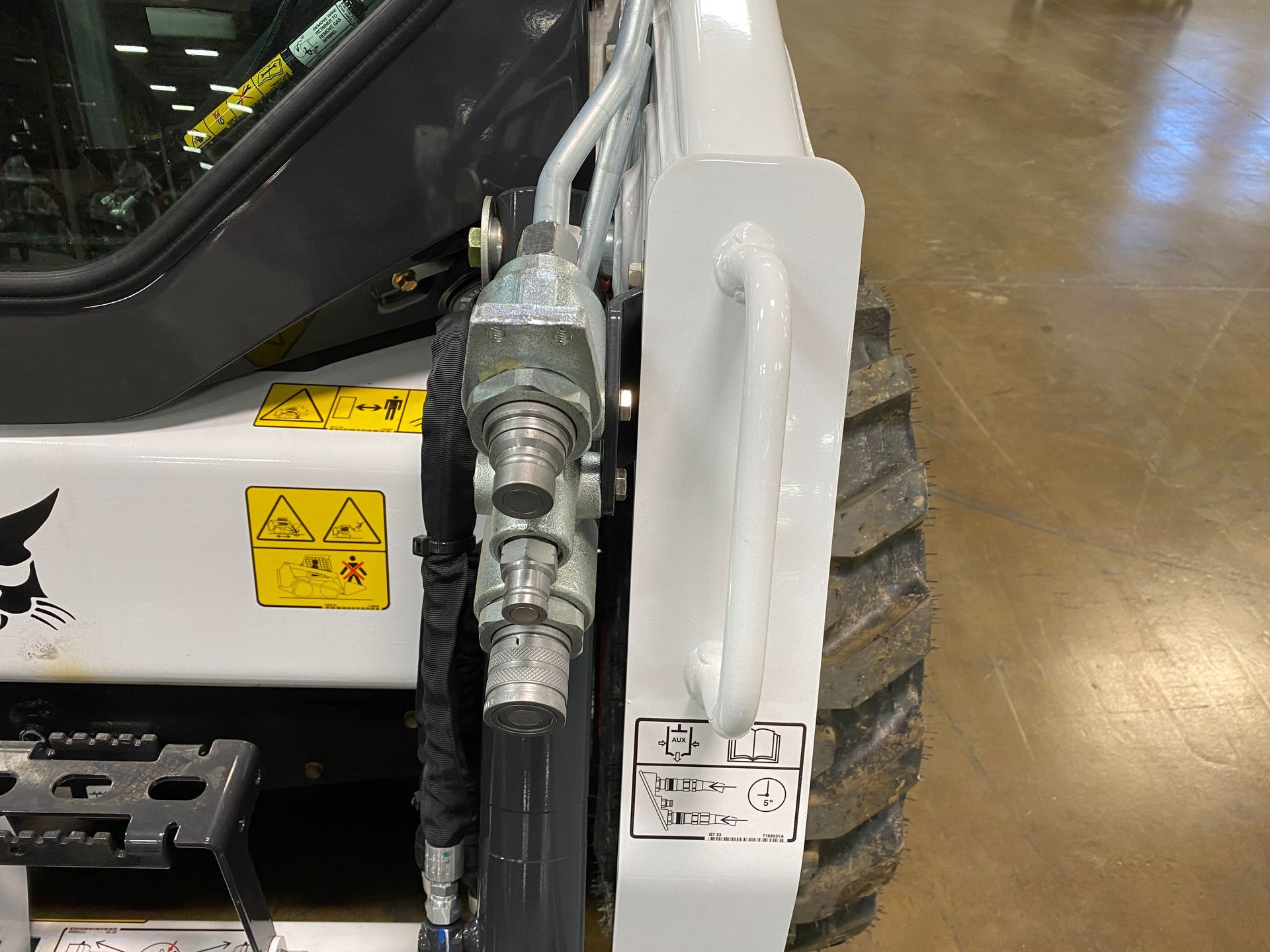

* Auxiliary Hydraulics: Variable Flow
* Backup Alarm

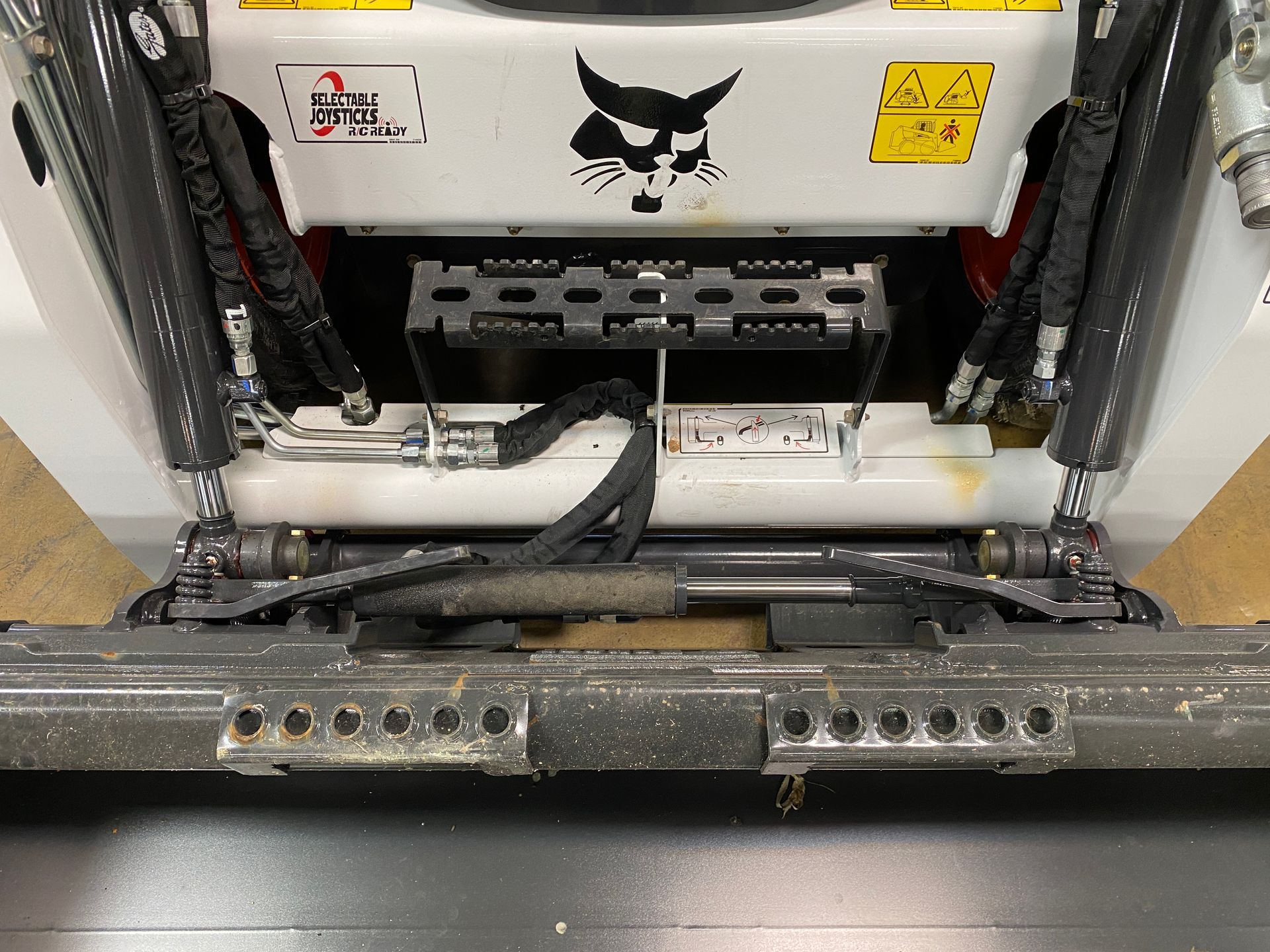

* Bob-Tach
* Bobcat Interlock Control System (BICS)
* Controls: Bobcat Standard
* Cylinder Cushing - Lift, Tilt
* Engine/Hydraulic Performance De-rate Protection
* Glow Plugs (Automatically Activated)
* Horn

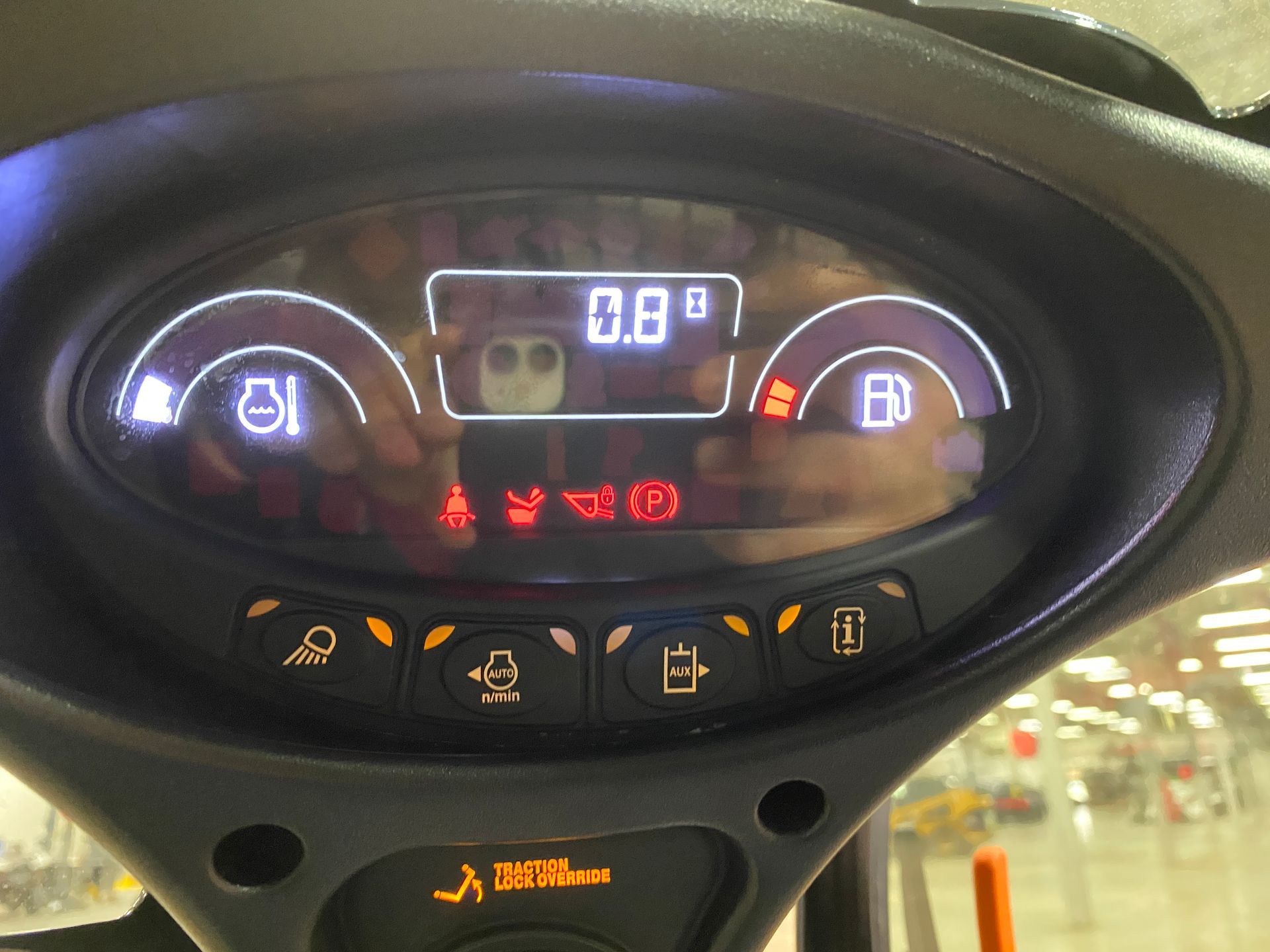

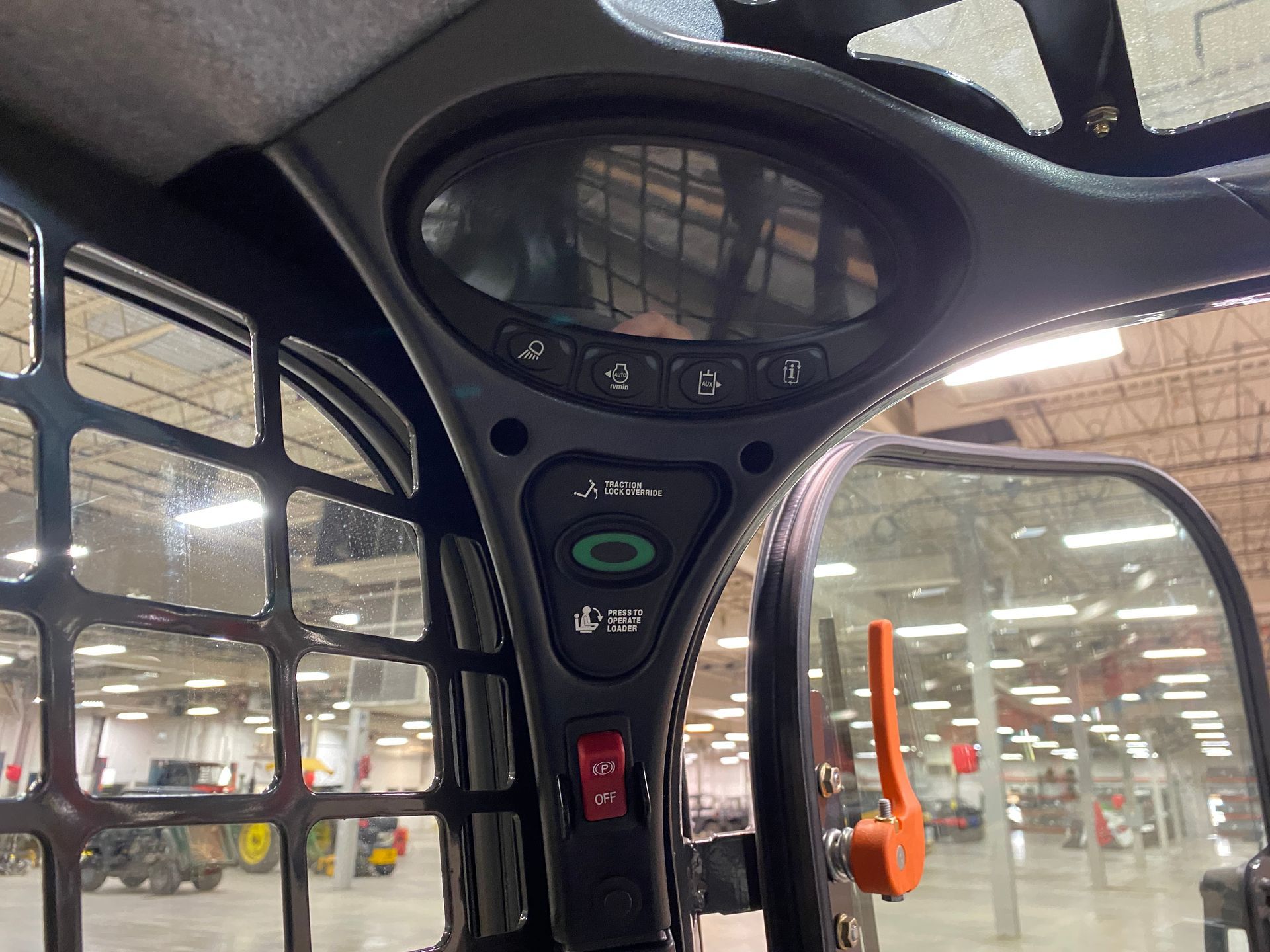

* Instrumentation:
- Engine Temperature & Fuel Gauges
- Hour Meter
- RPM & Warning Indicators
* Lift Arm Support
* Lift Path: Radius

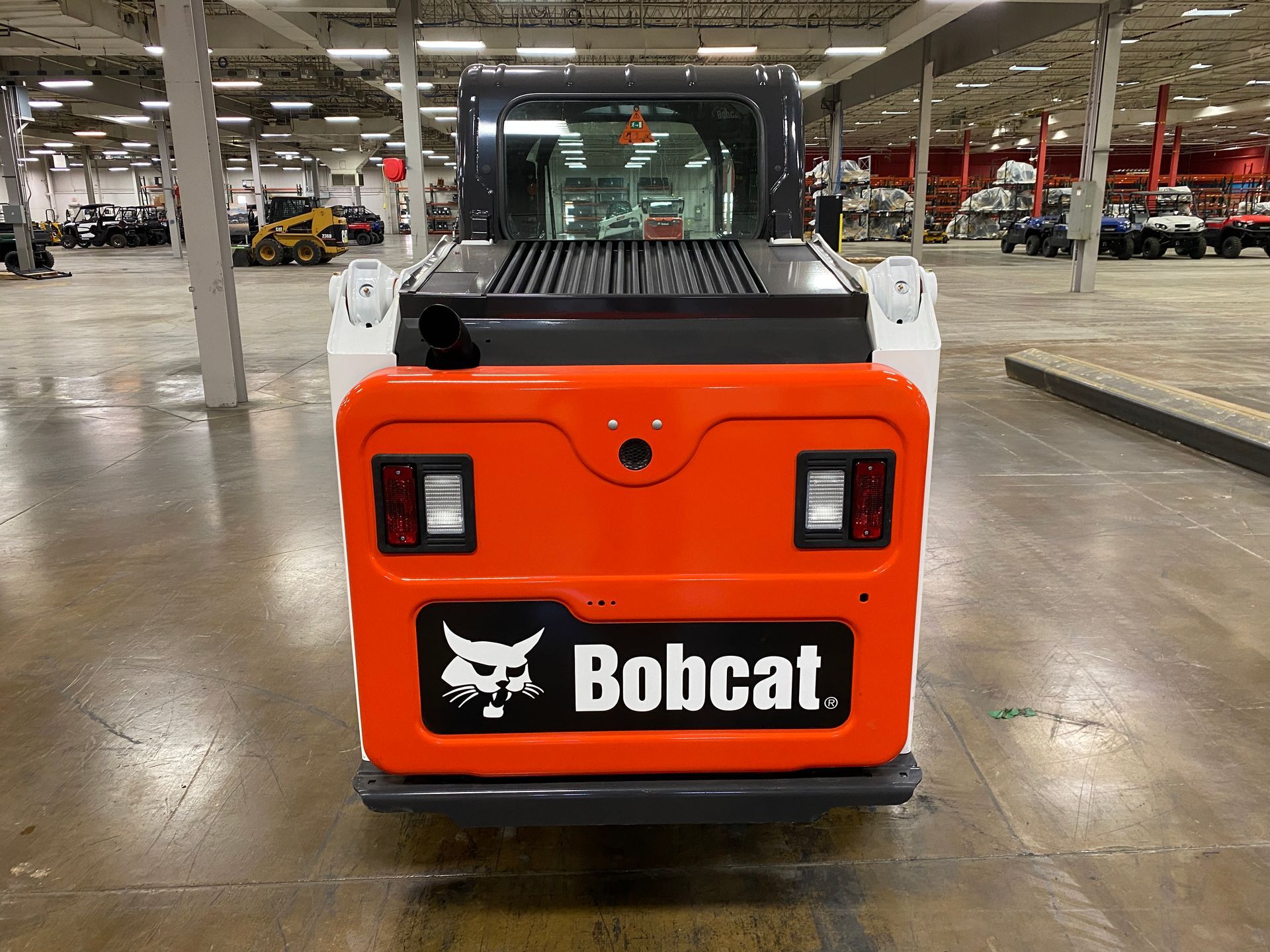

* Lights, Front & Rear

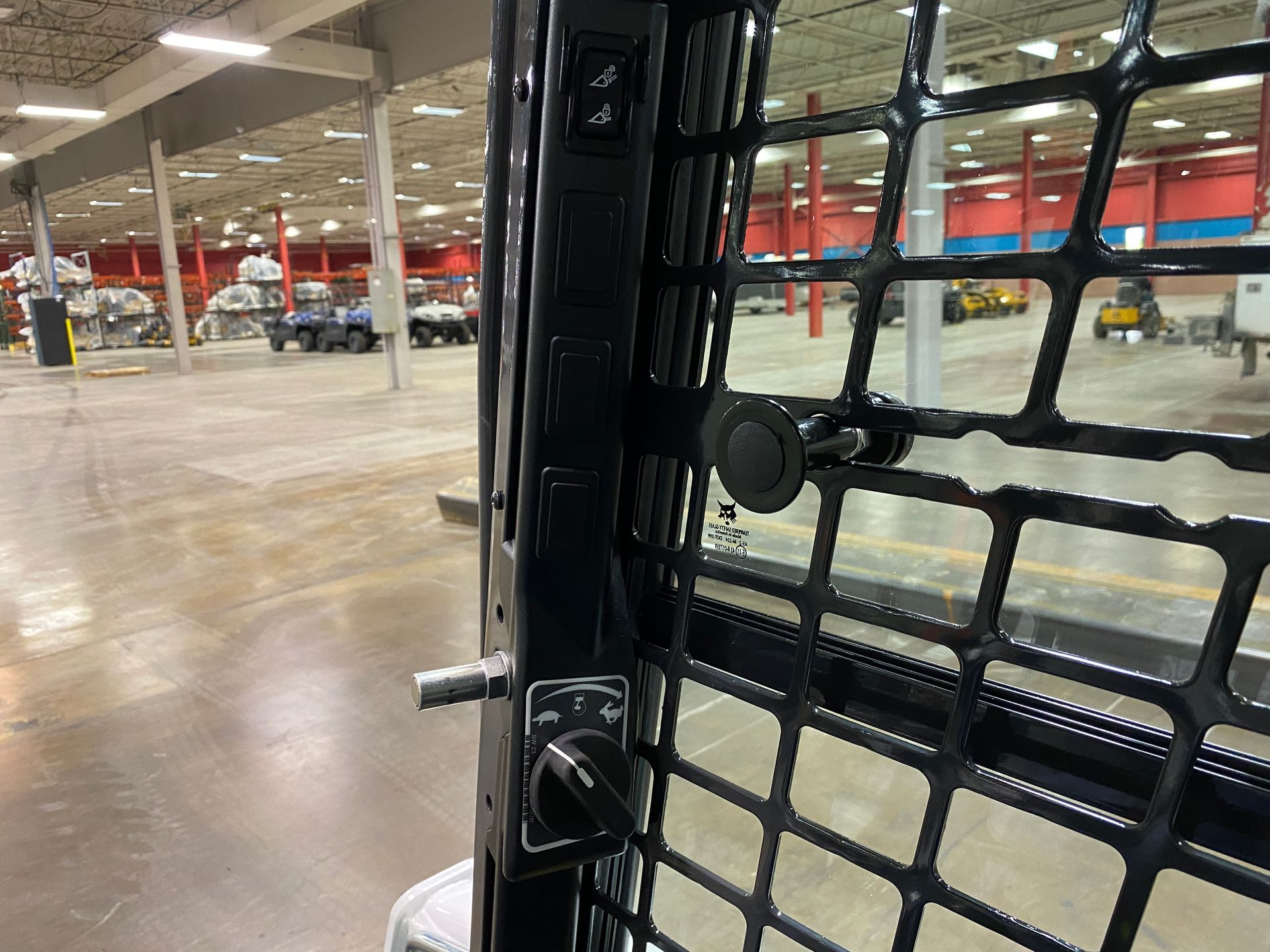

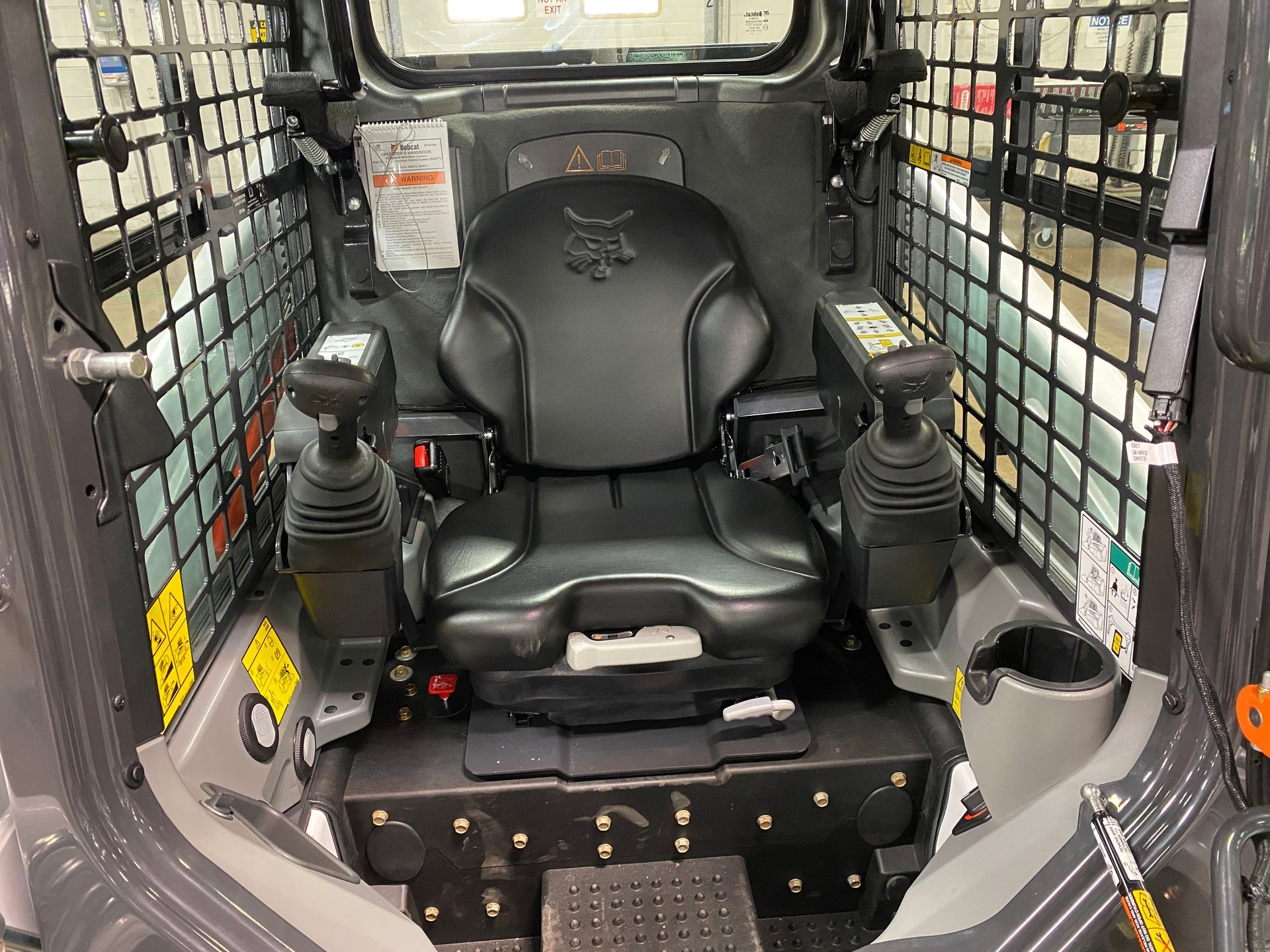

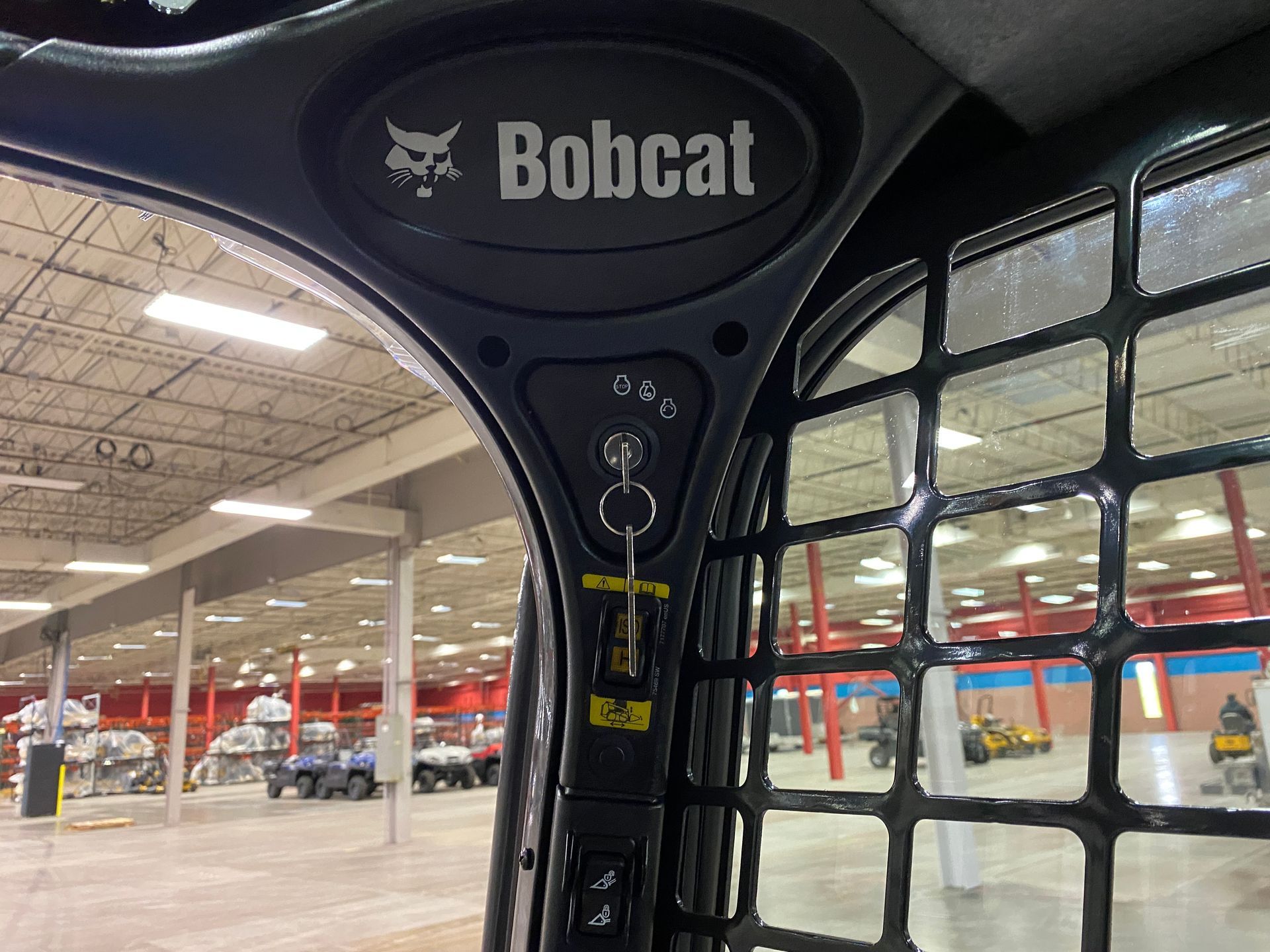

* Operator Cab
- Includes:
* Adjustable Suspension Seat
* Top & Rear Windows
* Parking Brake
* Seat Bar & Seat Belt
- Roll Over Protective Structure (ROPS) meets SAE-J1040 & ISO 3471)
- Falling Object Protective Structure (FOPS) meets SAE-J1043 & ISO 3449, Level I; (Level II is available through Bobcat Parts)
* Parking Brake: Wedge Brake System

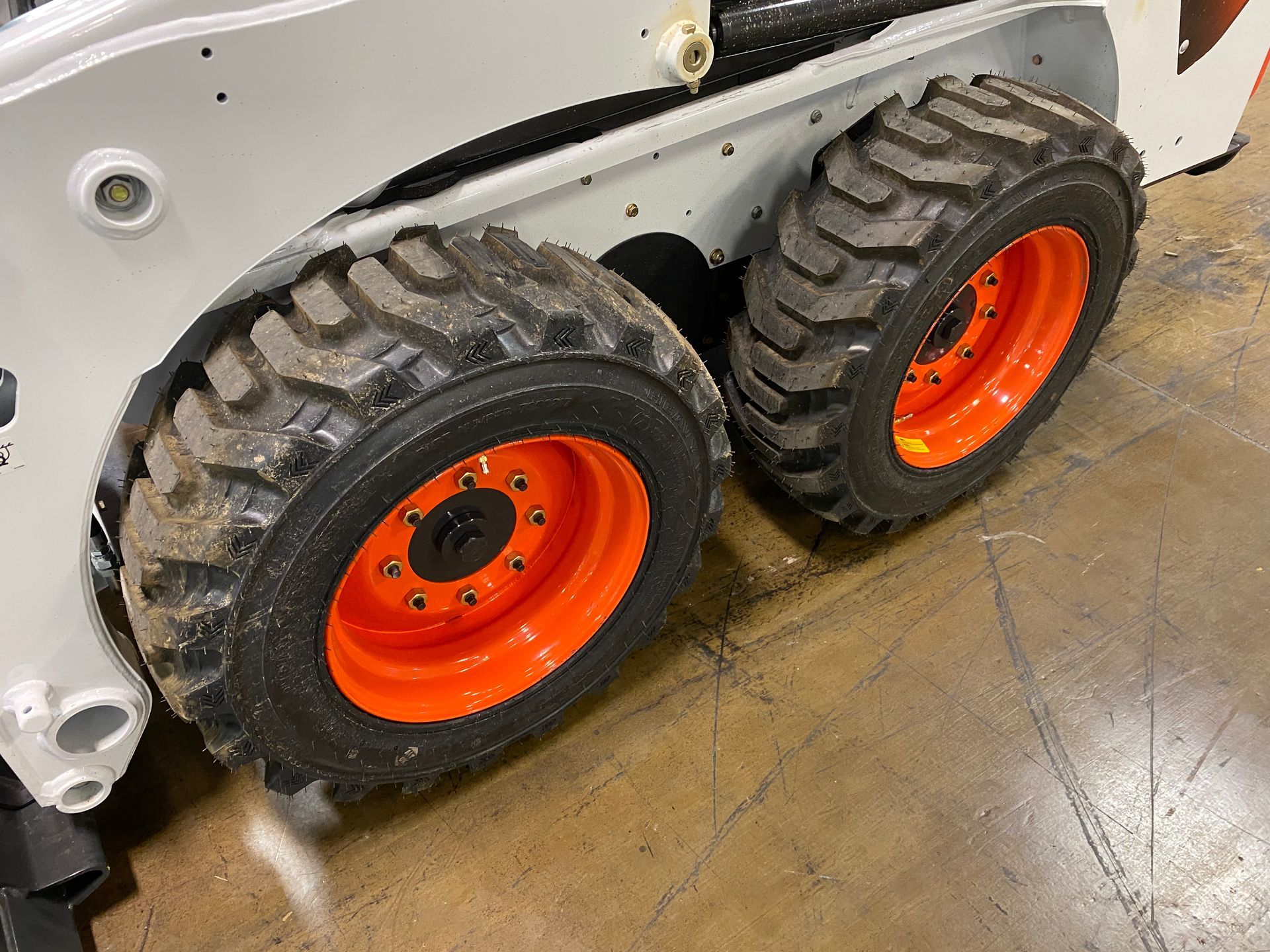

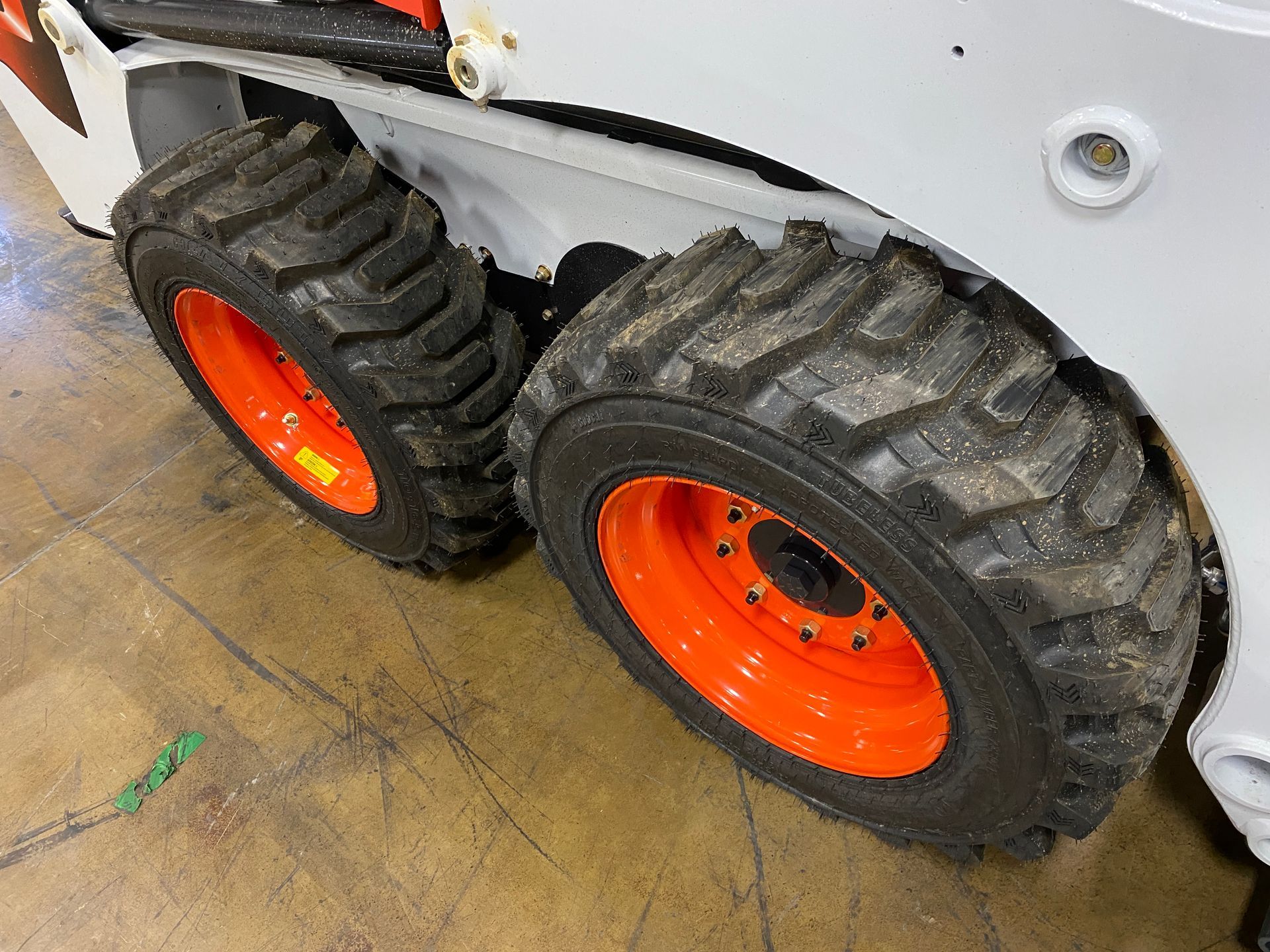

* Tires: 10-16.5, 10 PR Bobcat Heavy Duty
* Warranty: 2 Years, or 2,000 Hours whichever occurs first
ENGINE
* Emissions Tier (EPA): Tier 4
* Engine Colling: Liquid
* Engine Fuel: Diesel
* Horsepower: 49HP
* Turbocharged Engine: Optional
PERFORMANCE
* Rated Operating Capacity (ISO): 1,370 lb
* Tipping Load: 2,740 lb
* Operating Weight: 5,370 lb
* Travel Speed: 7.6 mph
* Travel Speed (2-speed option): 9.2 mph
CAPACITIES
* Fuel Tank: 14.2 gal
HYDRAULIC SYSTEM
* System Relief @ Quick Couplers: 3,300 psi
* Auxiliary Standard Flow: 16.7 gal/min
* Auxiliary High Flow: N/A
DIMENSIONS
* Length: 98.4"
* Length without Attachment: 98.4"
* Length with Standard Bucket: 124.9"
* Width: 58.6"
* Width (with bucket): 62"
* Height: 77.8"
* Height with Operator Cab: 77.8"
* Height to Bucket Hinge Pin: 109.5"
* Reach @ Maximum Height: 20.8"
* Turning Radius: 76.4"
* Wheelbase: 35.4"
