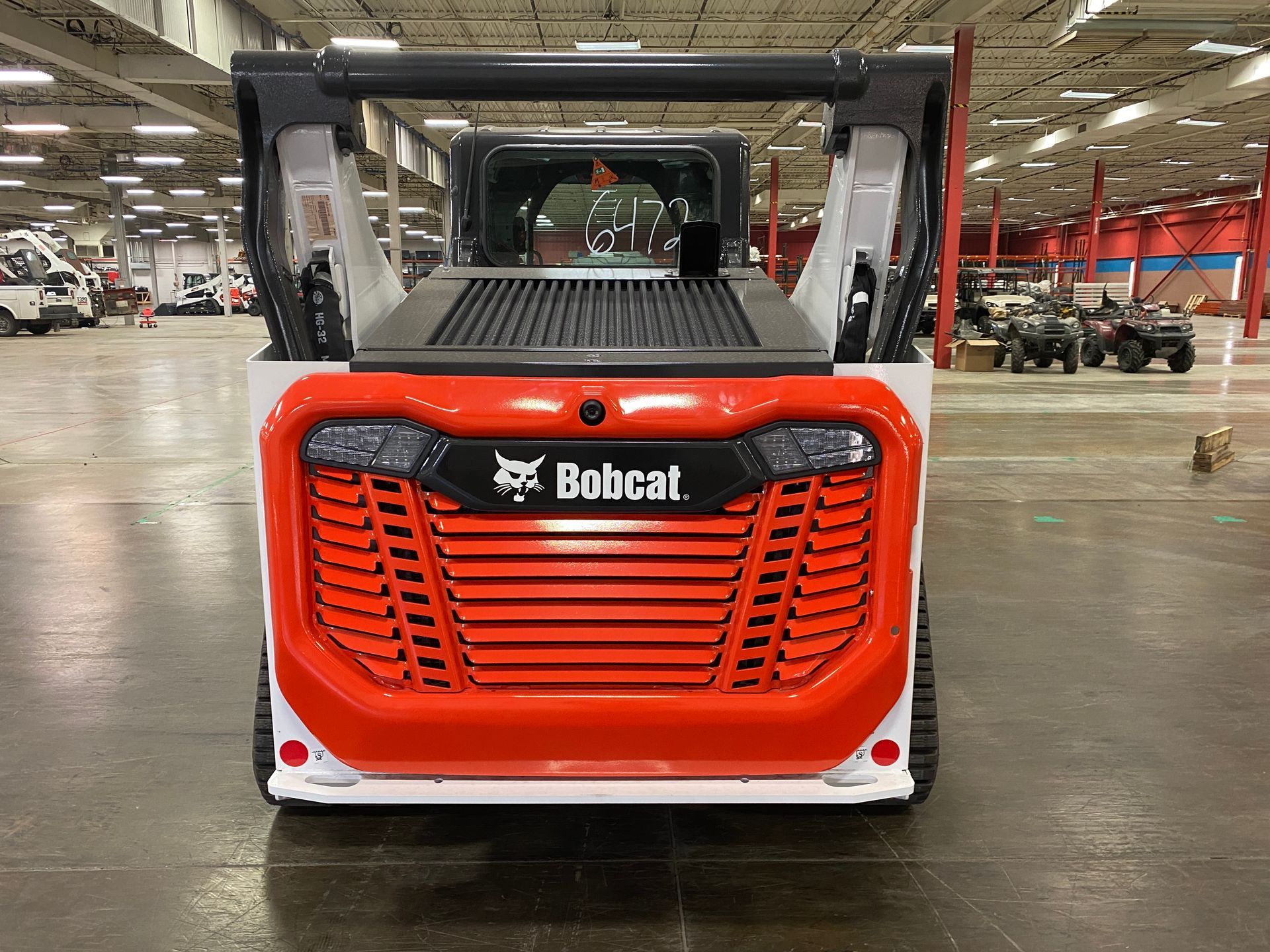

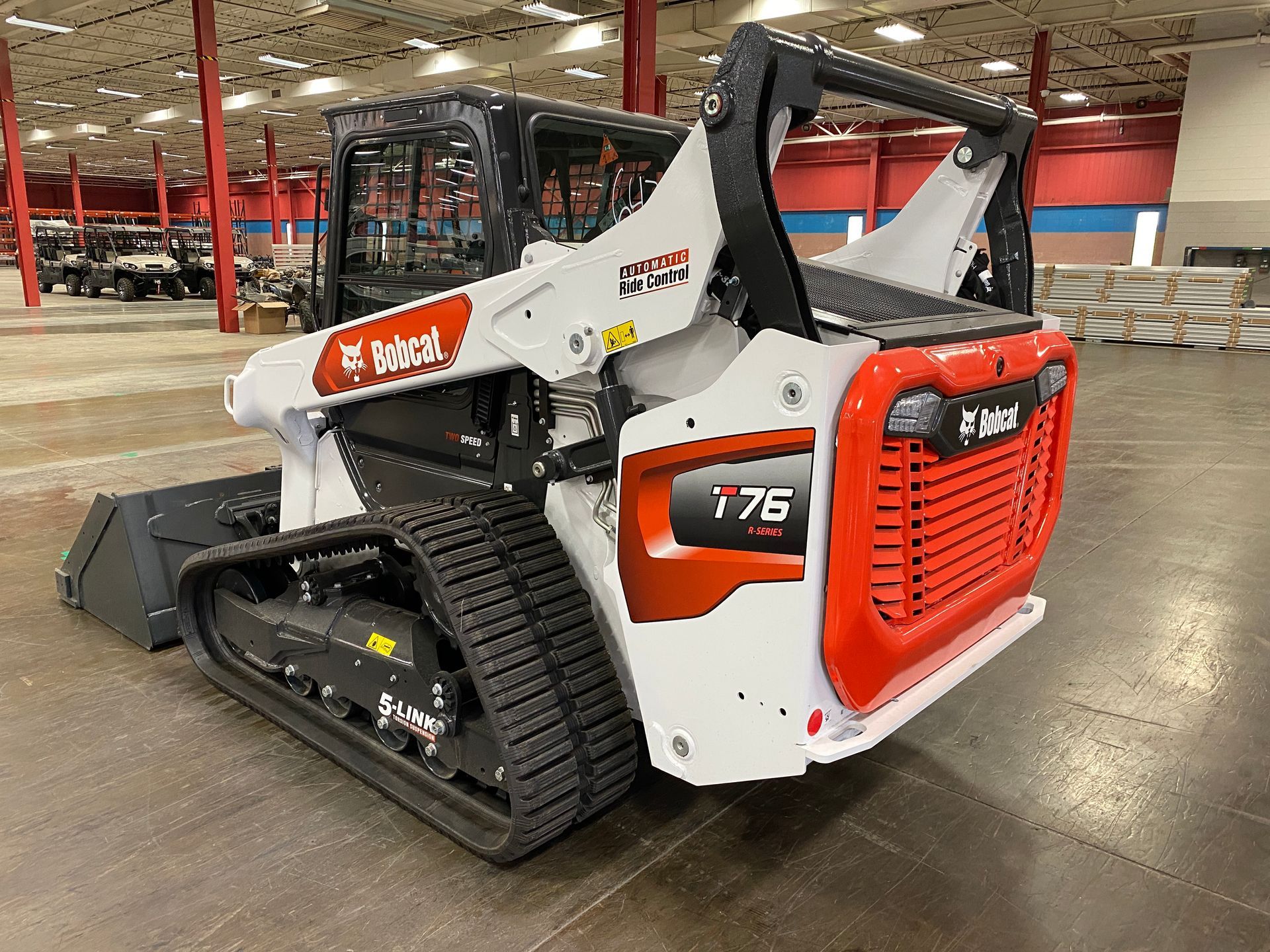

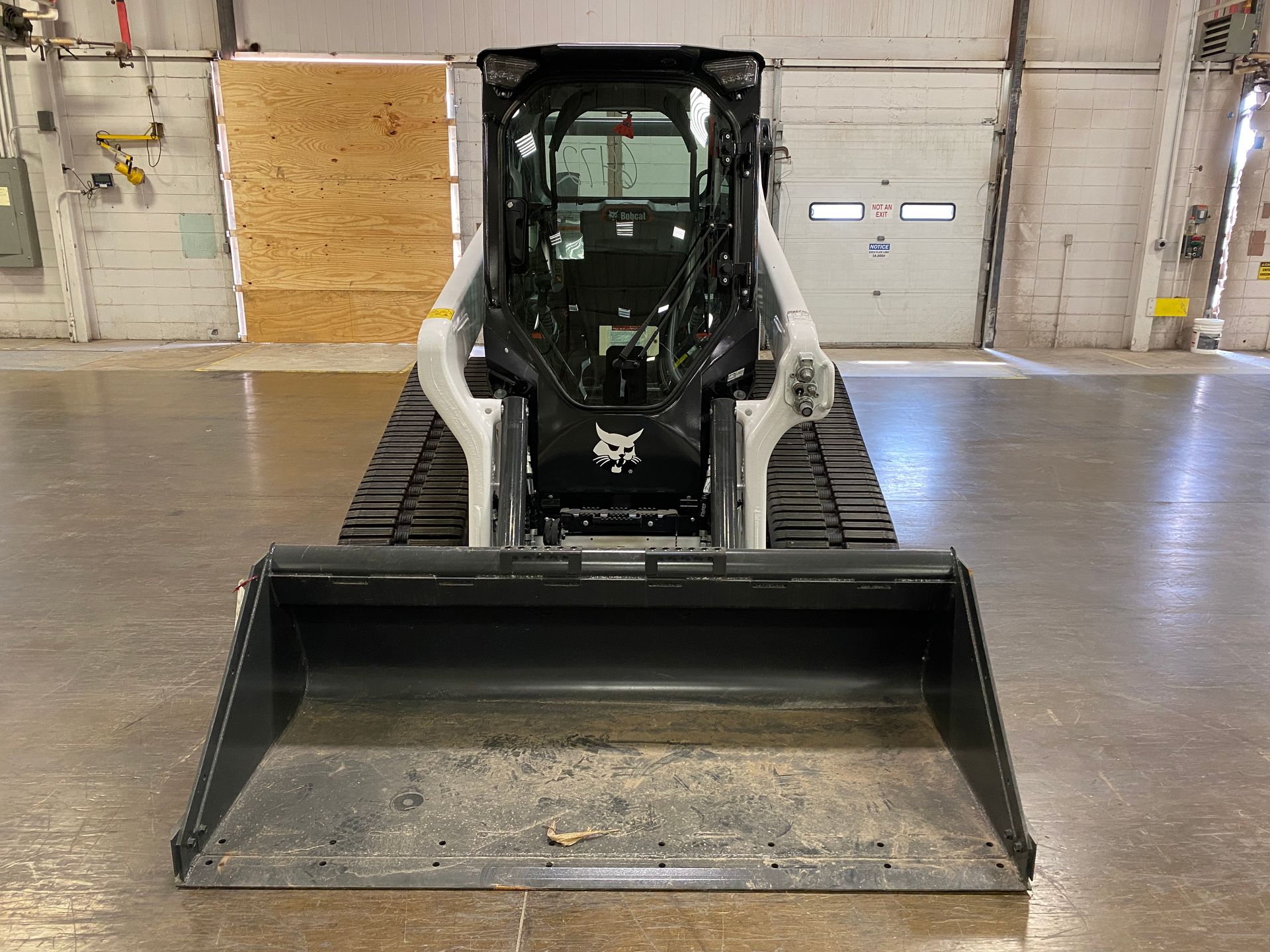

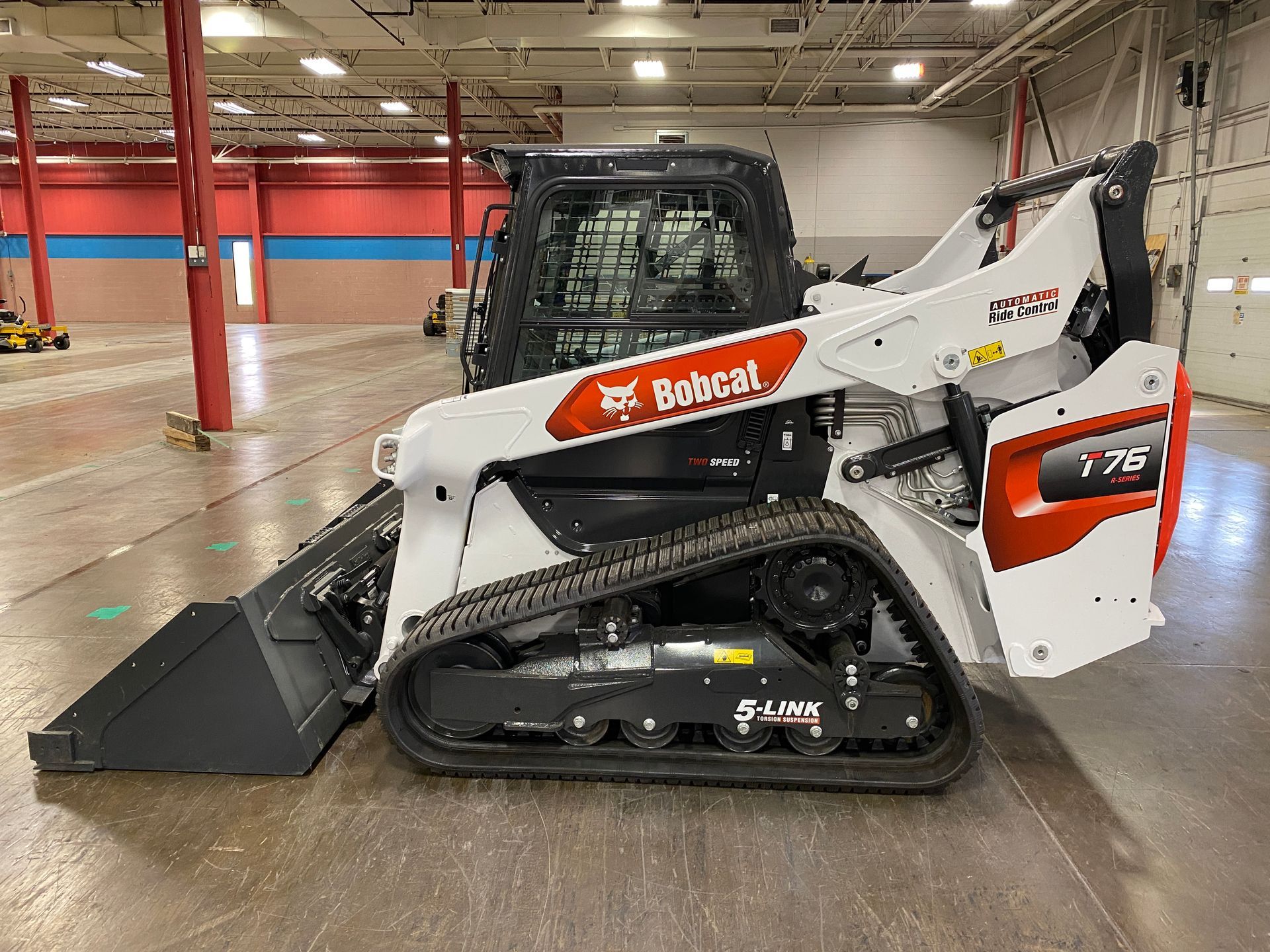

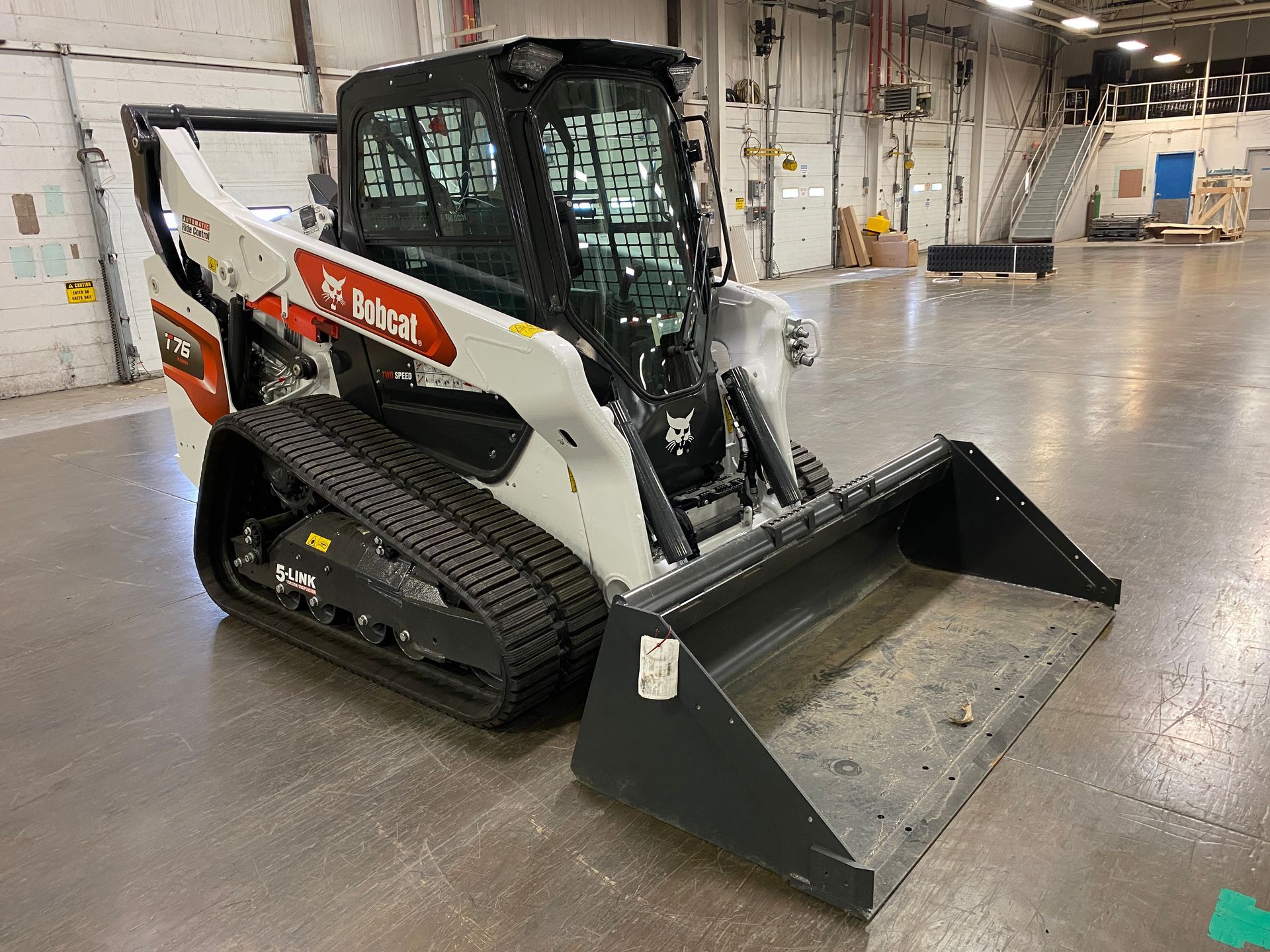

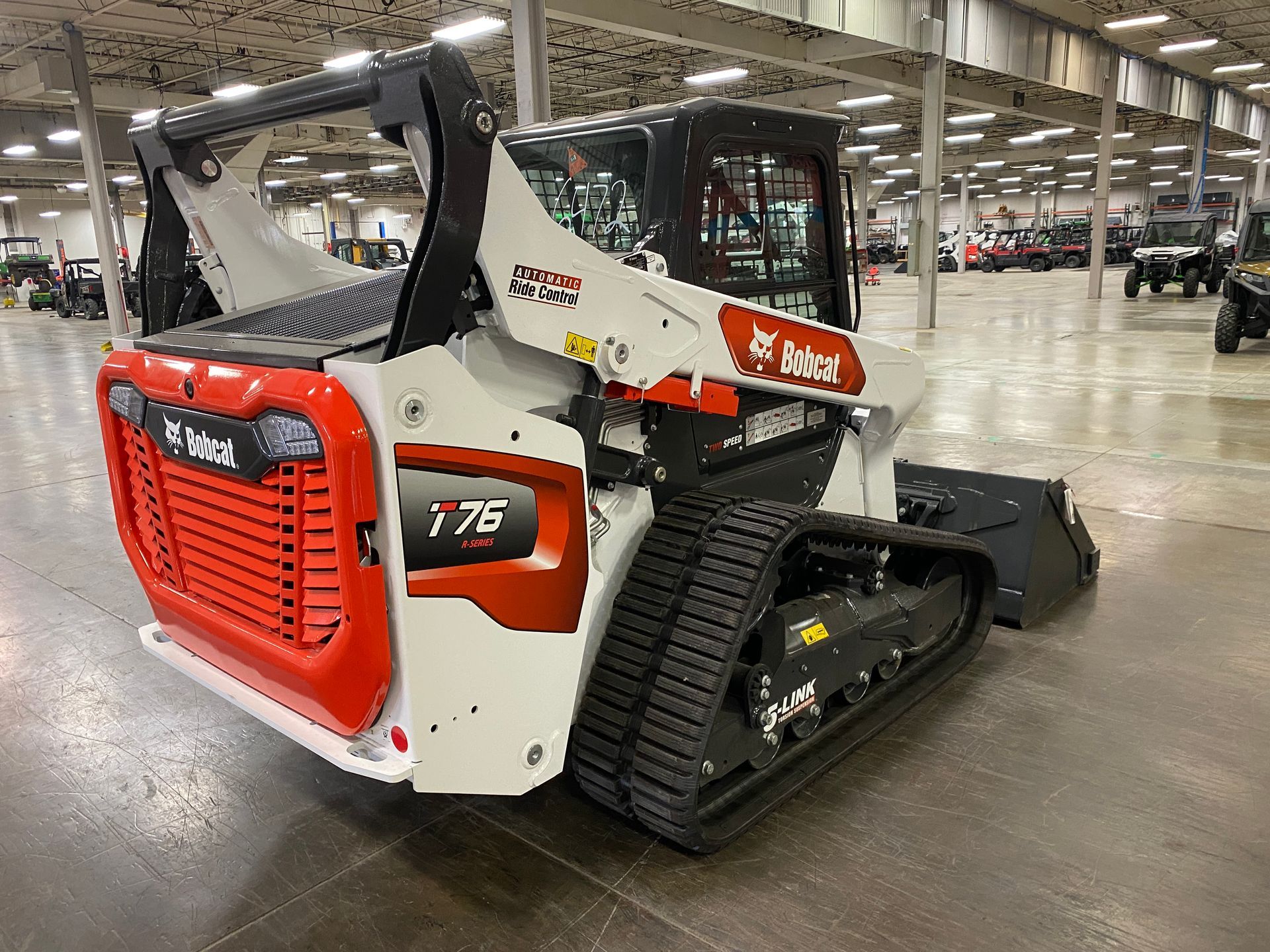

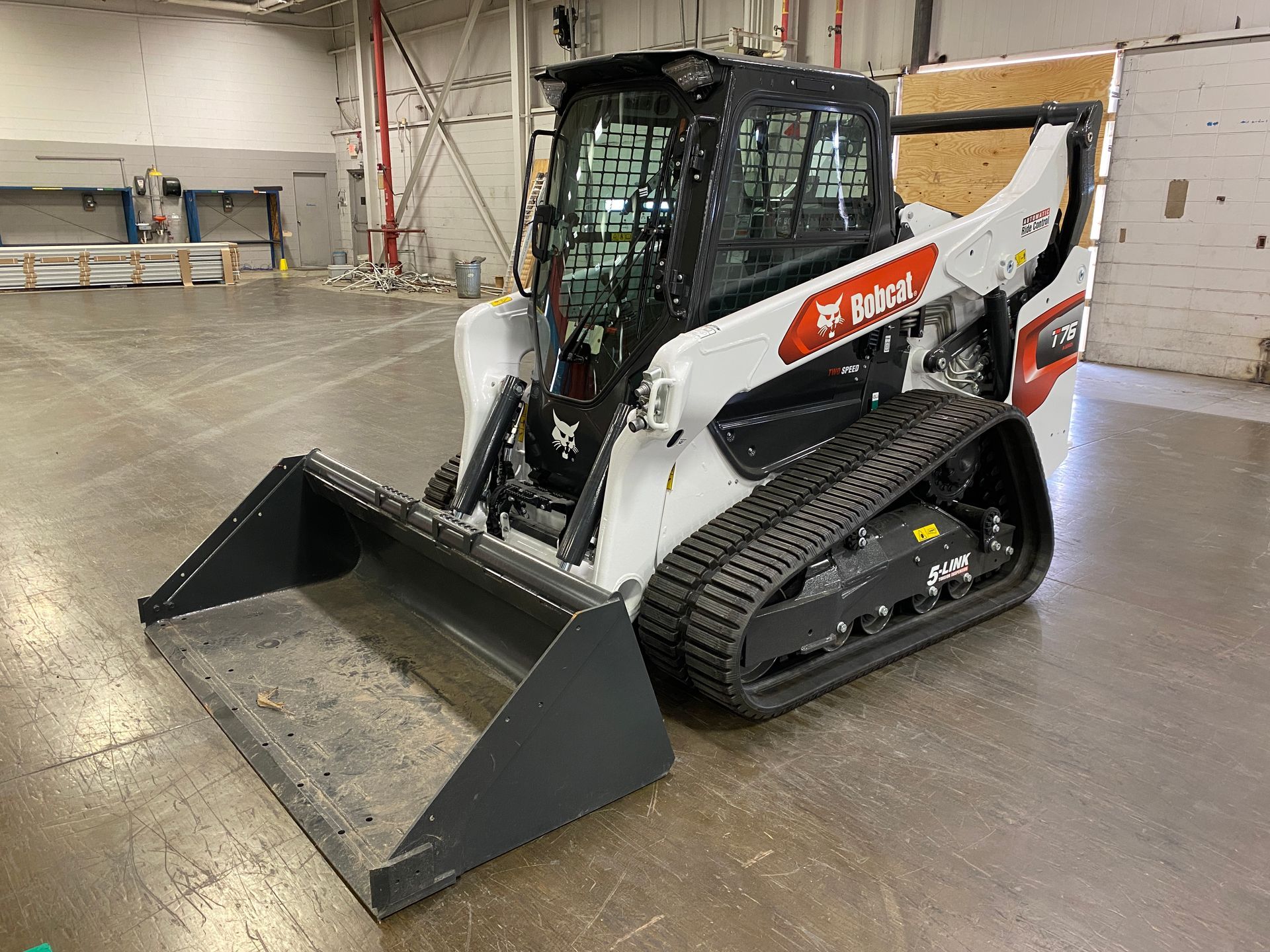

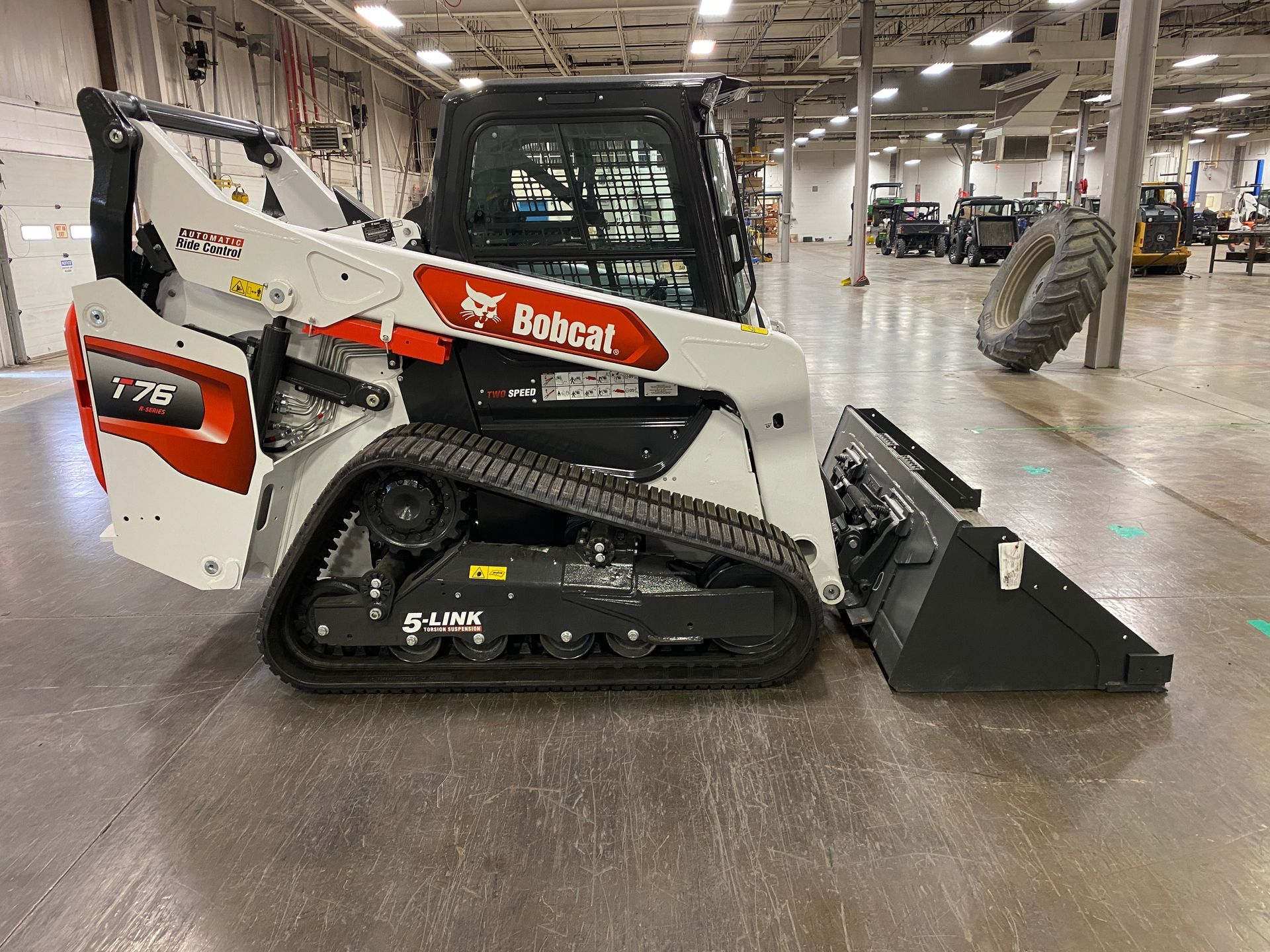

2024 Bobcat T76 R-Series Compact Track Loader   $103,586

Features

* 2024 Bobcat T76 T4 R-Series Compact Track Loader - MSRP - Call for Best Pricing

* 1 Hour

* Comfort FOD Package

   - Enclosed HVAC Cab

   - Radio

   - Adjustable Heated Cloth Air Ride Suspension Seat

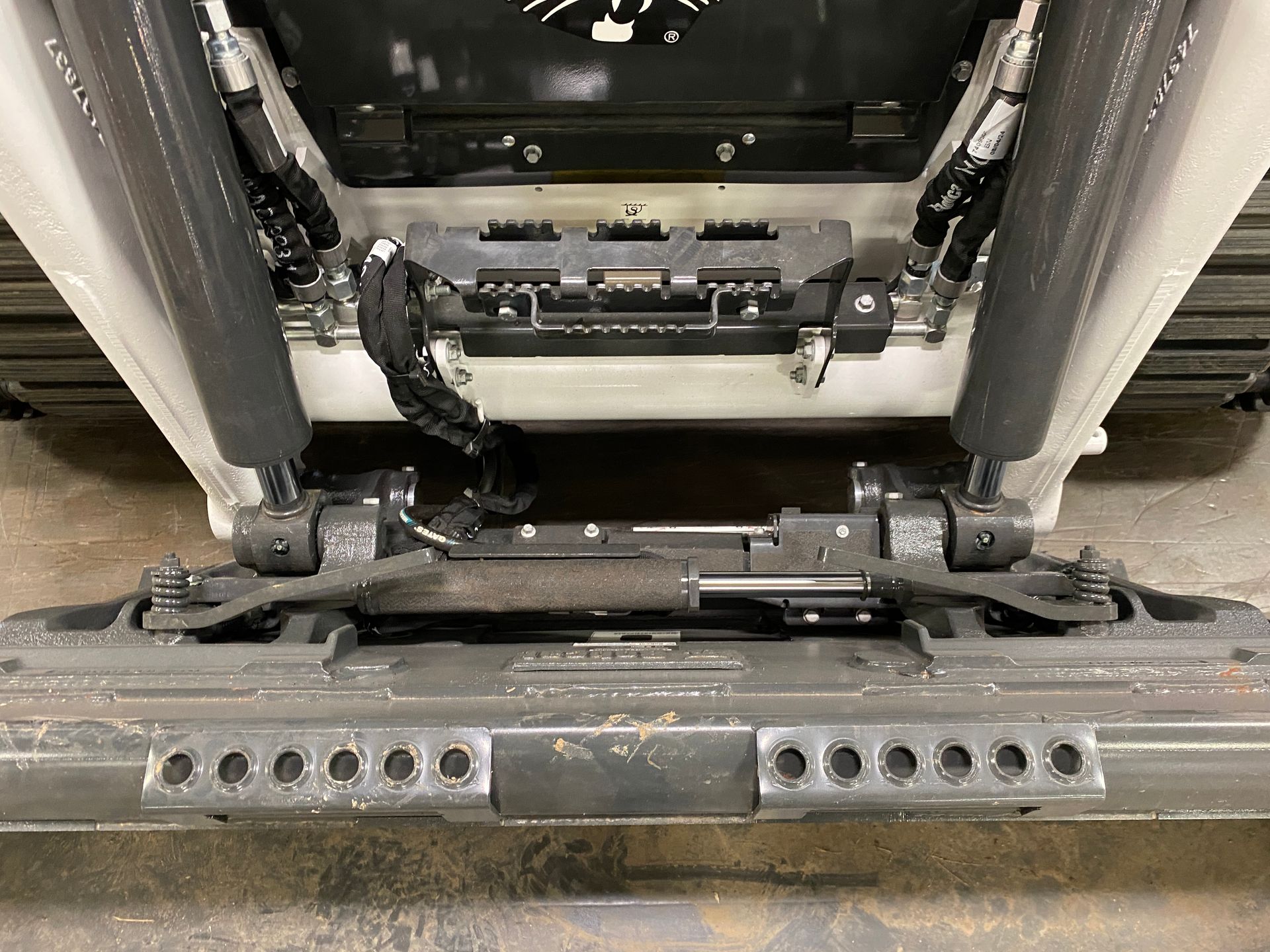

   - Power Bob-Tach

   - Solid Undercarriage

   - 5" Display

   - Premium LED Lights

   - Keyless Start

   - 7-Pin Attachment Control

   - Rear View Camera

   - Sound Reduction

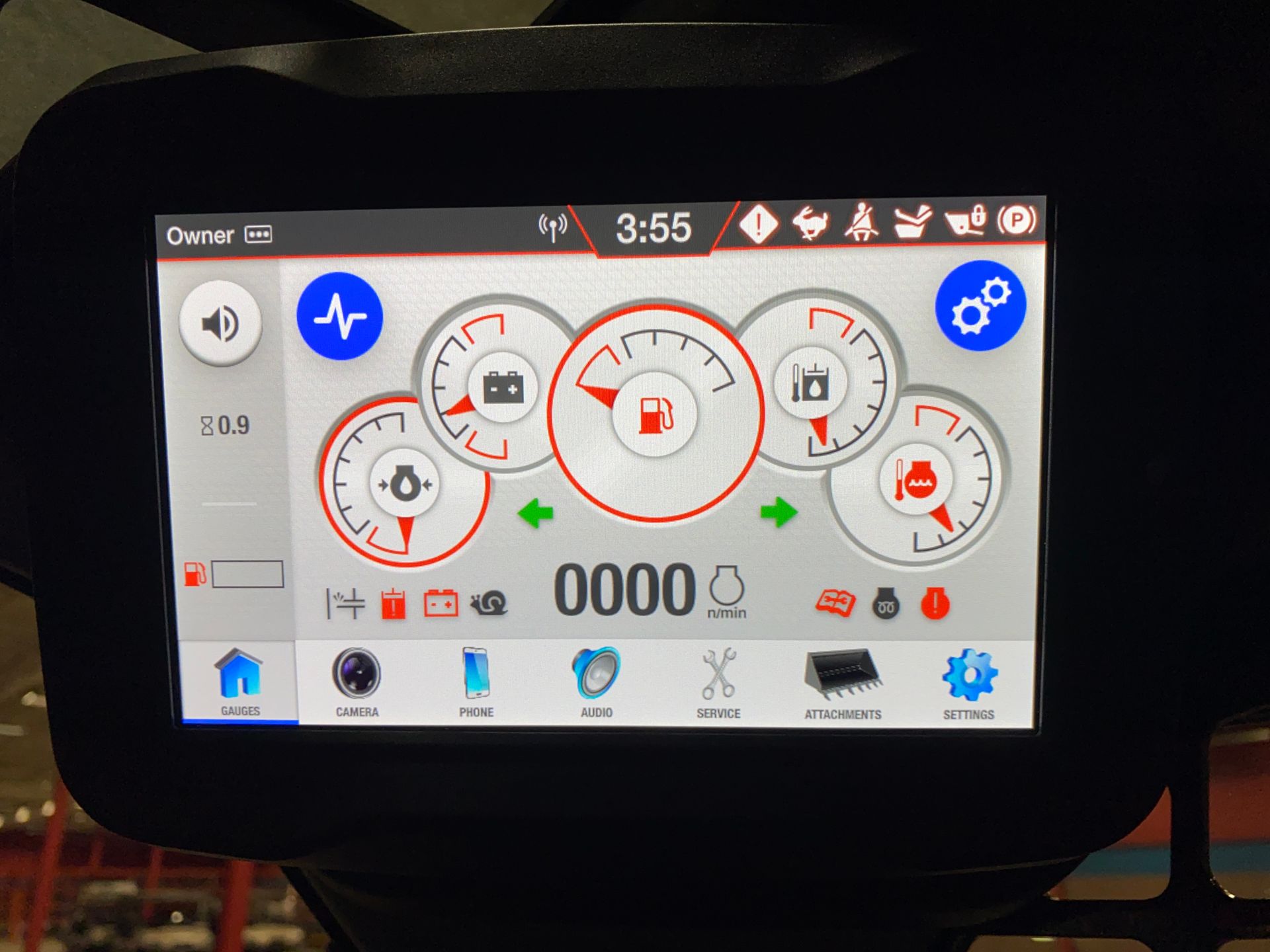

* 7" Touch Screen Display with Integrated AM/FM Weatherband Radio, Bluetooth, USB Charging and Hands Free Calling

   - Includes speakers and antenna. Monitors key loader functions, communicates alerts and provides additional attachment information to track usage

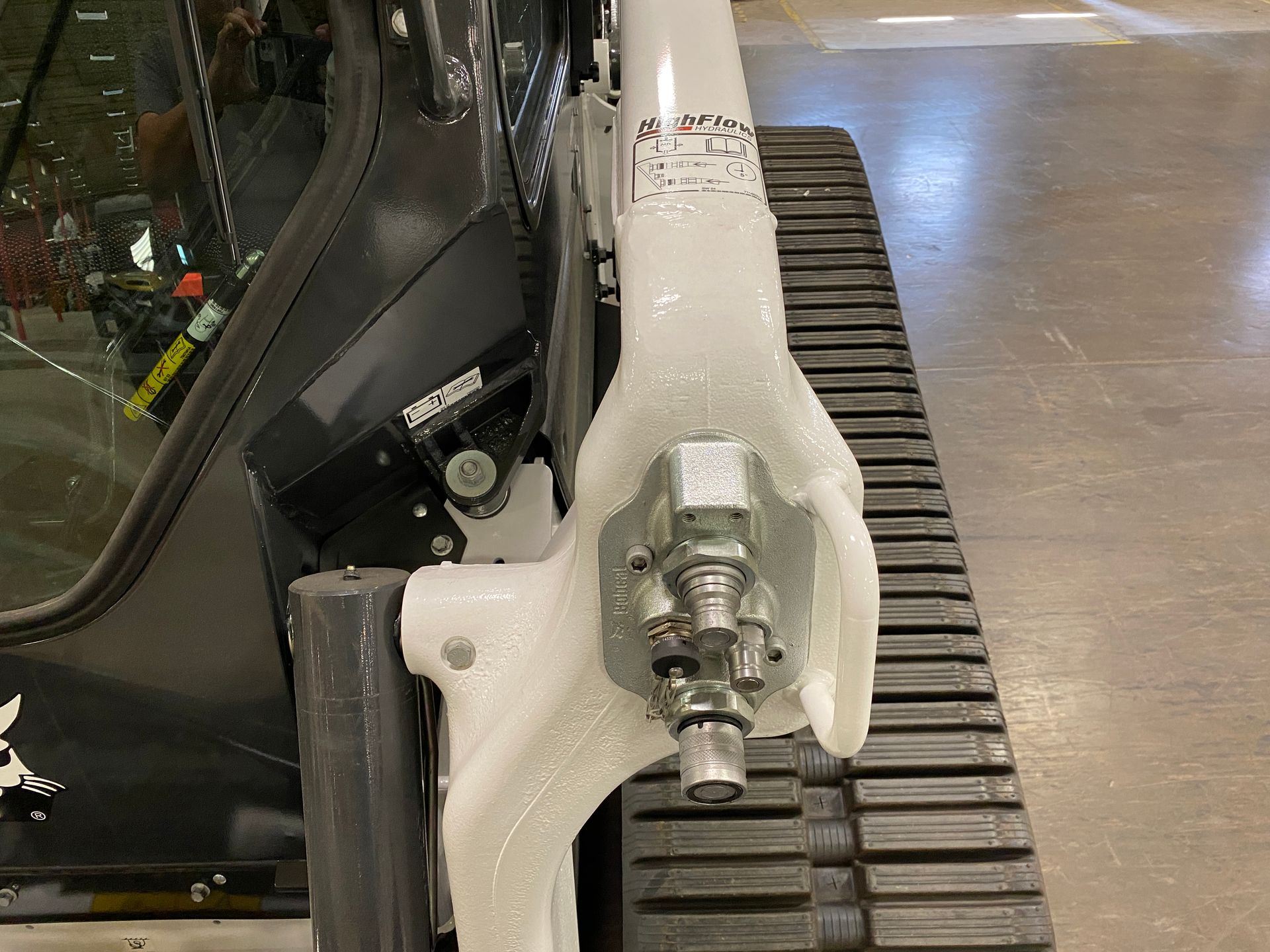

* High Flow Hydraulics

   - Provides 30.5 GPM and 3500 PSI for attachment operation

* 17.7" Multi Bar Tracks

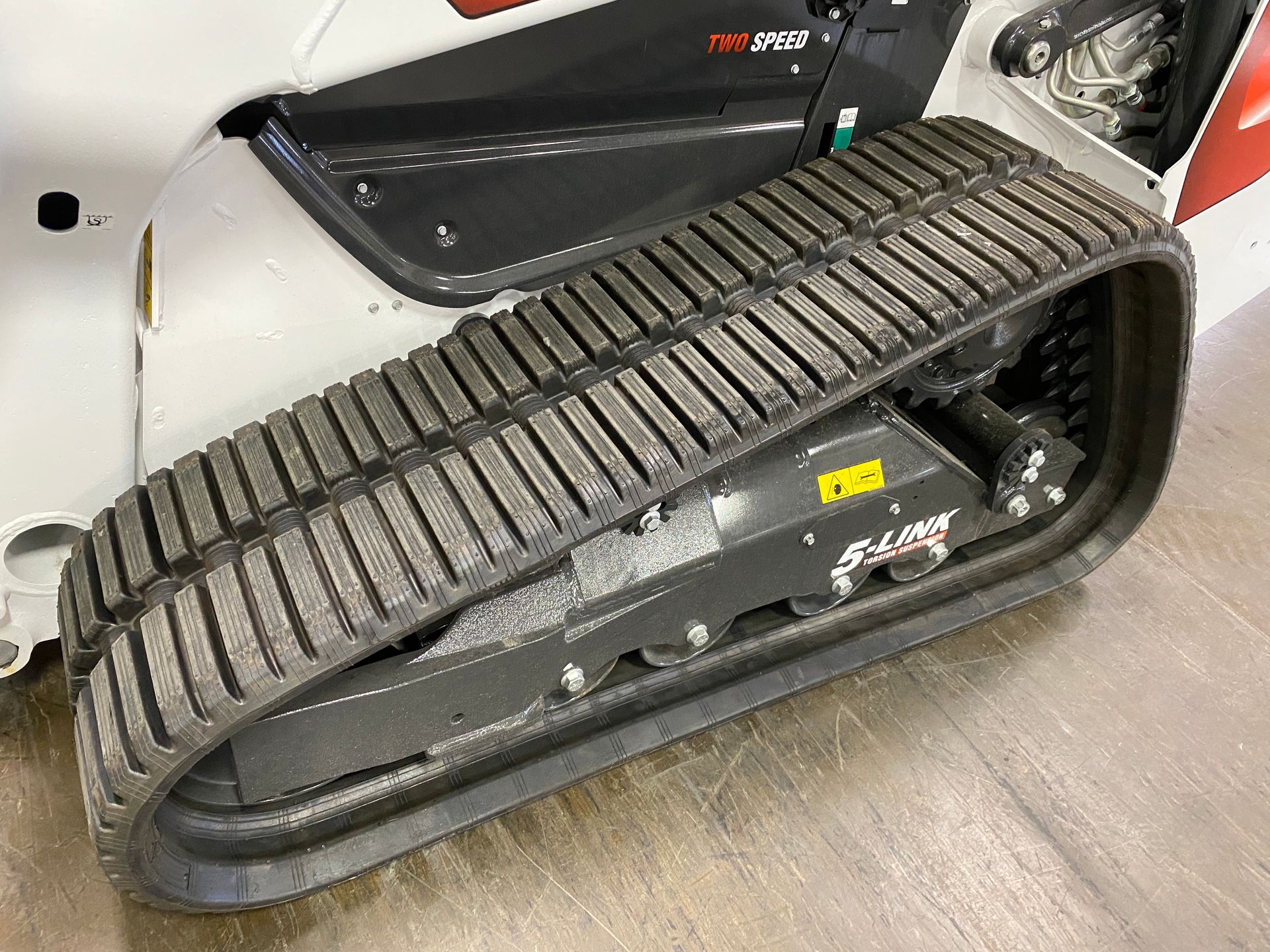

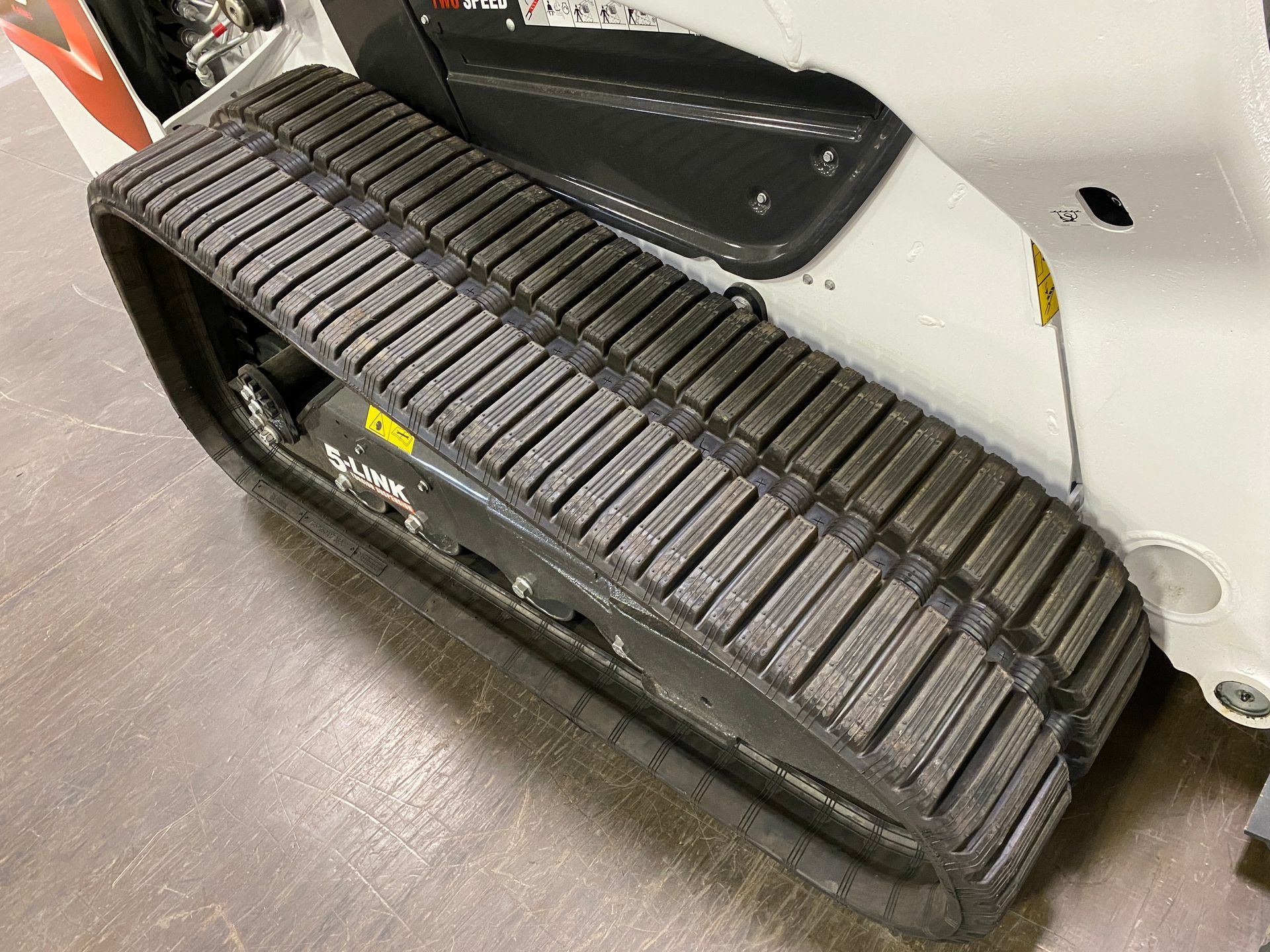

* 5-Link Torsion Suspension Undercarriage

Standard Features

* 74 HP Tier 4 V2 Bobcat Engine

* Auxiliary Hydraulics: Variable Flow

* Backup Alarm

* Bob-Tach

* Bobcat Interlock Control System (BICS)

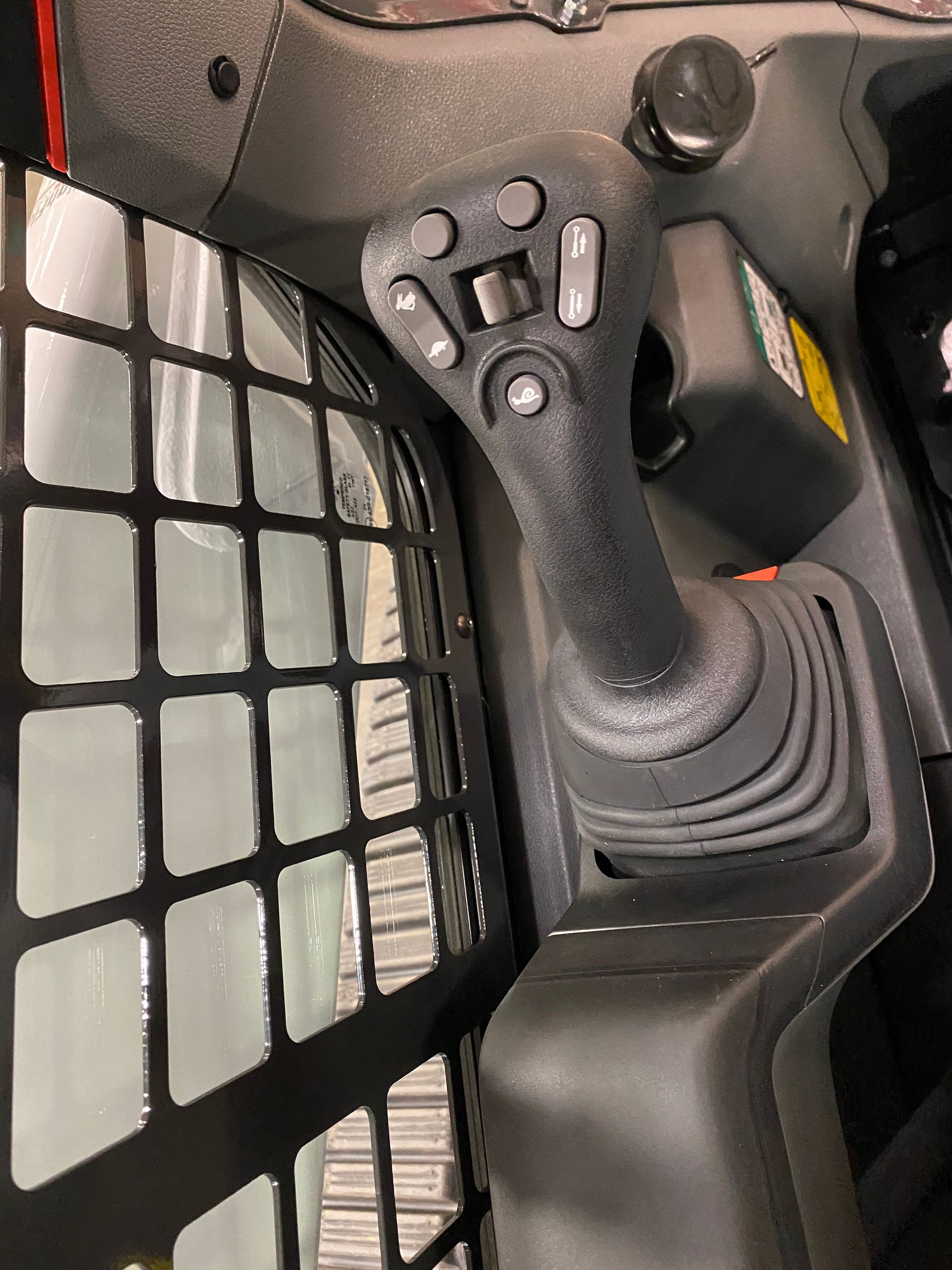

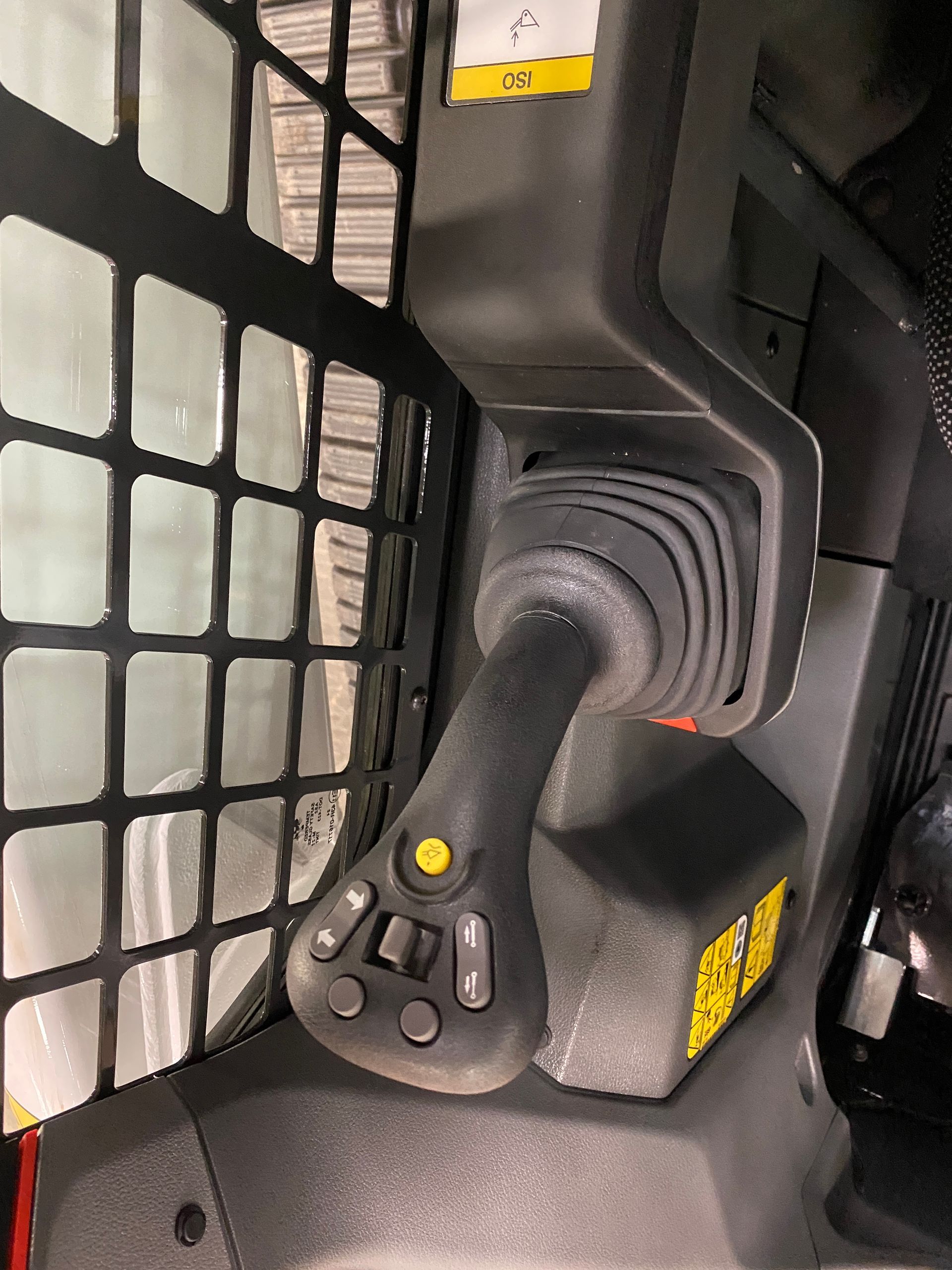

* Controls: Selectable Joystick Controls

* Cylinder Cushioning - Lift, Tilt

* Engine/Hydraulic Performance De-rate Protection

* Glow Plugs (Automatically Activated)

* Horn

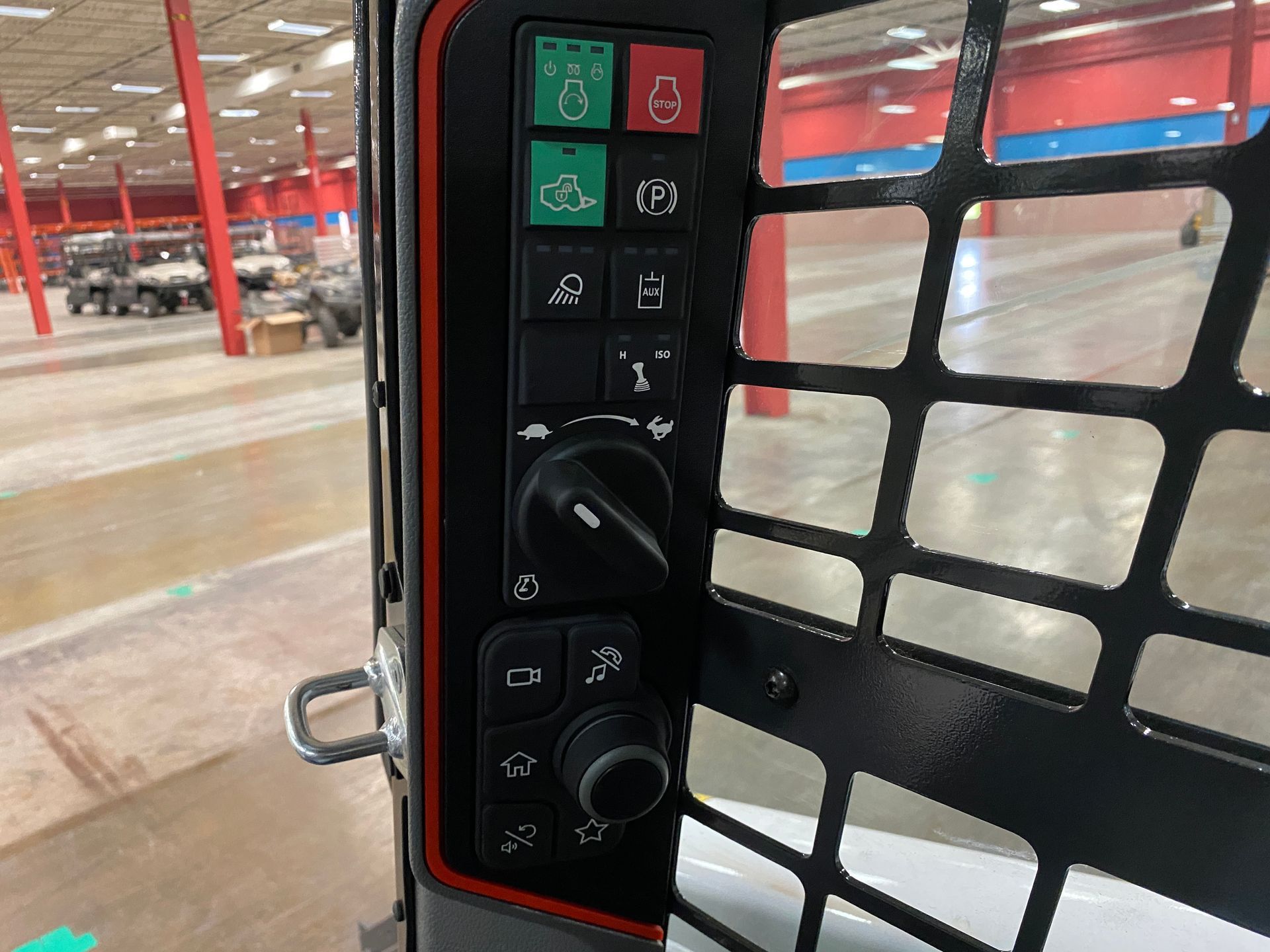

* Instrumentation:

   - Standard 5" Display (Rear Camera Ready) with Keyless Start

   - Engine Temperature & Fuel Gauges

   - Hour Meter

   - RPM & Warning Indicators. Includes:

     * Maintenance Interval Notifications

     * Fault Display

     * Job Codes

     * Quick Start

     * Auto Idle

     * Security Lockouts

* Lift Arm Support

* Lift Path: Vertical

* Lights, Front & Rear LED

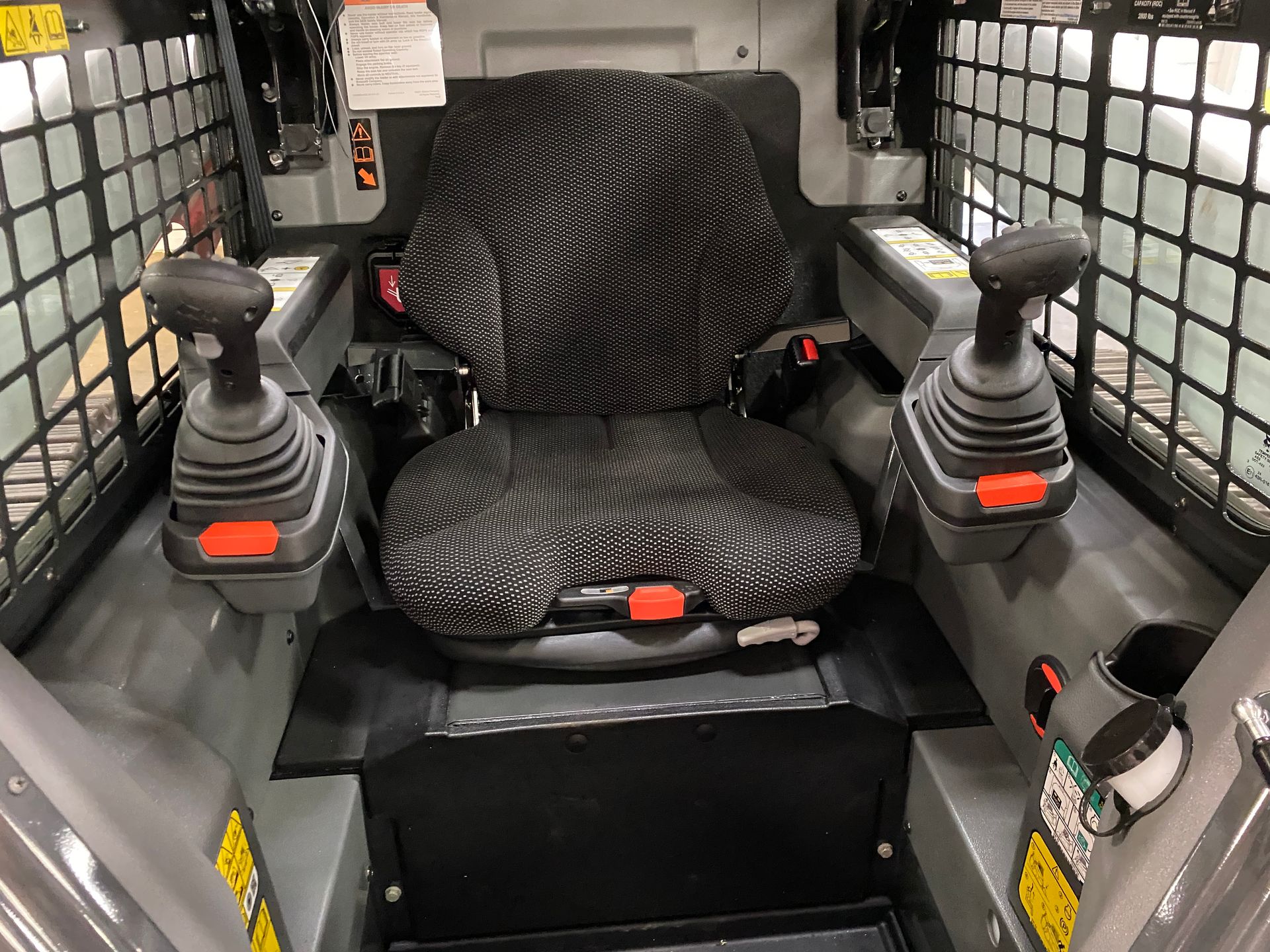

* Operator Cab Includes:

   - Adjustable Vinyl Suspension Seat

   - Top & Rear Windows

   - Parking Brake

   - Seat Bar & Seat Belt

* Roll Over Protective Structure (ROPS) meets SAE-J1040 & ISO 3471

* Falling Object Protective Structure (FOPS) meets SAE-J1043 & ISO 3449, Level I; (Level II is available through Bobcat Parts)

* Parking Brake: Spring Applied, Pressure Released (SAPR)

* Solid Mounted Carriage with 4 Rollers

* Tracks: Rubber, 12.6" Wide

* Warranty: 2 years, or 2,000 hours whichever occurs first

Specs

ENGINE

* Emissions Tier (EPA) - Tier 4

* Engine Cooling - Liquid

* Engine Fuel - Diesel

* Horsepower - 74 hp

* Turbocharged Engine - Standard

* Engine Model - D24 BSH T4 74 HP DM02-LEL00 Bobcat V2

* Engine Make - Bobcat

* Displacement - 146" cubic

* Torque RPM - 1,800 rpm

* Number of Cylinders - 4

PERFORMANCE

* Rated Operating Capacity (ISO) - 2,900 lb

* Operated Capacity (50$ of Tip) - 4,143 lb

* Rated Operating Capacity (35% of Tip) - 2,900 lb

Tipping Load - 8,285 lb

* Operating Weight - 10,250 lb

* Travel Speed - 6.8 mph

* Travel Speed (2-speed option) - 9.2 mph

* Ground Pressure - 6.2 psi

CAPACITIES

* Fuel Tank - 31.7 gal

HYDRAULIC SYSTEM

* System Relief @ Quick Couplers - 3,500 psi

* Auxiliary Std Flow - 23.3 gal/min

* Auxiliary High Flow - 30.3 gal/min

GENERAL

* Contract Codes - Compact Track Loader

* First Year of Production - 2019

CONTROLS

* Hydraulic (Lift & Tilt) - Joy Stick

* Control Option - SJC Standard

* Auxiliary Hydraulics - Thumb Proportional Control with Continuous Settings

DIMENSIONS

* Length - 147.1"

* Length without Attachment - 113.9"

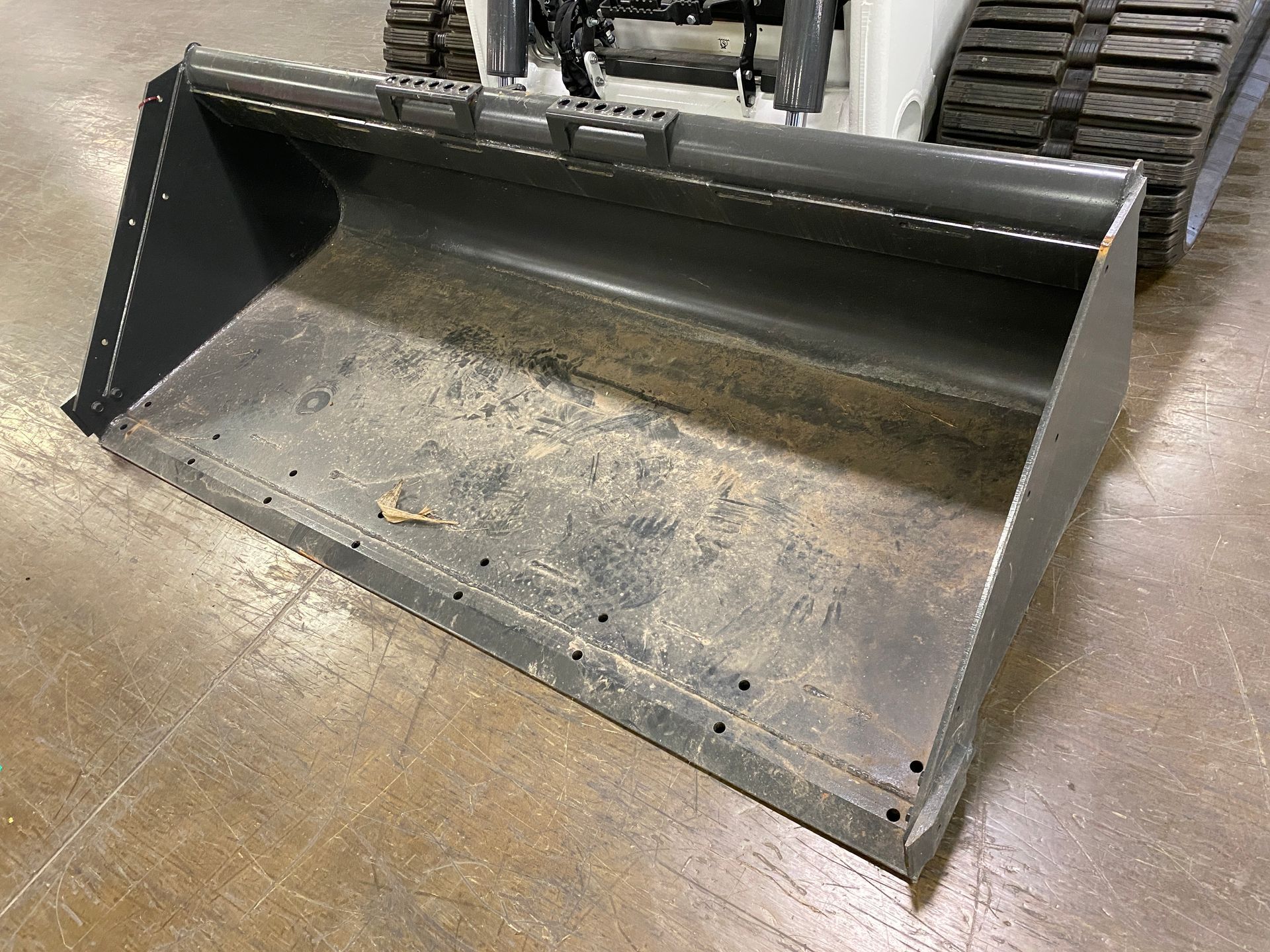

* Length with Standard Bucket - 147.1"

* Width - 72.9"

* Width (with bucket) - 74"

* Height - 81.8"

* Height with Operator Cab - 81.8"

* Height to Bucket Hinge Pin - 128.3"

* Reach @ Maximum Height - 39.9"

* Turning Radius - 89.3"

* Length of Track on Ground - 59.2"

* Track Width - 12.6"

* Track Width - Optional - 17.7"

* Ground Clearance - 8.8"

* Dump Angle @ Maximum Height - 37 degree
