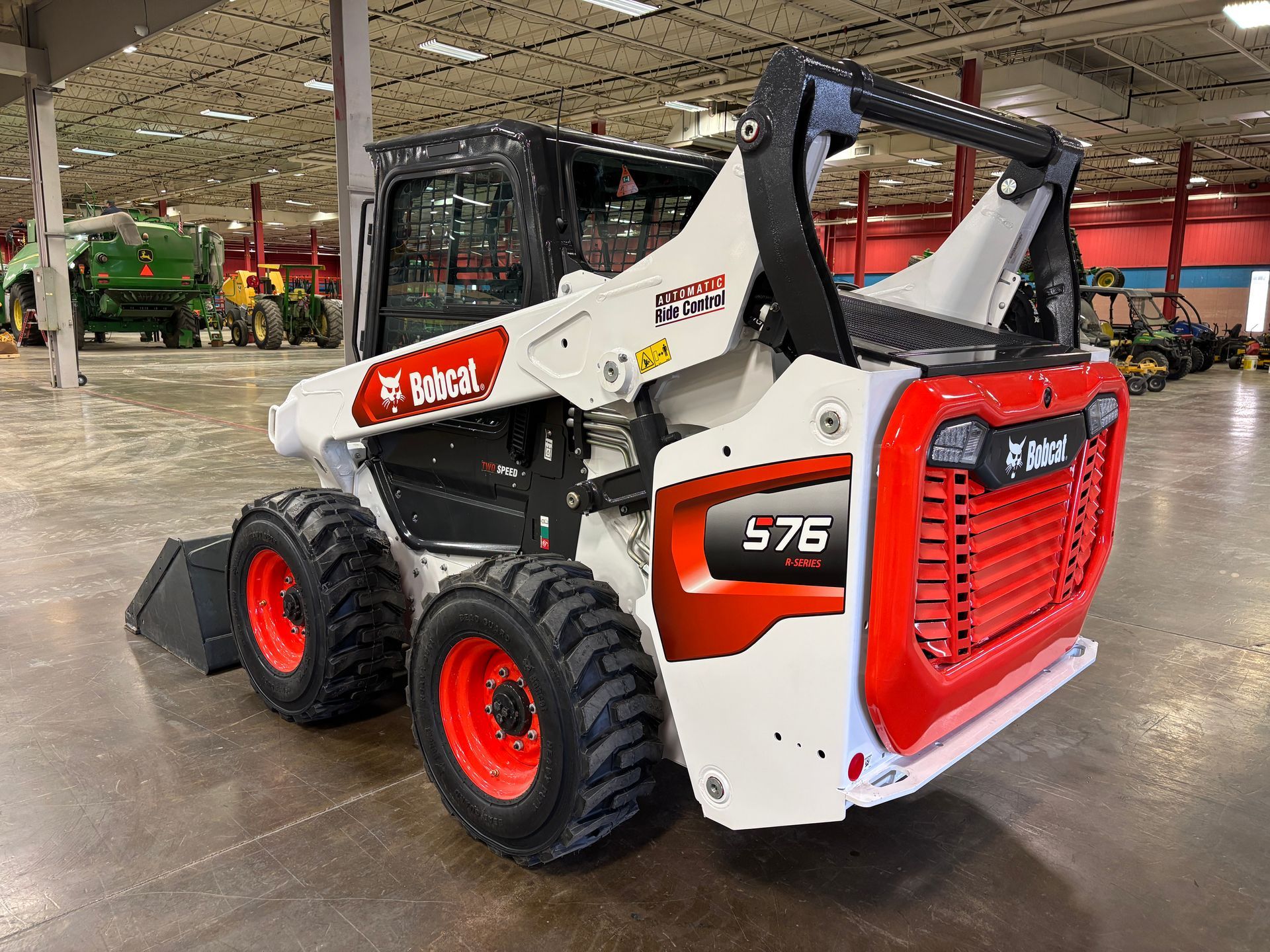

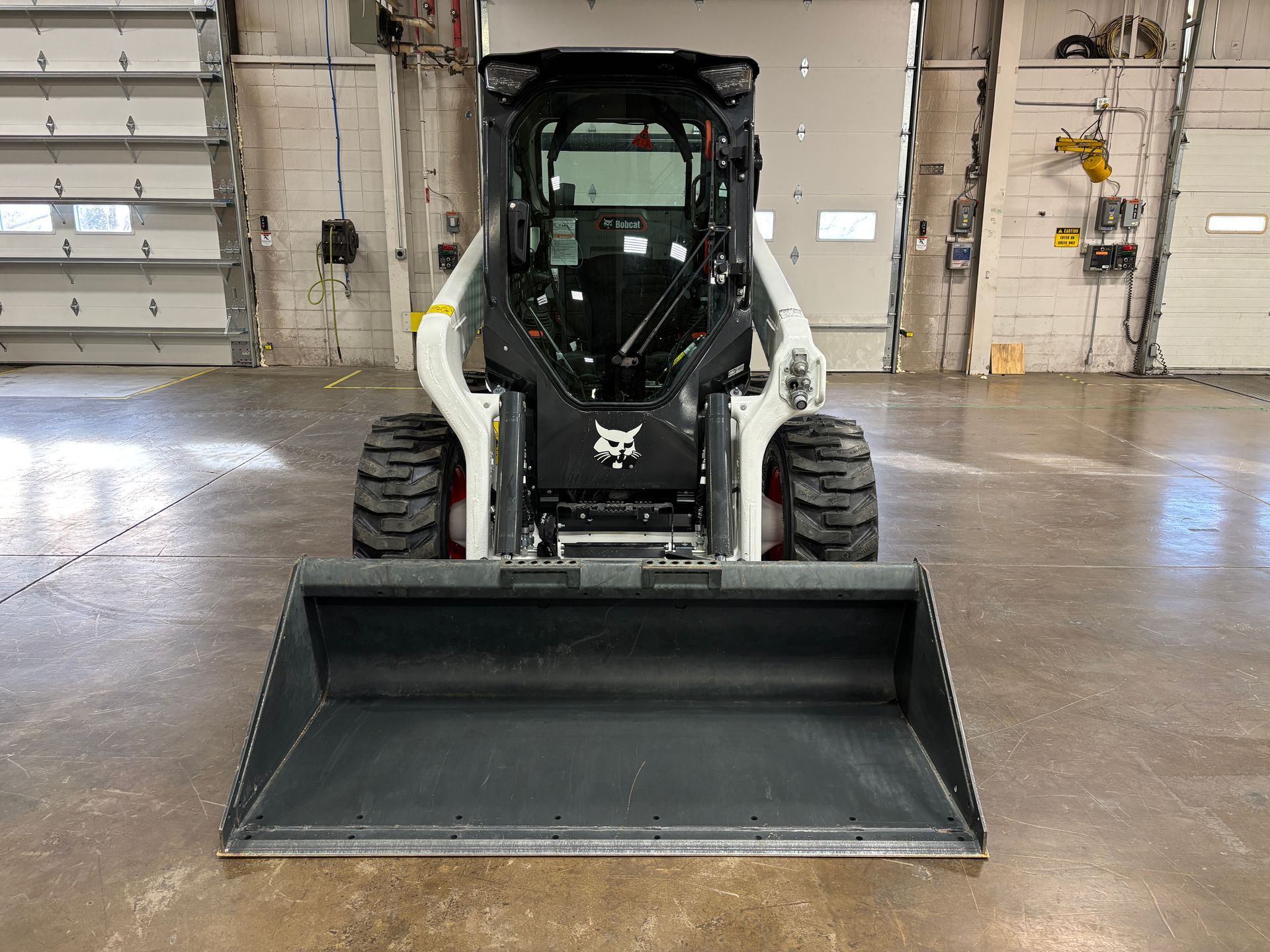

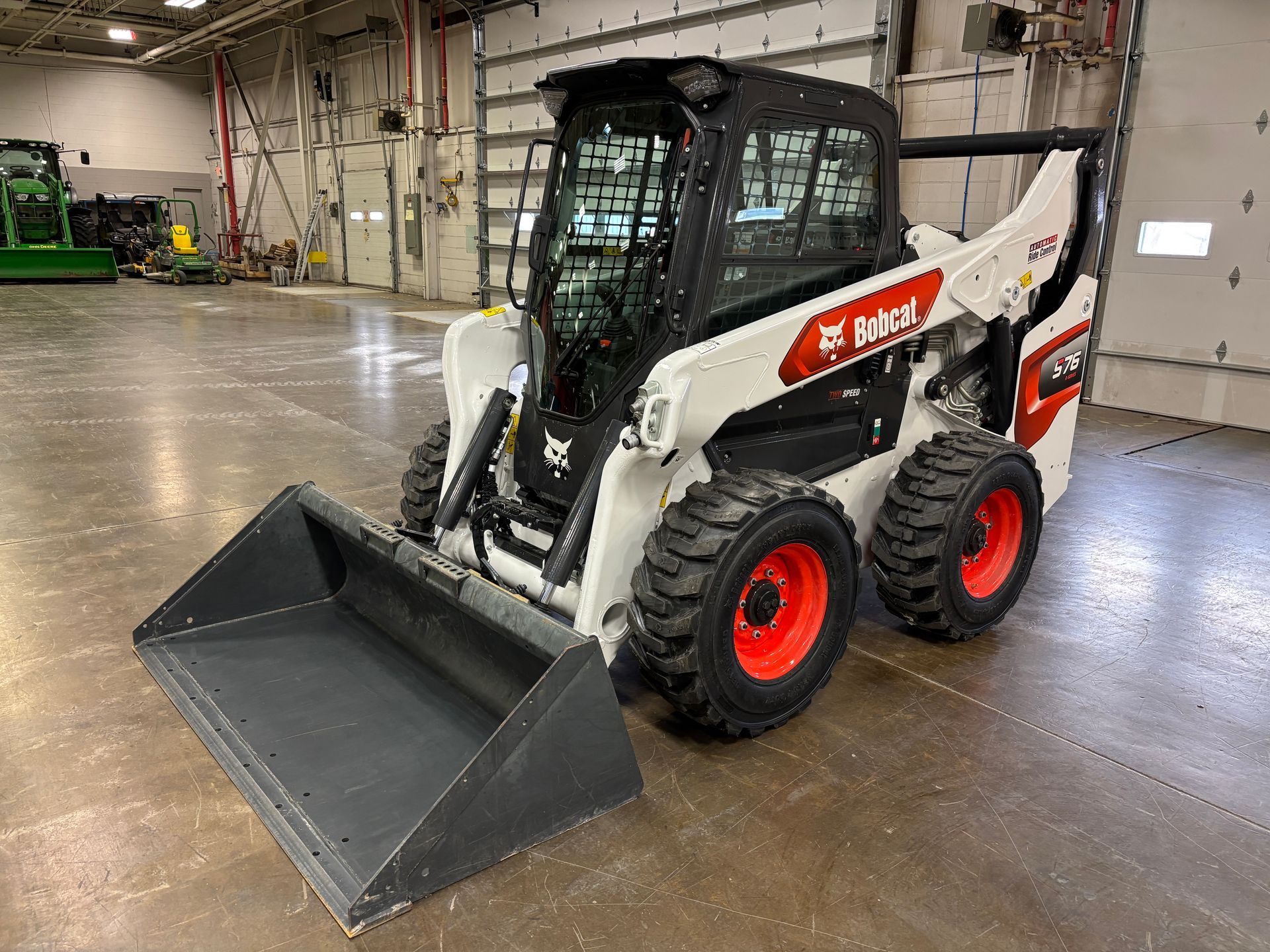

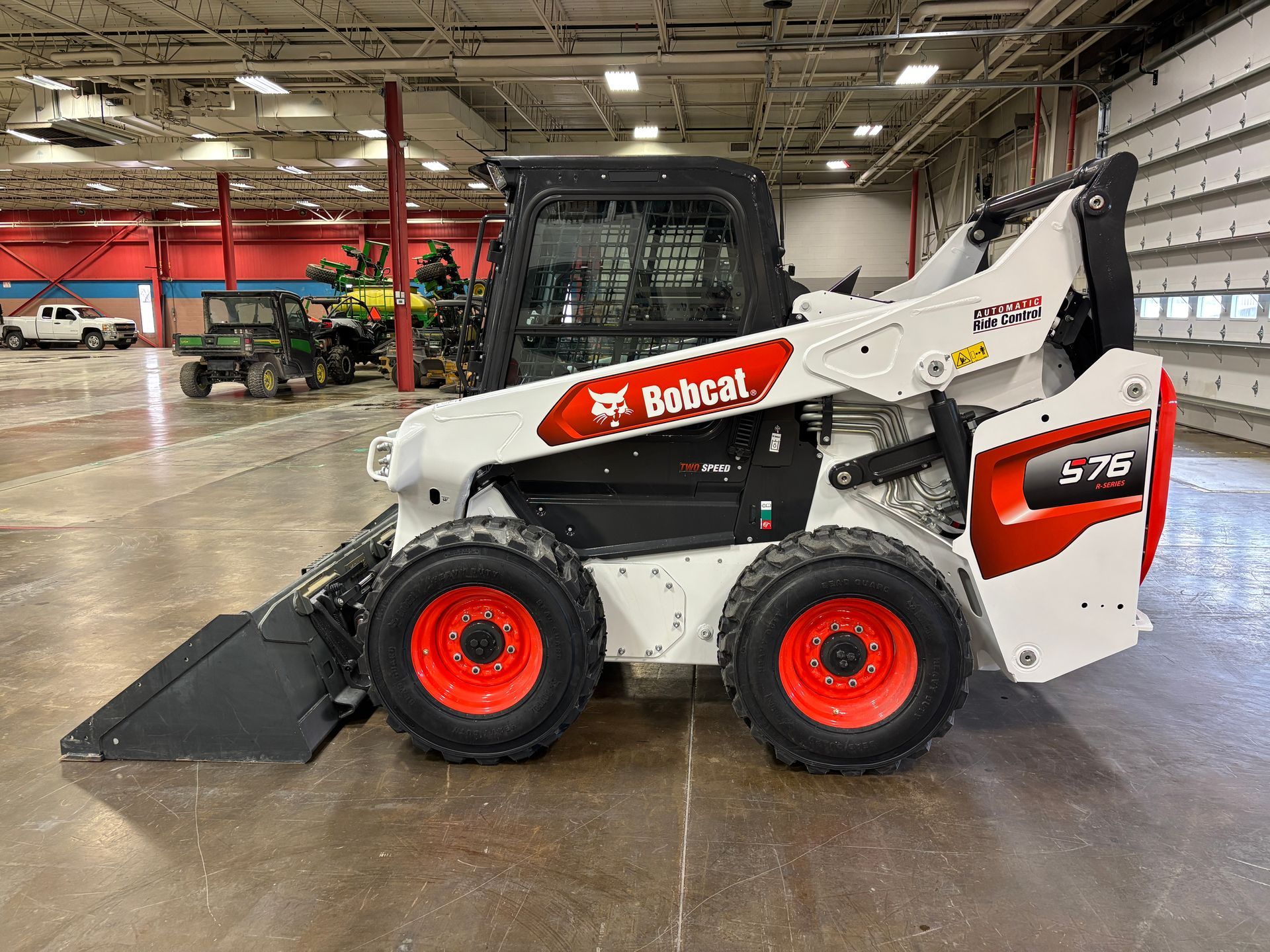

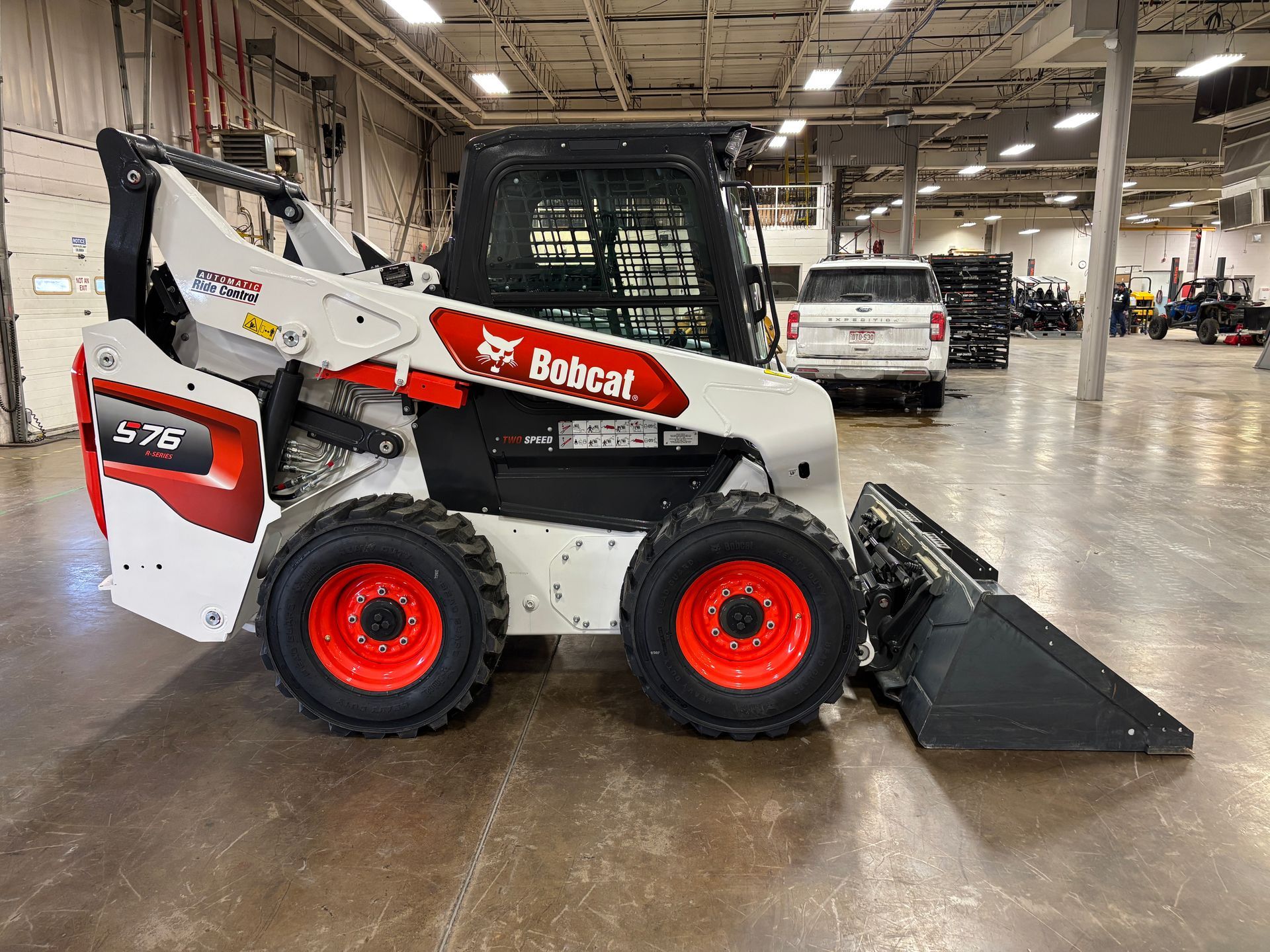

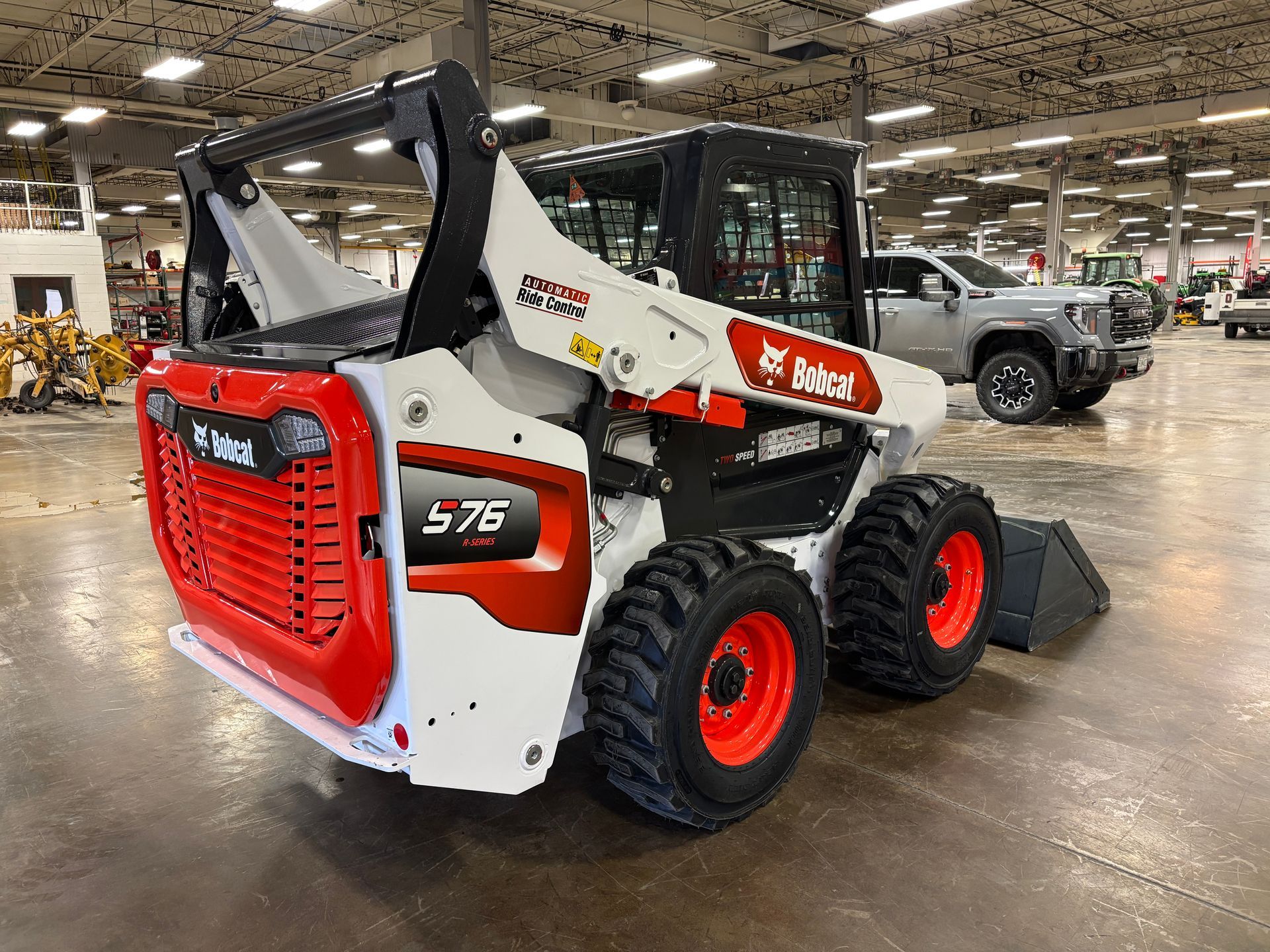

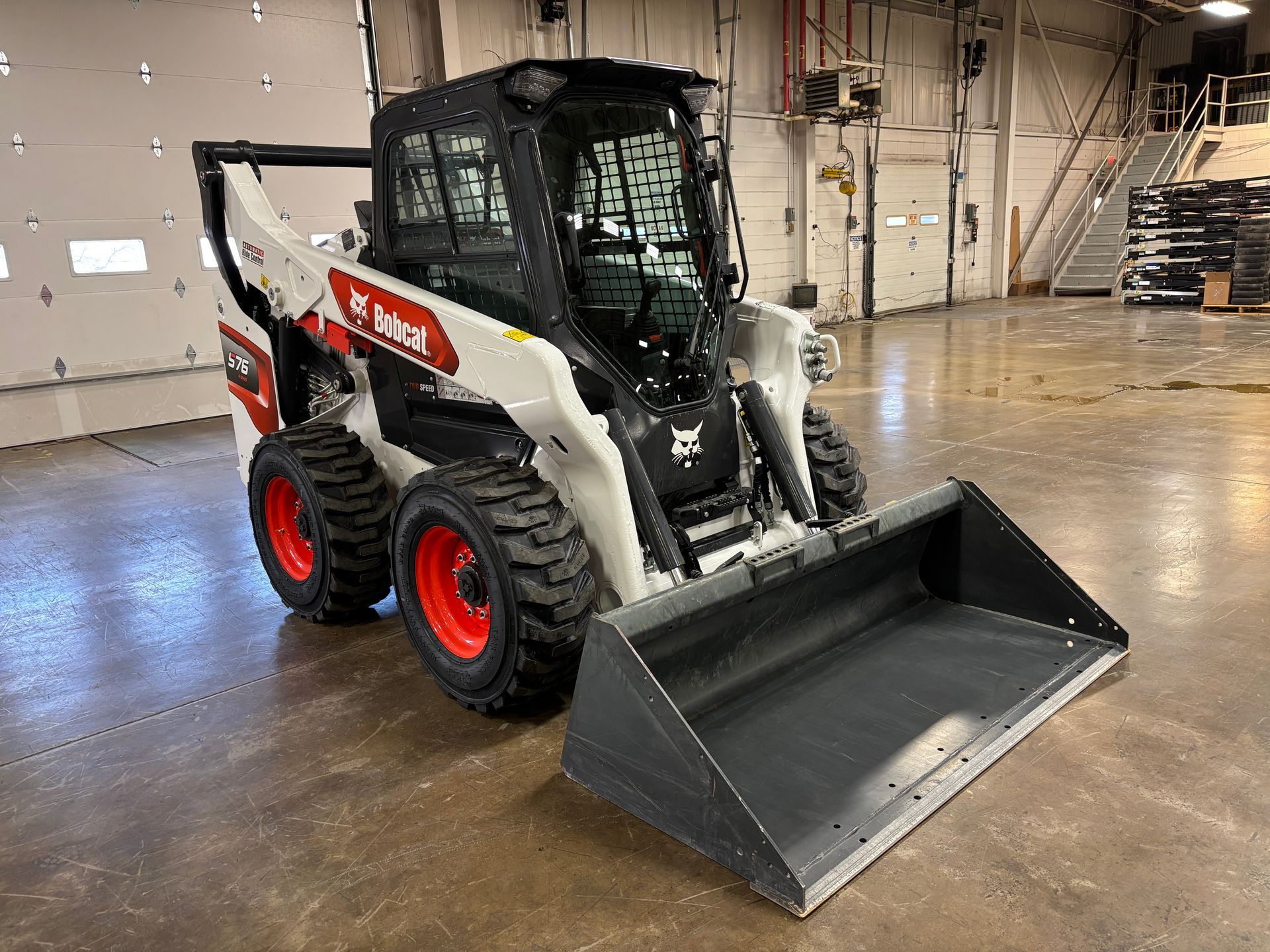

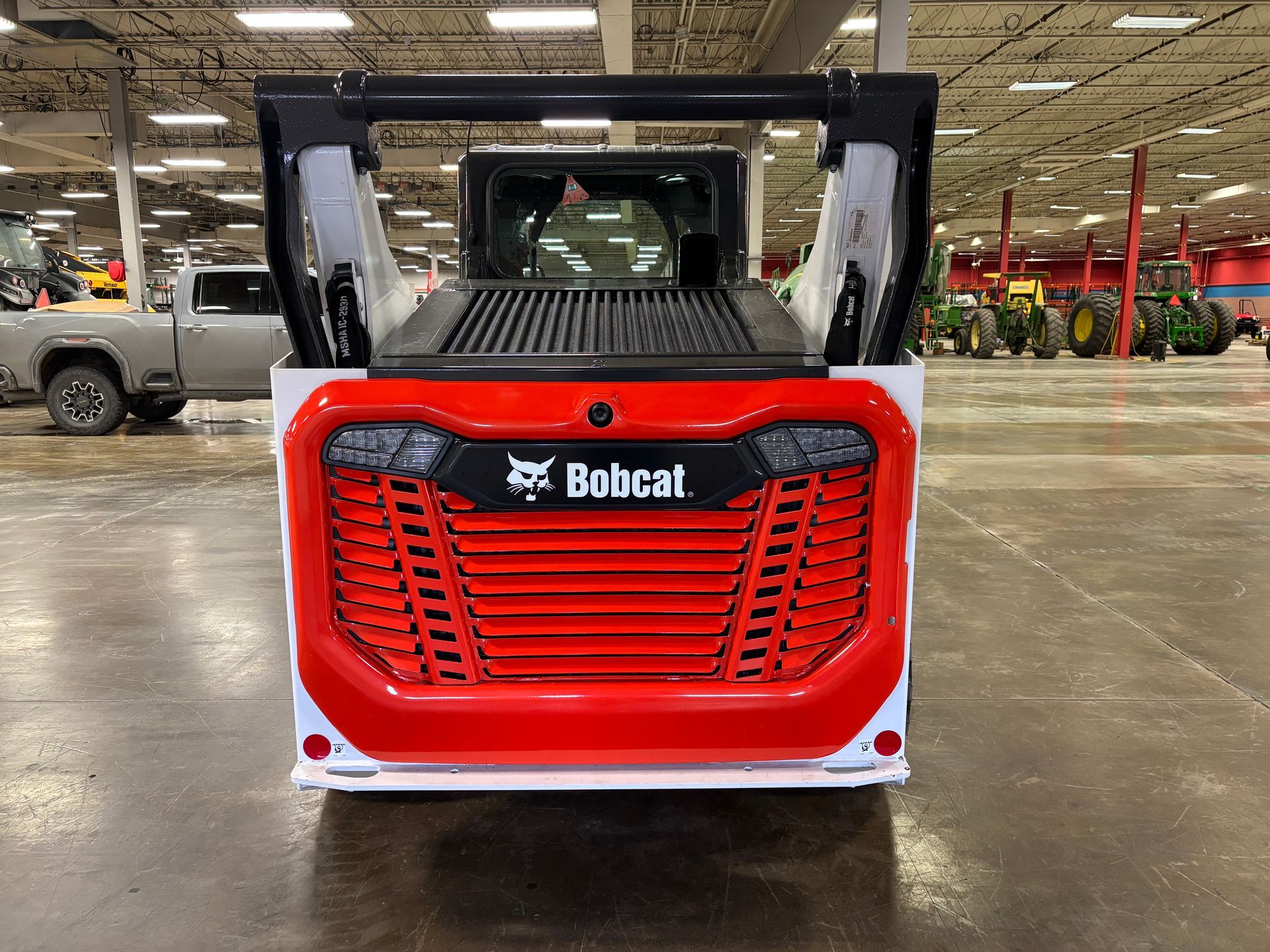

2025 Bobcat S76 R-Series Skid Steer Loader $83,996
Features
* 2025 Bobcat S76 R-Series Skid Steer Loader (MSRP - call for best pricing)
* 1 Hour
* Comfort Package
- Enclosed HVAC Cab
- Radio
- Adjustable Heated Cloth Air Ride Seat

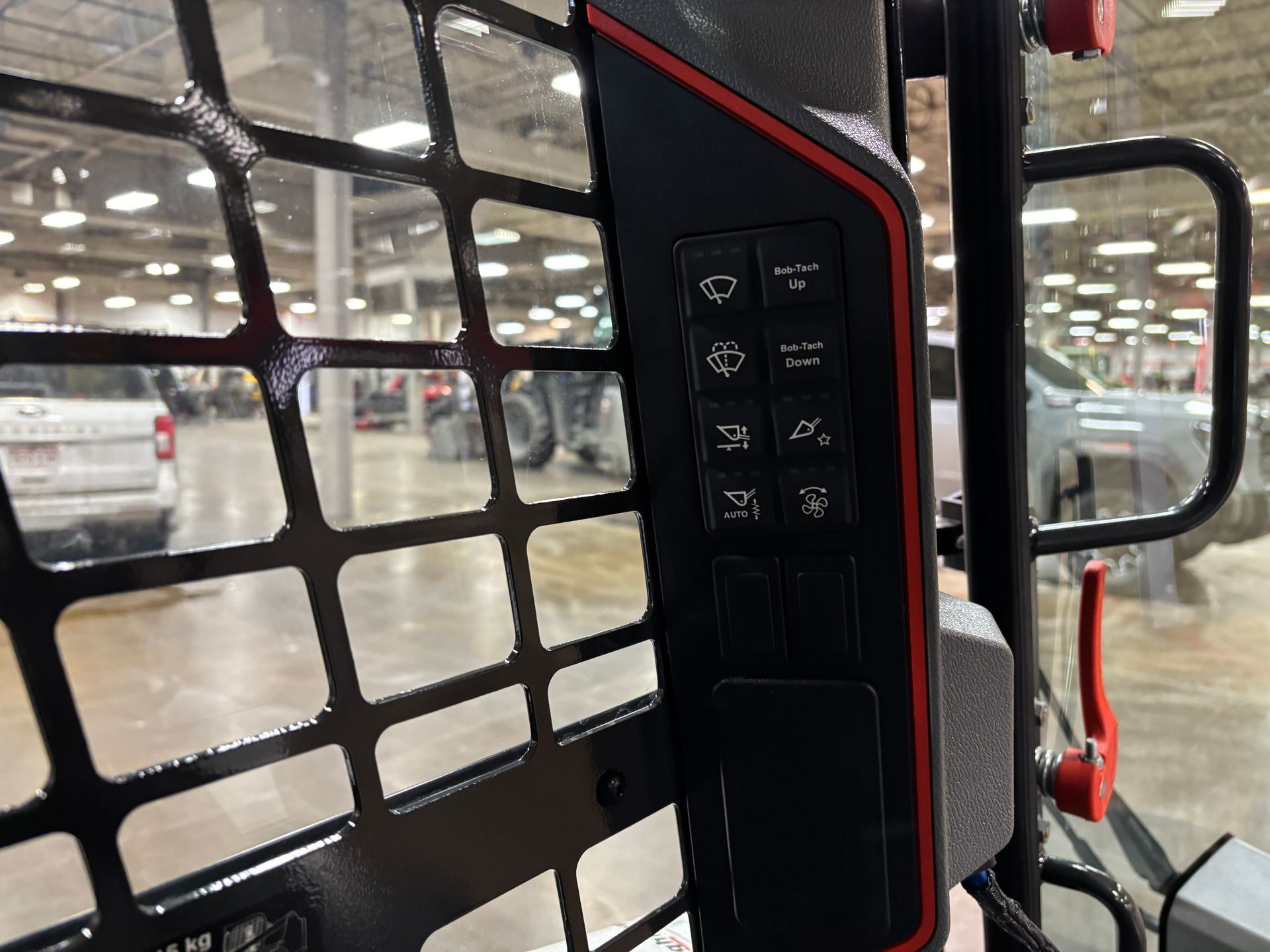

- Power Bob-Tach
- Instrumentation:
* Standard 5" Display
* Engine Temperature and Fuel Gauges
* Hour Meter
* RPM and Warning Indicators
* Includes:
- Maintenance Interval Notification
- Fault Display
- Job Codes
- Quick Start
- Auto Idle
- Security Lockouts
* Premium LED Lights
* Keyless Start
* Two-Speed
* 7-Pin Attachment Control
* Dual Direction Bucket Positioning
* Rear Camera
* Sound Reduction
* Automatic Ride Control

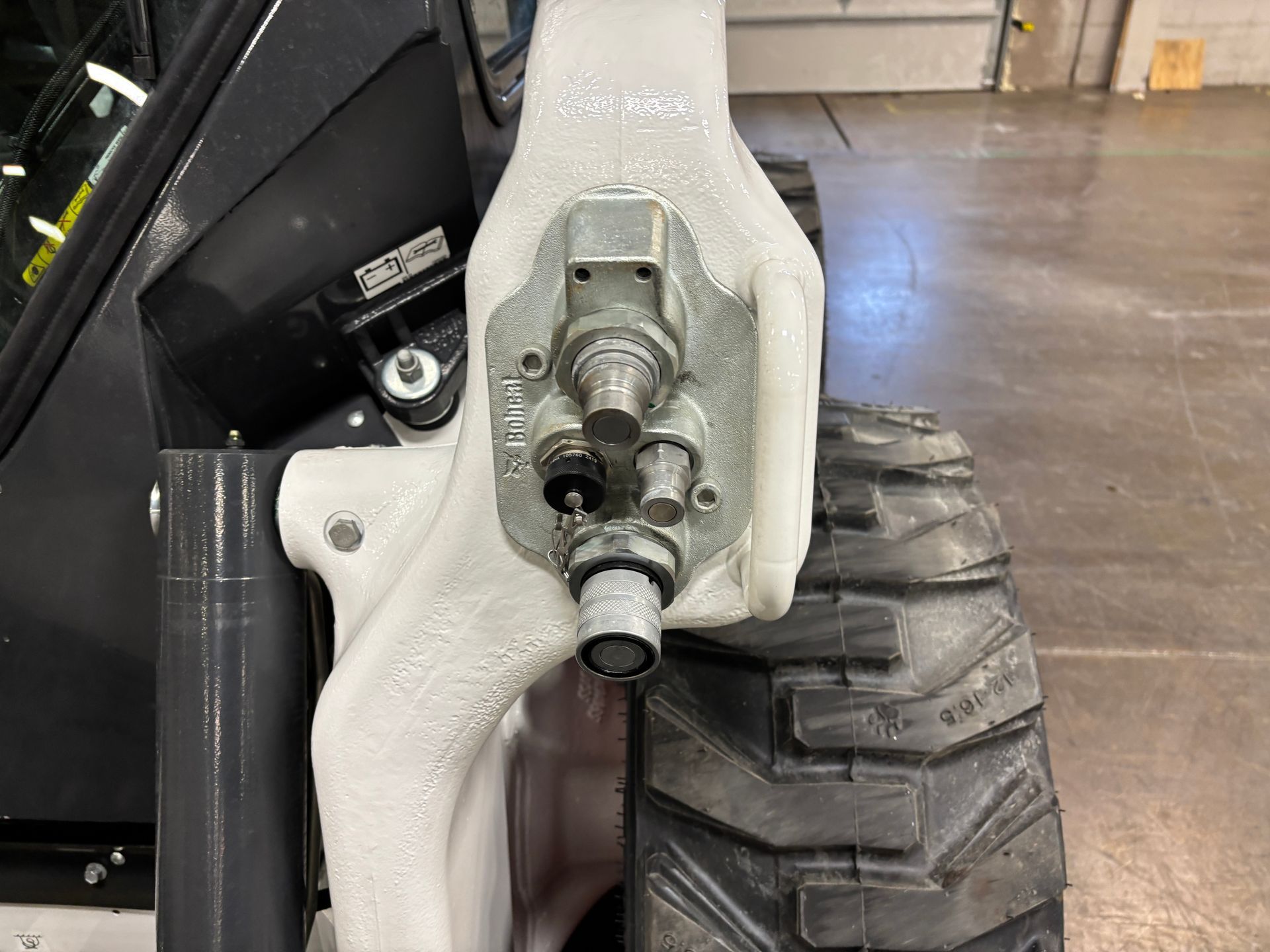

* High Flow Hydraulics
- Provides 30.5GPM and 3,500 PSI for attachment operation

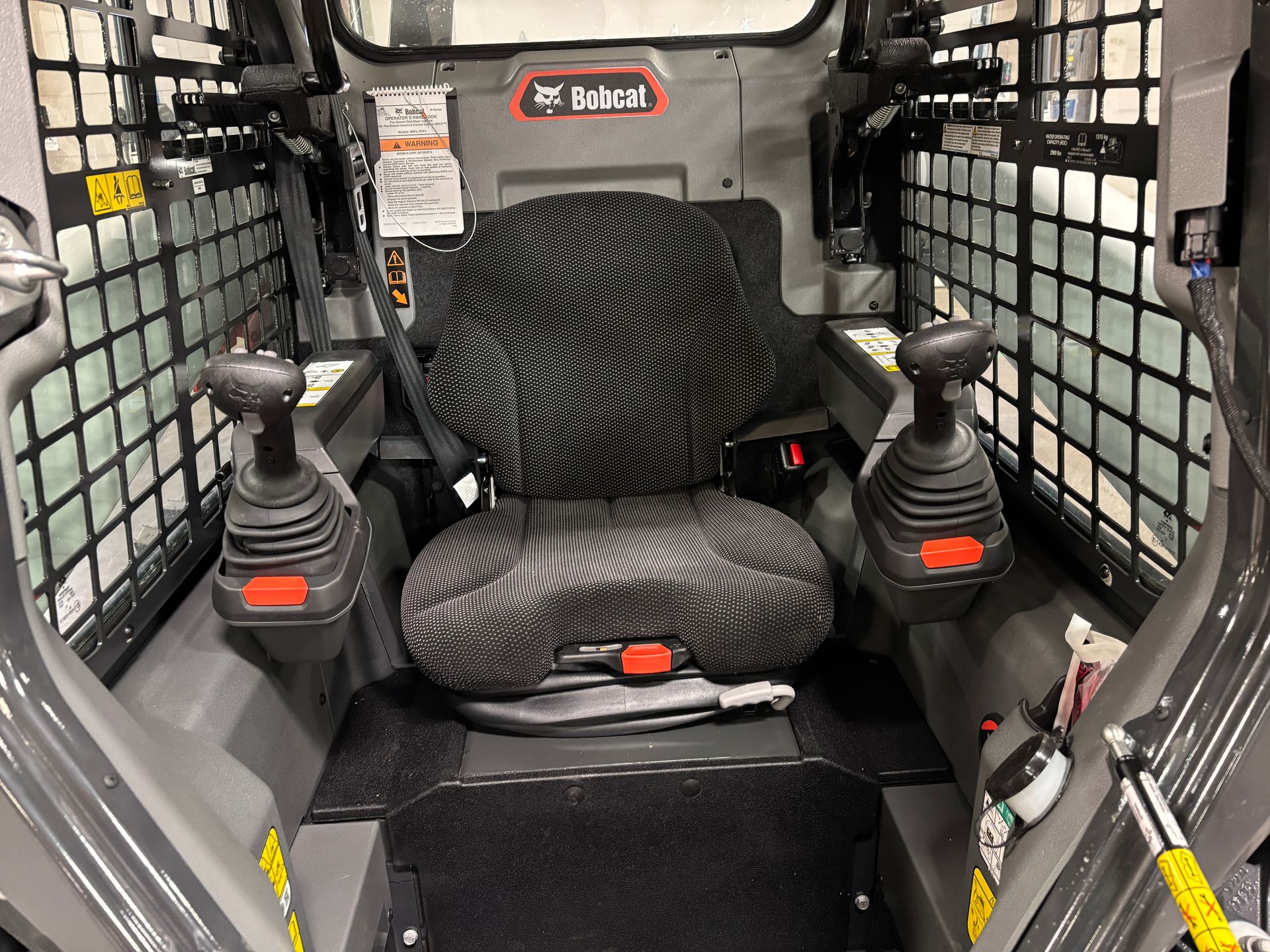

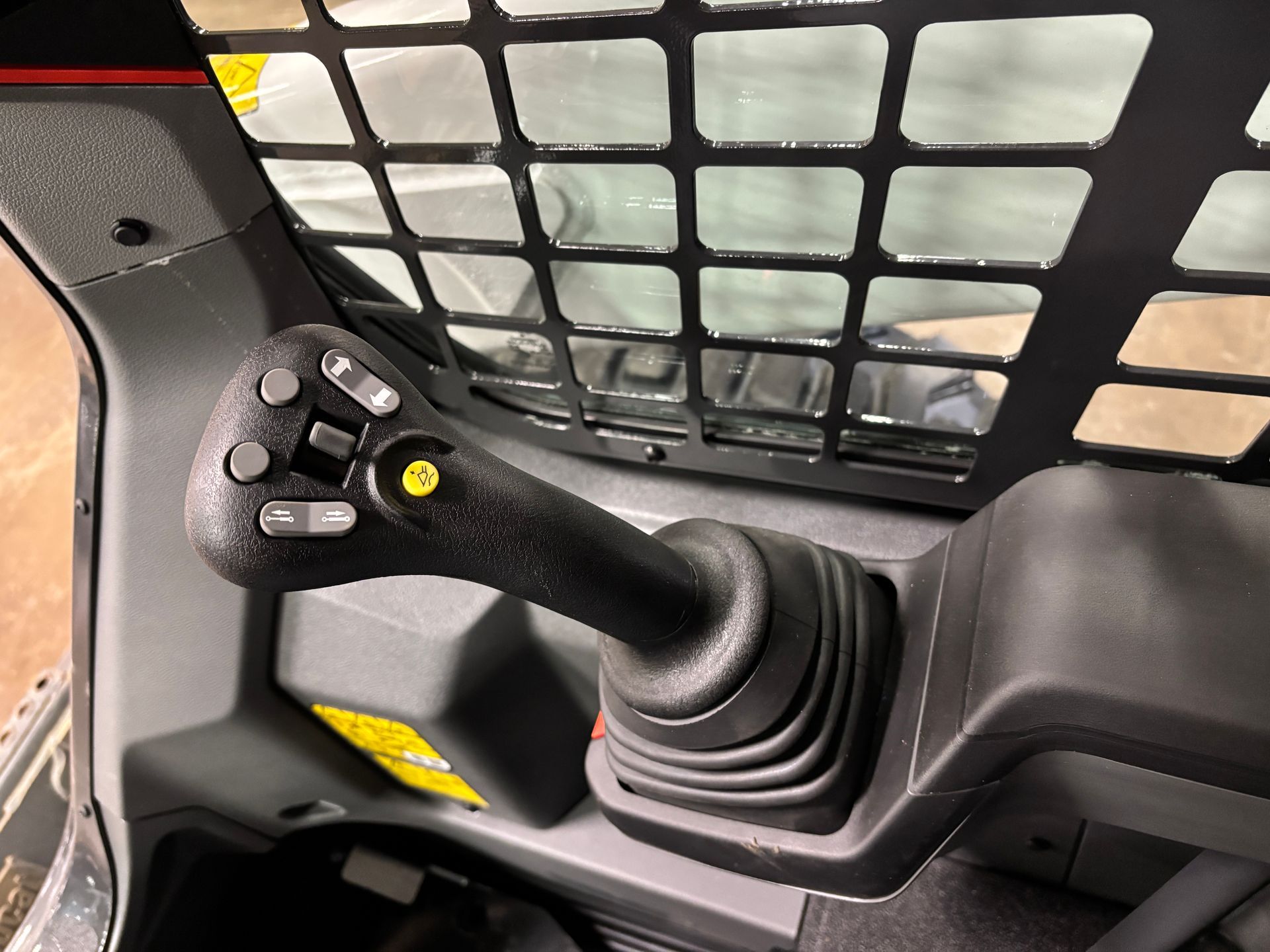

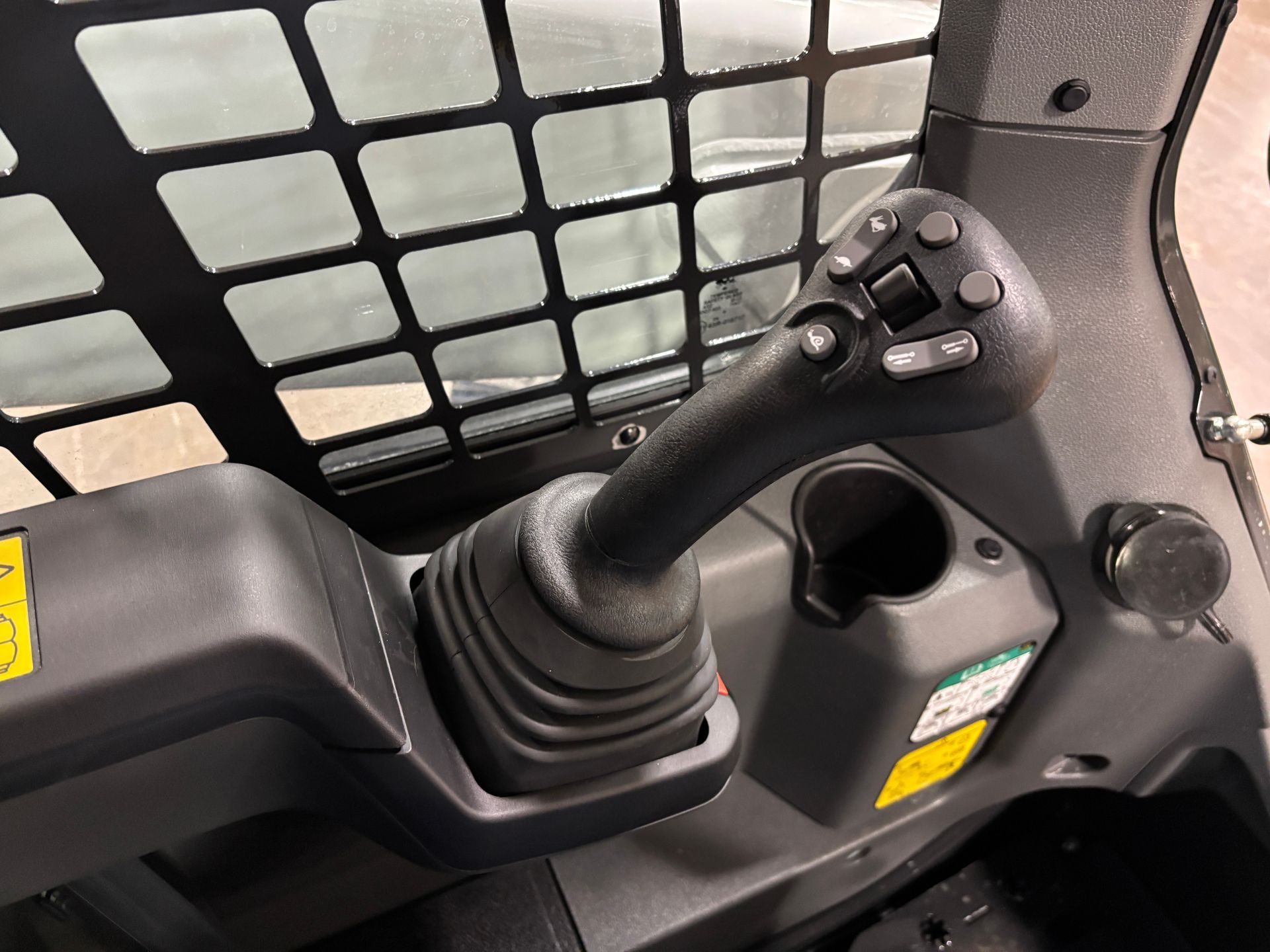

* Selectable Joystick Controls
- Selectable patterns (ISO or H-Pattern)
- Auto Idle
- Horsepower Management
- Speed Management
- Drive Response
- Drift Compensation
- Foot Pedal for Engine Speed Control

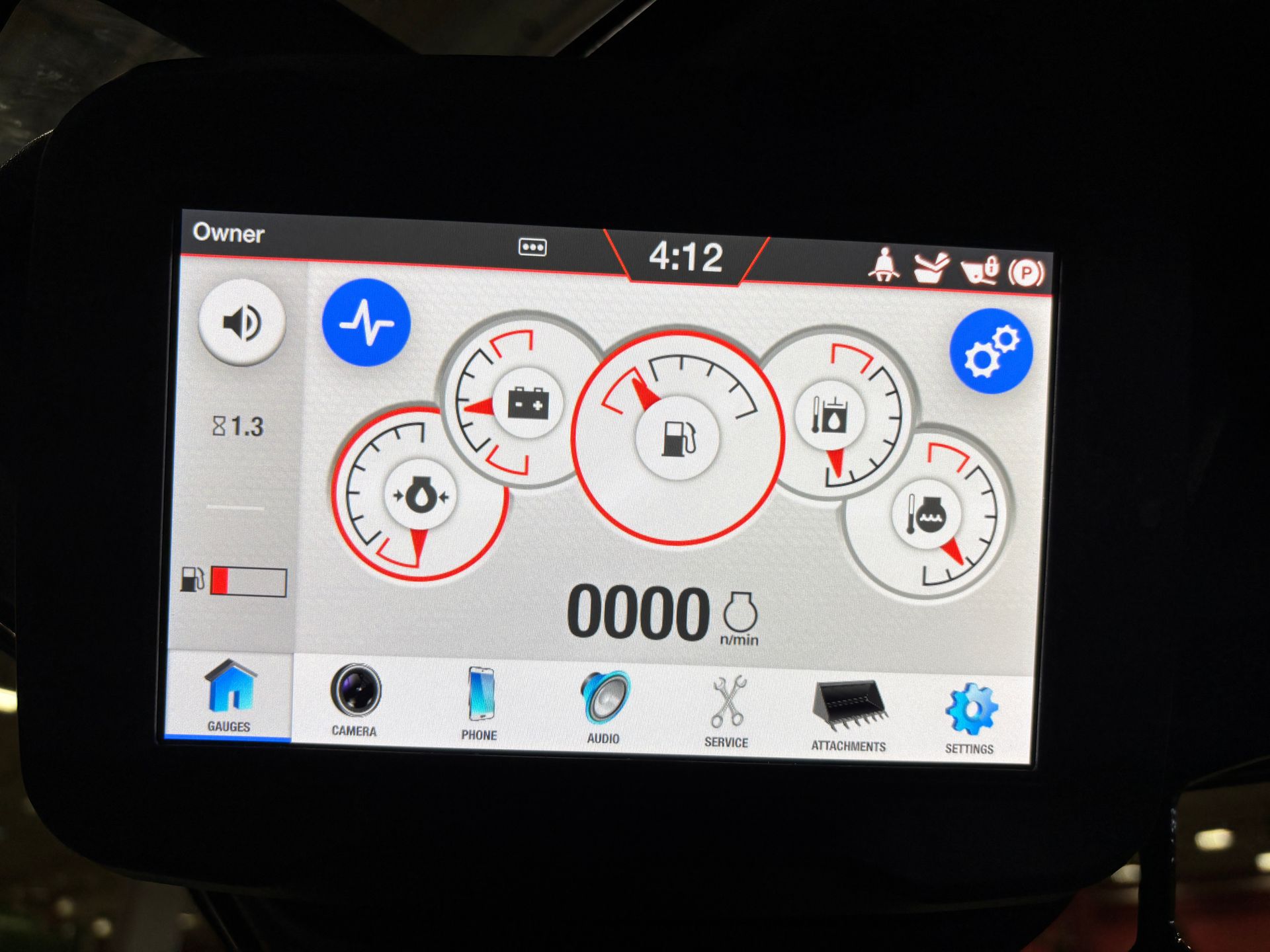

* Touch Display
- 7" Touch Screen Display with Integrated AM/FM Weatherband Radio, Bluetooth, USB Charging and Hands Free Calling. Includes speakers and antenna. Monitors key loader functions, communicates alerts and provides additional attachment information to track usage.

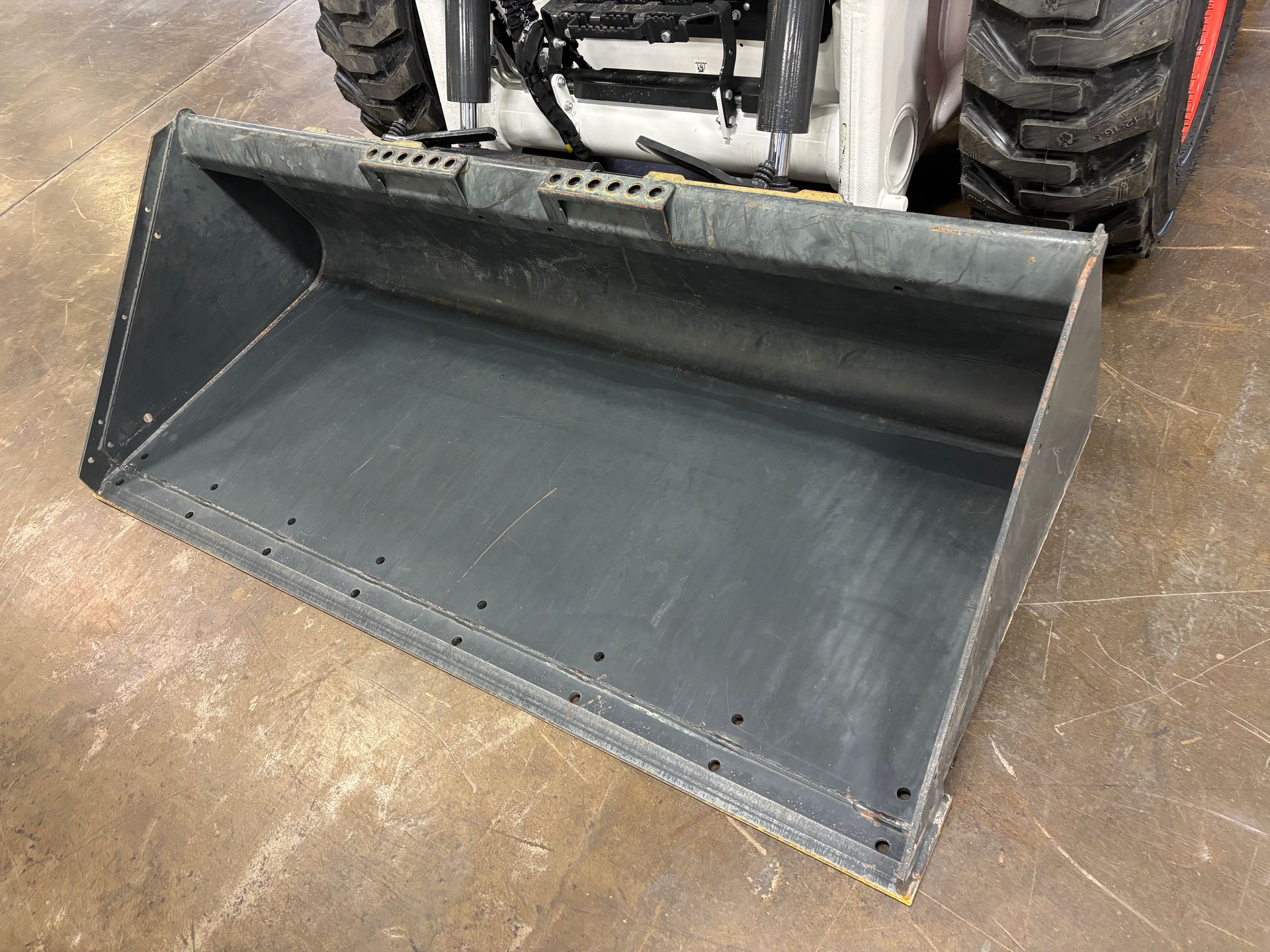

* Many bucket options to choose from.
STANDARD FEATURES
* 74.0 HP Tier 4 V2 Bobcat Engine
* Auxiliary Hydraulics: Variable Flow
* Backup Alarm

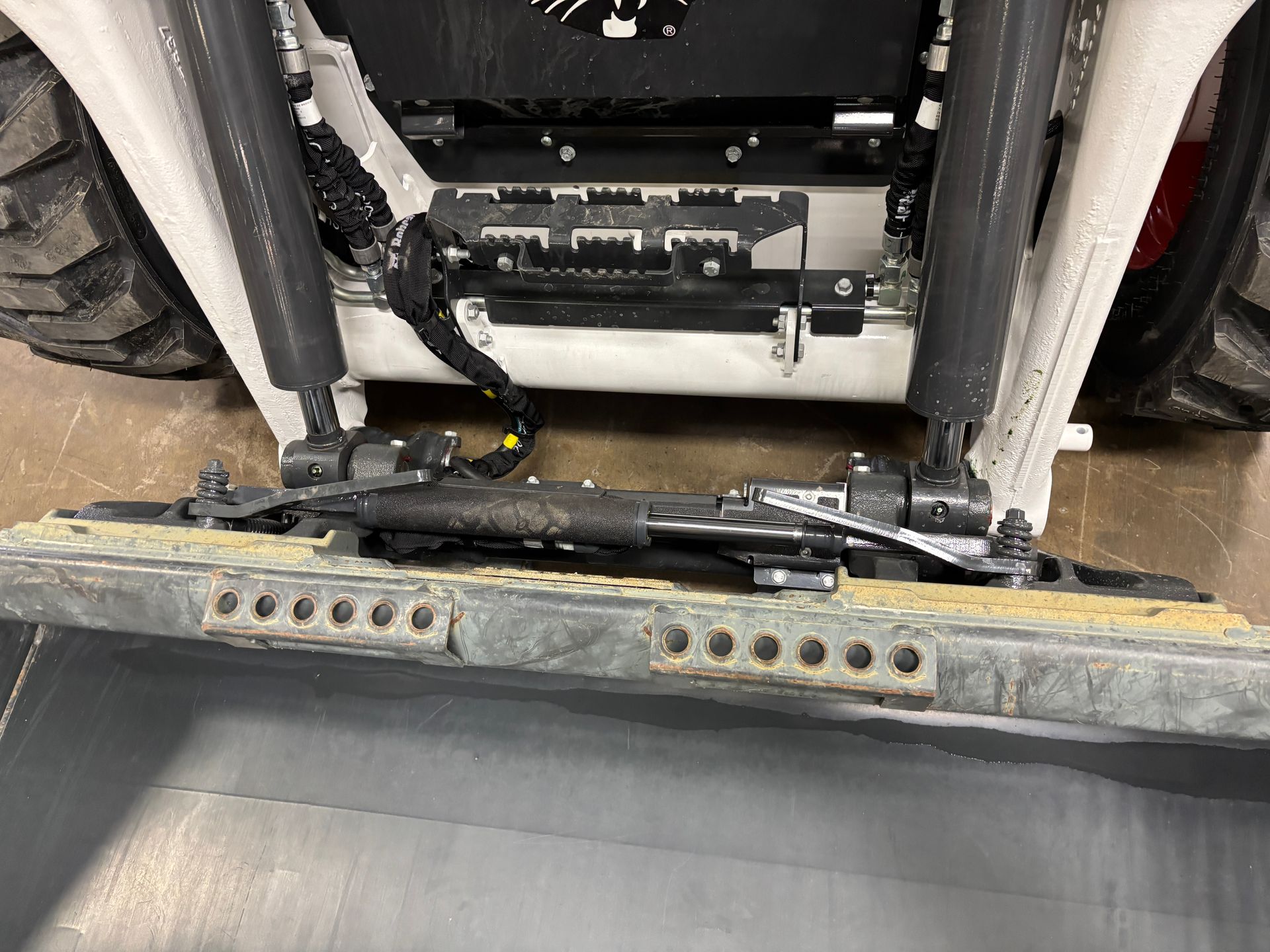

* Bob-Tach
* Bobcat Interlock Control System (BICS)
* Controls: Hand and Foot (Manual)
* Cylinder Cushioning - Lift, Tilt
* Engine/Hydraulic Performance De-rate Protection
* Glow Plugs (Automatically Activated)
* Horn
* Lift Arm Support
* Lift Path: Vertical
* Lights, Front & Rear: LED
* Operator Cab:
- Includes:
* Adjustable Vinyl Suspension Seat
* Top and Rear Windows
* Parking Brake
* Seat Bar and Seat Belt
- Roll Over Protective Structure (ROPS) meets SAE-J1040 and ISO 3471
- Falling Object Protective Structure ROPS) meets SAE-J1043 and ISO 3449, Level I; (Level II is available through Bobcat Parts)
* Parking Brake: Wedge Brake System

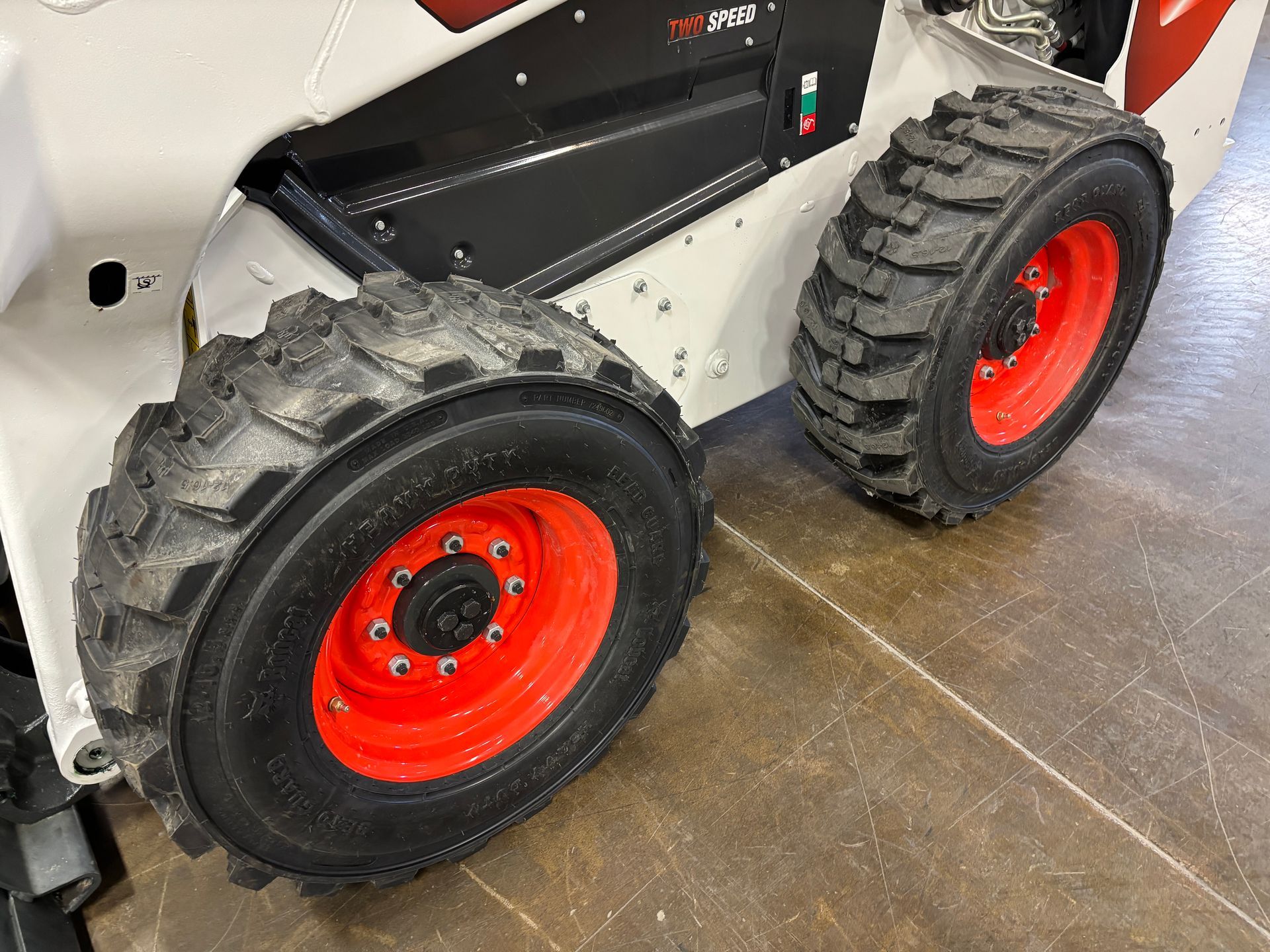

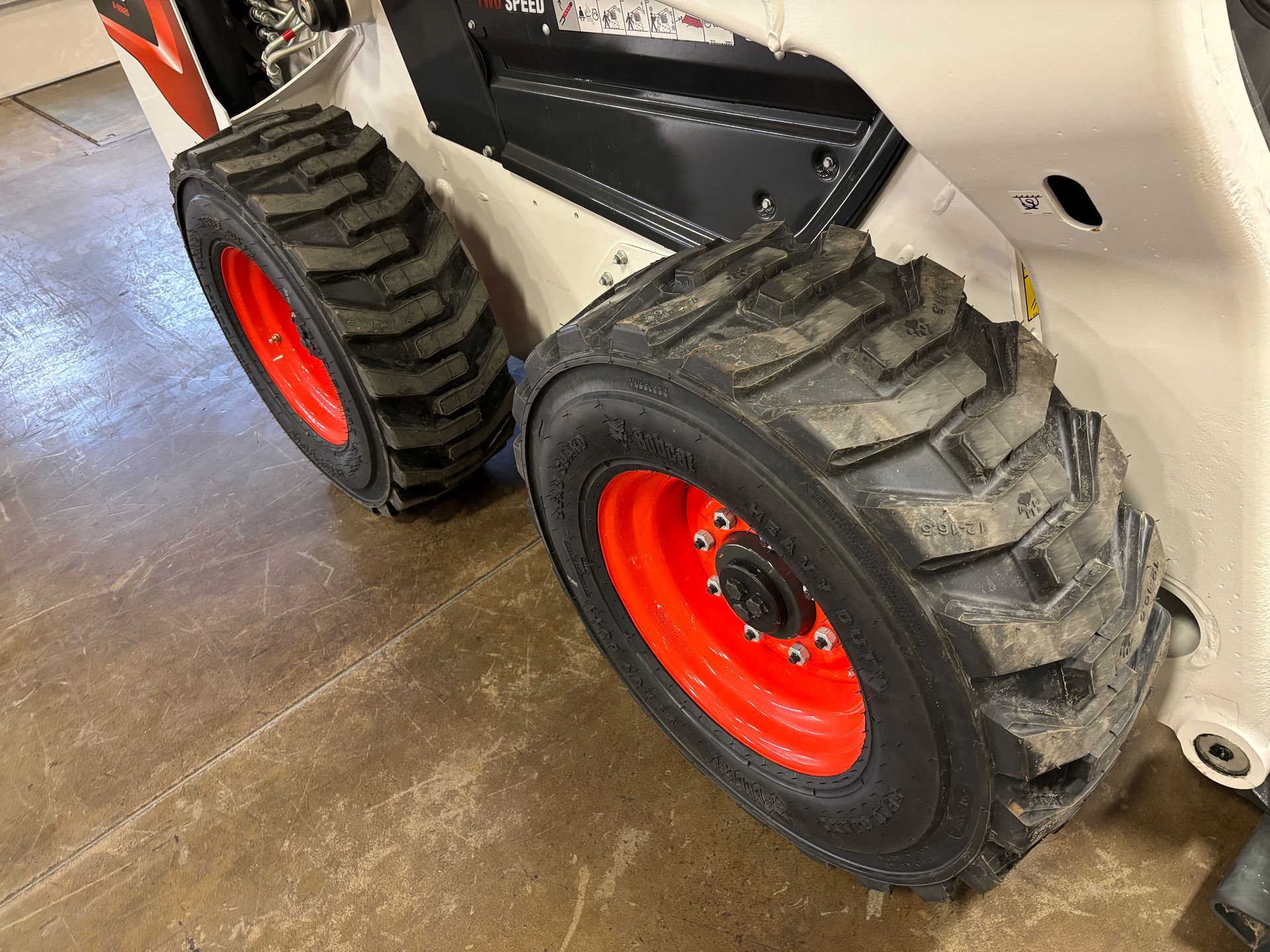

* Tires: 12-16.5, 12PR, Bobcat Heavy Duty
* Two Speed Travel
* Telematics - Machine IQ 2-Year Basics
* Warranty: 2 years, or 2,000 hours whichever occurs first
Specifications
ENGINE
- Emissions Tier (EPA): Tier 4
- Engine Cooling: Liquid
- Engine Fuel: Diesel
- Horsepower: 74HP
- Turbocharged Engine: Optional
- Engine Model: 2.4L V2
- Engine Make: Bobcat
- Cooling System: 2.8 gal
- Gross HP: 74HP
- Net HP: 70.5HP
- Number of Cylinders: 4
- Displacement: 146 cubic inches
- Torque (SAE NET): 196.3 ft-lbf
- Torque RPM: 1,800 RPM
- Starter Horsepower: 3.6HP
- Horsepower Management: Included with SJC Option
PERFORMANCE
- Rated Operating Capacity (ISO): 2,900 lb
- Rated Operating Capacity 200 lb Counterwieght: 3,050 lb
- Rated Operating Capacity 300 lb Counterweight: 3,100 lb
- Tipping Load: 5,800 lb
- Operating Weight: 8,615 lb
- Travel Speed: 6.8 MPH
- Travel Speed (2-Speed) 11.8 MPH
- Bucket Breakout Force: 5,851 lbf
- Lift Breakout Force (ISO) 6,685 lbf
CAPACITIES
- Fuel Tank: 31.7 gal
- Engine Oil with Filter: 8.6 qt
- Hydraulic Reservoir: 5 gal
- Hydraulic System Capacity: 13.5 gal
- Transmission (Final Drive) 10 gal
HYDRAULIC SYSTEM
- Hydraulic System Pressure (Standard and High Flow): 3,500 PSI
- System Relief @ Quick Couplers: 3,500 PSI
- Auxiliary Standard Flow: 23.3 gal/min
- Auxiliary High Flow: 30.3 gal/min
- Pump Capacity: 23.3 gal/min
- Raise Lift Arm: 4.3 s
- Lower Lift Arm: 2.87 s
- Bucket Dump: 2.1 s
- Bucket Rollback: 1.55 s
GENERAL
- Contract Codes: Skid-Steer Loader
- First Year of Production: 2019
CONTROLS
- Vehicle Steering: Dual Levers
- Hydraulic (Lift & Tilt): Dual Levers
- Control Option: Selectable Joystick
- Auxiliary Hydraulics: Thumb Proportional With Continuous Flow Selector
DIMENSIONS
- Length: 141.9"
- Length without Attachment: 113.9"
- Length with Standard Bucket: 147.1"
- Width: 72"
- Width (with bucket): 74"
- Height: 81.8"
- Height with Operator Cab: 81.8"
- Height to Bucket Hinge Pin: 128.3"
- Reach @ Maximum Height: 33.5"
- Turning Radius: 87.7"
- Wheelbase:48.3"
- ROC with Counterweight Option: 3,050 lb
- Dump Angle @ Maximum Height: 37 degree
- Ground Clearance: 8.8"
