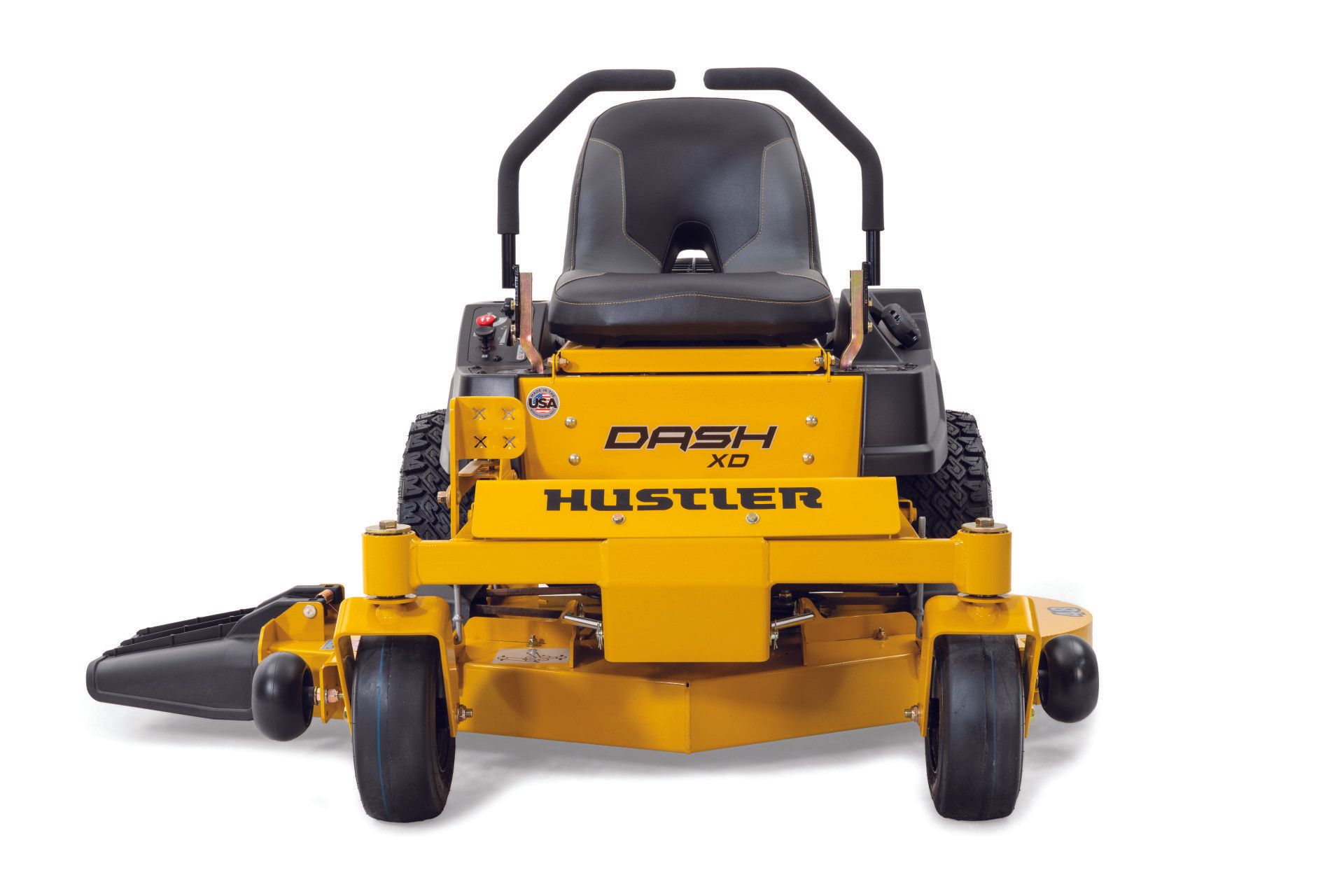

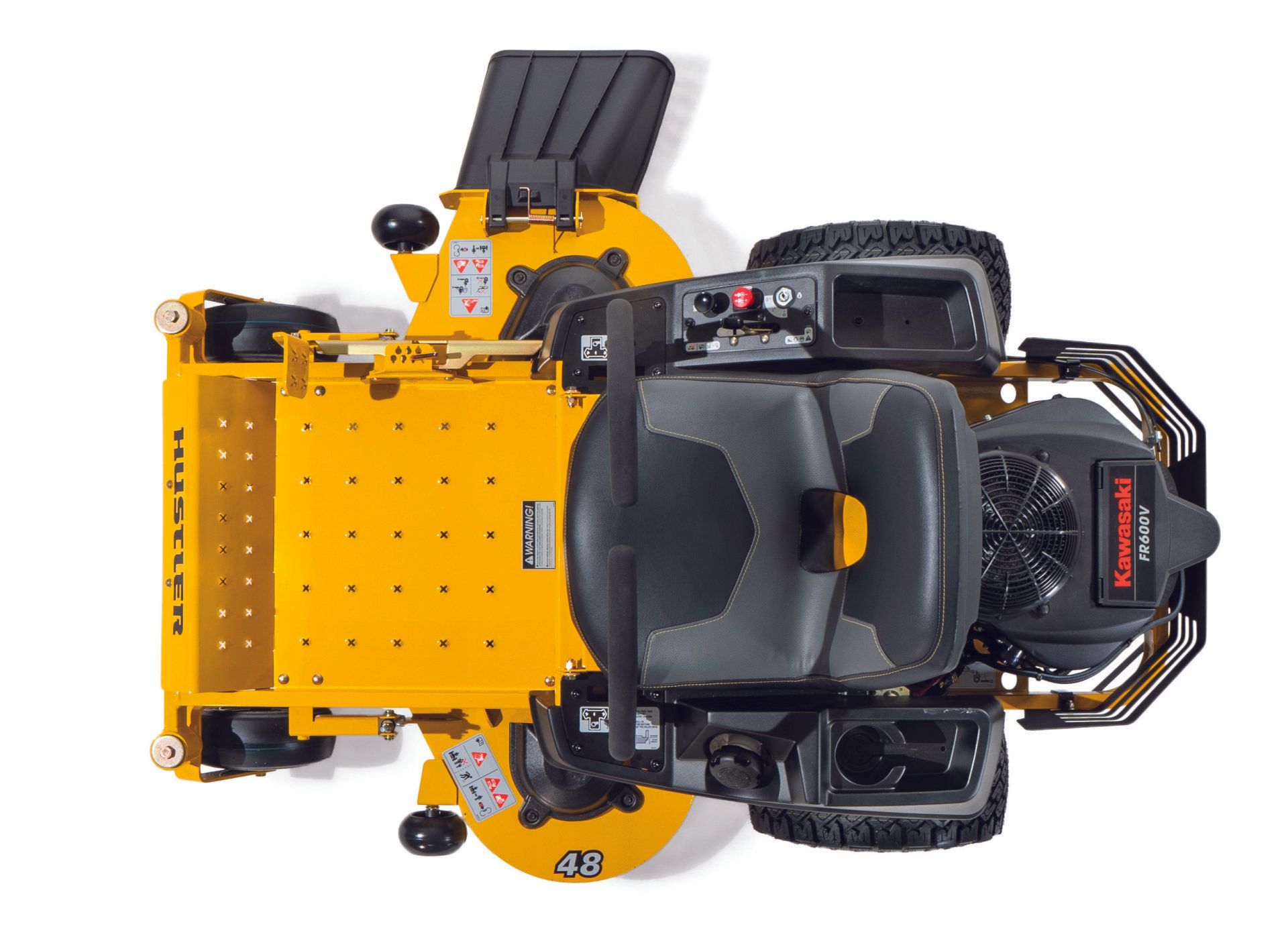

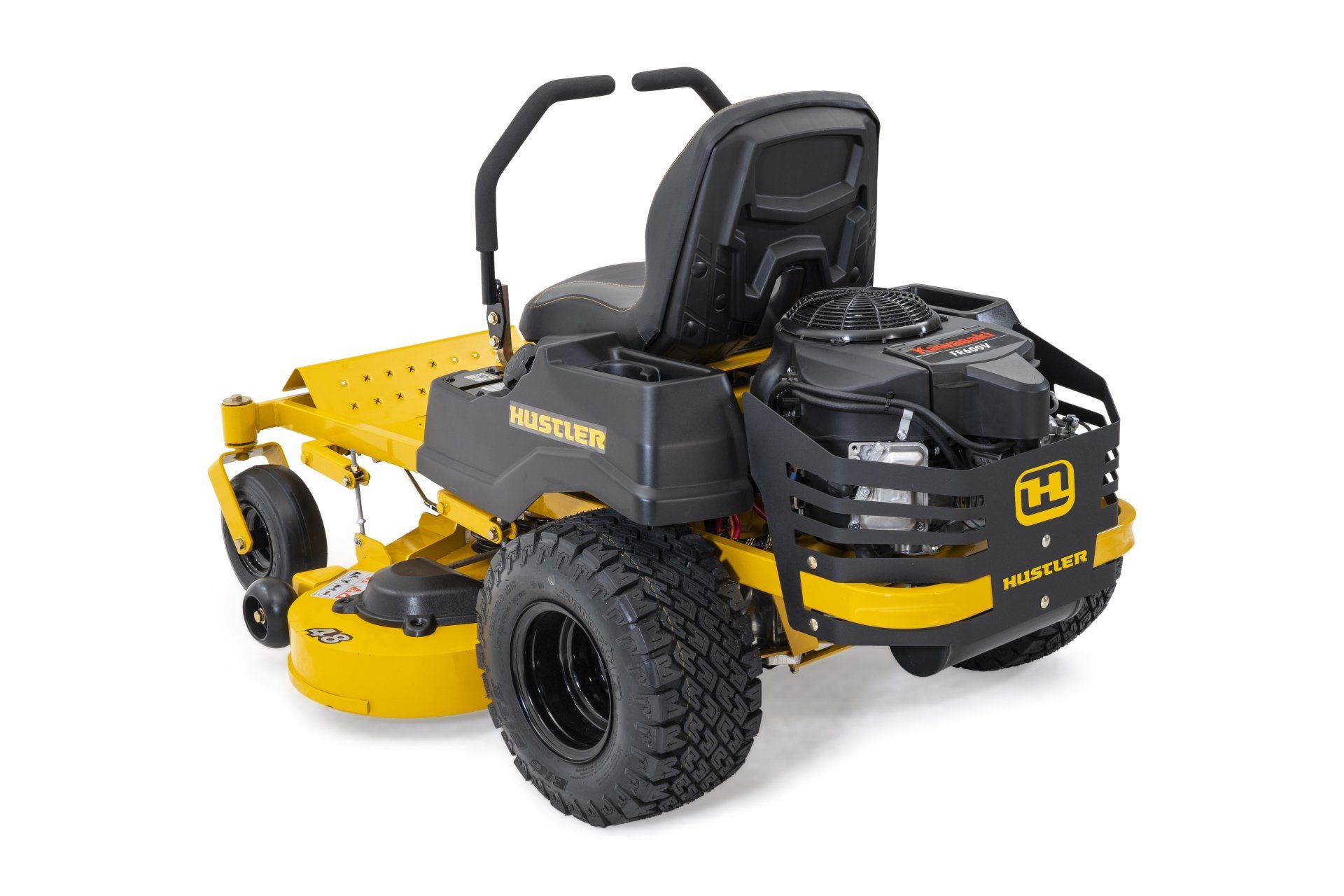

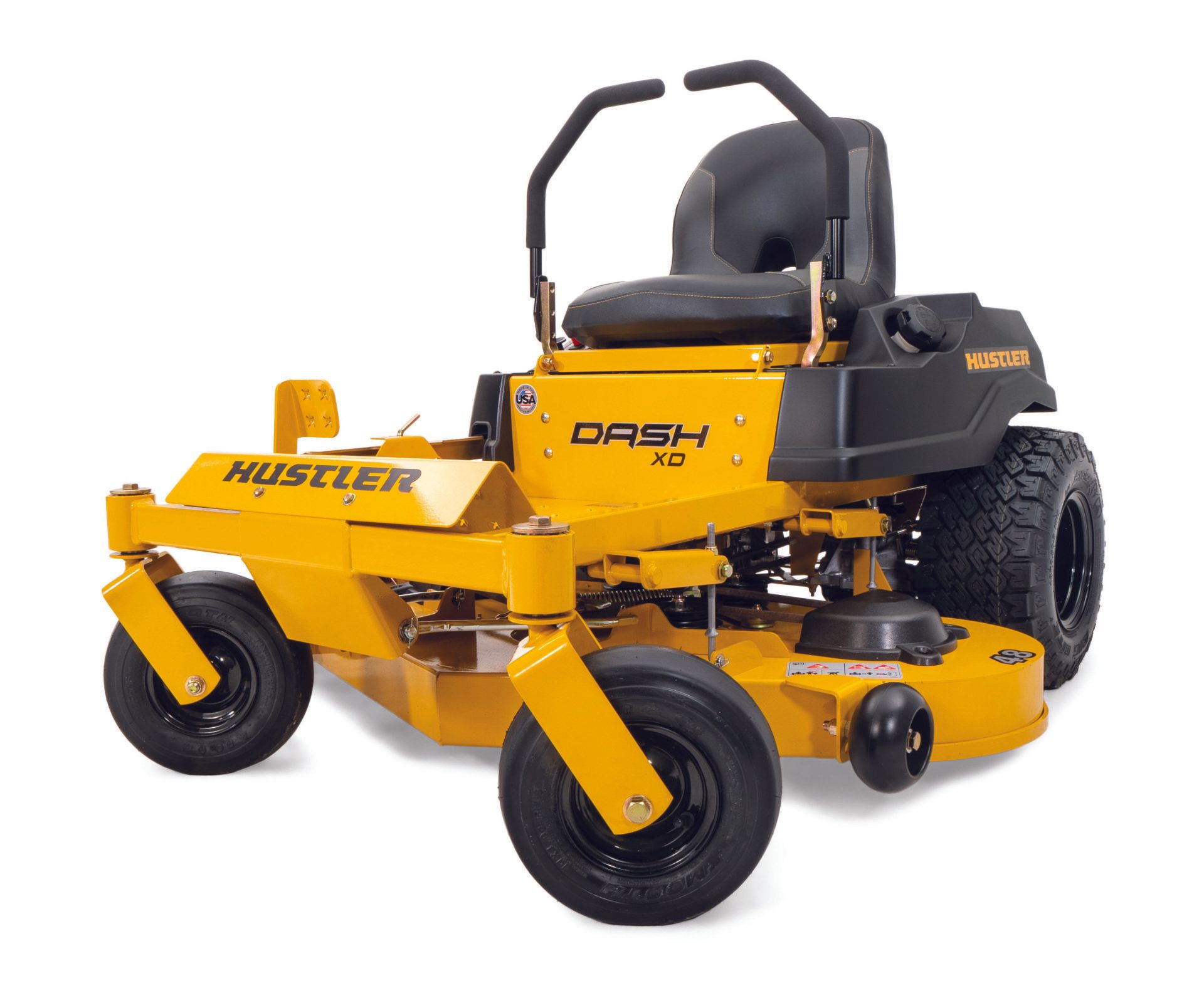

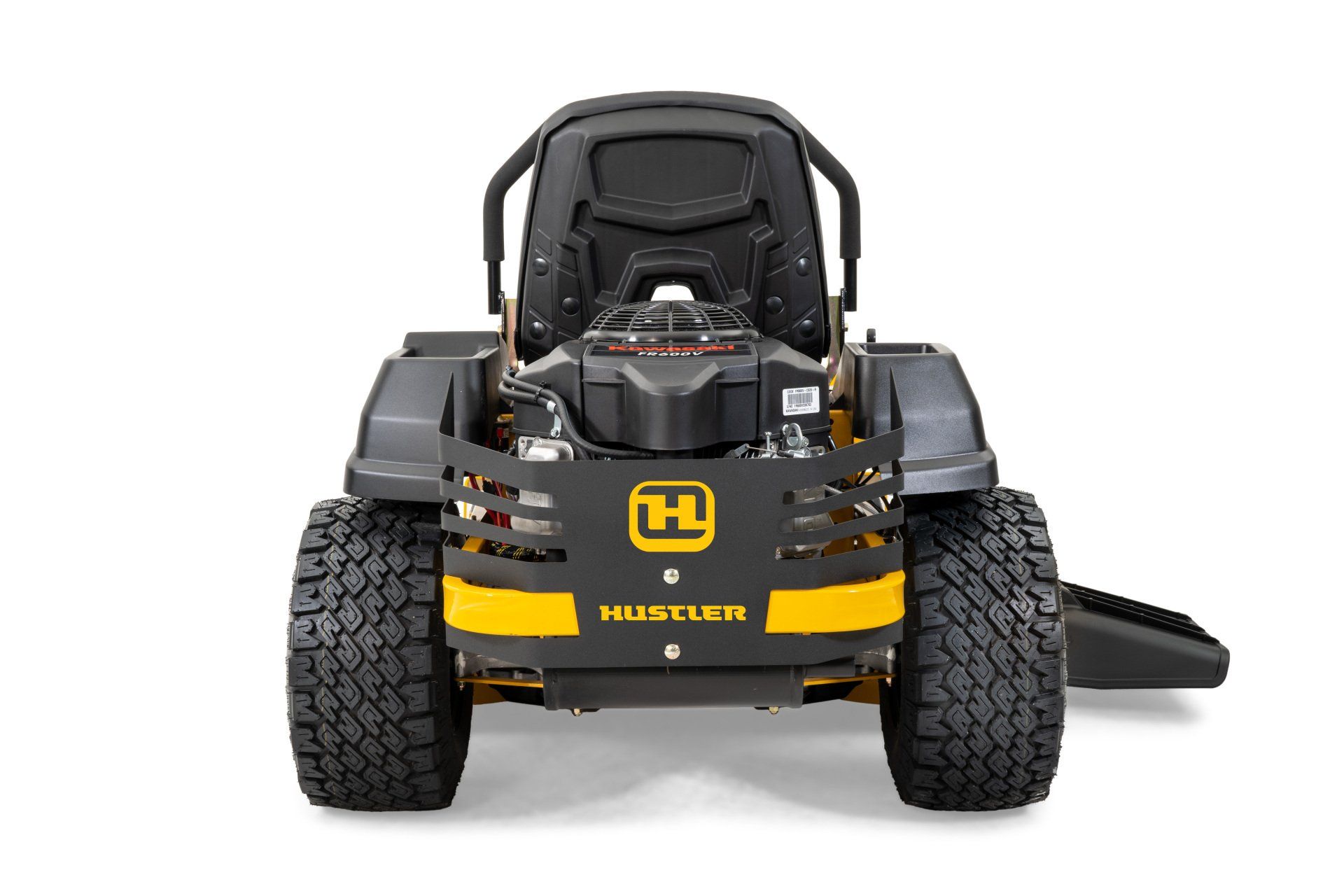

Dash XD

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button
Overview

* Premium Power - V-Twin Kawasaki FR541 Engine
* Compact Size - Easily fits through most gates making backyard mowing easy 7 ideal for garage storage
* 16" BigBite Rear Tires
* Foot Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5" with less effort than hand-operated levers found on other brands
* Heavy Duty Steel Frame - 1"x 2" steel frame making it one of the toughest & most durable in its class
* Welded Fabricated Steel Deck - Durable 11 ga. welded fabricated steel deck adds durability & extends mower's life 9compared to other brand's cheap stamped decks)
* Premium Seat - Bolstered with built-in lumbar support
* Up to 6 MPH
* Ideal for up to 3/4 Acre

Specifications
Deck Size 34" 42" 48"
Availability In Stock In Stock In Stock
Price $3,649 $3,749 $3,949
Engine Manufacturer Kawasaki Kawasaki Kawasaki
Engine HP 15 HP - FR541 15 HP - FR541 18 HP - FR600
Engine Displacement 603 cc 603 cc 603 cc
Drive System Type Dual Hydrostatic Dual Hydrostatic Dual Hydrostatic
Transmission Hydro-Gear ZT1800 Hydro-Gear ZT1800 Hydro-Gear ZT1800
Speed Up to 6 MPH Up to 6 MPH Up to 6 MPH
Parking Brake Patented Automatic Patented Automatic Patented Automatic
Cutting Height 1.5"-4.5" 1.5"-4.5" 1.5"-4.5"
Deck Lift Foot Operated Foot Operated Foot Operated
Deck Depth 4.1" 4.1" 4.1"
Blades 2 2 3
Blade Length 16.75" 20.50" 16.5"
Blade Tip Speed 17,500 16,700 17,200
Deck Spindles Aluminum with 3/4" shafts & triple protection sealed ball bearings Aluminum with 3/4" shafts & triple protection sealed ball bearings Aluminum with 3/4" shafts & triple protection sealed ball bearings
Deck Drive Electric PTO clutch Electric PTO clutch Electric PTO clutch
Deck Construction Fabricated 11 ga. steel Fabricated 11 ga. steel Fabricated 11 ga. steel
Deck Spindle Mounts Reinforced 14 ga. steel Reinforced 14 ga. steel Reinforced 14 ga. steel
Impact/Trim Areas 1/4" x 3/4" steel bar 1/4" x 3/4" steel bar 1/4" x 3/4" steel bar
Frame 1" x 2" steel tubing 1" x 2" steel tubing 1" x 2" steel tubing
Front Axle Fabricated with sealed ball bearings Fabricated with sealed ball bearings Fabricated with sealed ball bearings
Front Caseter Wheels Commercial duty steel roller bearings Commercial duty steel roller bearings Commercial duty steel roller bearings
Front Caster Forks Fabricated 1/4" steel Fabricated 1/4" steel Fabricated 1/4" steel
Seat Premium bolstered seat with built-in lumbar suport Premium bolstered seat with built-in lumbar suport Premium bolstered seat with built-in lumbar suport
Fuel Capacity 2 gallons 2 gallons 2 gallons
Cupholder Yes Yes Yes
Front Tire 11 x 4 11 x 4 11 x 4
Drive Tire 18 x 6 - 8 Big Bite 18 x 6 - 8 Big Bite 18 x 8.5 - 8 Big Bite
(continued) Deck Size 34" 42" 48"
Weight 455 lbs 467 lbs 490 lbs
Height 40" 40" 40"
Length 65.5" 65.5" 65.5"
Width w/Chute Up 37.5" 43.25" 48.25"
Tire Width 37.5" 41" 41"
Trim Side .5" 2.7" 4"
Acres per Hour (80% efficiency) 1.65 2.04 2.33
Warranty 2 Year 200 Hours 2 Year 200 Hours 2 Year 200 Hours
