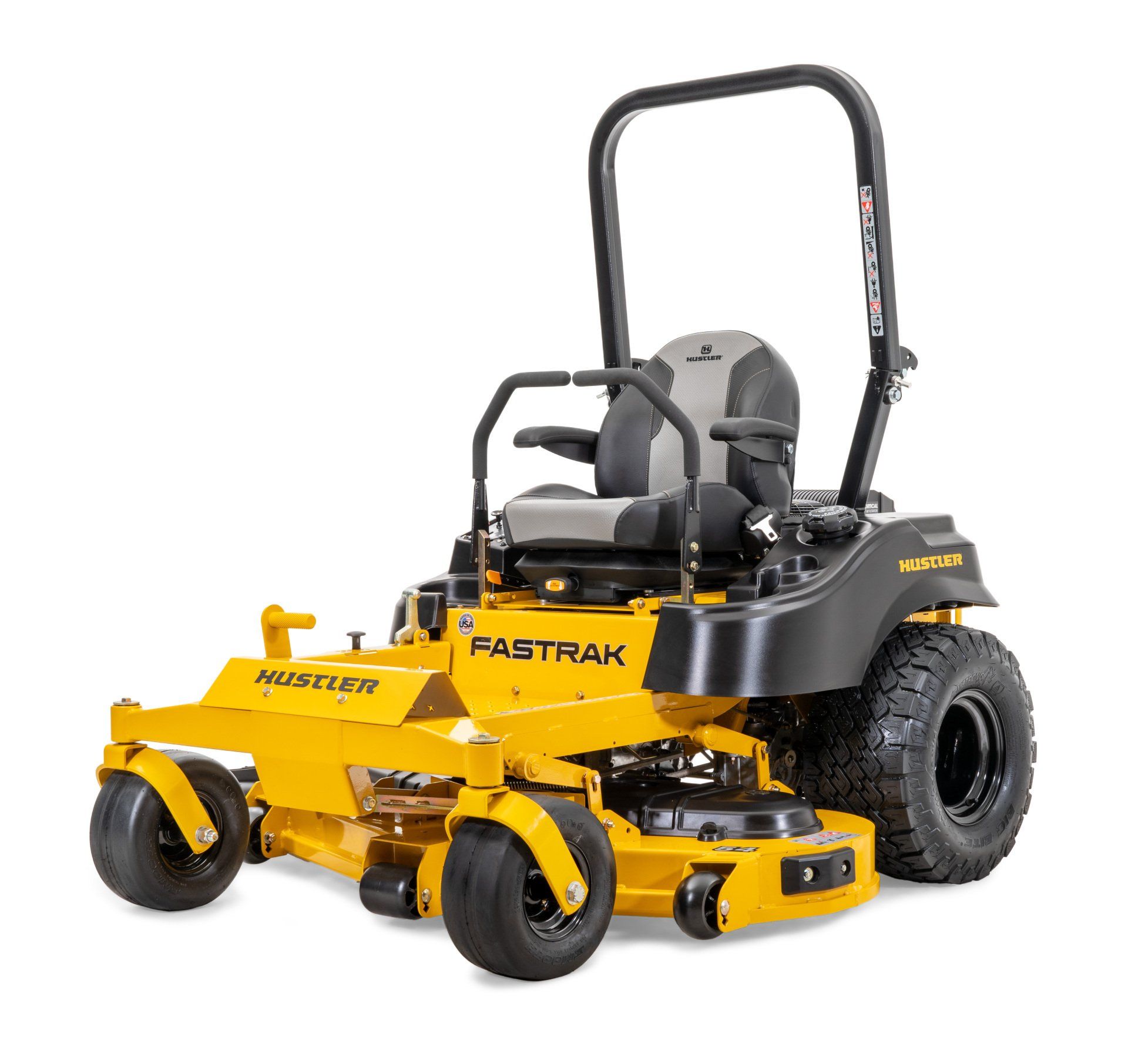

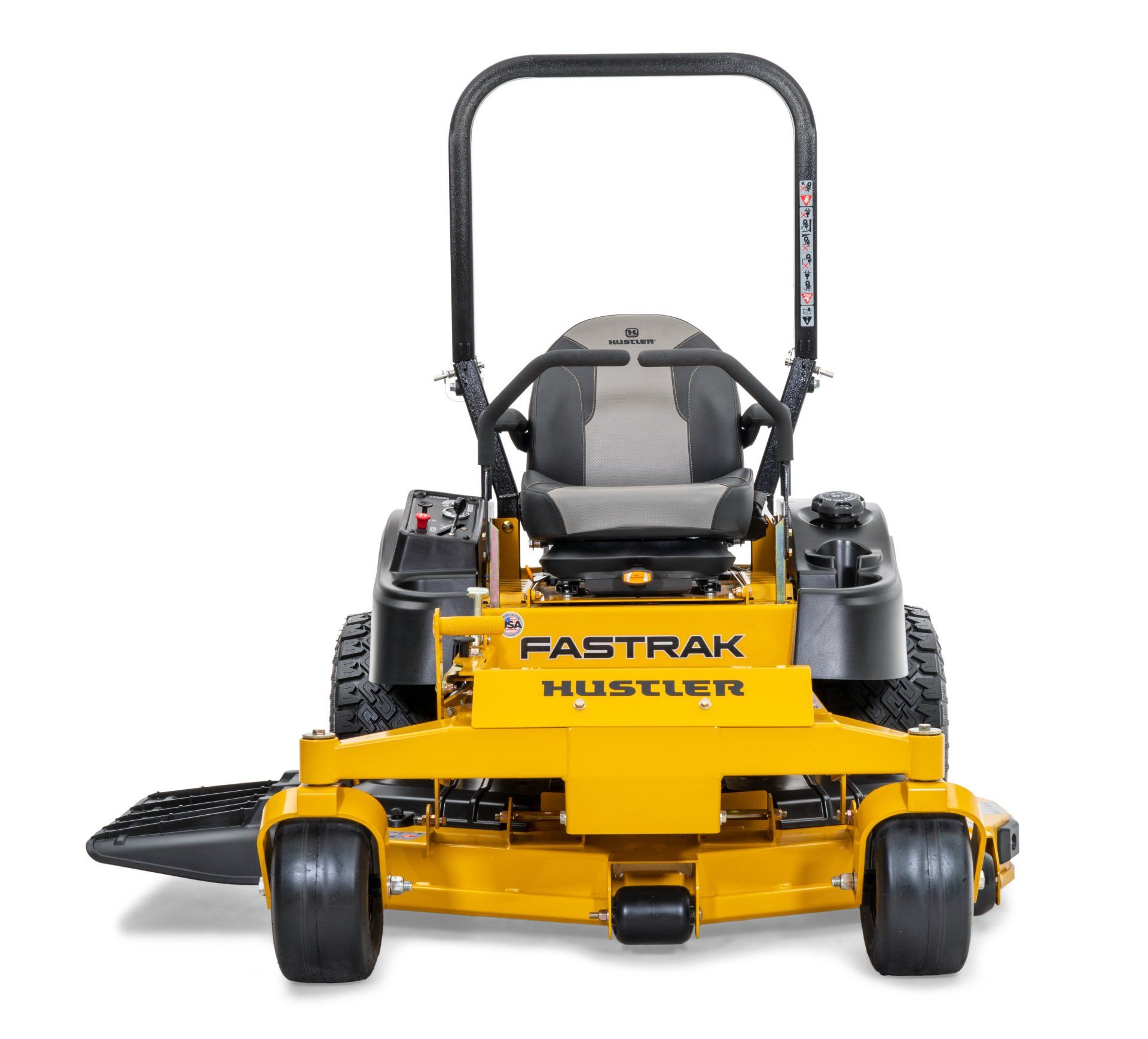

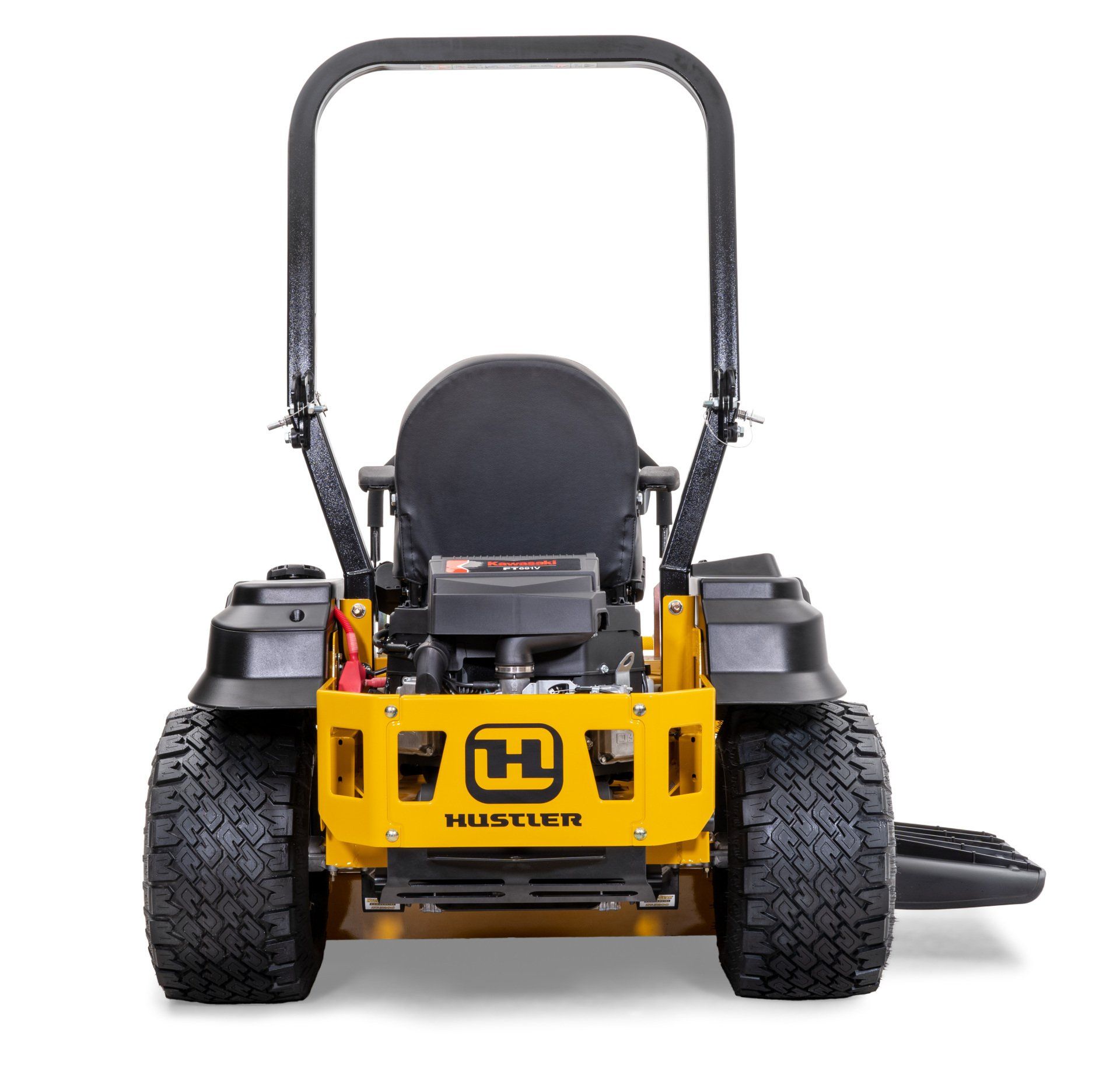

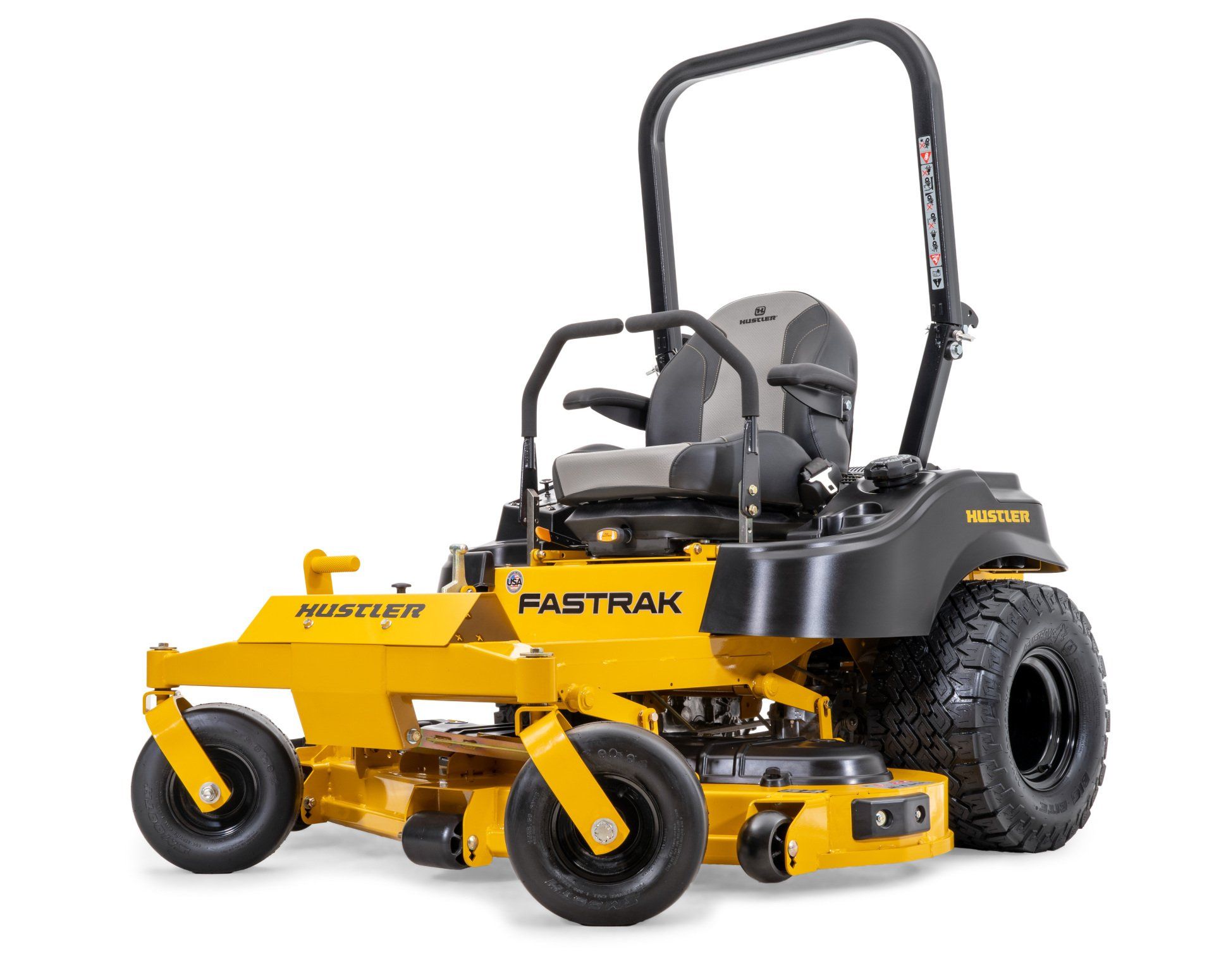

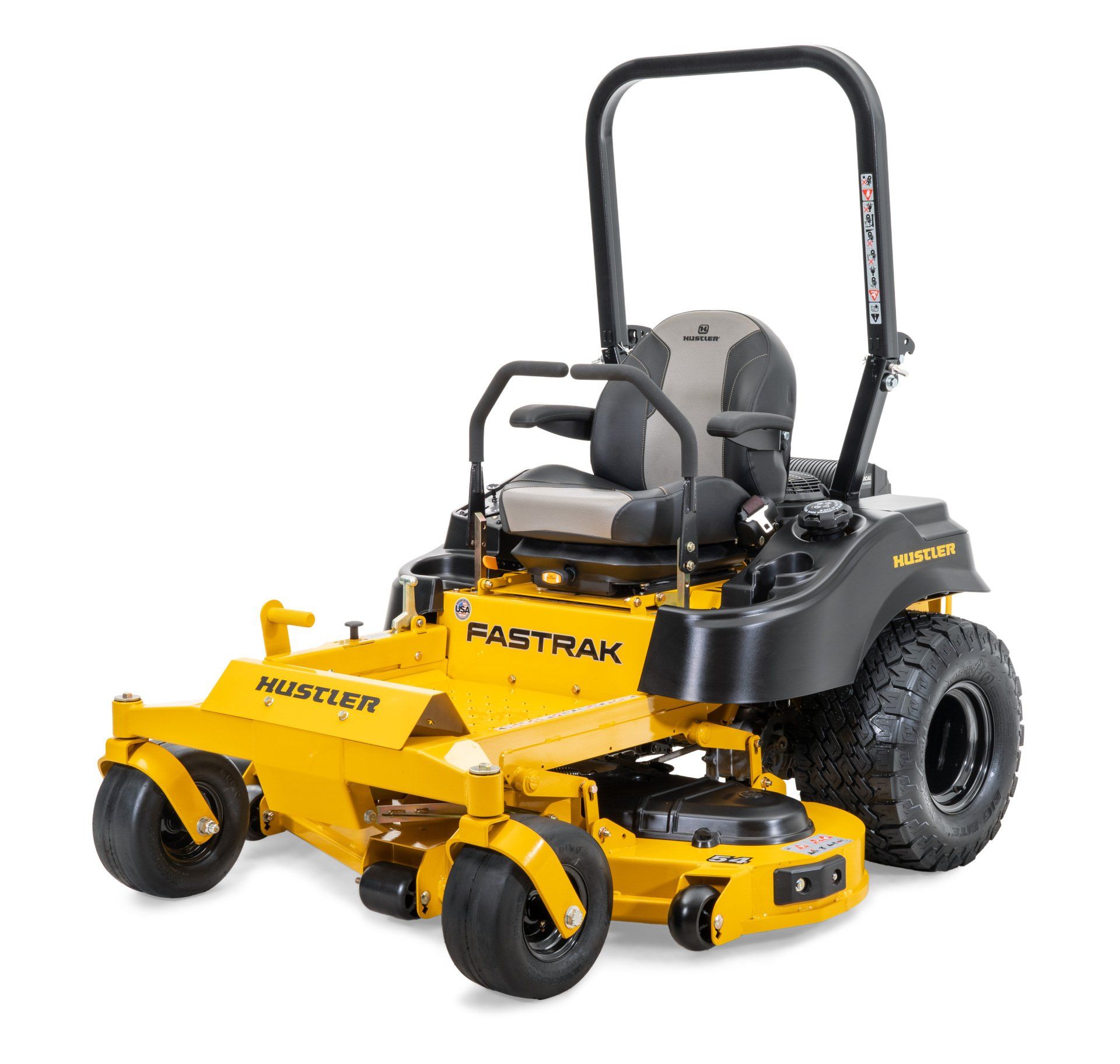

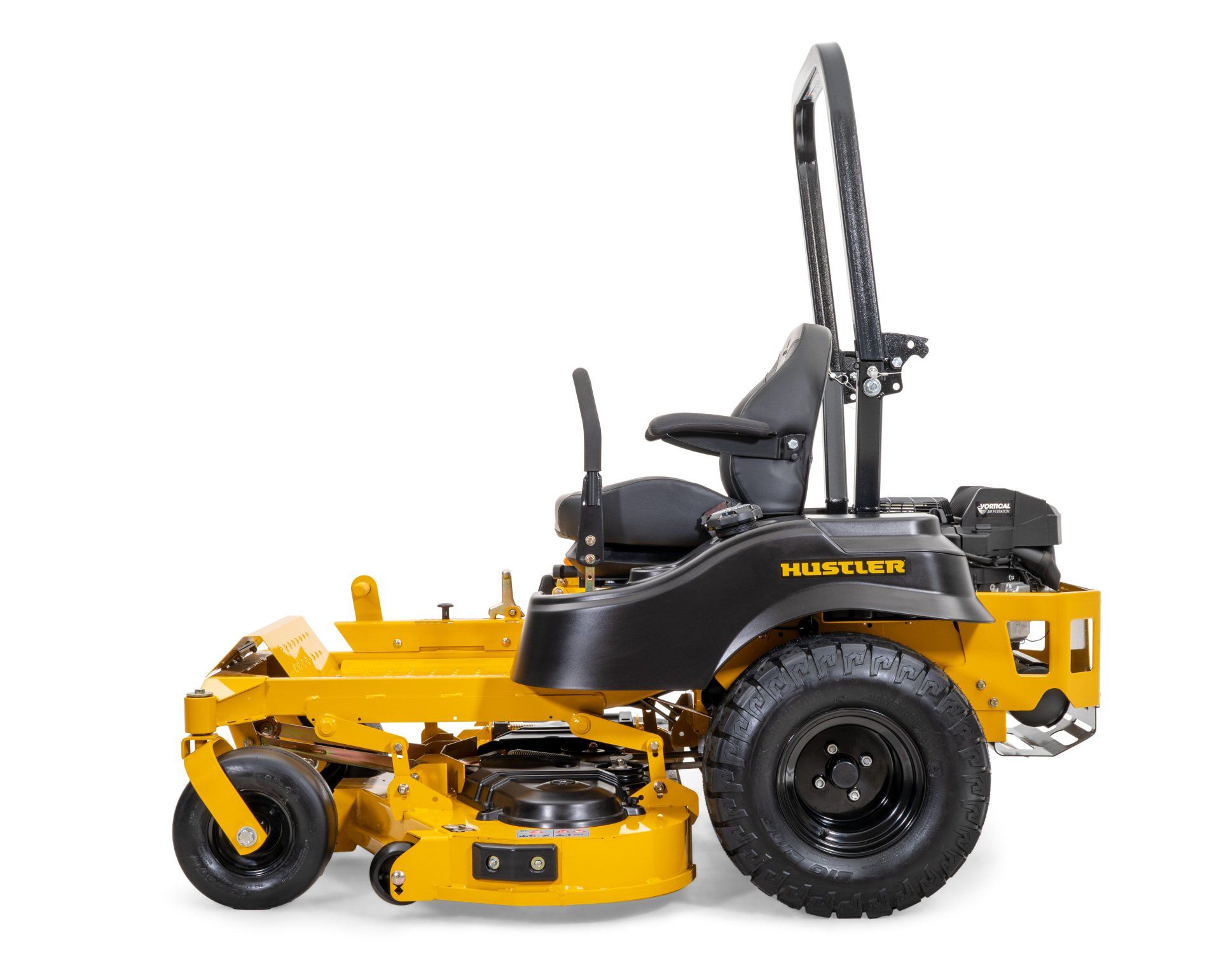

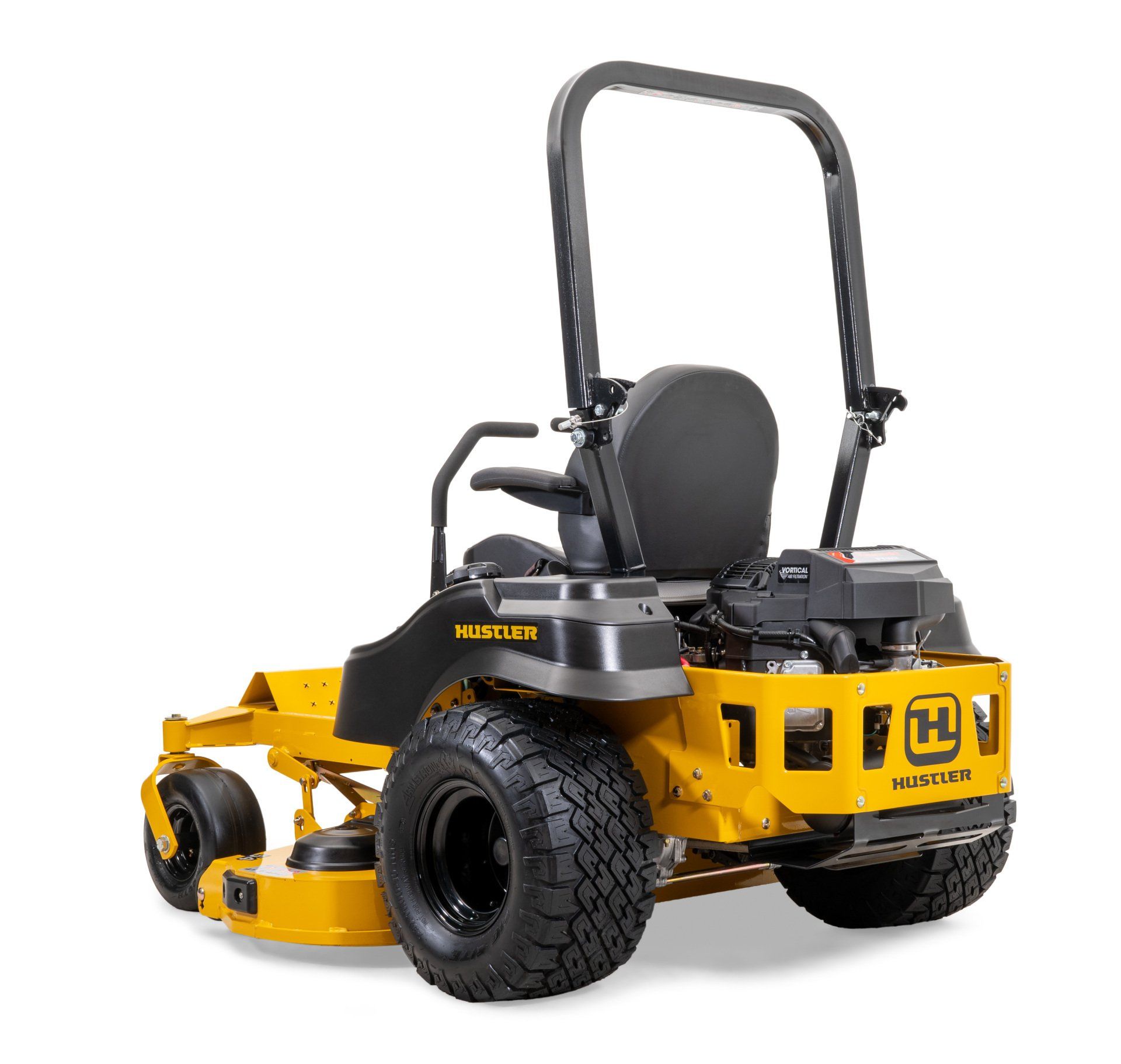

FasTrak
Overview
* Commercial Grade Kawasaki FT Engine - With Vortical Air Filtration assists with cleaning debris that extends engine life
* Premium Seat - High-back seat with suspension to shield the operator from bumps & EVC cushion to take pressure off tailbone & lower back
* BigBite Rear Tires - For smooth ride & enhanced traction
* Foot Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5" with your foot
* Easy Serviceability - Flip-up seat pan, removeable floor pan, & tooless removable pulley covers makes maintenance easy & simple
* Fabricated Frame for Durability - 1.5" x 3.0" steel frame making it one of the toughest & most durable in its class
* Welded Steel Deck - Durable 10 ga. welded fabricated steel
* SmoothTrak Steering - Precision control to help trim & maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs
* Serviceable Commercial Grade Transmission - Hydro-Gear ZT-3200
* Limited 4 Year/750 Hour Warranty
Specifications
| Deck Size | 48" | 48" Rear Discharge | 54" | 54" Rear Discharge | 60" | 54" | 60" |
|---|---|---|---|---|---|---|---|
| Availability | OUT OF STOCK | OUT OF STOCK | In Stock | OUT OF STOCK | In Stock | OUT OF STOCK | OUT OF STOCK |
| Price | $9,360 | $9,588 | $9,588 | $9,930 | $9,930 | $9,702 | $9,702 |
| Engine Manufacturer | Kawasaki | Kawasaki | Kawasaki | Kawasaki | Kawasaki | Kohler | Kohler |
| Engine HP | 22 HP - FT691 | 22 HP - FT691 | 22 HP - FT691 | 22 HP - FT691 | 24 HP - FT730 | 27 HP - 7500 EFI | 27 HP - 7500 EFI |
| Engine Displacement | 726 cc | 726 cc | 726 cc | 726 cc | 726 cc | 747 cc | 747 cc |
| Drive System Type | Dual Hydrostatic | Dual Hydrostatic | Dual Hydrostatic | Dual Hydrostatic | Dual Hydrostatic | Dual Hydrostatic | Dual Hydrostatic |
| Transmission | Hydro-Gear ZT3200 | Hydro-Gear ZT3200 | Hydro-Gear ZT3200 | Hydro-Gear ZT3200 | Hydro-Gear ZT3200 | Hydro-Gear ZT3200 | Hydro-Gear ZT3200 |
| Speed | Up to 8 MPH | Up to 8 MPH | Up to 8 MPH | Up to 8 MPH | Up to 8 MPH | Up to 8 MPH | Up to 8 MPH |
| Parking Brake | Patented automatic | Patented automatic | Patented automatic | Patented automatic | Patented automatic | Patented automatic | Patented automatic |
| Cutting Height | 1.5" - 4.5" | 1.5" - 4.5" | 1.5" - 4.5" | 1.5" - 4.5" | 1.5" - 4.5" | 1.5" - 4.5" | 1.5" - 4.5" |
| Deck Lift | Foot Operated | Foot Operated | Foot Operated | Foot Operated | Foot Operated | Foot Operated | Foot Operated |
| Deck Depth | 5.0" | 5.0" | 5.0" | 5.0" | 5.0" | 5.0" | 5.0" |
| Blades | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Blade Length | 16.50" | 16.50" | 18.50" | 18.50" | 20.50" | 18.50" | 20.50" |
| Blade Tip Speed | 18,600 | 18,600 | 18,900 | 18,900 | 18,400 | 18,900 | 18,400 |
| Deck Spindles | Aluminum with 1" shafts & sealed ball bearings | Aluminum with 1" shafts & sealed ball bearings | Aluminum with 1" shafts & sealed ball bearings | Aluminum with 1" shafts & sealed ball bearings | Aluminum with 1" shafts & sealed ball bearings | Aluminum with 1" shafts & sealed ball bearings | Aluminum with 1" shafts & sealed ball bearings |
| Deck Drive | Electric PTO clutch | Electric PTO clutch | Electric PTO clutch | Electric PTO clutch | Electric PTO clutch | Electric PTO clutch | Electric PTO clutch |
| Deck Construction | Fabricated 10 ga. steel | Fabricated 10 ga. steel | Fabricated 10 ga. steel | Fabricated 10 ga. steel | Fabricated 10 ga. steel | Fabricated 10 ga. steel | Fabricated 10 ga. steel |
| Deck Spindle Mounts | Reinforced 11 ga. steel | Reinforced 11 ga. steel | Reinforced 11 ga. steel | Reinforced 11 ga. steel | Reinforced 11 ga. steel | Reinforced 11 ga. steel | Reinforced 11 ga. steel |
| Impact/Trim Areas | 11 ga. formed channel w/ rolled edge | 11 ga. formed channel w/ rolled edge | 11 ga. formed channel w/ rolled edge | 11 ga. formed channel w/ rolled edge | 11 ga. formed channel w/ rolled edge | 11 ga. formed channel w/ rolled edge | 11 ga. formed channel w/ rolled edge |
| Frame | 1.5" x 3" steel tubing | 1.5" x 3" steel tubing | 1.5" x 3" steel tubing | 1.5" x 3" steel tubing | 1.5" x 3" steel tubing | 1.5" x 3" steel tubing | 1.5" x 3" steel tubing |
| Front Axle | Fabricated with sealed ball bearings | Fabricated with sealed ball bearings | Fabricated with sealed ball bearings | Fabricated with sealed ball bearings | Fabricated with sealed ball bearings | Fabricated with sealed ball bearings | Fabricated with sealed ball bearings |
| Front Caster Wheels | Heavy duty ball bearings, greasable | Heavy duty ball bearings, greasable | Heavy duty ball bearings, greasable | Heavy duty ball bearings, greasable | Heavy duty ball bearings, greasable | Heavy duty ball bearings, greasable | Heavy duty ball bearings, greasable |
| Front Caster Forks | Fabricated 3/8" steel | Fabricated 3/8" steel | Fabricated 3/8" steel | Fabricated 3/8" steel | Fabricated 3/8" steel | Fabricated 3/8" steel | Fabricated 3/8" steel |
| Seat | High-back suspension seat | High-back suspension seat | High-back suspension seat | High-back suspension seat | High-back suspension seat | High-back suspension seat | High-back suspension seat |
| Fuel Capacity | 5 gallons | 5 gallons | 5 gallons | 5 gallons | 5 gallons | 5 gallons | 5 gallons |
| Cupholder | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Front Tire | 13 x 5 - 6 | 13 x 5 - 6 | 13 x 6.5 - 6 | 13 x 6.5 - 6 | 13 x 6.5 - 6 | 13 x 6.5 - 6 | 13 x 6.5 - 6 |
| Drive Tire | 23 x 9.5 - 10 Big Bite | 23 x 9.5 - 10 Big Bite | 23 11 - 10 Big Bite | 23 11 - 10 Big Bite | 23 11 - 10 Big Bite | 23 11 - 10 Big Bite | 23 11 - 10 Big Bite |
| (continued) Deck Size | 48" | 48" Rear Discharge | 54" | 54" Rear Discharge | 60" | 54" | 60" |
|---|---|---|---|---|---|---|---|
| Weight | 835 lbs | 840 lbs | 845 lbs | 860 lbs | 865 lbs | 845 lbs | 865 lbs |
| Height | 48.9" / 68.7" w/ ROPS up | 48.9" / 68.7" w/ ROPS up | 48.9" / 68.7" w/ ROPS up | 48.9" / 68.7" w/ ROPS up | 48.9" / 68.7" w/ ROPS up | 48.9" / 68.7" w/ ROPS up | 48.9" / 68.7" w/ ROPS up |
| Length | 773.6" | 773.6" | 74.42" | 74.42" | 75.92" | 74.42" | 75.92" |
| Width w/Chute Up | 49.1" | 48.85" | 55.1" | 54.85" | 61.1" | 55.1" | 61.1" |
| Tire Width | 47" | 47" | 52" | 52" | 52" | 52" | 52" |
| Trim Side | 1" | 1" | 3" | 3" | 6" | 3" | 6" |
| Acres per Hour (80% efficiency) | 3.10 | 3.10 | 3.48 | 3.48 | 3.88 | 3.48 | 3.88 |
| Warranty | 4 Year / 750 Hour | 4 Year / 750 Hour | 4 Year / 750 Hour | 4 Year / 750 Hour | 4 Year / 750 Hour | 4 Year / 750 Hour | 4 Year / 750 Hour |
