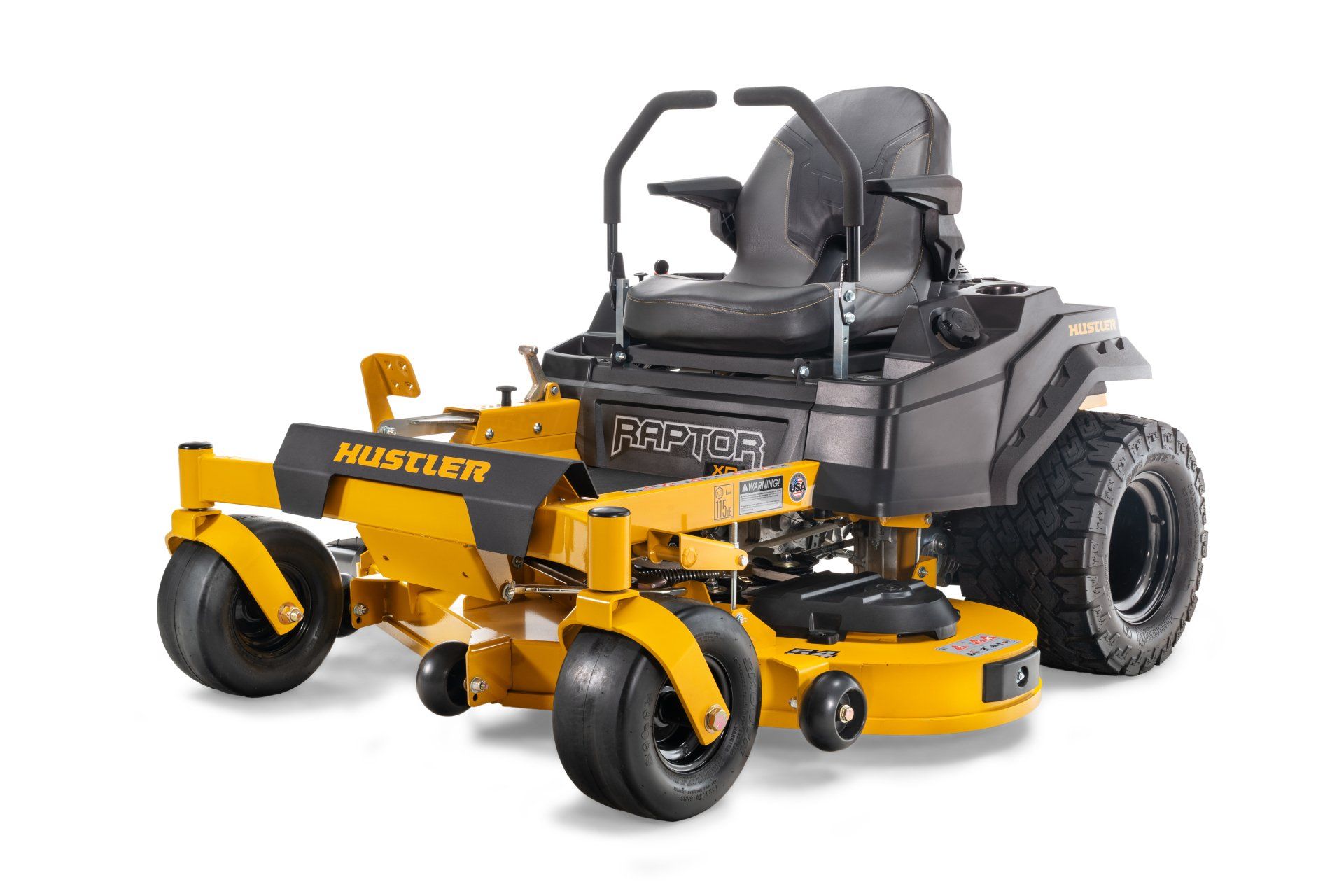

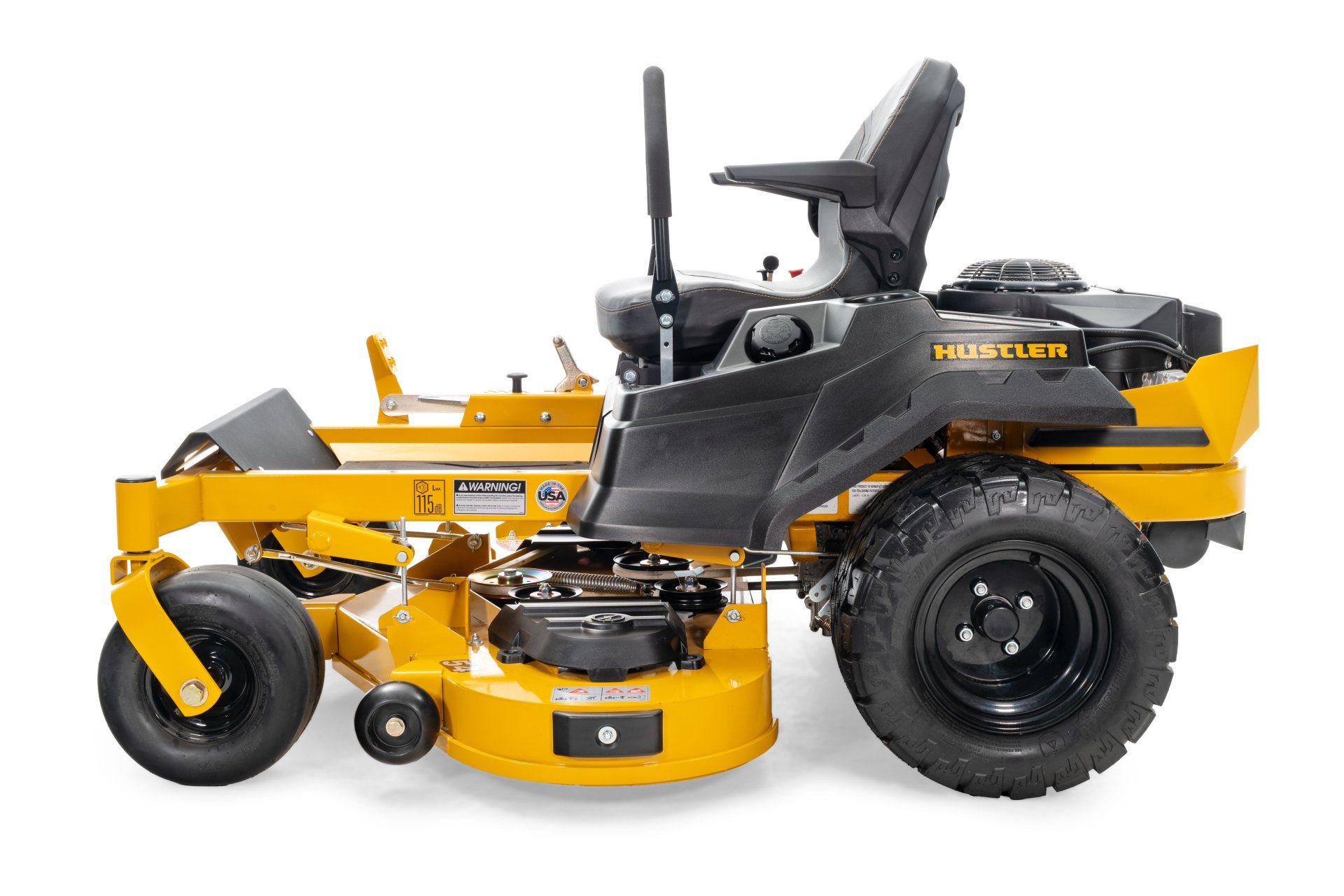

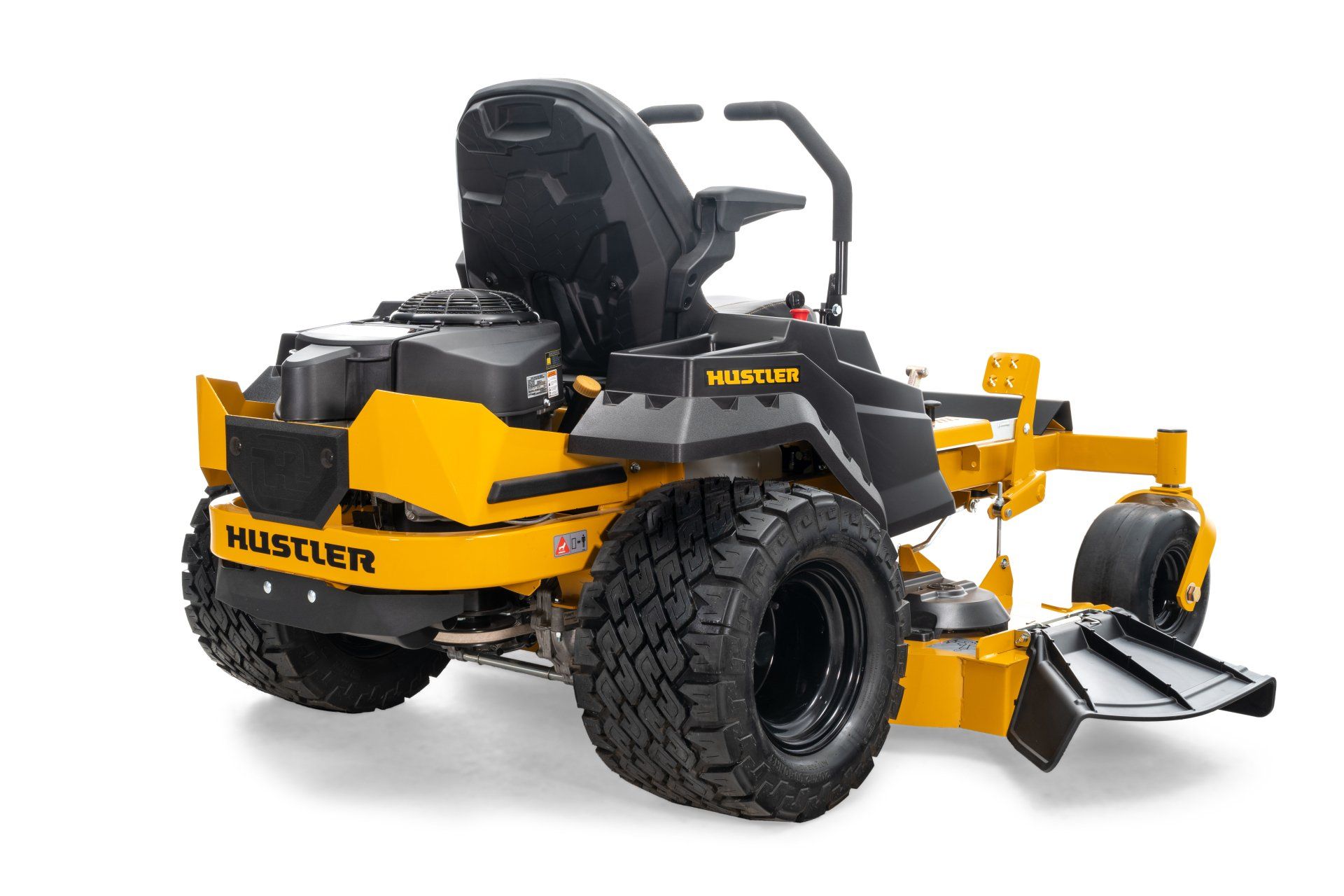

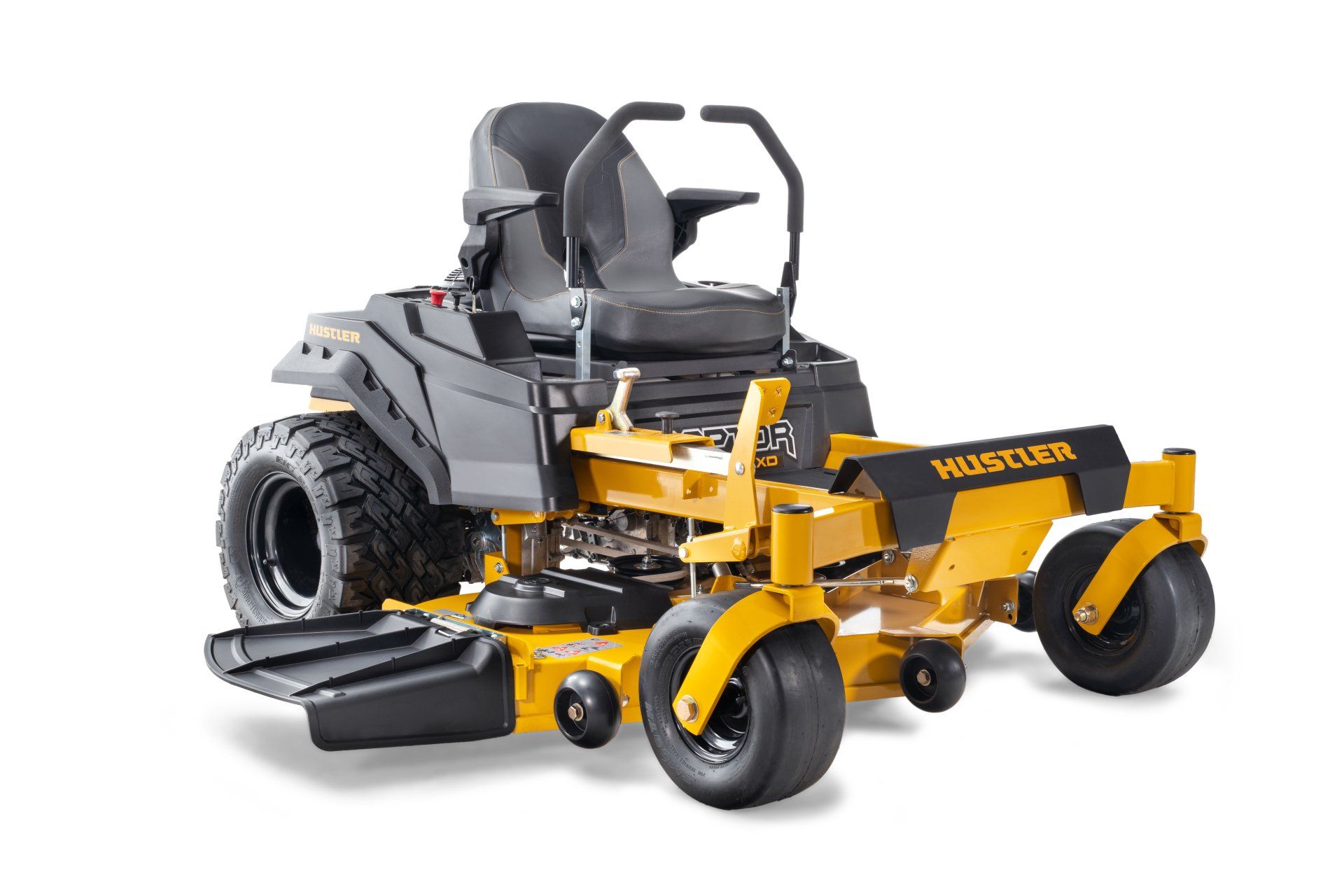

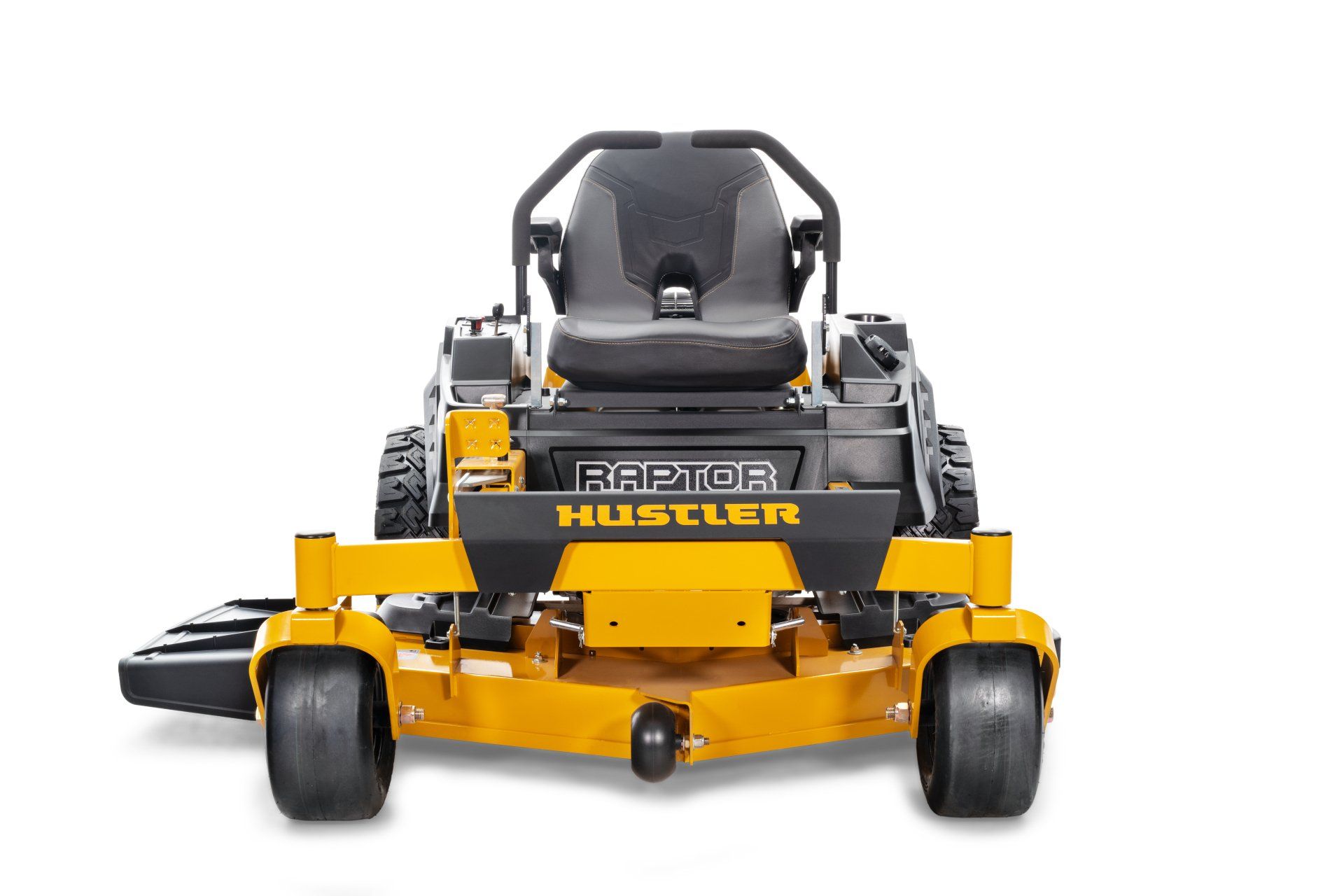

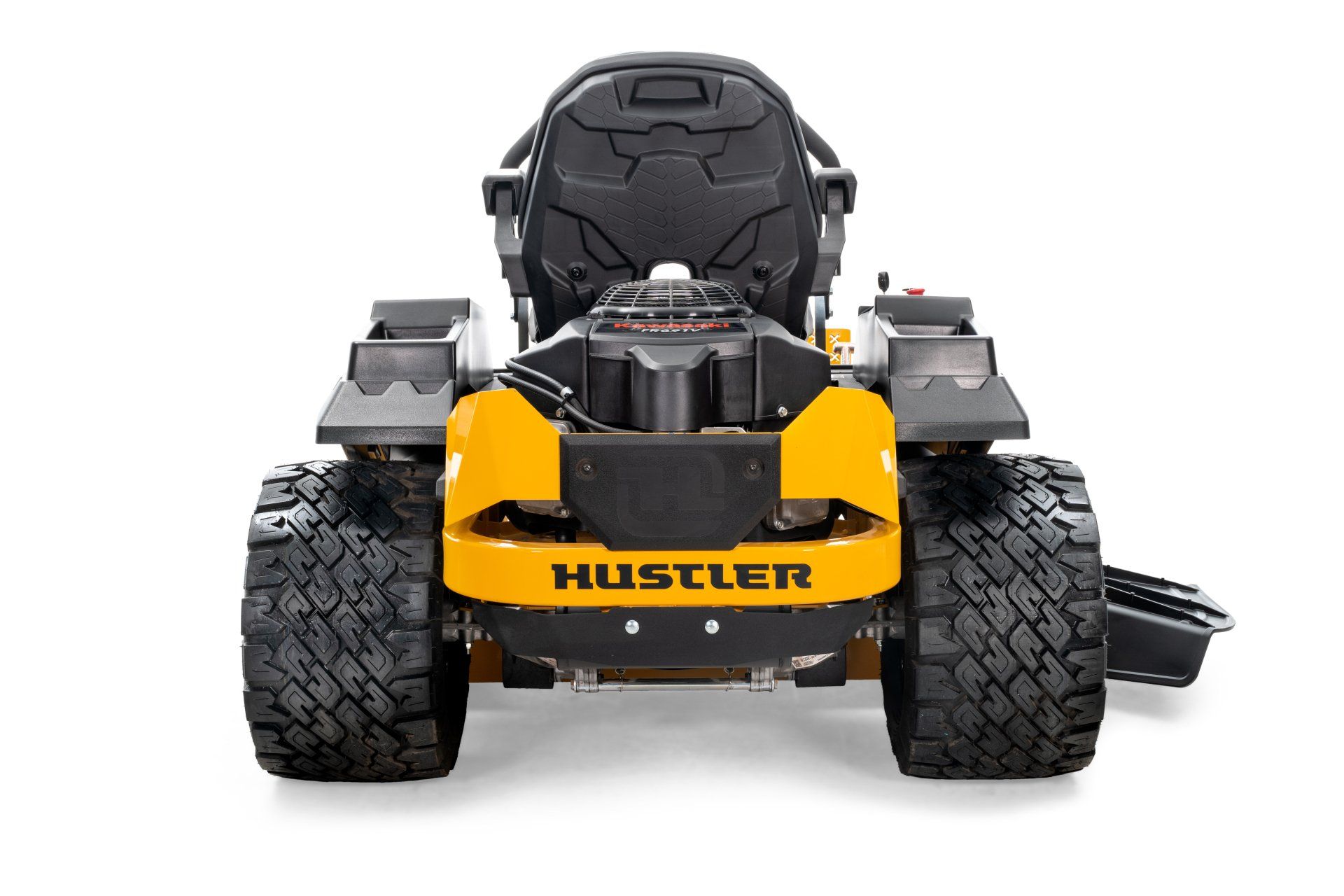

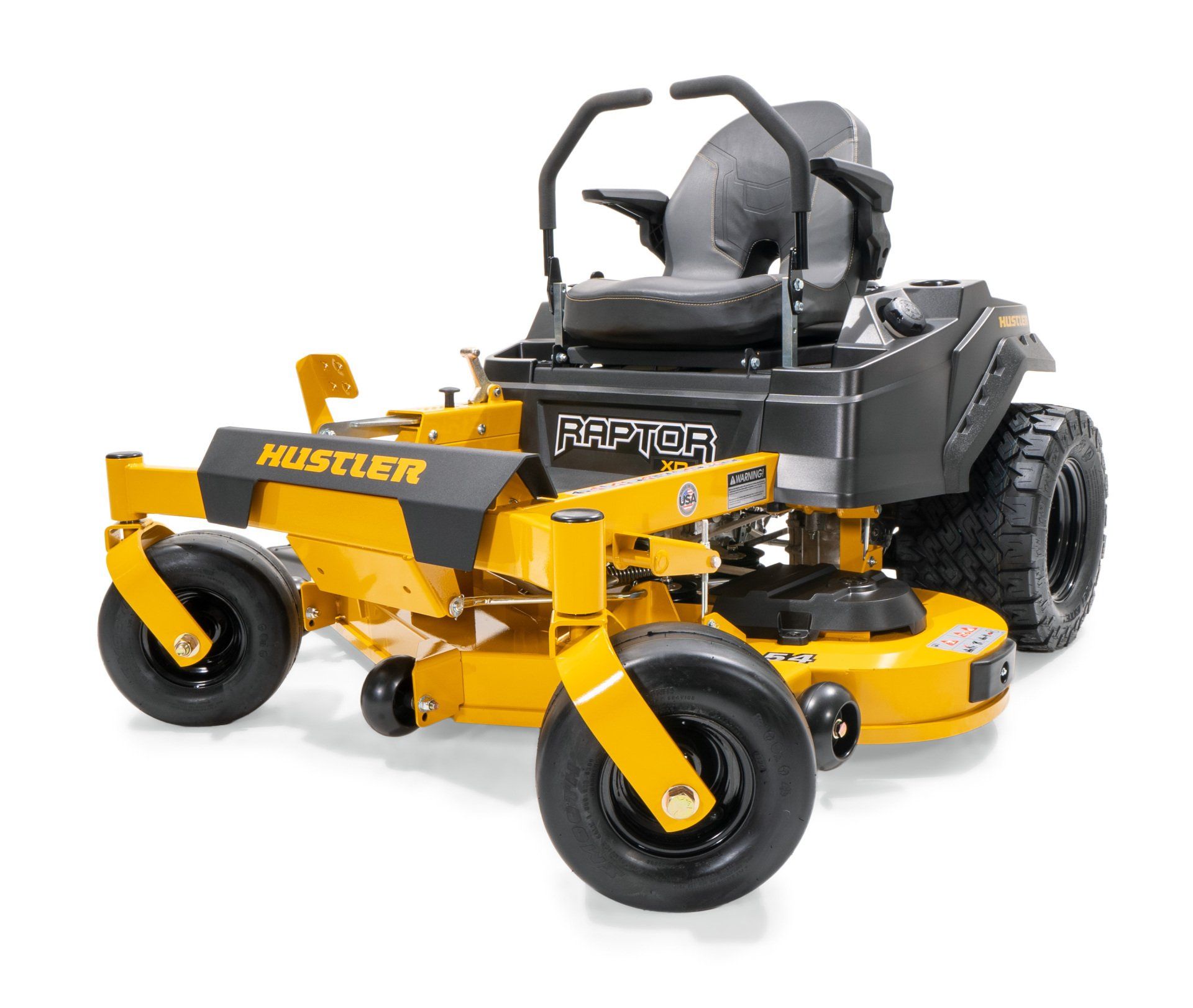

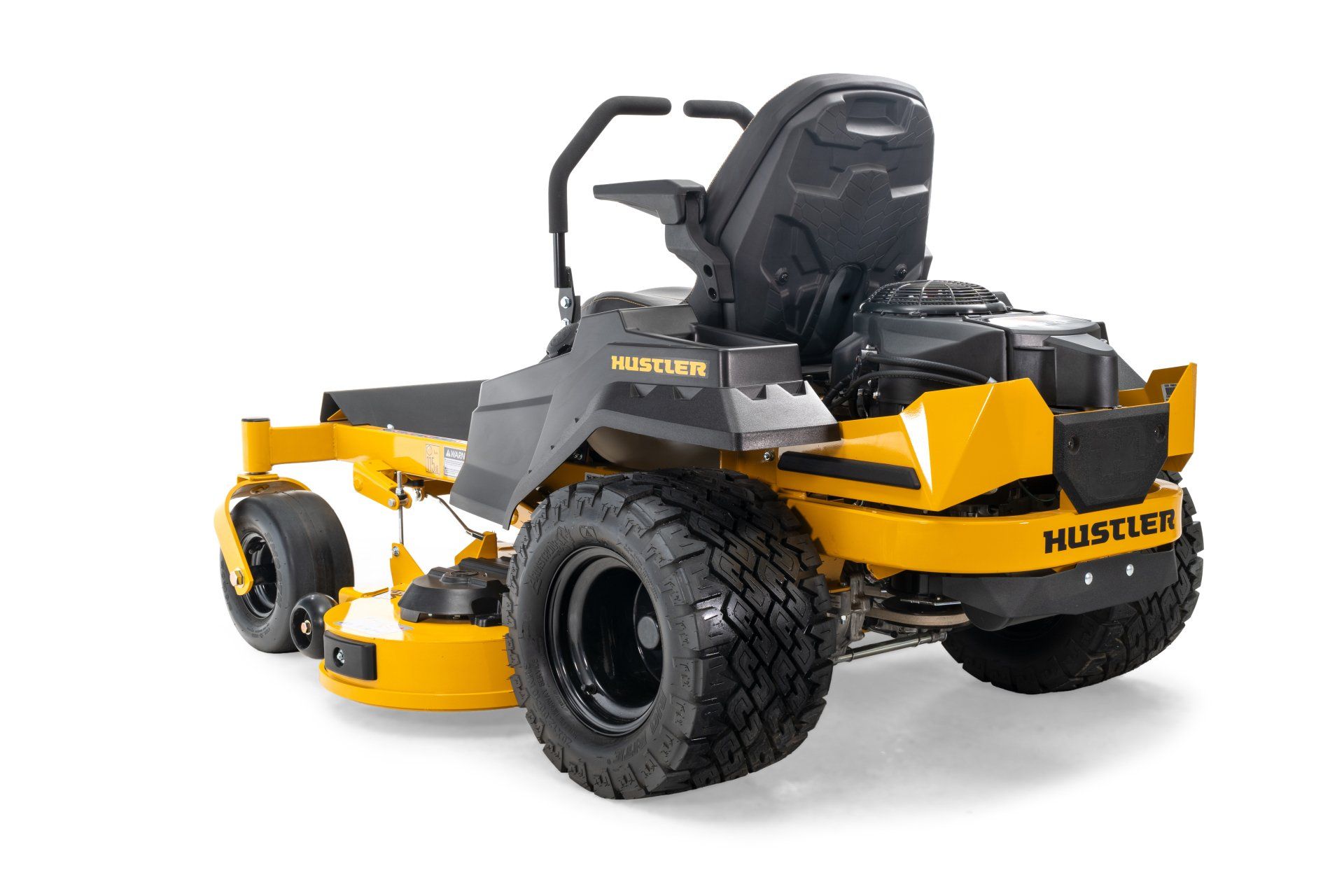

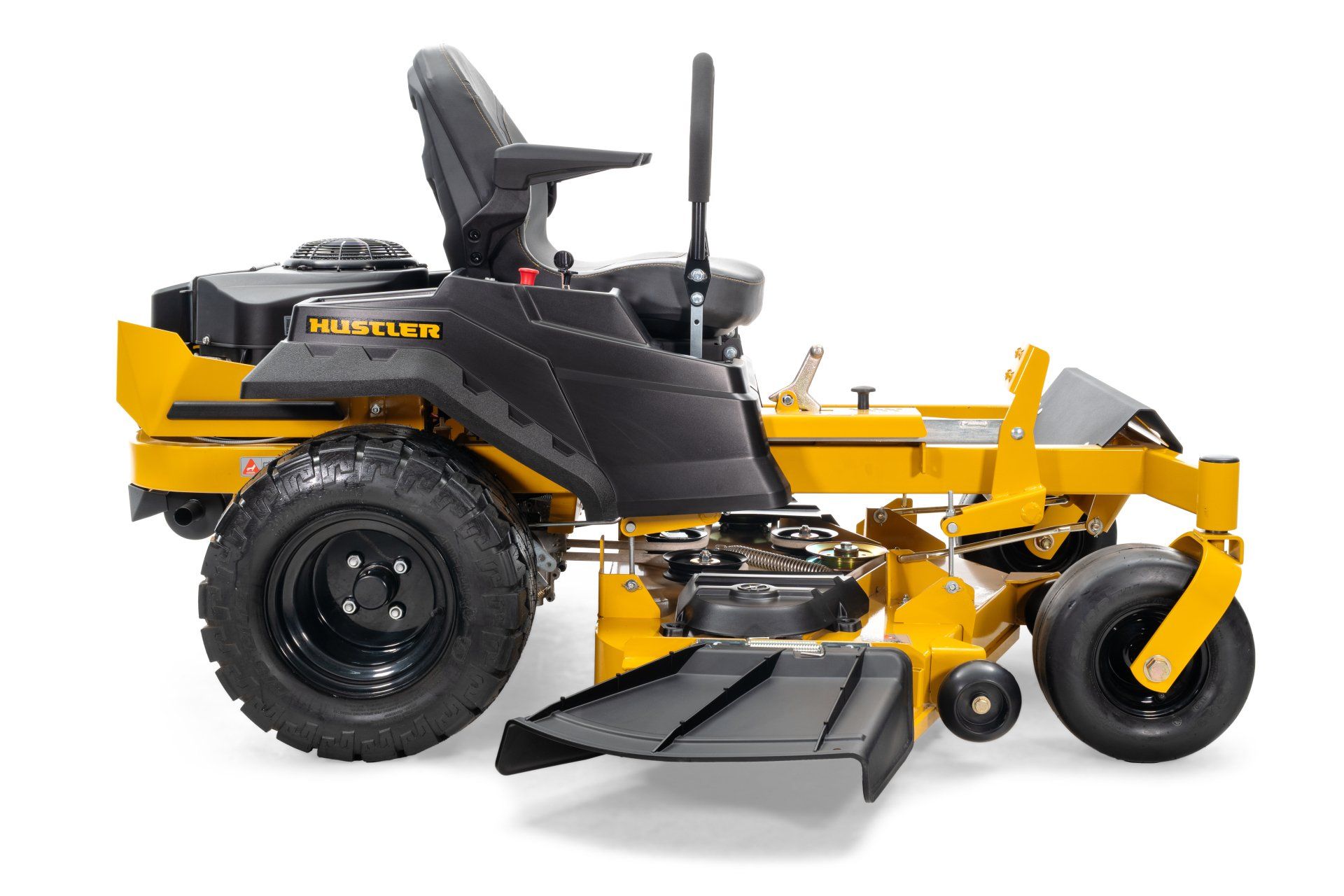

Raptor XD

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button
Overview

 * Premium Power - The V-Twin Kawasaki engine is the highest rated residential engine available
 * Exclusive BigBite Rear Tires - We worked directly with the tire manufacturer on this design. You will not find them anywhere else
 * Easy to Service - Flip-up seat pan, removeable floor pan, vented pulley covers
 * Foot Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5" with less effort than hand-operated levers found on other brands
 * Premium Residential Frame - Continuous one-piece 1-1/2"x 3" welded tubular frame not seen on any other residential mower. #1 in class
 * Welded Steel Deck - 11 ga. welded fabricated steel deck adds durability & extends mower's life 9compared to other brand's cheap stamped decks)
 * Wider Stance - Additional operator platform width provides more room & comfort for the operator
SmoothTrak Steering - Precision control to help trim & maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs
 * Premium Seat - Provides a comfortable ride with higher-back seat, added padding, armrests & added airflow to the back
 * Ideal for up to 3 Acre

Specifications
Deck Size 42" 48" 54" 60"
Availability OUT OF STOCK In Stock In Stock In Stock
Price $5,249 $5,349 $5,449 $5,649
Engine Manufacturer Kawasaki Kawasaki Kawasaki Kawasaki
Engine HP 23 HP - FR691 23 HP - FR691 23 HP - FR691 24 HP - FR730
Engine Displacement 726 cc 726 cc 726 cc 726 cc
Drive System Type Dual Hydrostatic Dual Hydrostatic Dual Hydrostatic Dual Hydrostatic
Transmission Hydro-Gear ZT2800 Hydro-Gear ZT2800 Hydro-Gear ZT2800 Hydro-Gear ZT2800
Speed Up to 7.5 MPH Up to 7.5 MPH Up to 7.5 MPH Up to 7.5 MPH
Parking Brake Patented automatic Patented automatic Patented automatic Patented automatic
Cutting Height 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5" 1.5" - 4.5"
Deck Lift Foot Operated Foot Operated Foot Operated Foot Operated
Deck Depth 4.5" 4.5" 4.5" 4.5"
Blades 2 3 3 3
Blade Length 20.50" 18.50" 16.50" 20.50"
Blade Tip Speed 18,400 18,500 18,800 18,300
Deck Spindles Aluminum with 1" shafts & double lip sealed ball bearings Aluminum with 1" shafts & double lip sealed ball bearings Aluminum with 1" shafts & double lip sealed ball bearings Aluminum with 1" shafts & double lip sealed ball bearings
Deck Drive Ogura GT1.5 Ogura GT1.5 Ogura GT1.5 Ogura GT1.5
Deck Construction Fabricated 11 ga. steel Fabricated 11 ga. steel Fabricated 11 ga. steel Fabricated 11 ga. steel
Deck Spindle Mounts Reinforced 7 ga. steel Reinforced 7 ga. steel Reinforced 7 ga. steel Reinforced 7 ga. steel
Impact/Trim Areas 3/8" x 1" steel bar 3/8" x 1" steel bar 3/8" x 1" steel bar 3/8" x 1" steel bar
Frame 1.5" x 3" steel tubing 1.5" x 3" steel tubing 1.5" x 3" steel tubing 1.5" x 3" steel tubing
Front Axle Fabricated with sealed ball bearings Fabricated with sealed ball bearings Fabricated with sealed ball bearings Fabricated with sealed ball bearings
Front Caster Wheels Sealed ball bearings Sealed ball bearings Sealed ball bearings Sealed ball bearings
Front Caster Forks Fabricated 3/8" steel Fabricated 3/8" steel Fabricated 3/8" steel Fabricated 3/8" steel
Seat Premium bolstered high-back seat with armrests & built-in lumbar suppor Premium bolstered high-back seat with armrests & built-in lumbar suppor Premium bolstered high-back seat with armrests & built-in lumbar suppor Premium bolstered high-back seat with armrests & built-in lumbar suppor
Fuel Capacity 3 gallons 3 gallons 3 gallons 3 gallons
Cupholder Yes Yes Yes Yes
Front Tire 13 x 5 13 x 6.5 13 x 6.5 13 x 6.5
Drive Tire 20 x 8 - 10 Big Bite 20 x 8 - 10 Big Bite 20 x 12 -12 Big Bite 20 x 12 -12 Big Bite
(continued) Deck Size 42" 48" 54" 60"
Weight 616 lbs 627 lbs 653 lbs 680 lbs
Height 43.7" 43.7" 43.7" 43.7"
Length 69.3" 69.3" 71.1" 71.1"
Width w/Chute Up 45.5"45.8" 52.5" 58.5" 64.4"
Tire Width 42" 42" 48.6" 48.6"
Trim Side 1" 4.5" 3.2" 7.2"
Acres per Hour (80% efficiency) 2.54 2.91 3.27 3.64
Warranty 3 Year 300 Hour 3 Year 300 Hour 3 Year 300 Hour 3 Year 300 Hour
